Source Directly & Save: SD25 Valves from the Factory Producer

Ohjausmenetelmä:Manuaalinen

Jakaja:1 kela

Nimellisvirtaus:240 L/min (63,4 US gpm)

Maksimipaine:315 baaria (4 600 psi)

Tuloportti:G1

Ulostuloportti:G1-1/4

Liitäntäkoko:G1

Tuotemerkki:BXHS

Tuotetyyppi:Suuntaventtiili

Tuotesarja:SD25-sarja Suuntaventtiili

Pakkauskoko:30*45*20

Bruttopaino:28.50 kg

Saatavuus: Varastossa

1168 Näkymät etsivät tätä tuotetta

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer

Source Directly & Save: SD25 Valves from the Factory Producer drawing image

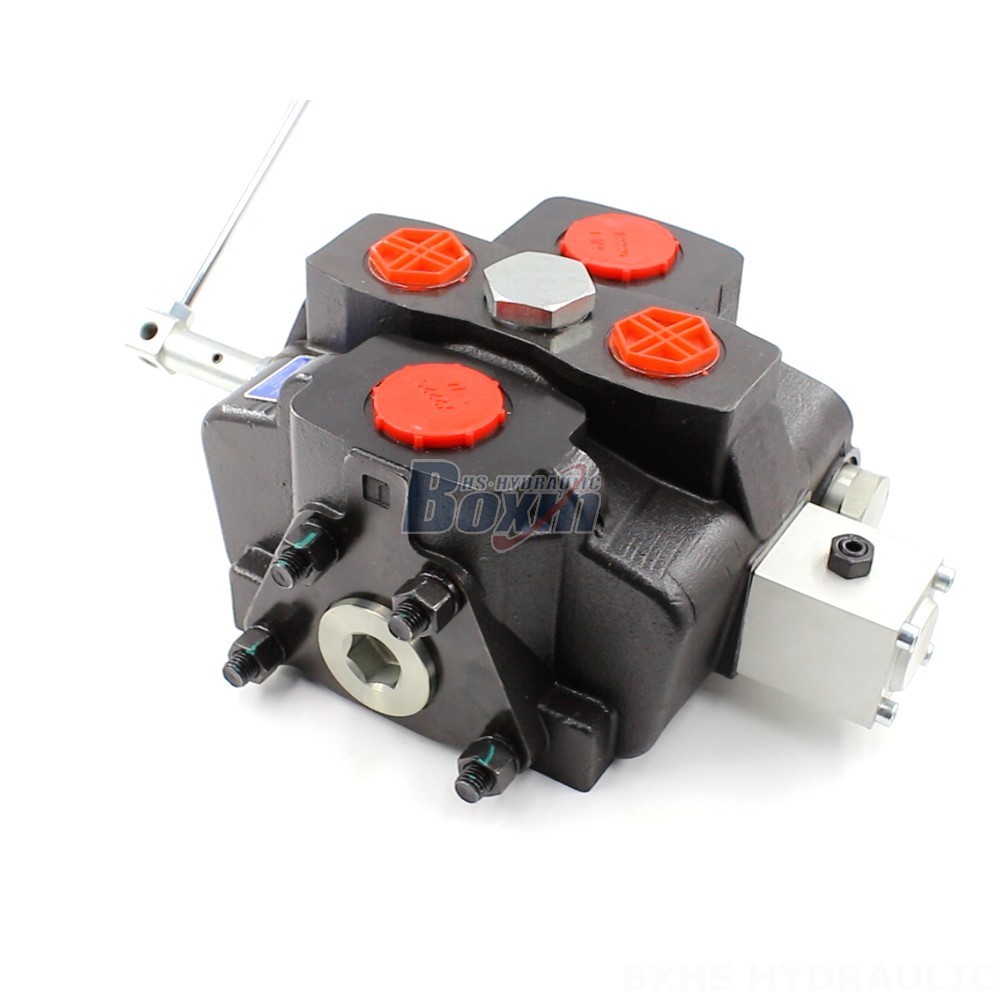

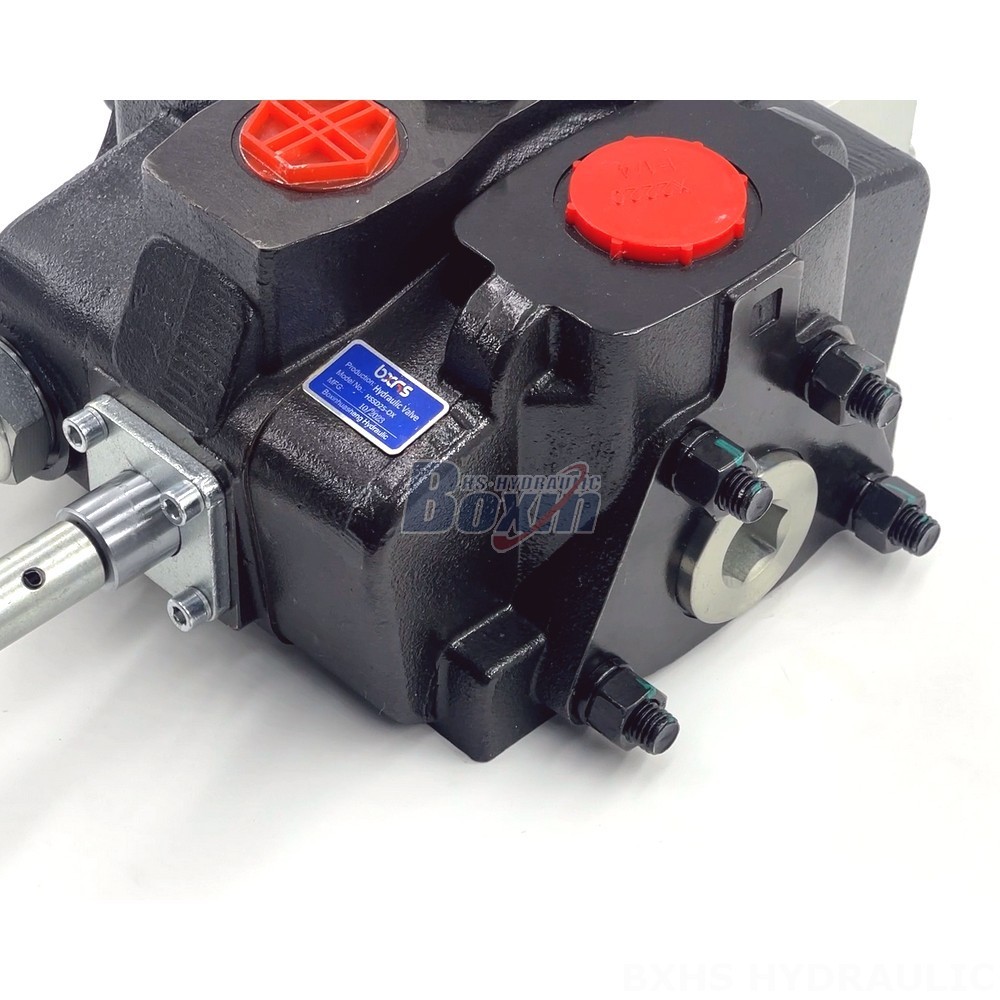

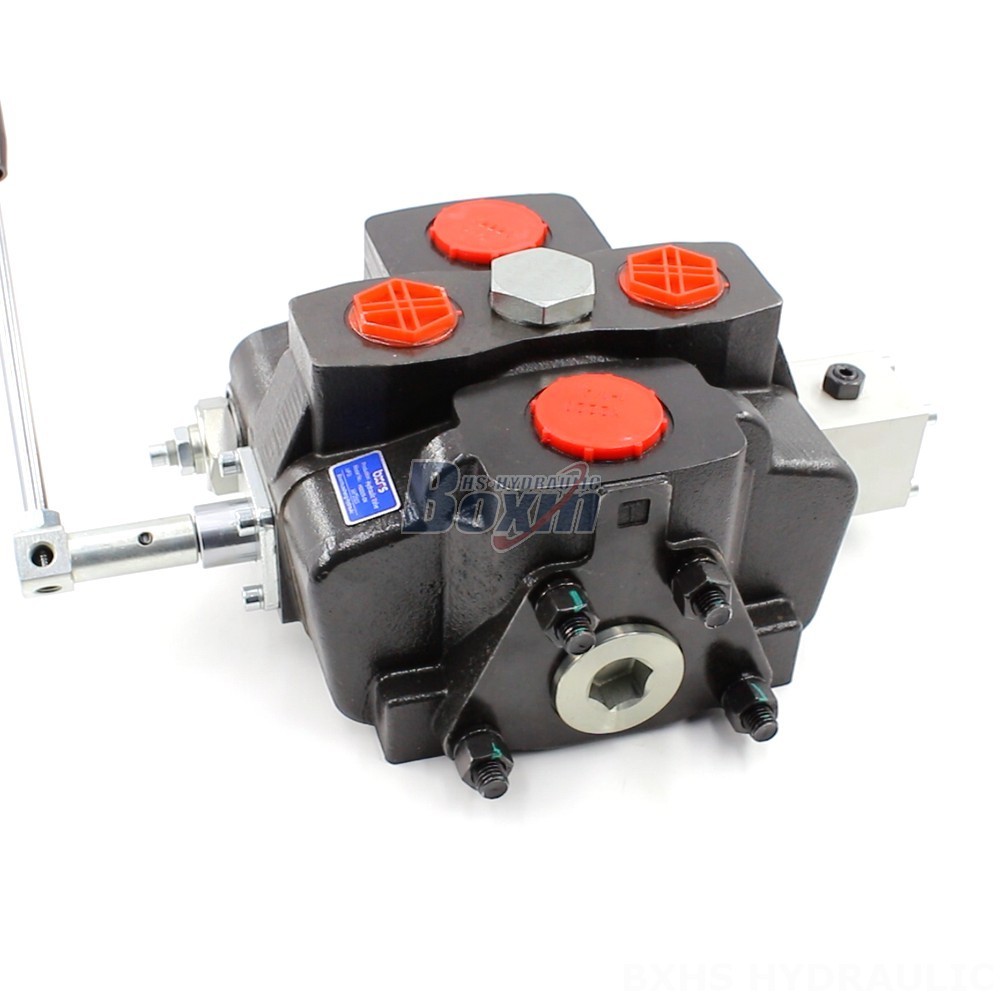

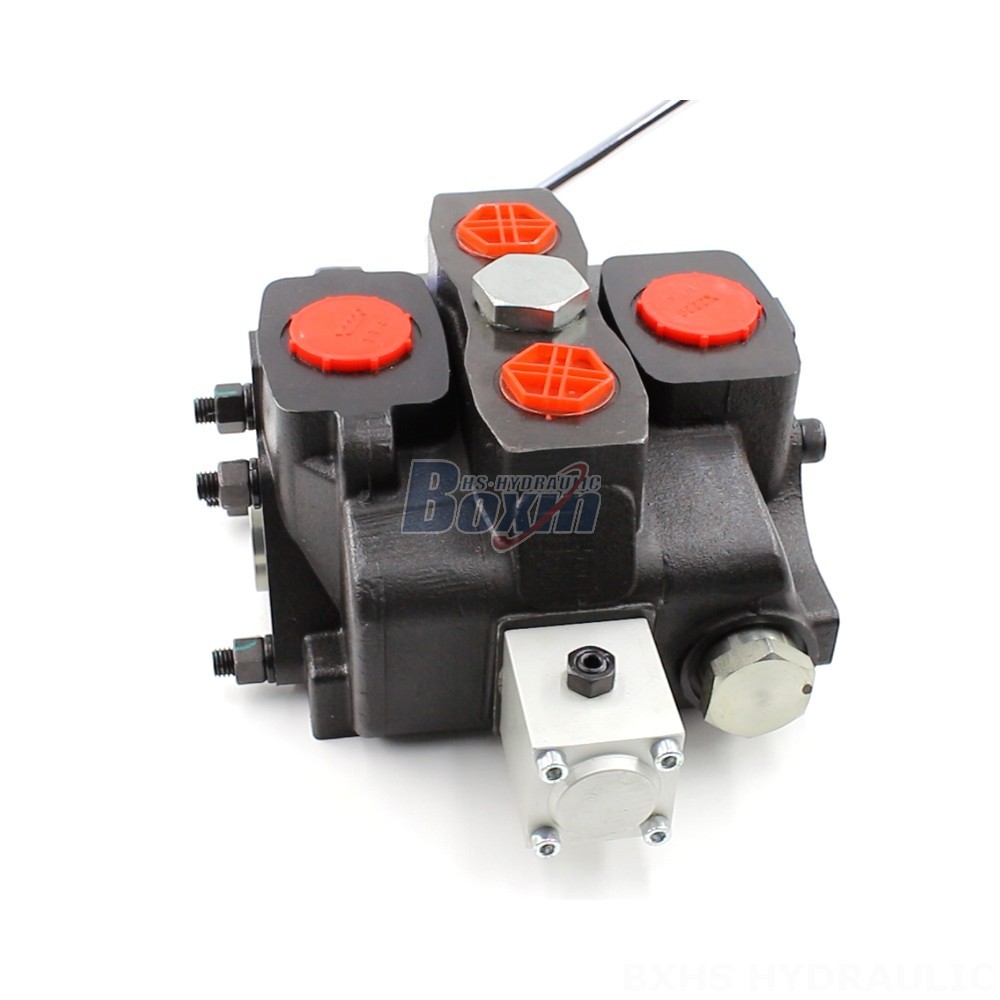

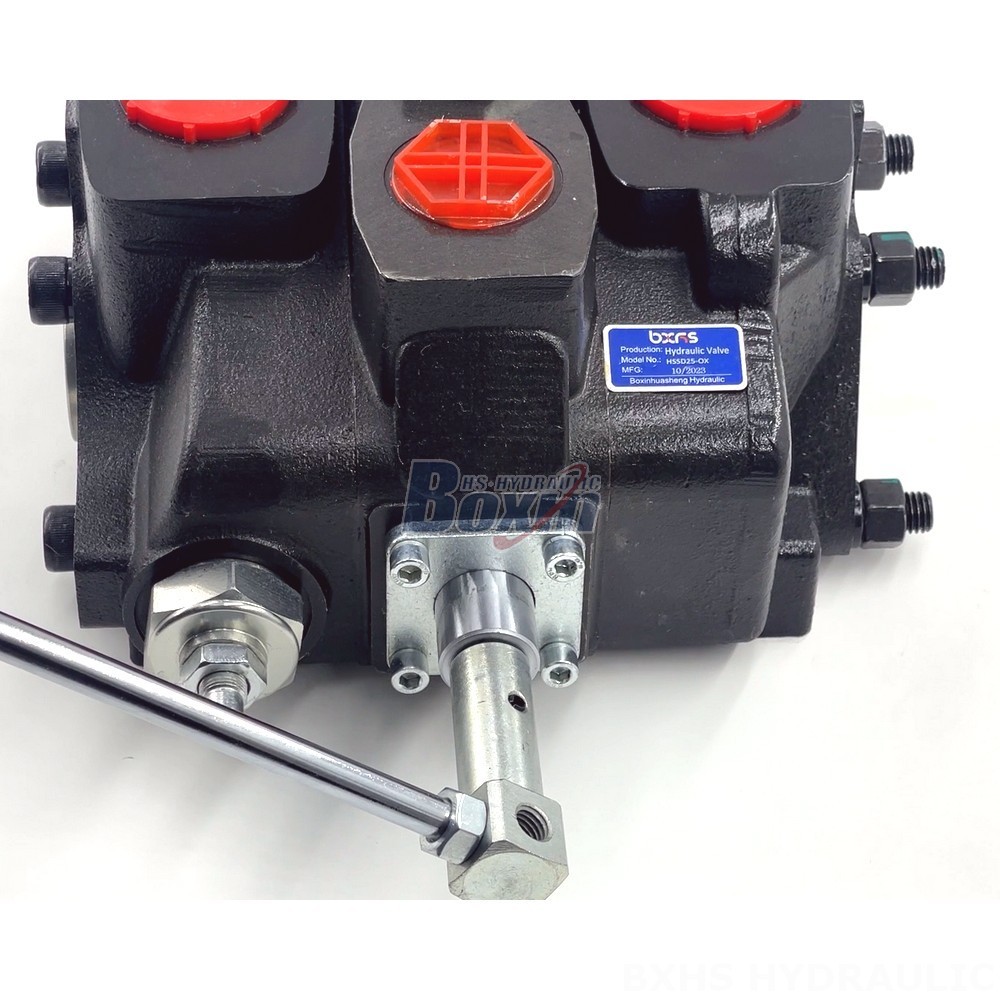

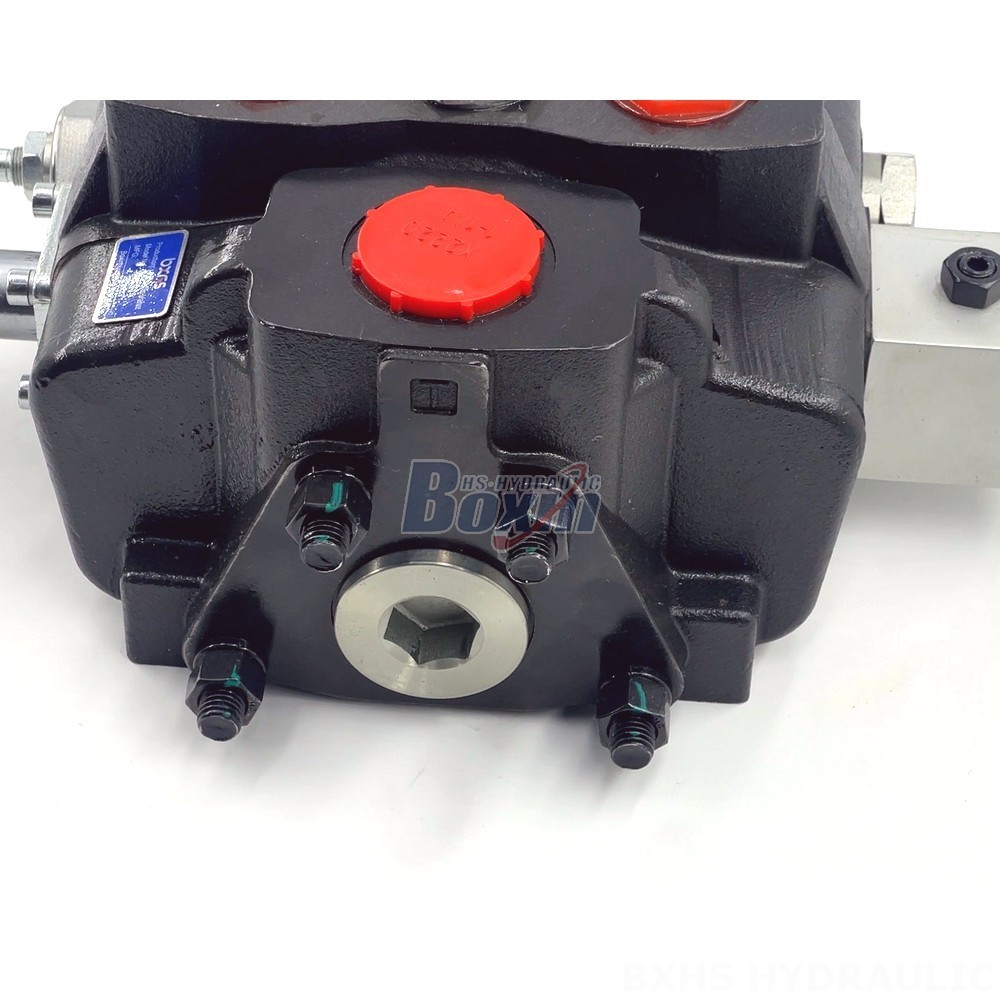

Our SD25 series two spool hydraulic control valve is a high-performance, reliable option for various applications, including construction equipment, material handling, agriculture, and industrial vehicles. This manual control valve offers a rated flow of 240 L/min (63.4 US gpm) and a max pressure of 315 bar (4600 psi). Designed for durability and efficiency, it is suitable for demanding environments.

SD25-sarja Suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Elektrohydraulinen, Hydraulinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Jaksoventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso
Käyttöviskositeettialue 12 - 400 mm²/s (12 cSt - 400 cSt)
Nimellisvirtaus 240 L/min (63,4 US gpm)
Maksimipaine 315 baaria (4 600 psi)
Tuloportti G1, SAE 16
Ulostuloportti G1-1/4, SAE 16
Liitäntäkoko G1, G1-1/4, SAE 12

The SD25 series two spool hydraulic control valve is a reliable and efficient solution for various applications. Manufactured directly from our factory, we offer wholesale pricing and direct supply, ensuring competitive pricing and high-quality products. This monoblock valve features manual control, a rated flow of 240 L/min (63.4 US gpm), and a maximum pressure of 315 bar (4600 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and is suitable for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Designed for various applications in material handling, construction and earth moving, agriculture, and industrial vehicles, this valve is perfect for telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Choose our SD25 series two spool hydraulic control valve for reliable performance and cost-effectiveness, directly from the factory.
