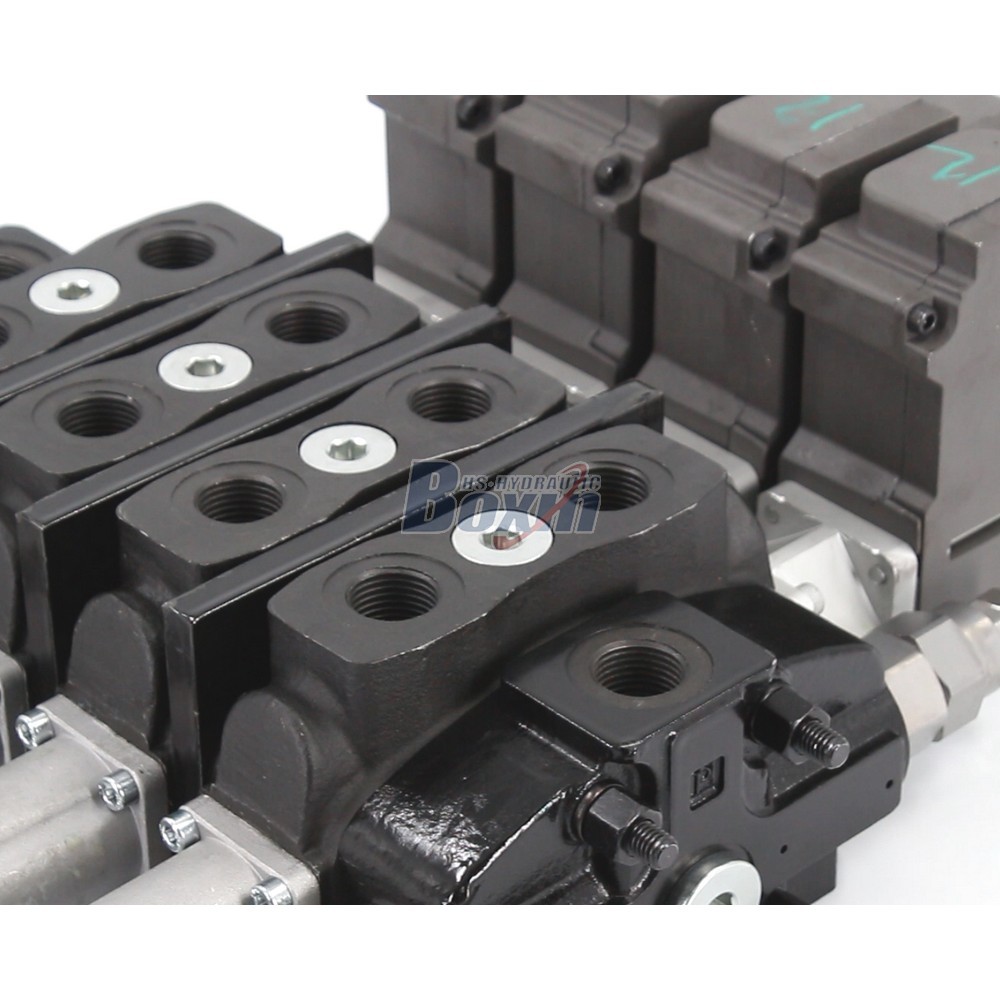

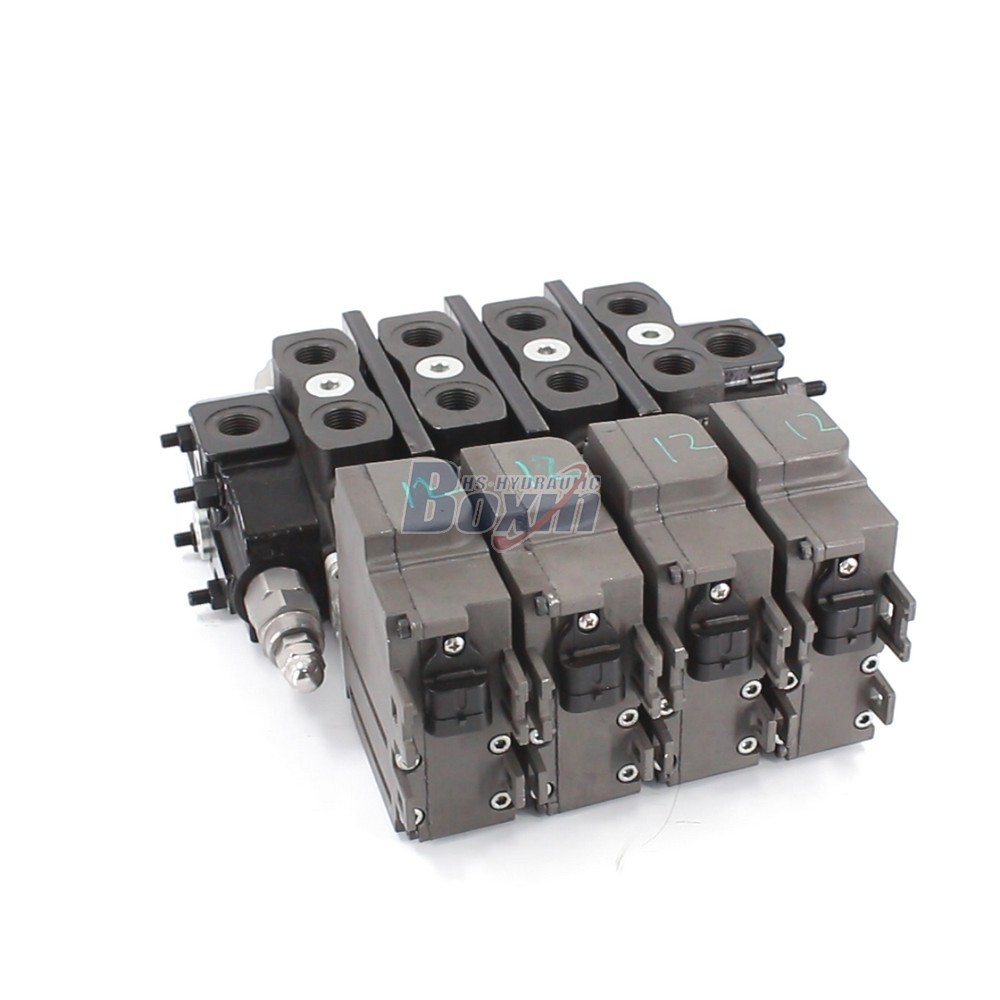

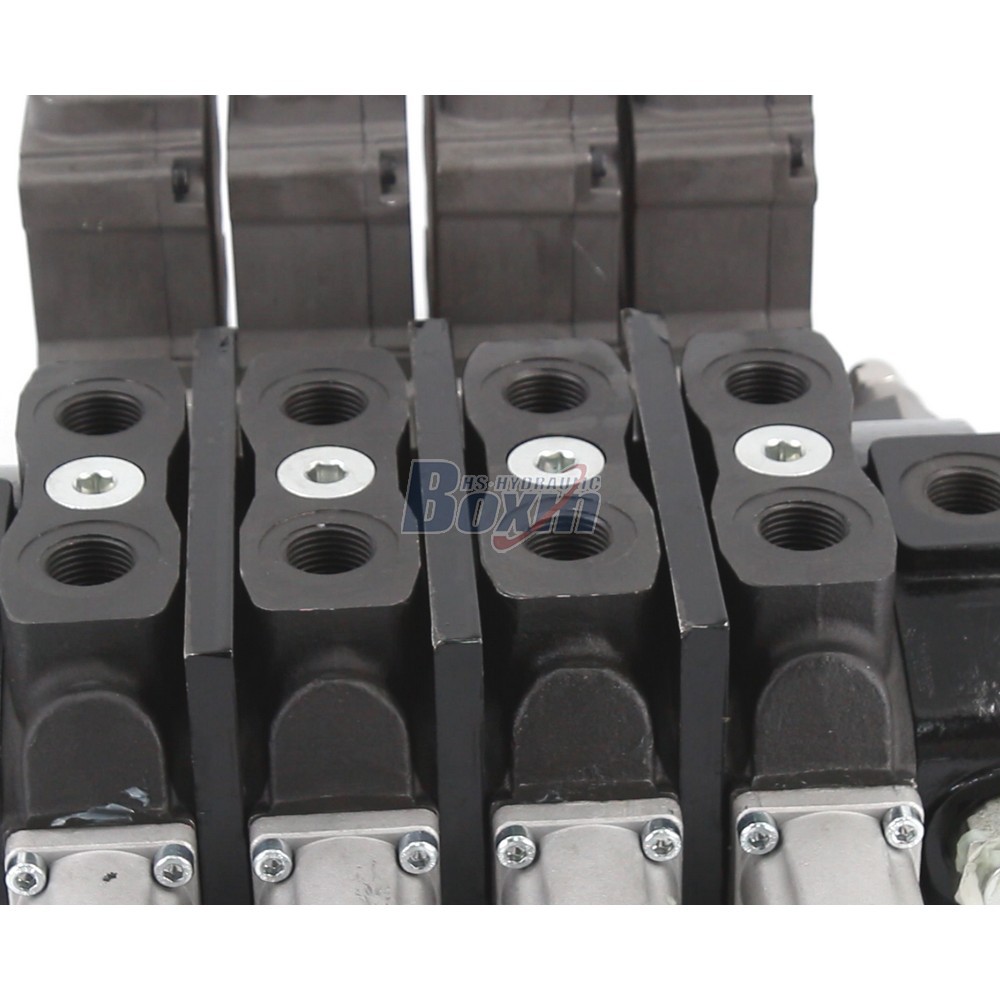

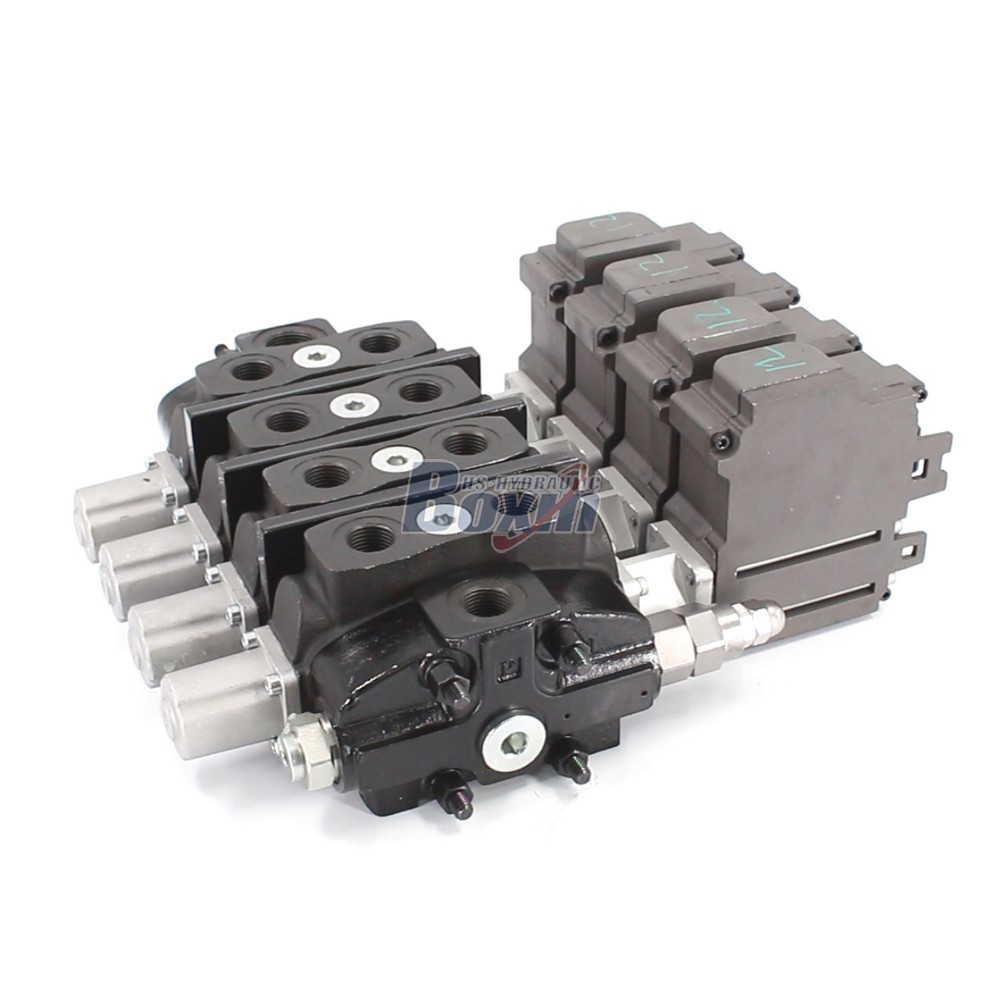

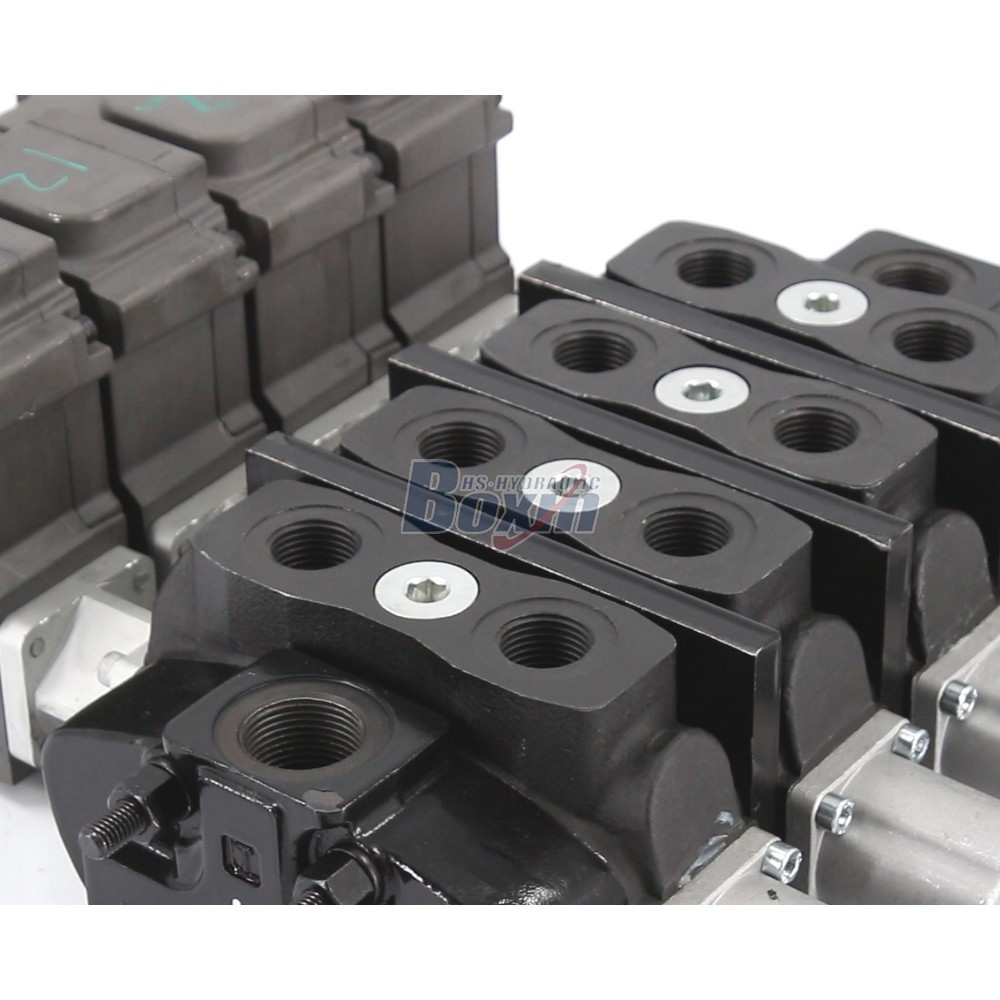

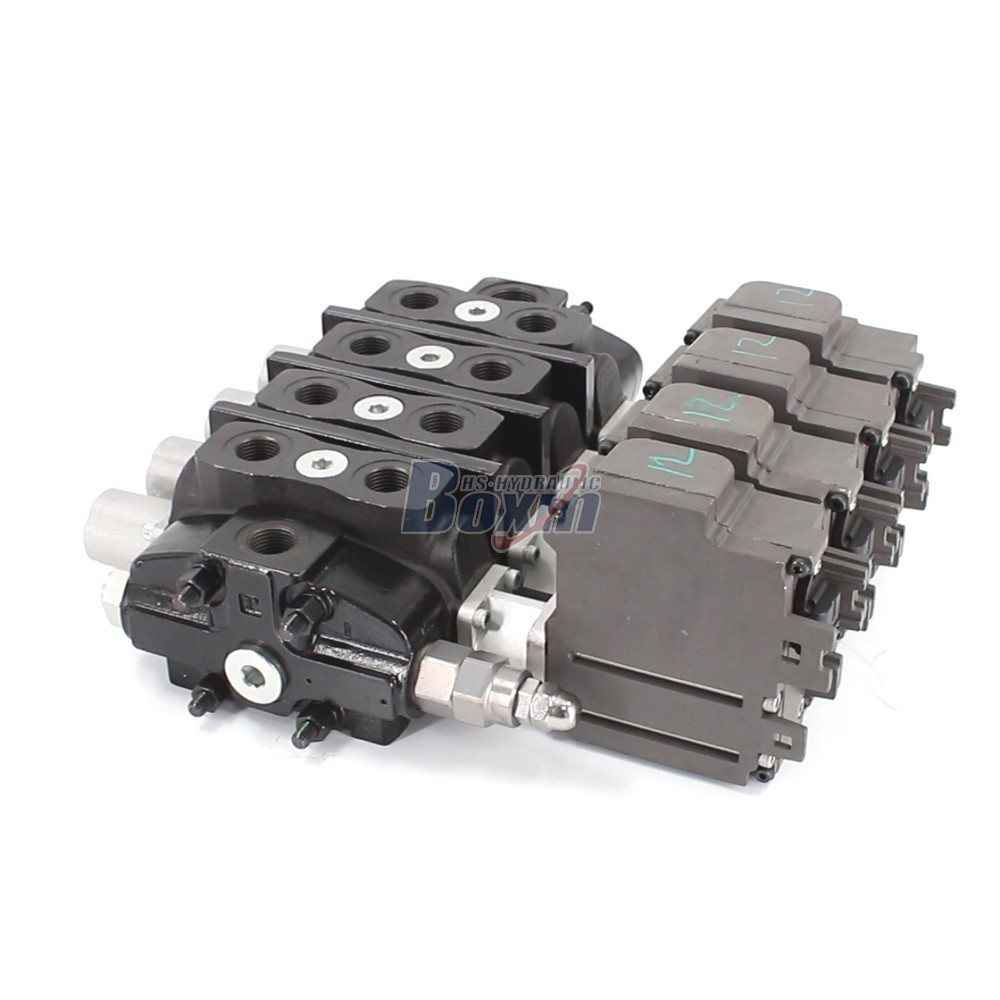

This SD8 Series Sectional Directional Valve features a 4-spool electric motor control design, handling 90 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| SD8-sarja Suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen, Sähkömoottori |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa, 8 kelaa, 9 kelaa, 10 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Jaksoventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso |
| Käyttöviskositeettialue | 12 - 400 mm²/s (12 cSt - 400 cSt) |
| Nimellisvirtaus | 90 L/min (23,8 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G1/2, G3/4, M22×1.5, SAE 10 |
| Ulostuloportti | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Liitäntäkoko | G1/2, M22×1.5, SAE 10 |
**1. High-Flow Sectional Directional Valve Specifications**
- Engineered for demanding applications with a rated flow of 90 L/min (23.8 US gpm) and a maximum working pressure of 315 bar (4600 psi).
- Features M22×1.5 inlet and M27×2.0 outlet ports, ensuring seamless integration into high-pressure hydraulic circuits for construction and industrial vehicles.
**2. Reliable Electric Hydraulic Valve Operation**
- Equipped with a precise electric motor control method for the 4-spool configuration, offering accurate and responsive directional control.
- Ideal for automation in material handling equipment like aerial platforms and wood splitters, reducing manual effort while enhancing operational safety.
**3. Versatile 4 Spool Directional Control Valve Applications**
- Specifically designed to fit mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
- The modular SD8 series structure allows for easy expansion or replacement, providing a cost-effective solution for maintaining diverse fleets of earth-moving machinery.
**4. Factory Direct Sales Quality Assurance**
- Produced in our 68,000 sqm facility with 260+ vertical machining centers, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Backed by IATF 16949 certification and CE compliance, our Wholesale China Factory ensures consistent quality with 25+ patents and SGS verified standards.
**5. OEM/ODM Available Customization Services**
- Leverage our 35+ senior engineers for tailored solutions, including custom castings, appearance modifications, and laser logo marking for your Private Label.
- As a leading Wholesale Hot Sale supplier since 2001, we offer robust packaging and global logistics support, making us the preferred partner for distributors seeking stable supply chains.
