Sectional Type SD8 Manual 4 Spool Directional Valve

Ohjausmenetelmä:Manuaalinen

Jakaja:4 kelaa

Nimellisvirtaus:90 L/min (23,8 US gpm)

Maksimipaine:315 baaria (4 600 psi)

Tuloportti:G1/2

Ulostuloportti:G3/4

Liitäntäkoko:G1/2

Tuotemerkki:BXHS

Tuotetyyppi:Suuntaventtiili

Tuotesarja:SD8-sarja Suuntaventtiili

Pakkauskoko:32*36*16

Bruttopaino:18.00 kg

Saatavuus: Varastossa

105 Näkymät etsivät tätä tuotetta

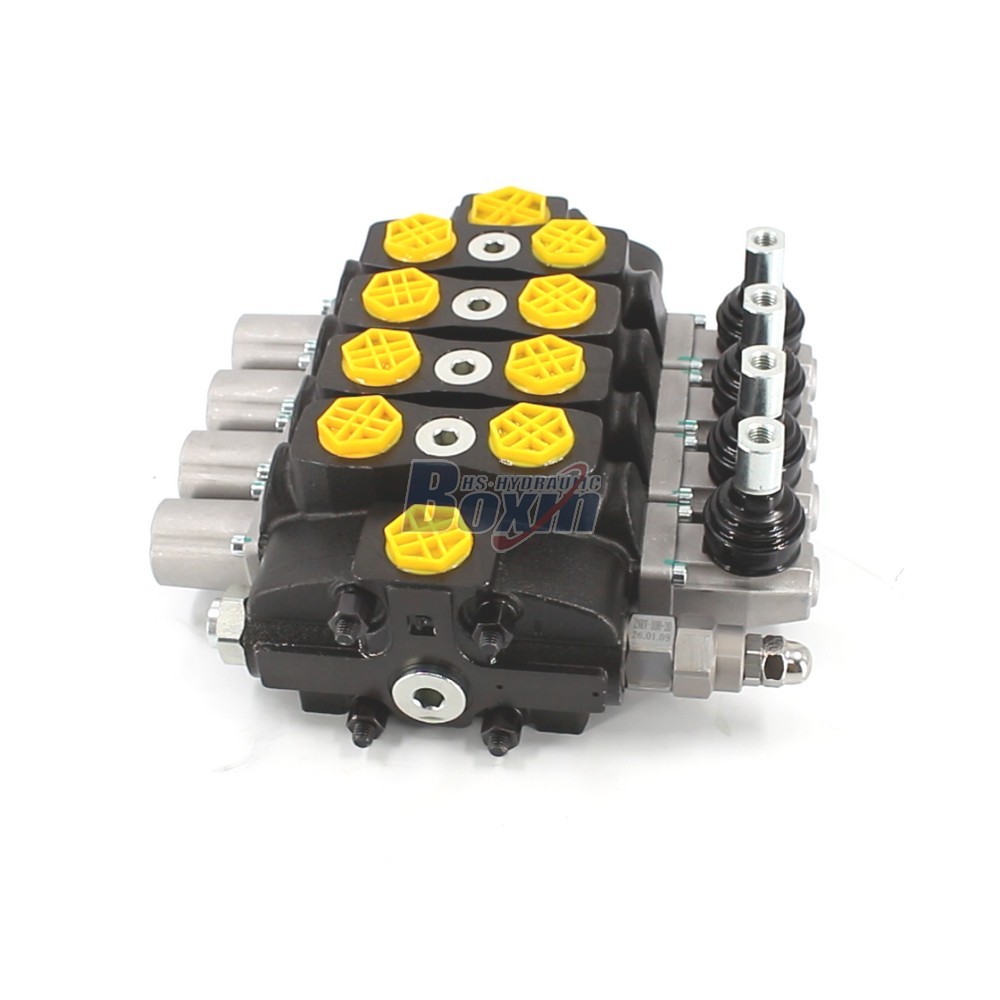

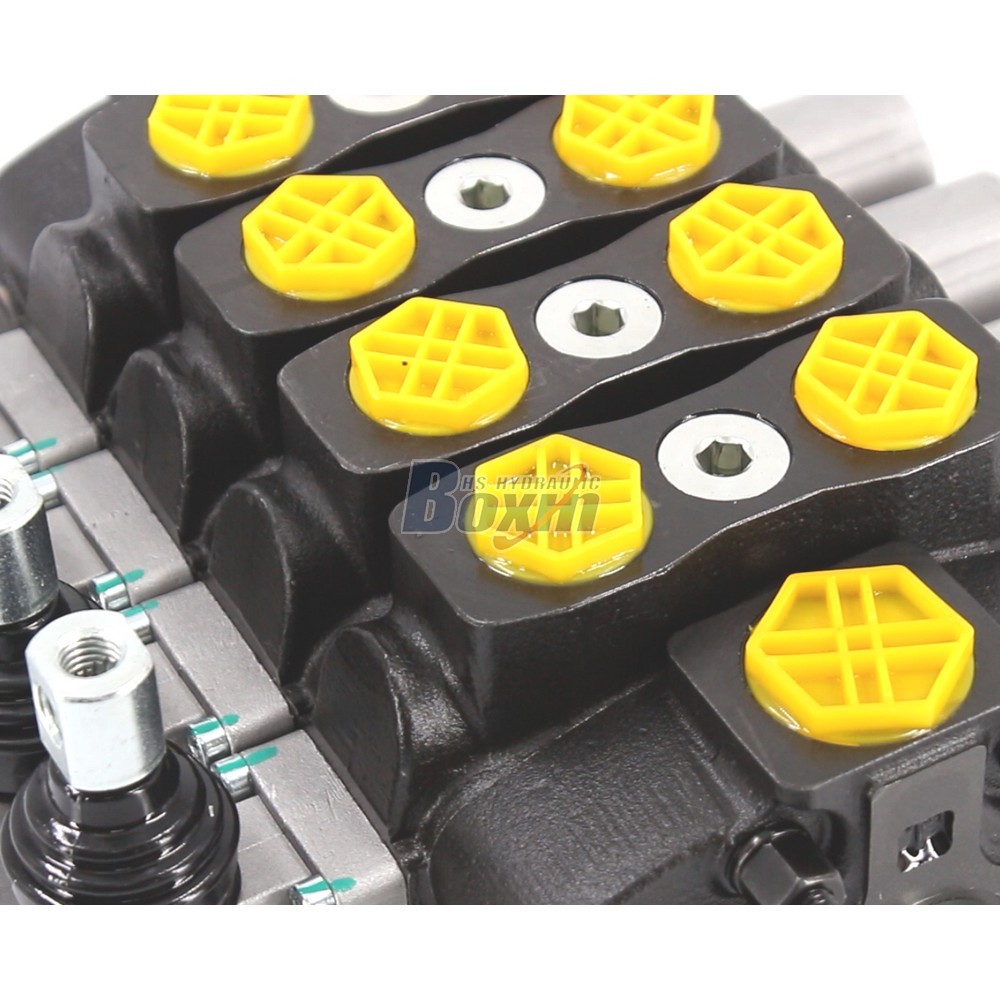

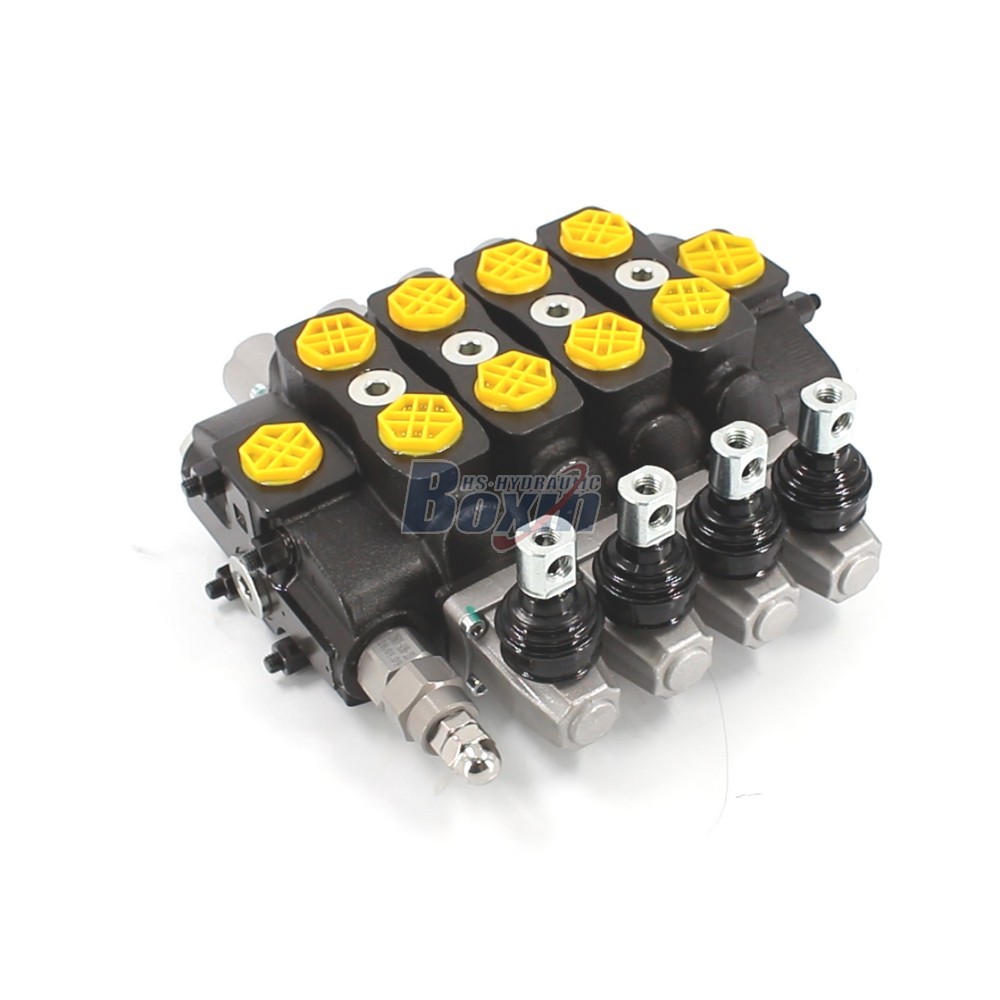

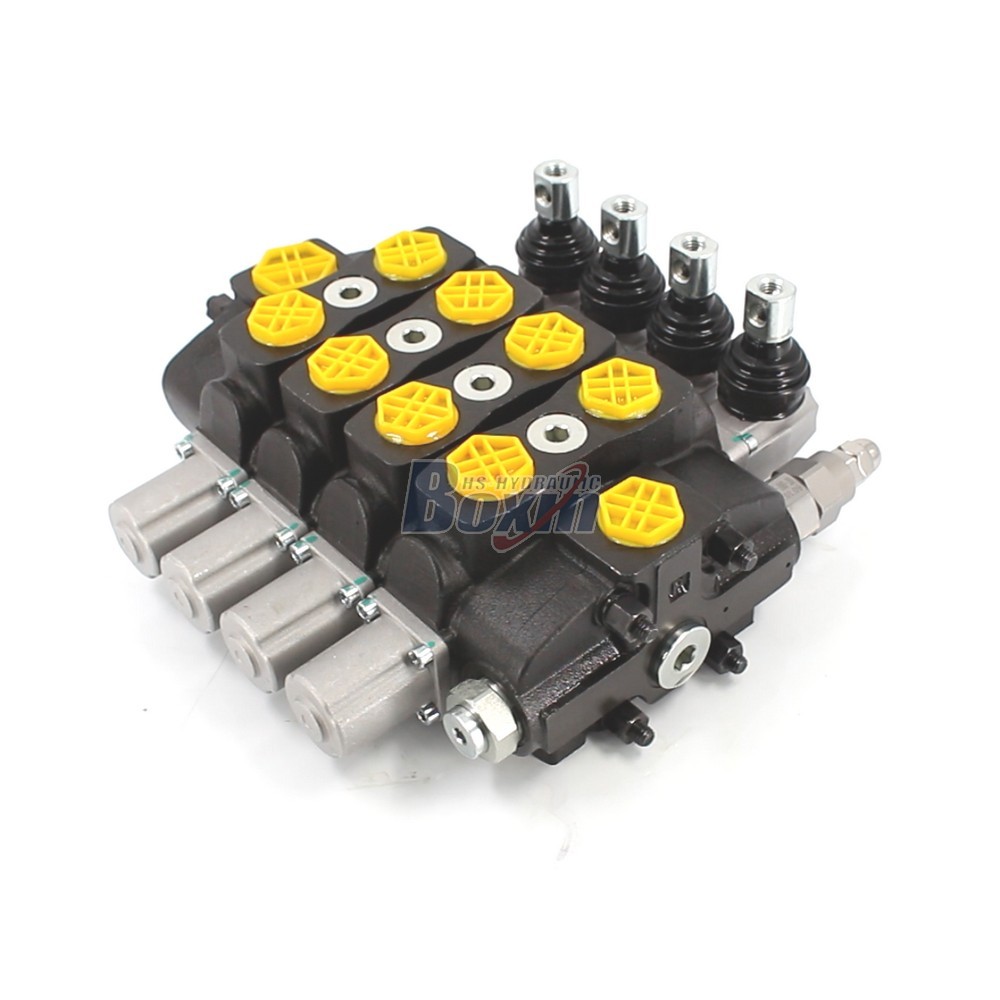

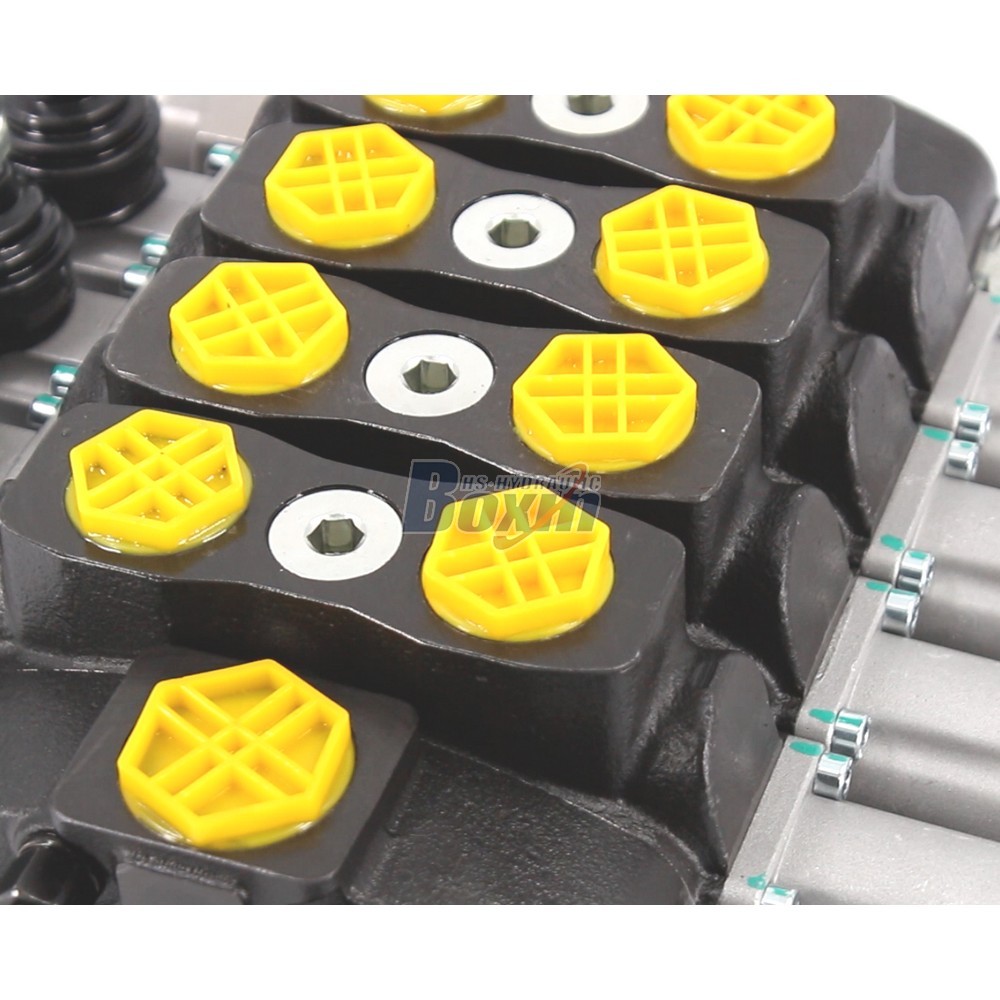

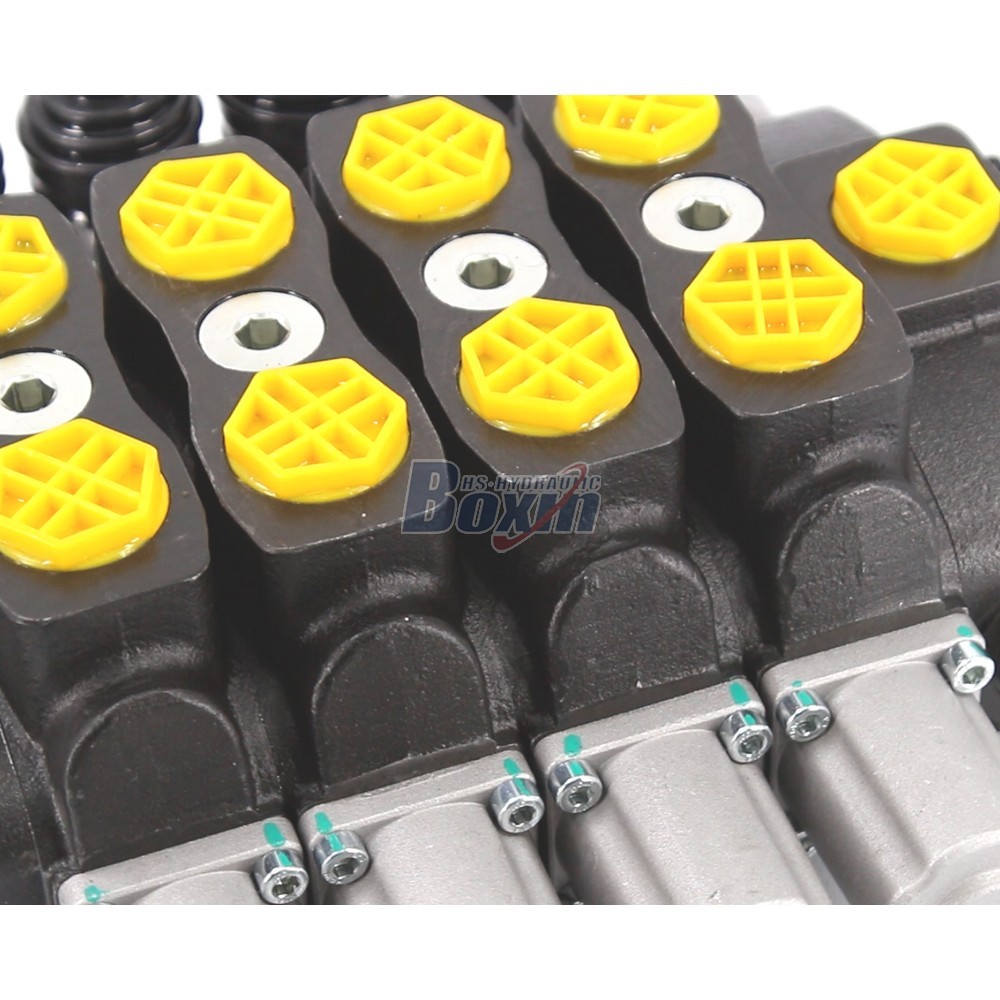

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve drawing image

The SD8 Series 4-spool manual sectional directional valve is a high-performance hydraulic solution designed for flow rates up to 80 L/min and pressures up to 315 bar. This versatile valve offers precise manual control for a wide range of mobile and industrial applications, including construction, agriculture, and material handling equipment.

SD8-sarja Suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa, 8 kelaa, 9 kelaa, 10 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Jaksoventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso
Käyttöviskositeettialue 12 - 400 mm²/s (12 cSt - 400 cSt)
Nimellisvirtaus 90 L/min (23,8 US gpm)
Maksimipaine 315 baaria (4 600 psi)
Tuloportti G1/2, G3/4, SAE 10
Ulostuloportti G1/2, G3/4, SAE 10, 3/4 NPT
Liitäntäkoko G1/2, SAE 10

As a leading manufacturer of hydraulic solutions, we offer the SD8 Series Sectional Type Manual 4 Spool Directional Valve, engineered for demanding environments. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 315 bar (4600 psi), making it ideal for machinery such as forklifts, skid steer loaders, mini-excavators, and tractors. The sectional design provides flexible configuration, while G1/2 inlet and G3/4 outlet ports ensure standard connectivity. We specialize in factory-direct supply, providing extensive OEM, ODM, and custom branding (Private Label) services to meet specific technical requirements. Our facility is equipped for large-scale production, supporting wholesale orders with competitive pricing. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need a reliable supplier for forestry wood splitters or complex aerial platforms, our factory provides the expertise and manufacturing capacity to support your business growth.
