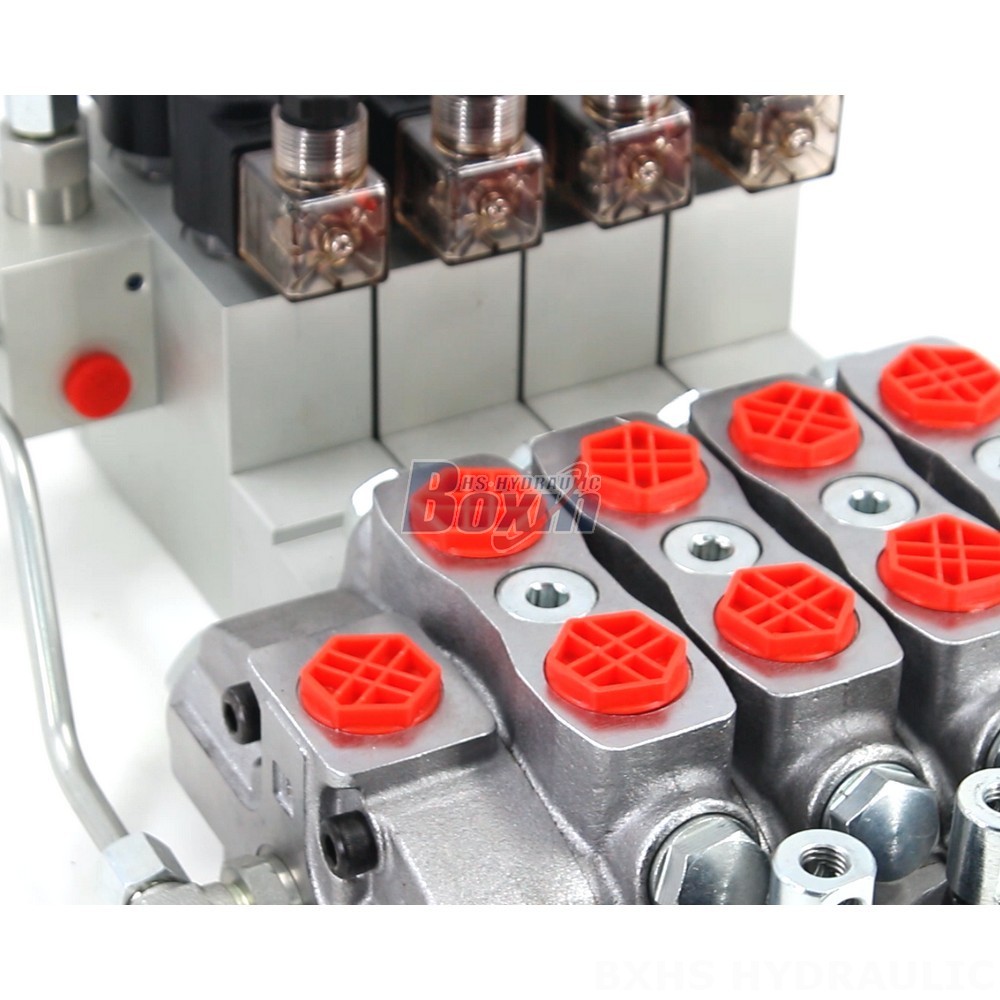

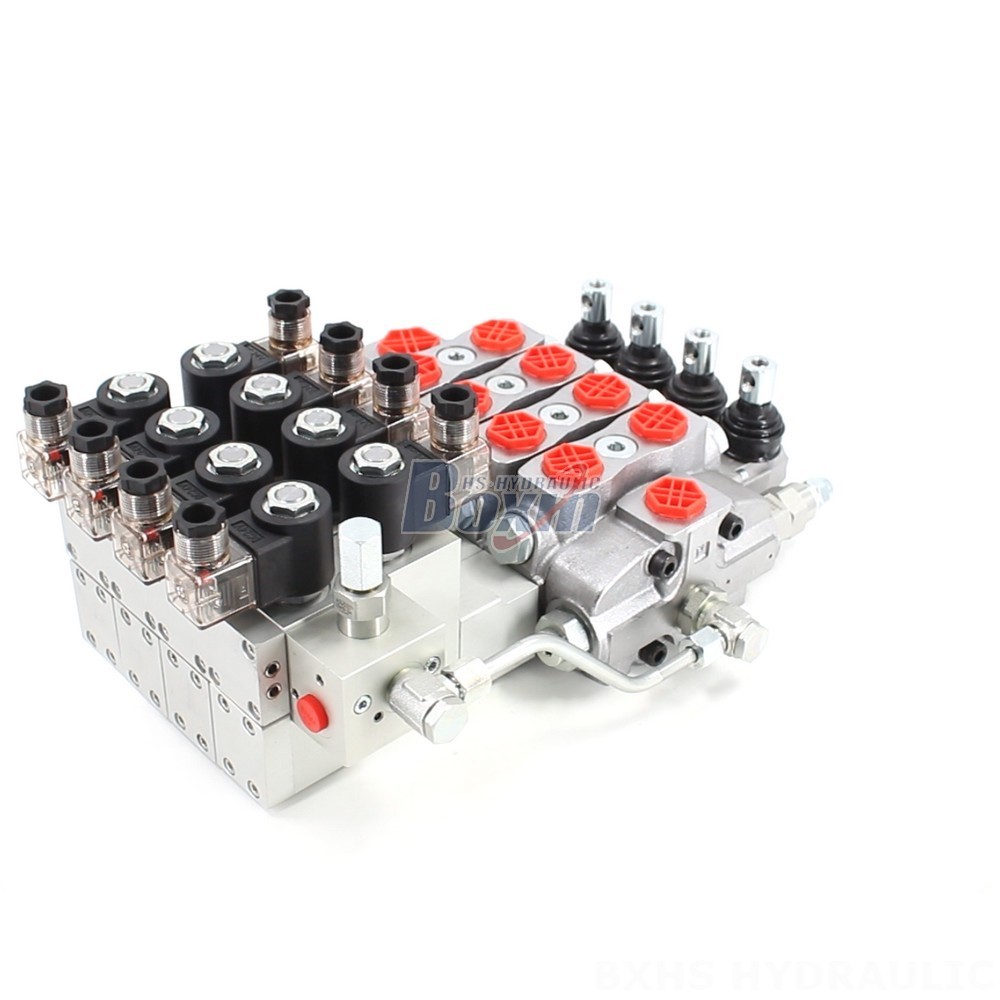

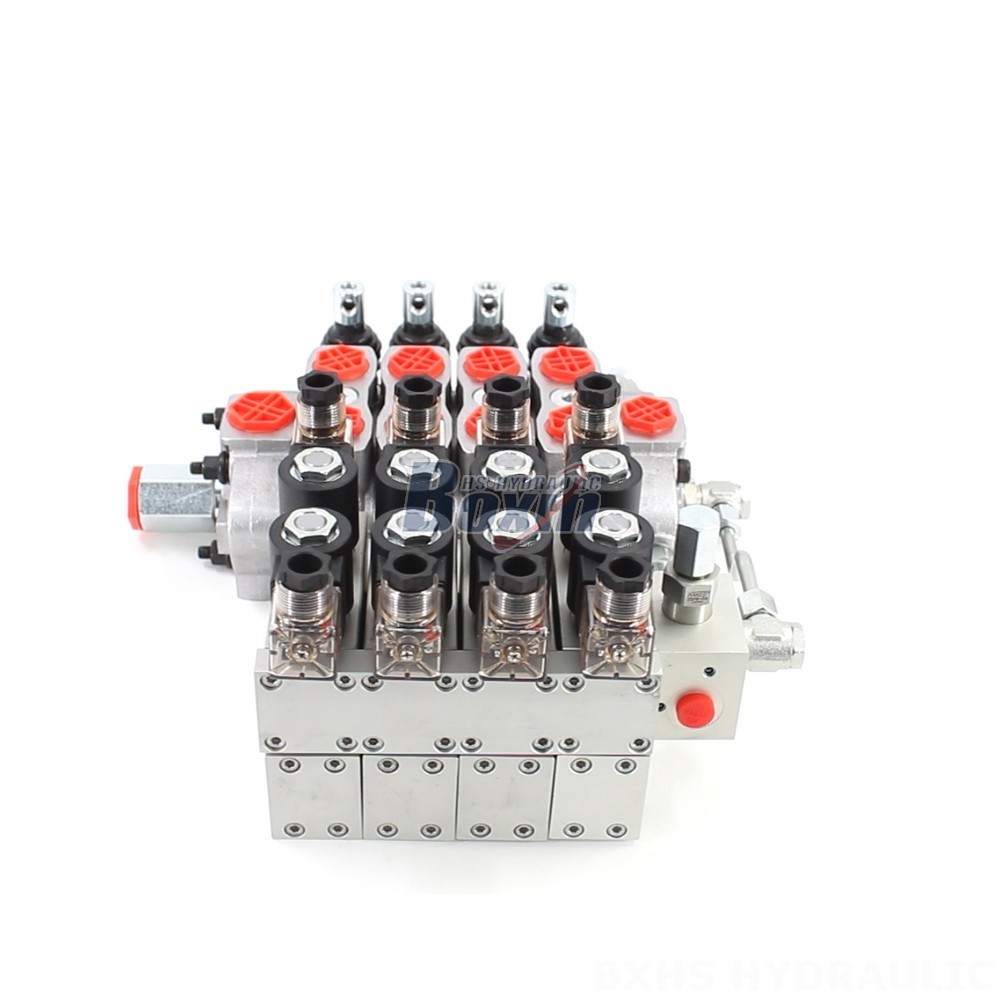

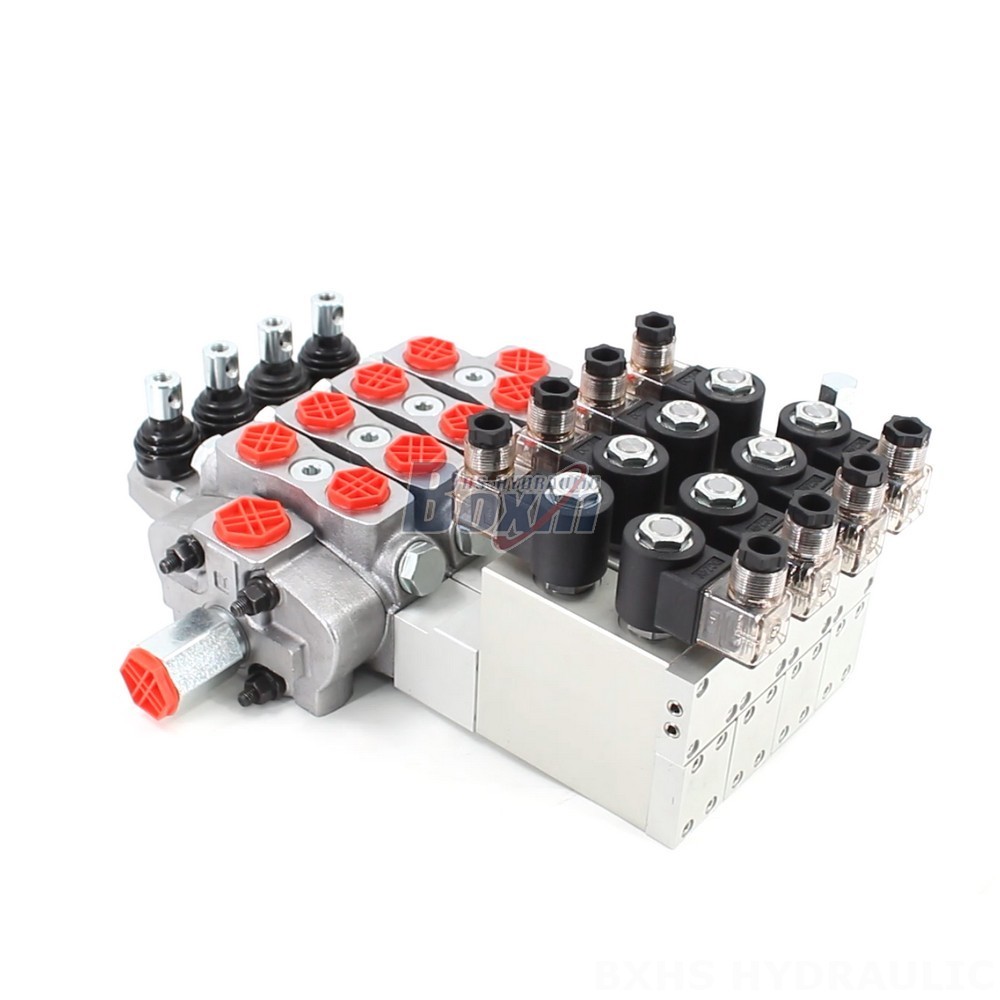

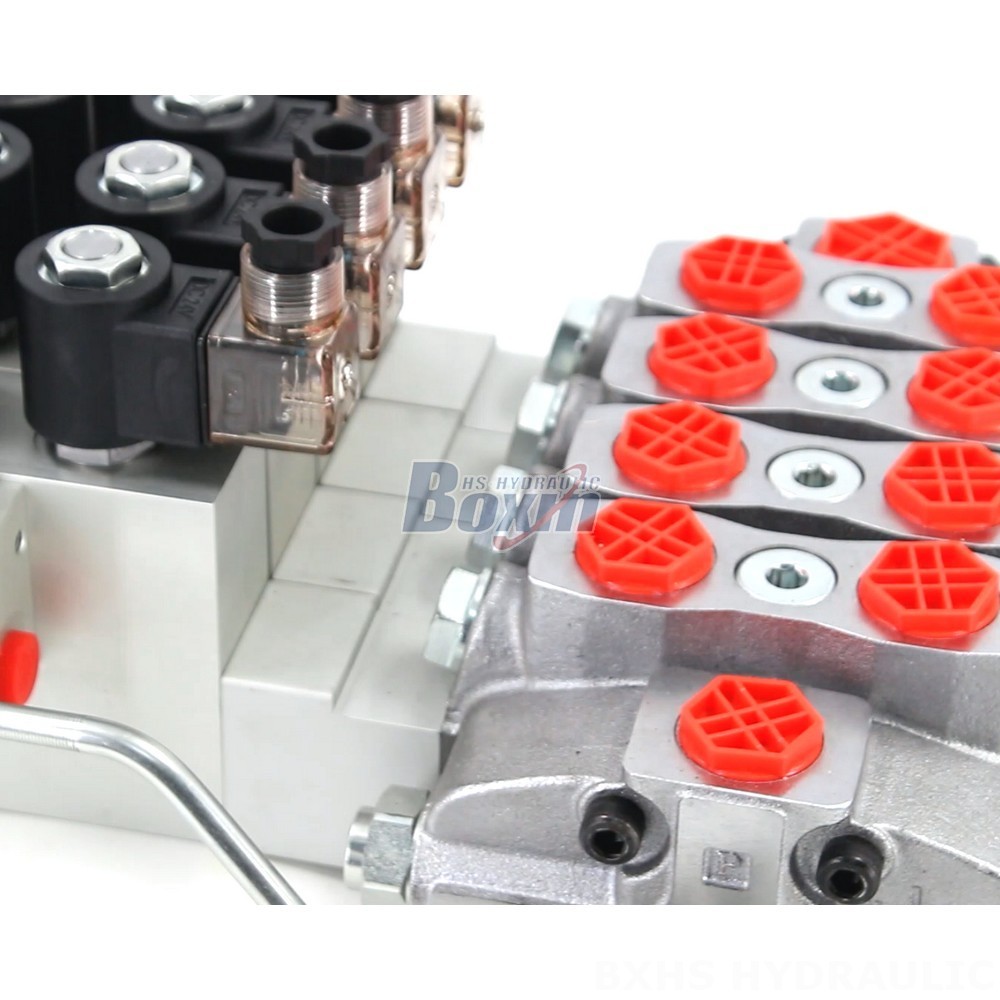

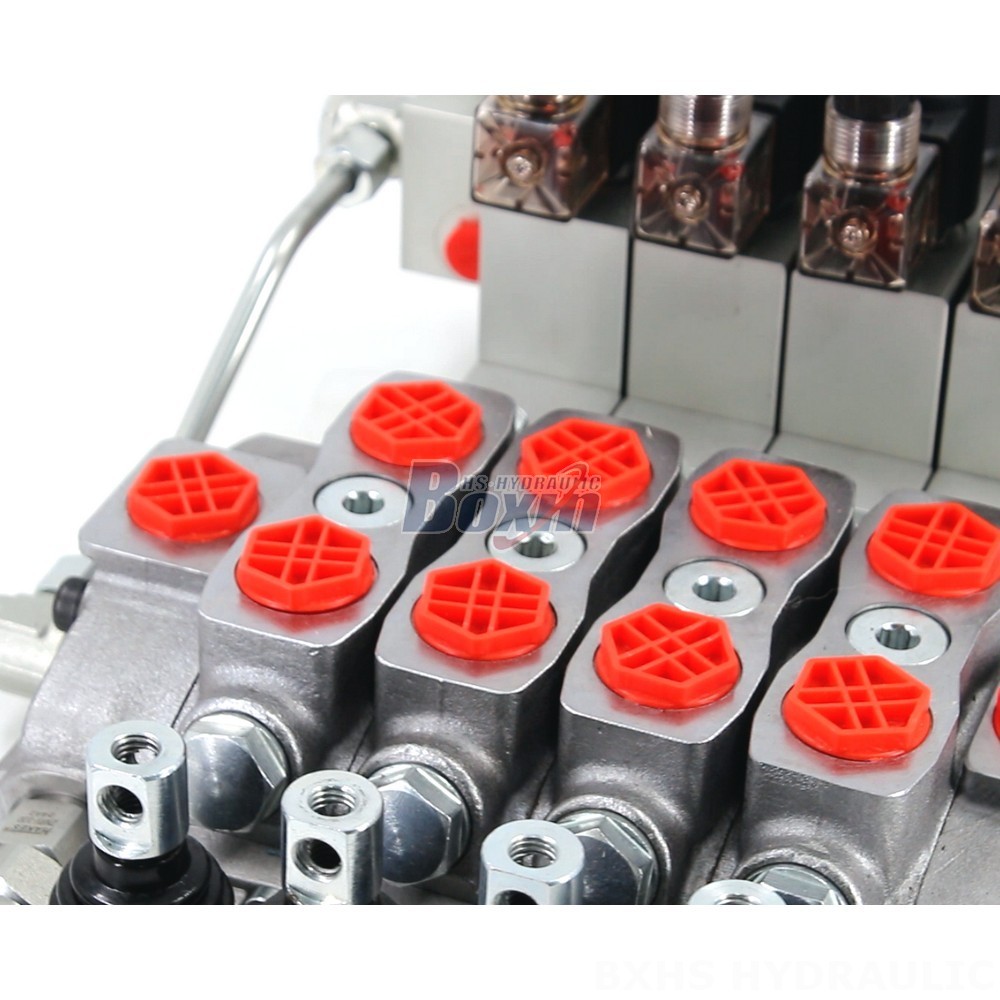

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

Ohjausmenetelmä:Elektrohydraulinen

Jakaja:4 kelaa

Nimellisvirtaus:90 L/min (23,8 US gpm)

Maksimipaine:315 baaria (4 600 psi)

Tuloportti:G1/2

Ulostuloportti:G3/4

Liitäntäkoko:G1/2

Tuotemerkki:BXHS

Tuotetyyppi:Suuntaventtiili

Tuotesarja:SD8-sarja Suuntaventtiili

Pakkauskoko:40*35*20

Bruttopaino:28.00 kg

Saatavuus: Varastossa

556 Näkymät etsivät tätä tuotetta

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct drawing image

High-quality SD8-PG2 electro-hydraulic 4-spool sectional directional valve, offering 90 L/min flow rate and 350 bar max pressure. Ideal for material handling, construction, and agricultural applications. Factory direct pricing and OEM/private label options available.

SD8-sarja Suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen, Sähkömoottori
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa, 8 kelaa, 9 kelaa, 10 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Jaksoventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso
Käyttöviskositeettialue 12 - 400 mm²/s (12 cSt - 400 cSt)
Nimellisvirtaus 90 L/min (23,8 US gpm)
Maksimipaine 315 baaria (4 600 psi)
Tuloportti G1/2, G3/4, M22×1.5, SAE 10
Ulostuloportti G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Liitäntäkoko G1/2, M22×1.5, SAE 10

The SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve is a high-performance hydraulic component manufactured by our factory. We offer factory direct pricing, ensuring competitive advantage for our customers. This robust valve boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) or 250 bar (3600 psi), making it suitable for a wide range of applications, including material handling, construction and earth moving, industrial vehicles, and agriculture. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, mini-excavators, midi-excavators, harvesters, and balers. This 4-section, electro-hydraulic sectional valve operates reliably within a temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt).

**We are a leading hydraulic product manufacturer offering:**
* **Manufacturing:** High-quality production of the SD8-PG2 and other hydraulic valves.
* **OEM (Original Equipment Manufacturing):** We provide custom designs and manufacturing to meet your specific requirements. Partner with us to integrate our valves seamlessly into your equipment.
* **Private Labeling:** Brand your own hydraulic valves with your company logo and specifications.
* **Customization:** Tailor the valve's specifications to match your unique application needs.
* **Wholesale:** Bulk orders available at competitive factory-direct prices.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with us to access high-quality, reliable hydraulic valves at competitive prices. Contact us today to discuss your needs and explore potential collaborations. We are a factory direct supplier offering competitive pricing, high-quality products, and flexible OEM and private labeling options. Choose a reliable and experienced hydraulic valve manufacturer – choose us.
