Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

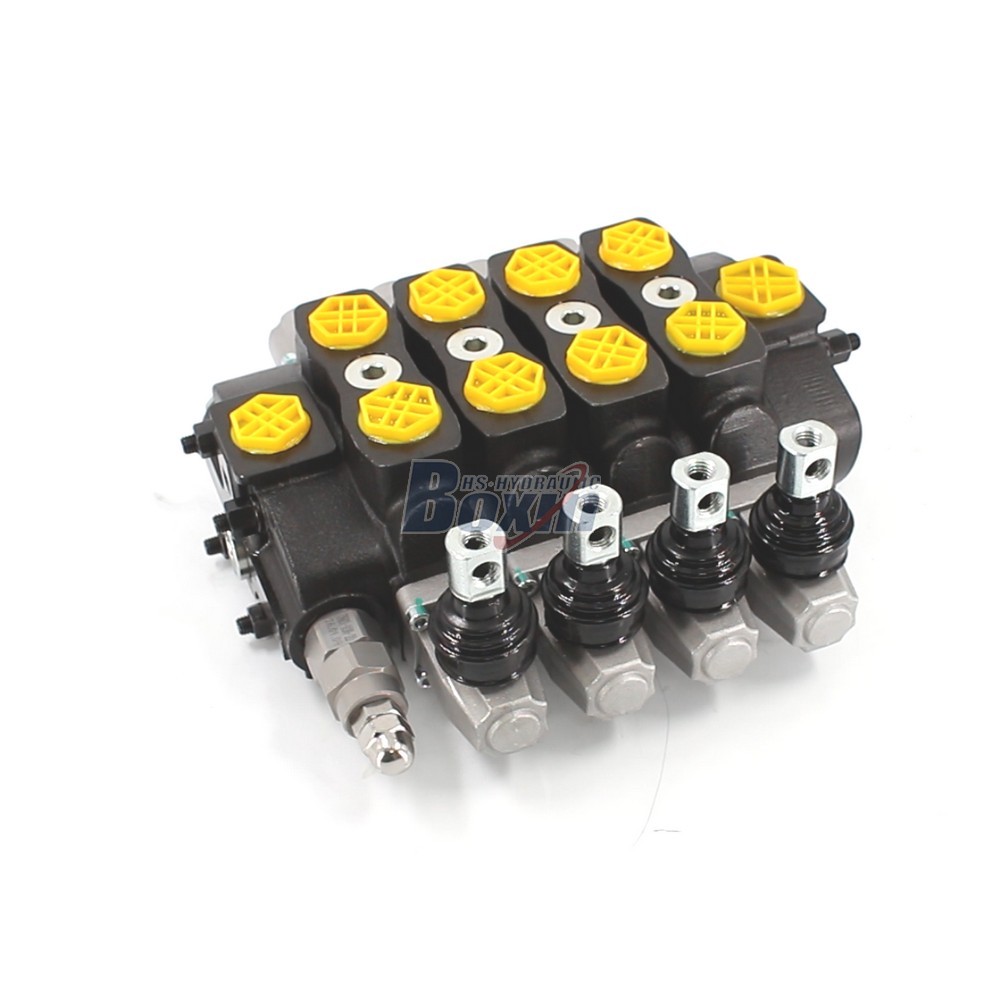

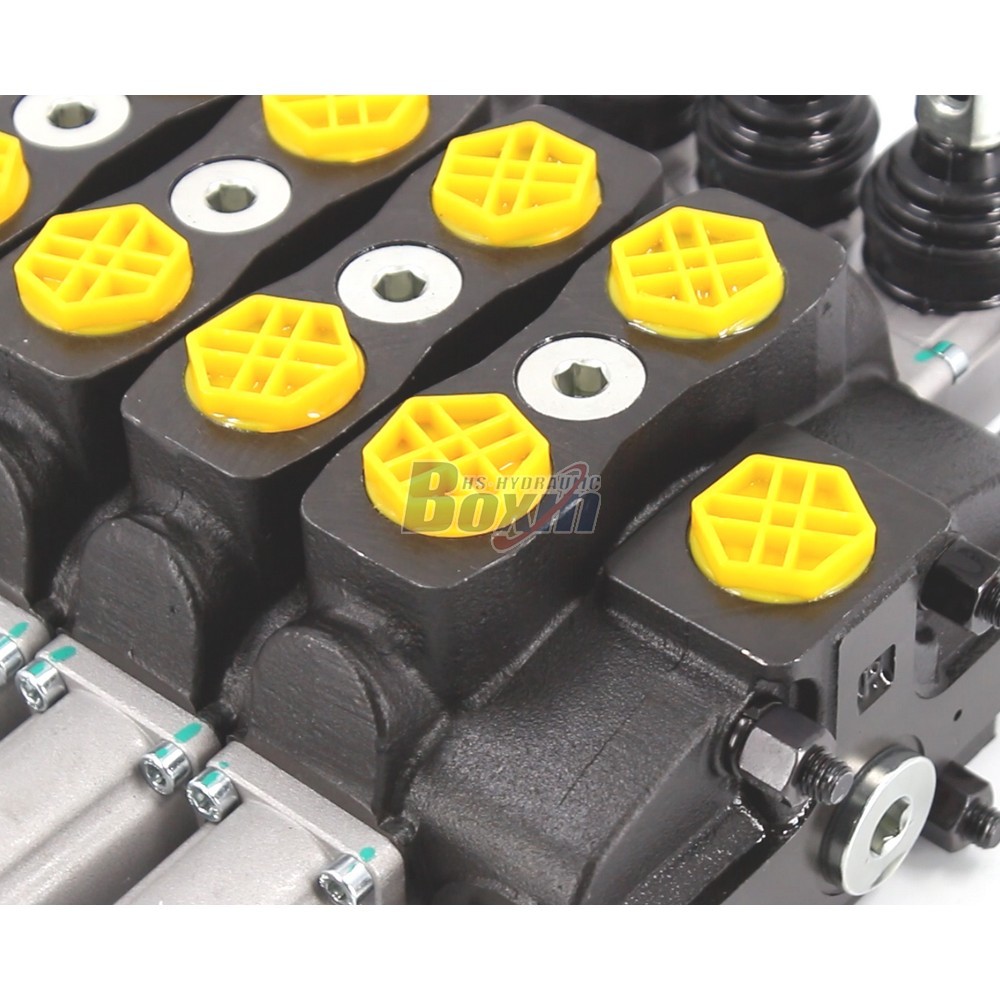

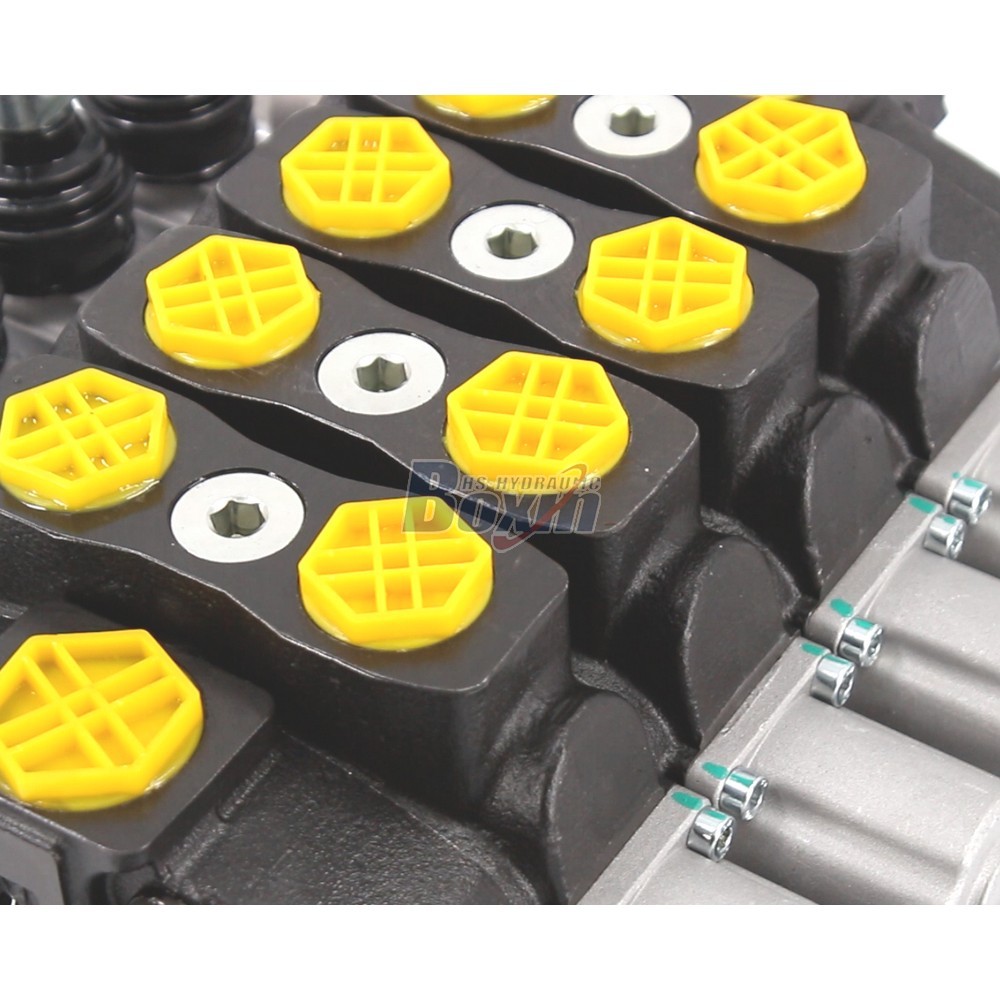

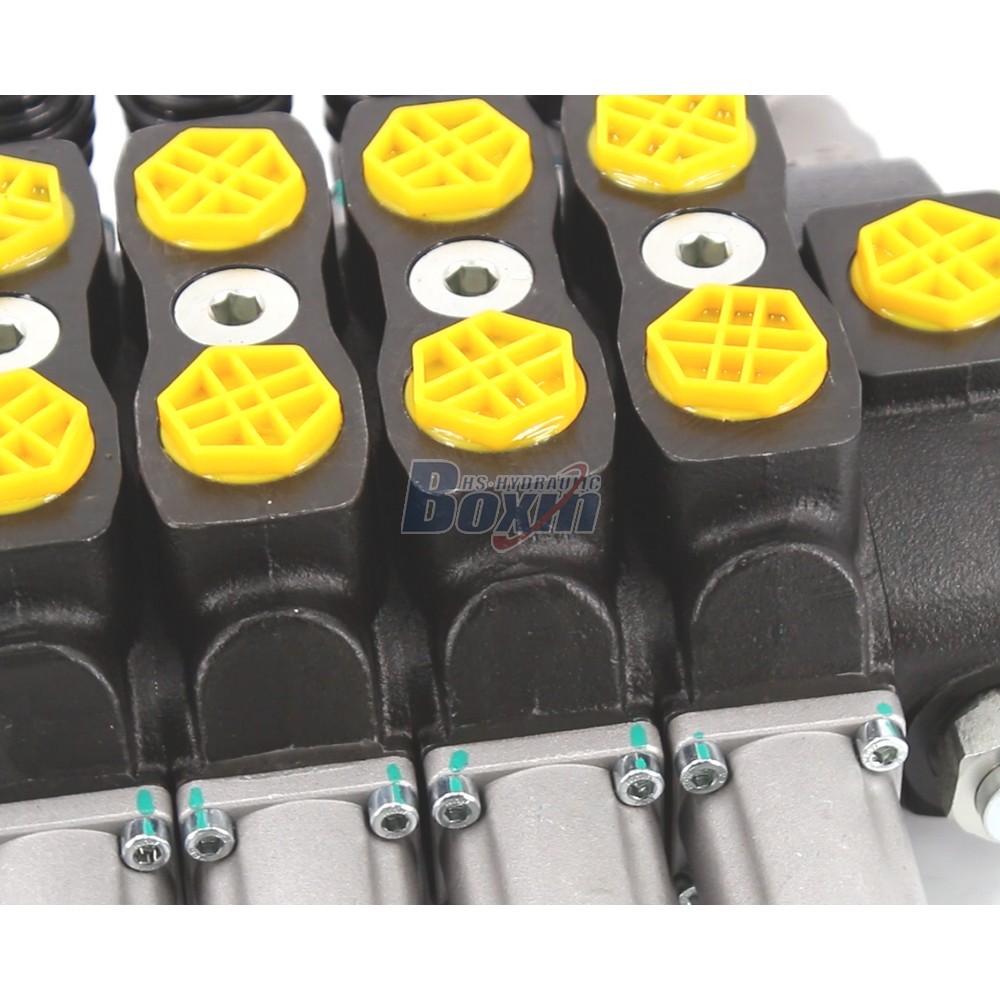

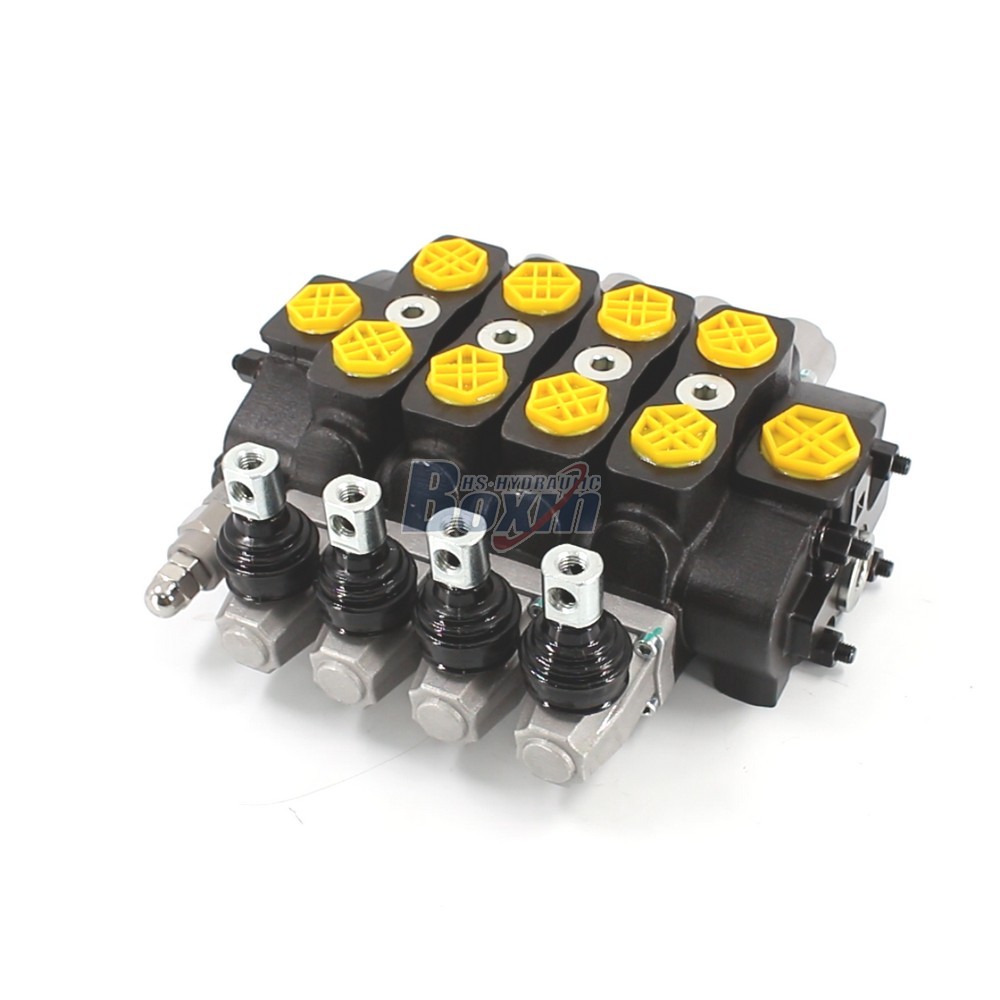

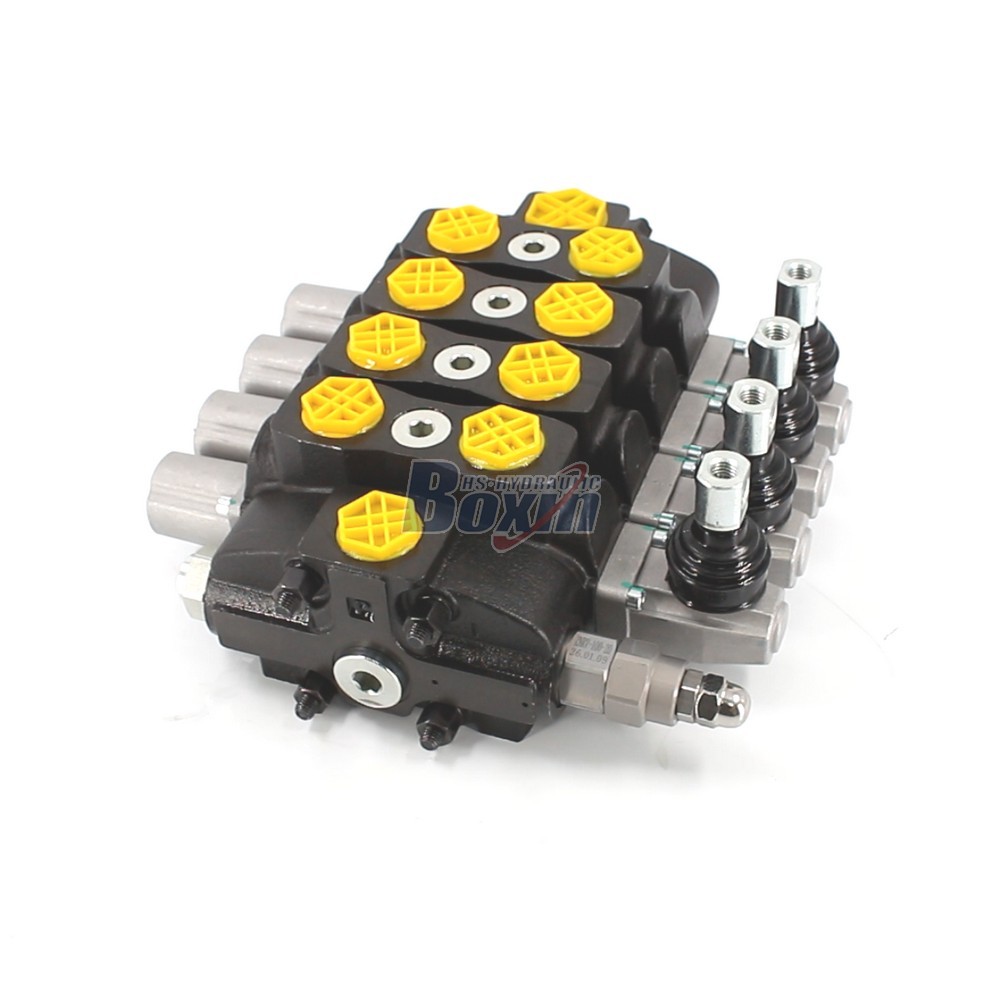

High-performance SD8 series manual 4-spool sectional directional control valve, featuring a rated flow of 80 L/min and maximum pressure of 315 bar, designed for versatile material handling and agricultural machinery applications.
| SD8-sarja Suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa, 8 kelaa, 9 kelaa, 10 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Jaksoventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso |
| Käyttöviskositeettialue | 12 - 400 mm²/s (12 cSt - 400 cSt) |
| Nimellisvirtaus | 90 L/min (23,8 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G1/2, G3/4, SAE 10 |
| Ulostuloportti | G1/2, G3/4, SAE 10, 3/4 NPT |
| Liitäntäkoko | G1/2, SAE 10 |
As a leading hydraulic product manufacturer, we offer the SD8 Series Manual 4 Spool Sectional Directional Valve directly from our factory. This robust valve is engineered for demanding environments, providing a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capacity of 315 bar (4600 psi). It is an ideal solution for material handling, construction, and agricultural equipment, including forklifts, skid steer loaders, mini-excavators, and tractors.
We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom design to meet specific technical requirements. Our factory supply model ensures competitive wholesale pricing for bulk orders. We are actively seeking long-term partnerships and are looking for global distributors, wholesalers, agents, and traders to expand our international market presence. By choosing our factory-direct supply, you benefit from reliable quality control, professional technical support, and scalable production capabilities tailored for industrial vehicles and mobile machinery.
