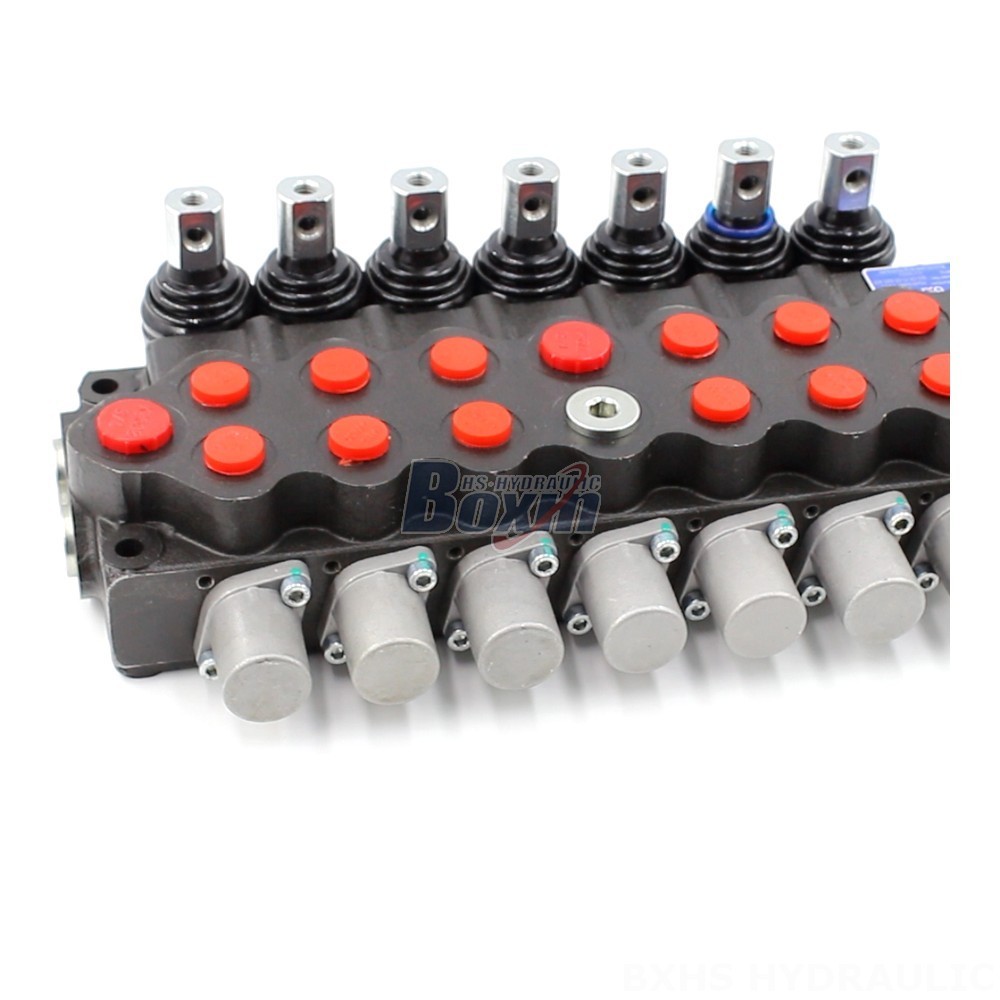

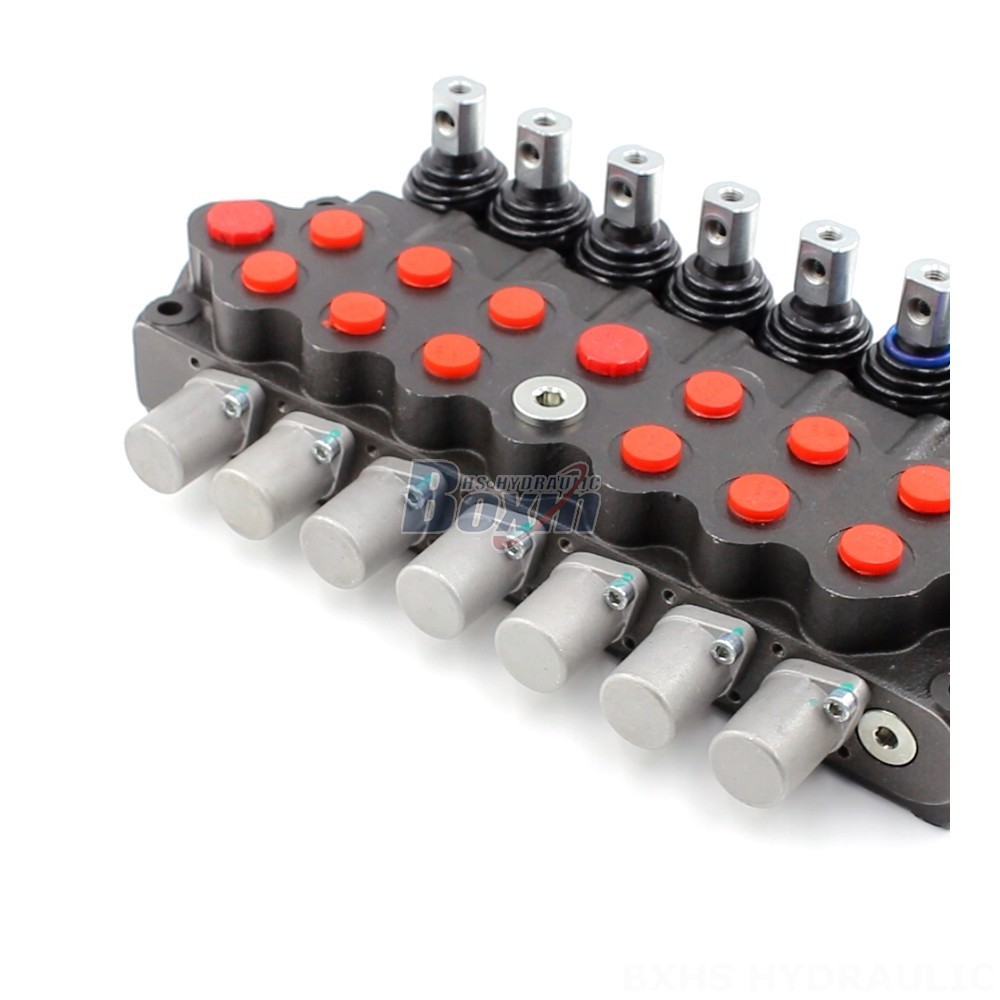

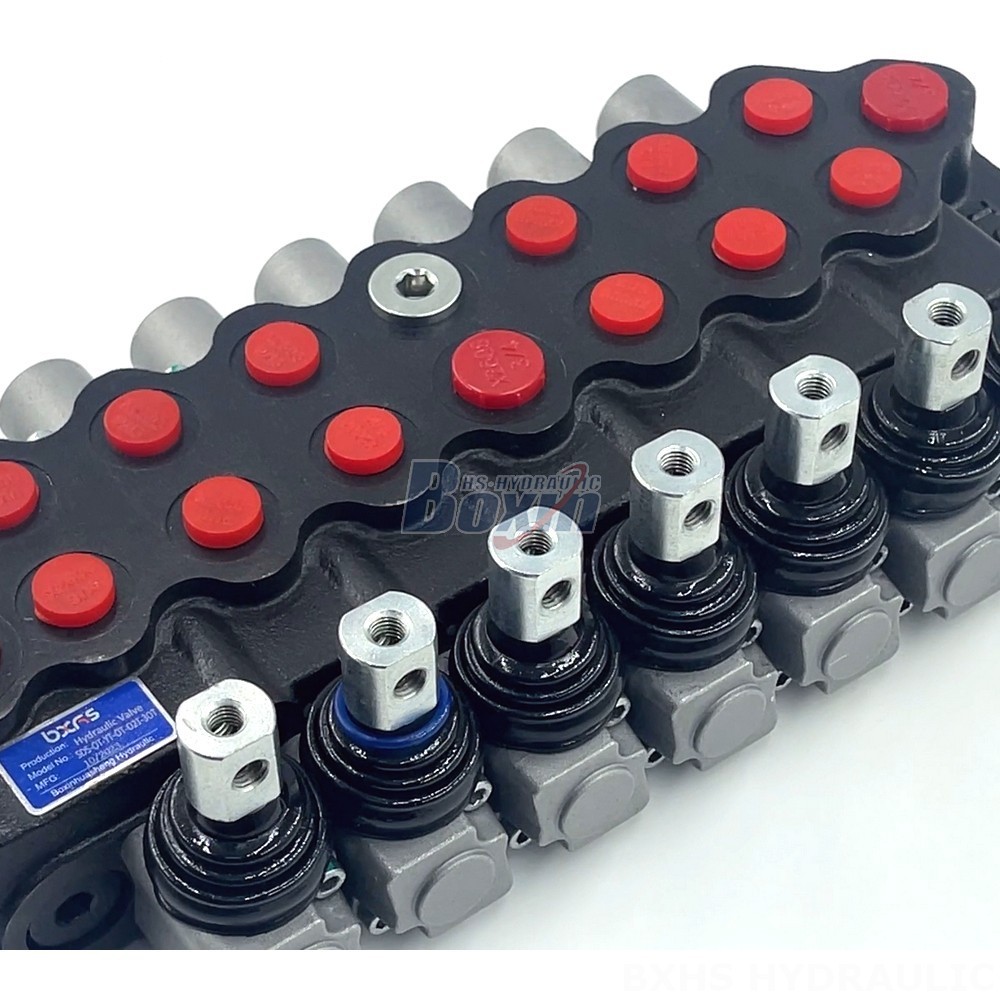

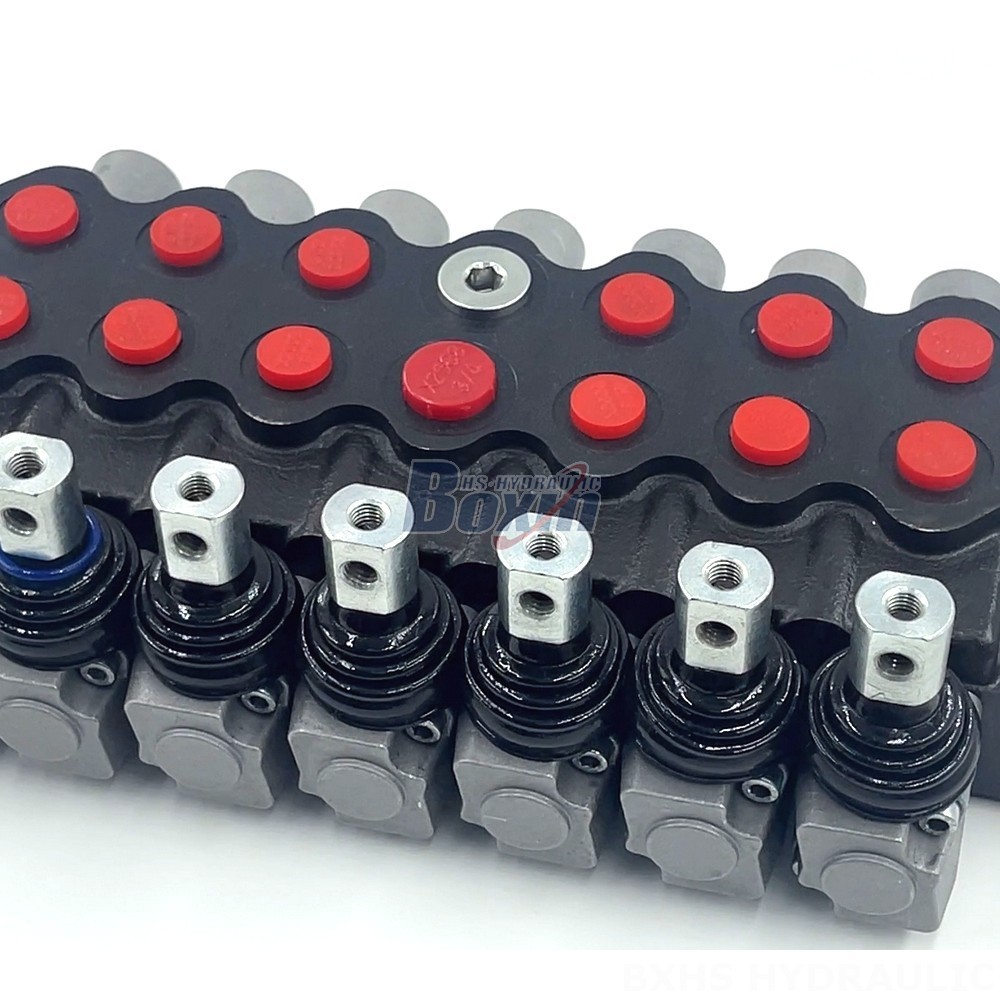

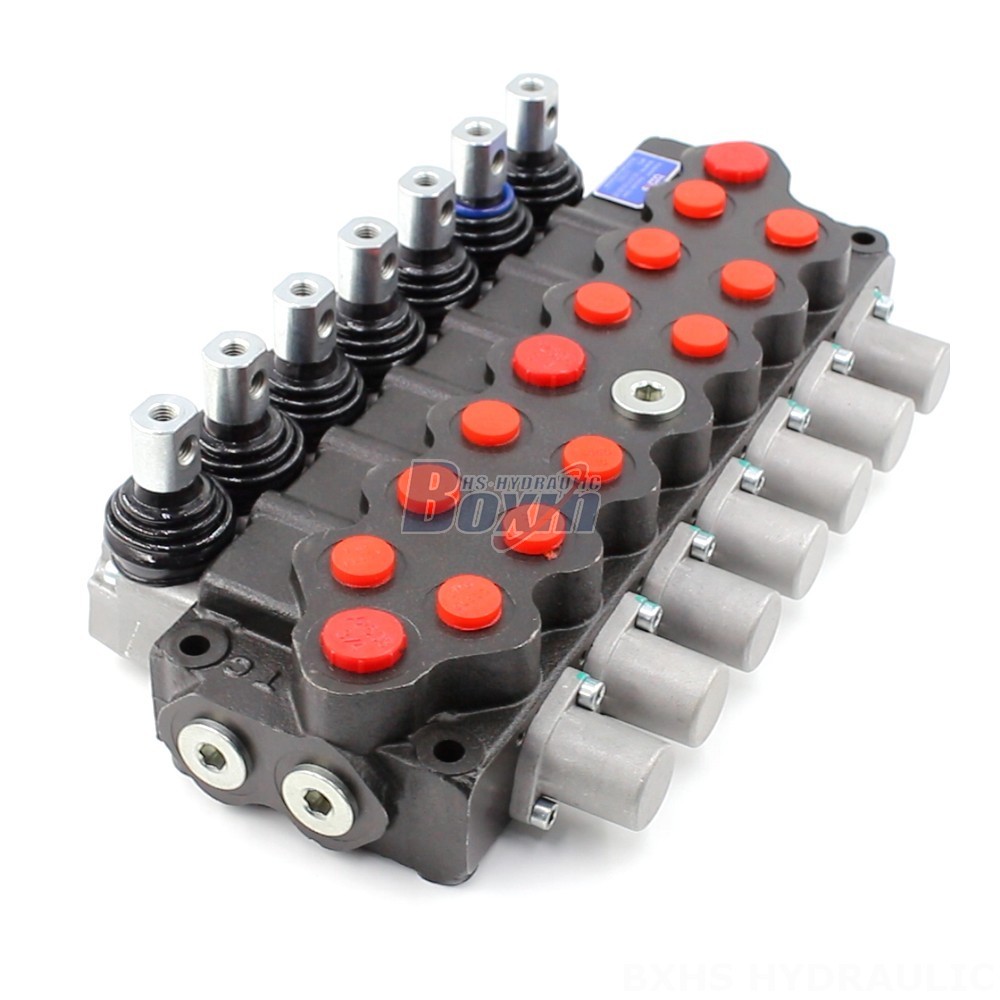

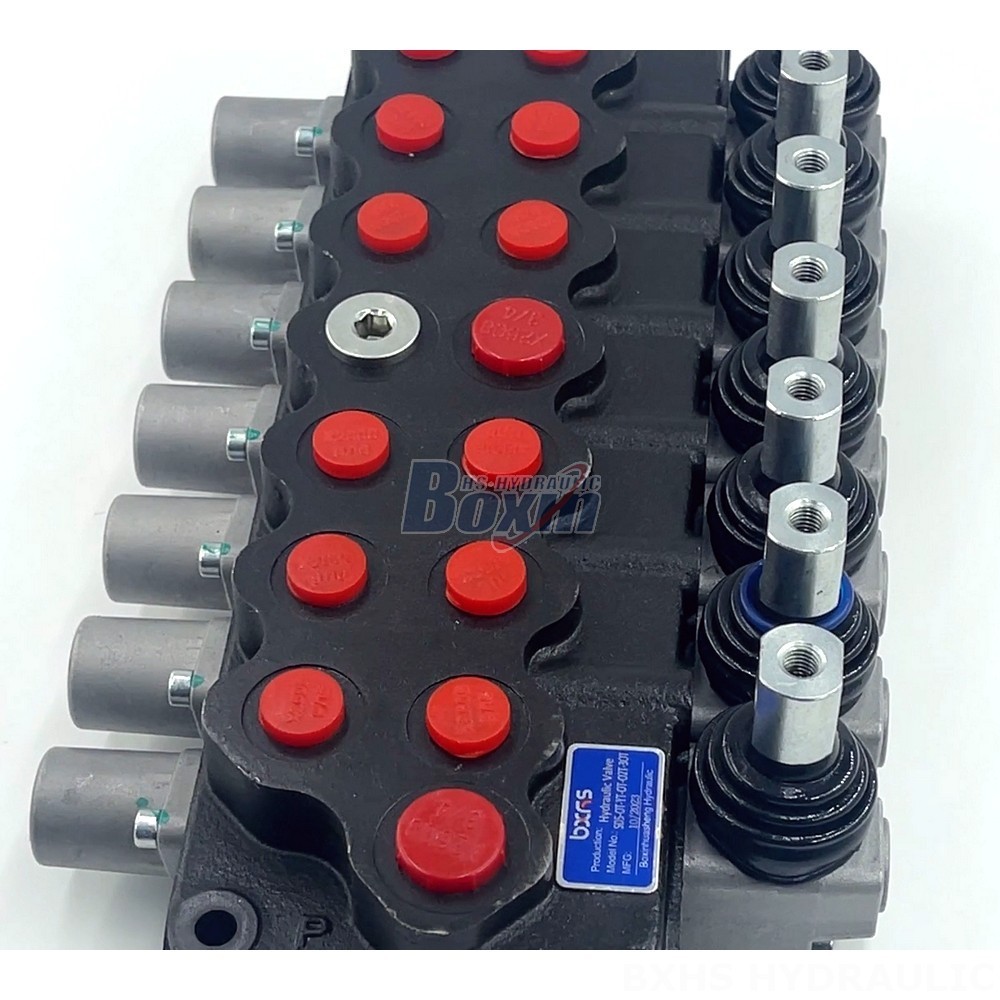

The SD5 Series Hydraulic Valve is a 7-section manual directional valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. This robust monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for a wide range of equipment.
| SD5-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +60 °C (-40 °F - +140 °F) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 40 L/min (10,5 US gpm) |
| Maksimipaine | 305 baaria (4 400 psi) |
| Tuloportti | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Ulostuloportti | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Liitäntäkoko | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The Hig Tech SD5 Manual Directional Valve is a high-performance hydraulic valve engineered for demanding applications. Its 7-section design provides precise control over hydraulic circuits, while the monoblock structure ensures durability and reliability. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is ideal for powering telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. The valve operates smoothly across a wide viscosity range and can withstand temperatures from -40°C to +60°C. Its manual control system offers easy and intuitive operation, making it a versatile choice for a variety of hydraulic applications.
