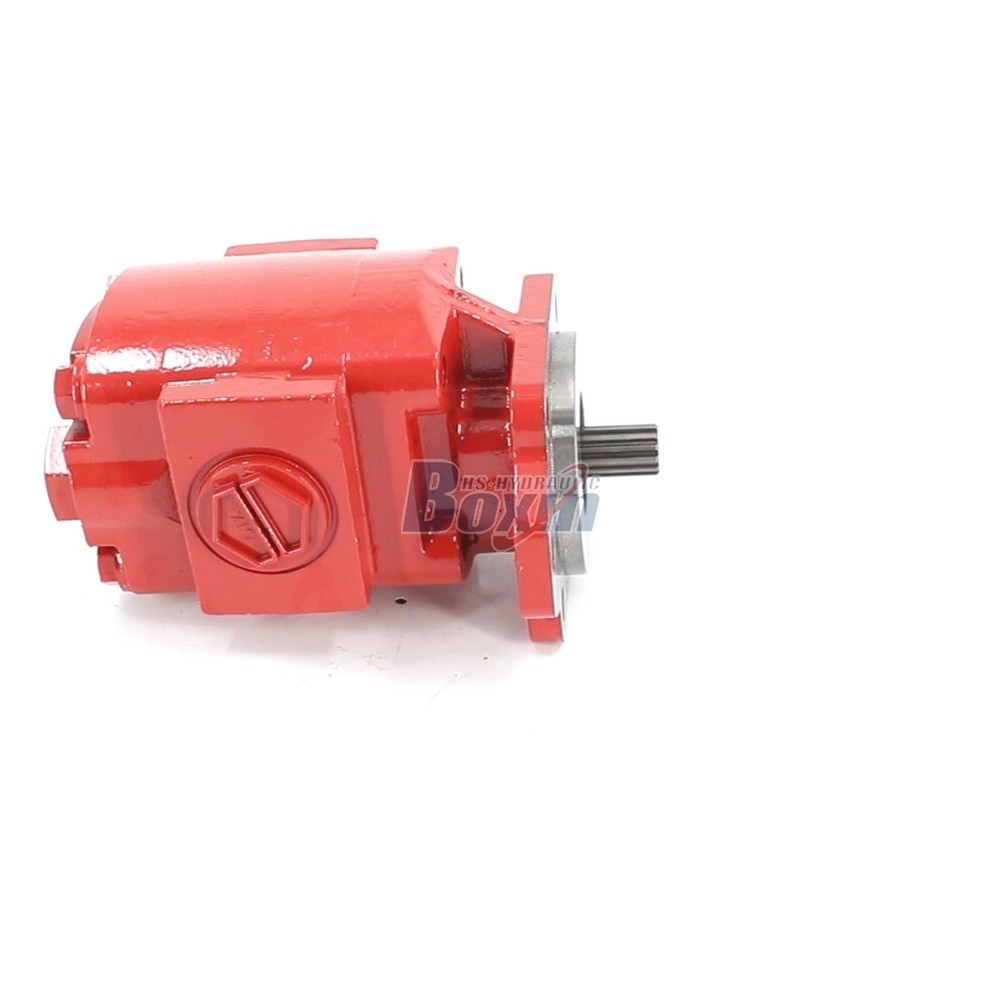

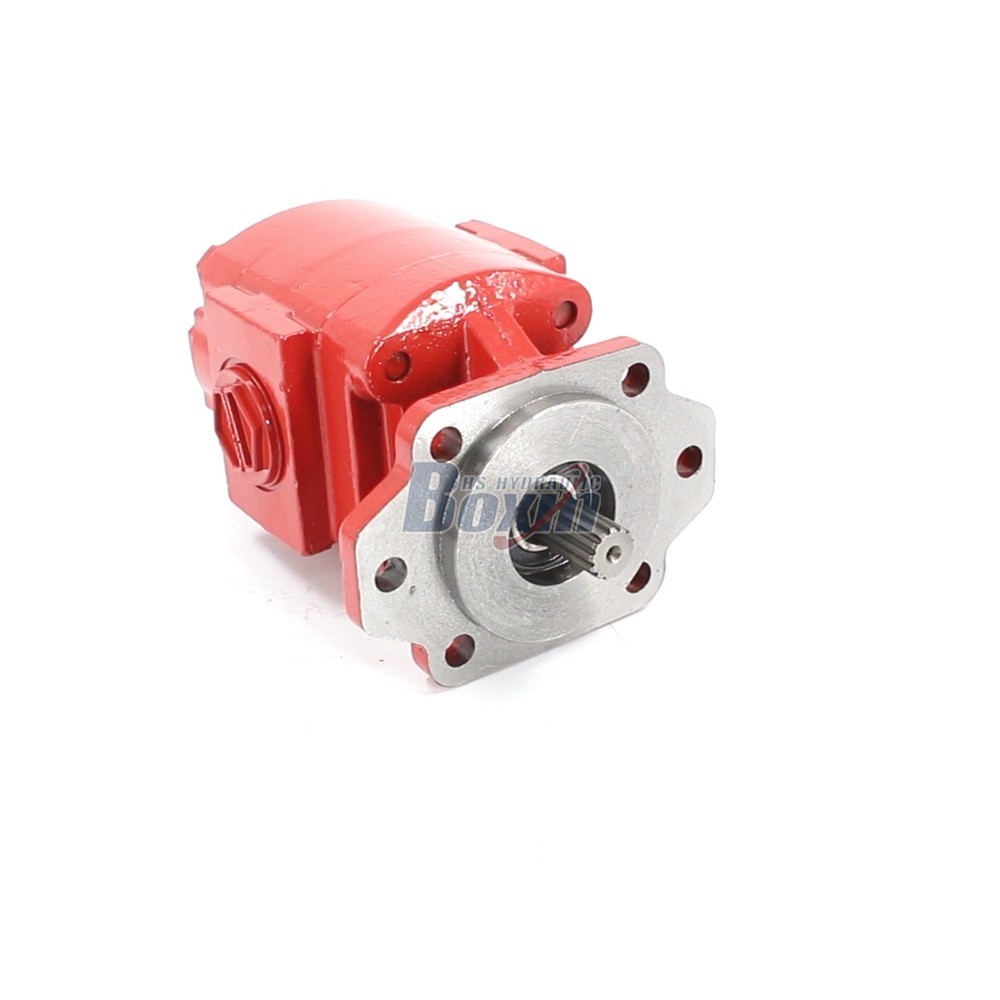

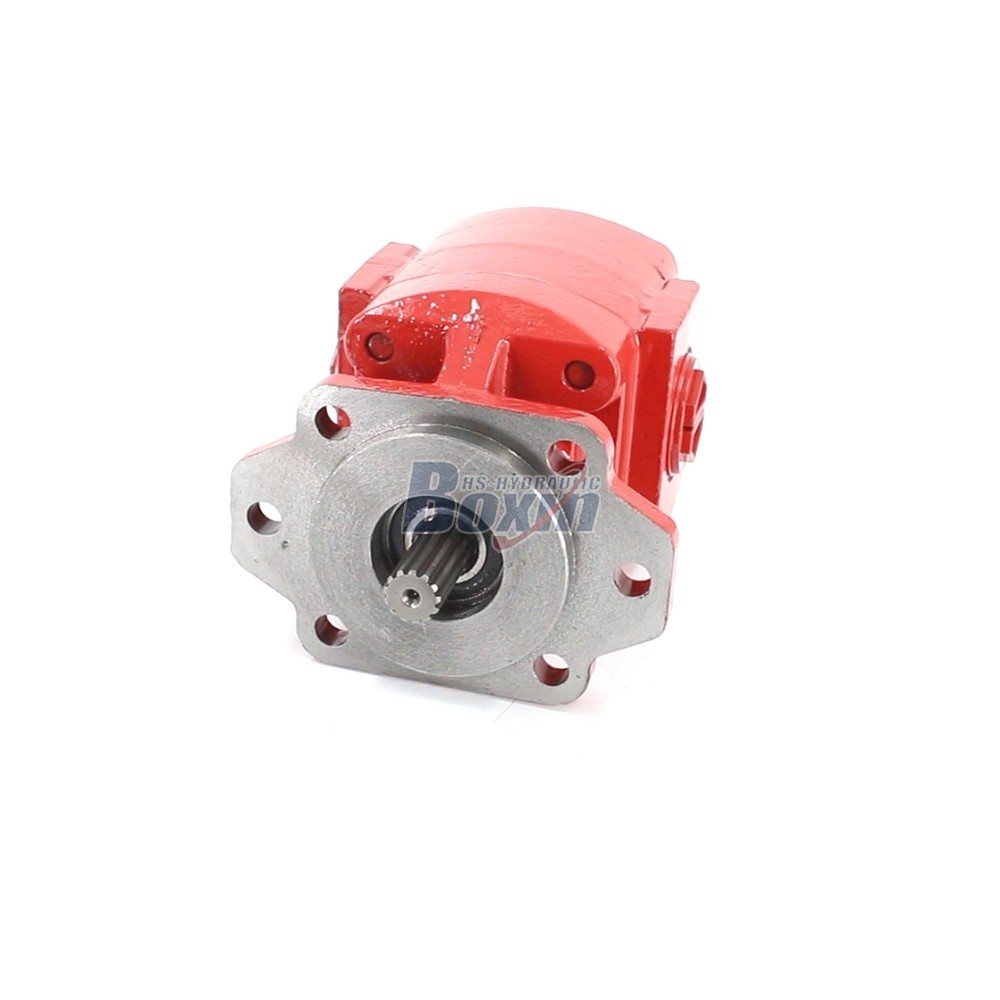

This P21 Series Hydraulic Gear Pump features a 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation, ideal for forklifts and loaders. Backed by a 25-year Professional Manufacturer with IATF 16949 certification, it ensures reliable performance for construction and agricultural machinery.
| P21-sarja Hydraulinen hammaspyöräpumppu Parametrit | |
|---|---|
| Iskutilavuus | 64,6 cm³/kierr. |
| Nimellispaine | 16 MPa (2320 psi) |
| Maksimipaine | 17 MPa (2465 psi) |
| Nimellisnopeus | 600 r/min |
| Maksiminopeus | 2400 r/min |
| Pyörimissuunta | Kaksisuuntainen |
| Materiaali | Valurauta |
| Rakenne | Ulkohampainen hammaspyöräpumppu |
| Laippaversio | A-Soikea laippa, B-Neliölaippa, ISO-4-kiinnitysaukot, UNI-3-kiinnitysaukot, SAE-laippa |
| Akselityyppi | X: Evolutoitu ura |
**1. Reliable P21 Series Gear Pump Specifications**
- Engineered with 64.6 cc/rev displacement and bidirectional rotation, operating efficiently at 2000 r/min rated speed.
- Delivers consistent flow up to 2200 r/min max speed, ensuring smooth power transmission for heavy-duty applications.
**2. High-Pressure Hydraulic Gear Pump Performance**
- Rated for 16 MPa (2320 psi) with a max pressure of 17 MPa (2465 psi), providing strong lifting force for material handling.
- Rigorously tested for seal integrity and pressure stability, guaranteeing durability in demanding earth-moving tasks.
**3. Versatile OEM Hydraulic Pump Applications**
- Perfectly compatible with forklifts, telehandlers, skid steer loaders, and backhoe loaders as a direct replacement part.
- Supports diverse industrial vehicles including tractors, sprayers, and waste compactors, offering broad market adaptability.
**4. Factory Direct Sales Quality Assurance**
- Produced by a 25-year Professional Manufacturer with 4 modern factories and an annual capacity of 1,500,000 units.
- Each unit undergoes 100% bench testing for pressure, flow, and leakage, backed by IATF 16949 and CE certifications.
**5. Customizable Wholesale China Factory Solutions**
- Offers full OEM/ODM services including custom logos, casting modifications, and private label packaging for distributors.
- Secured with rust-proof treatment and heavy-duty wooden crate packing, ensuring safe Exported Worldwide delivery.
