Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

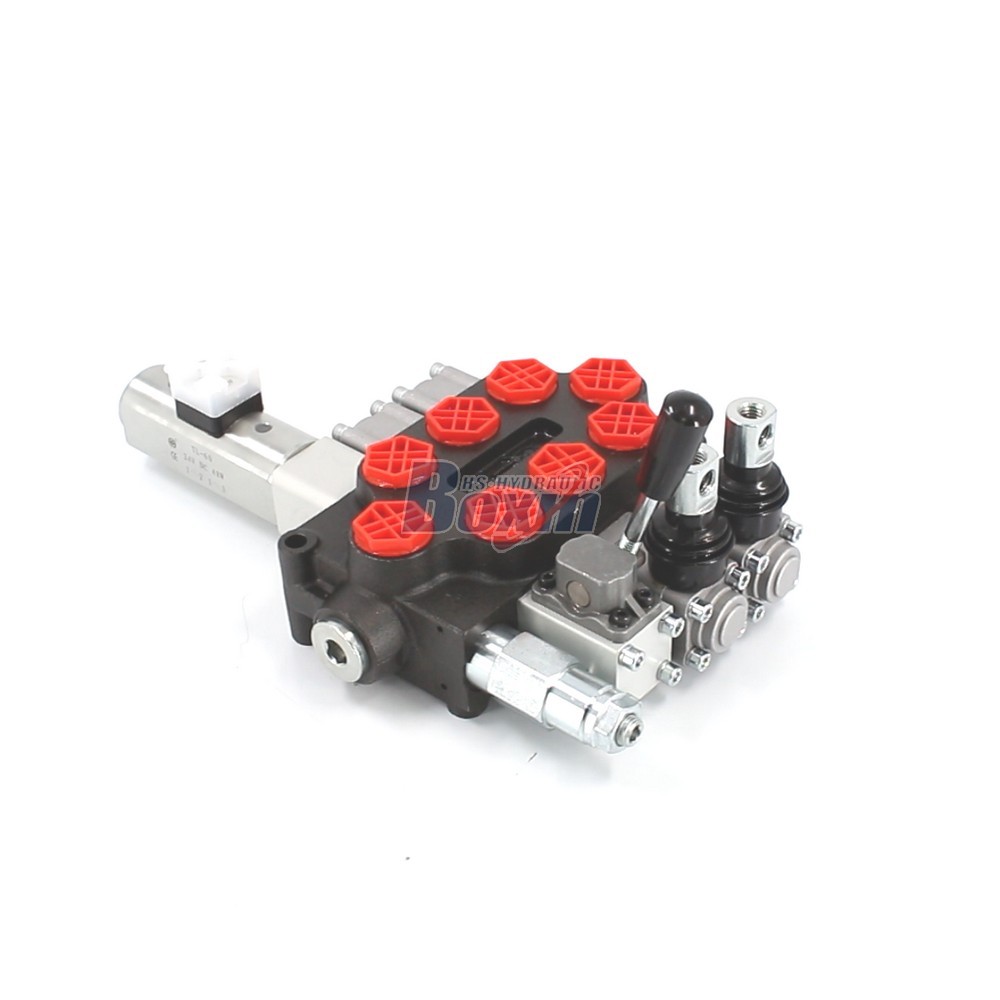

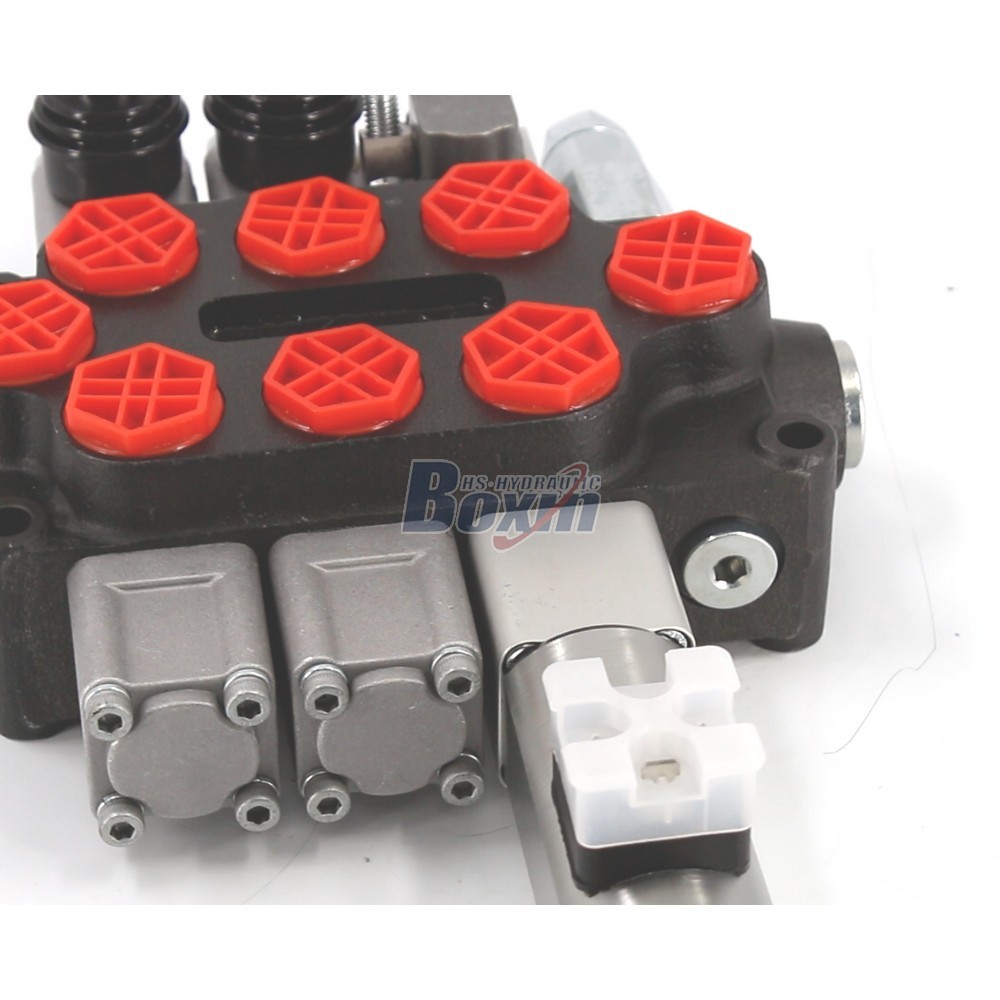

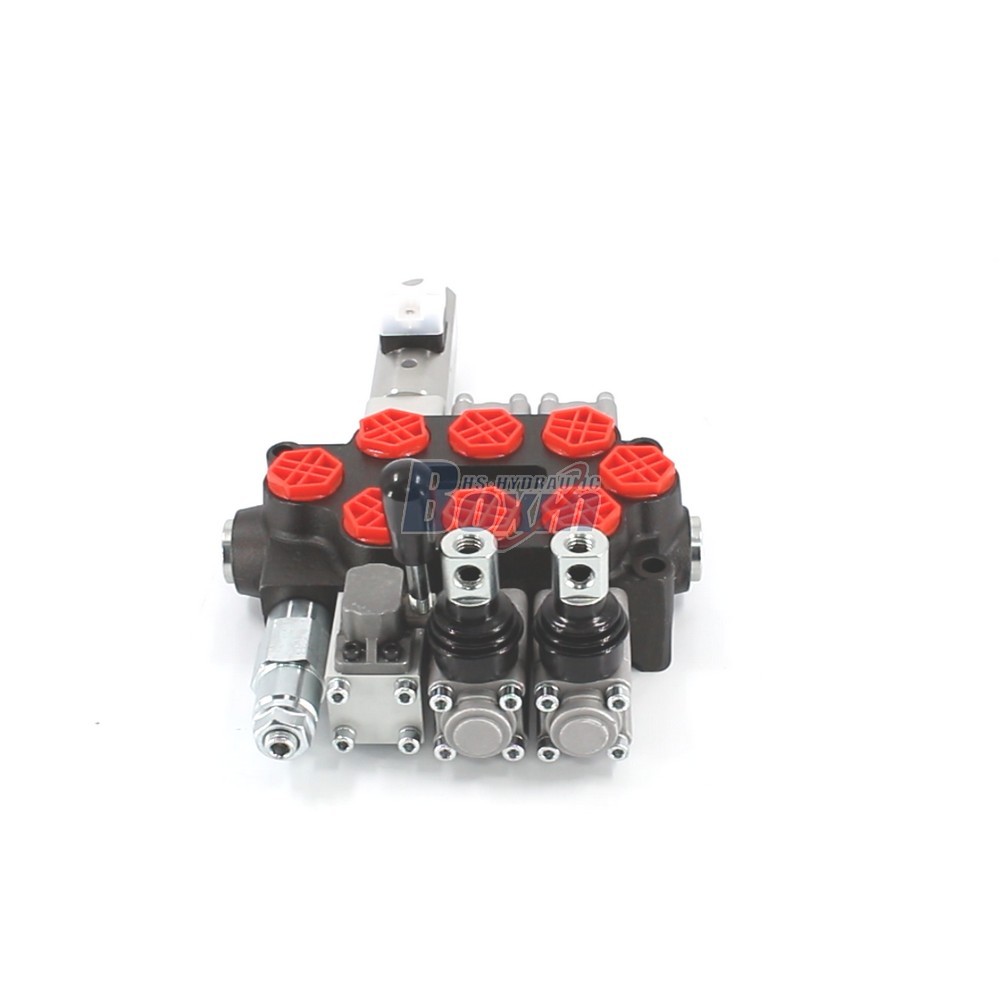

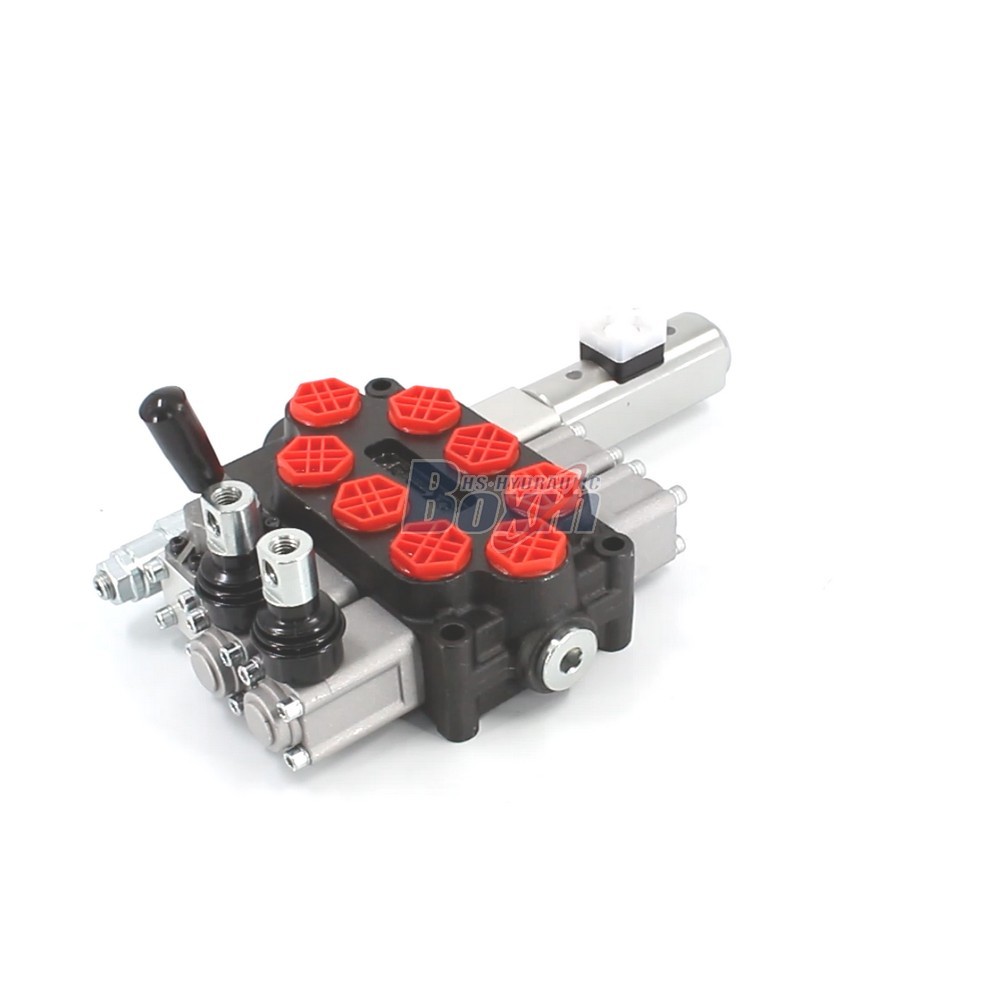

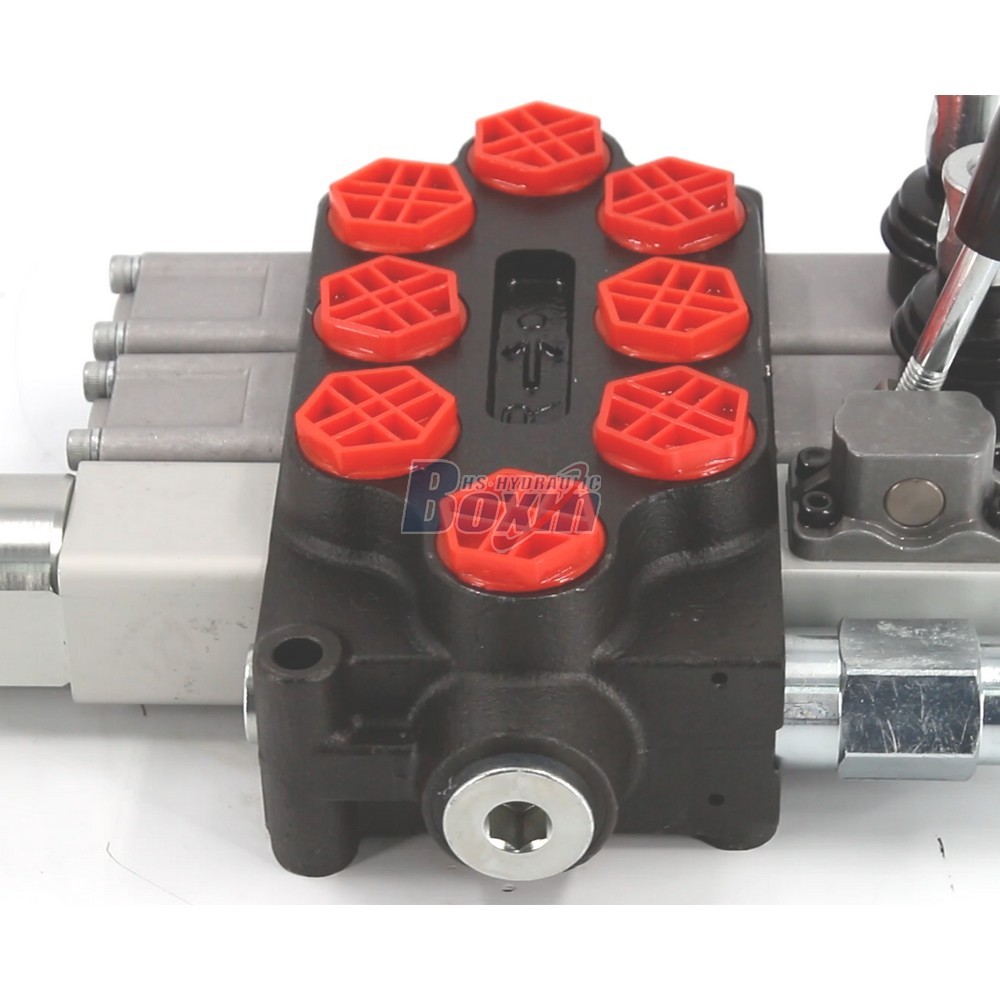

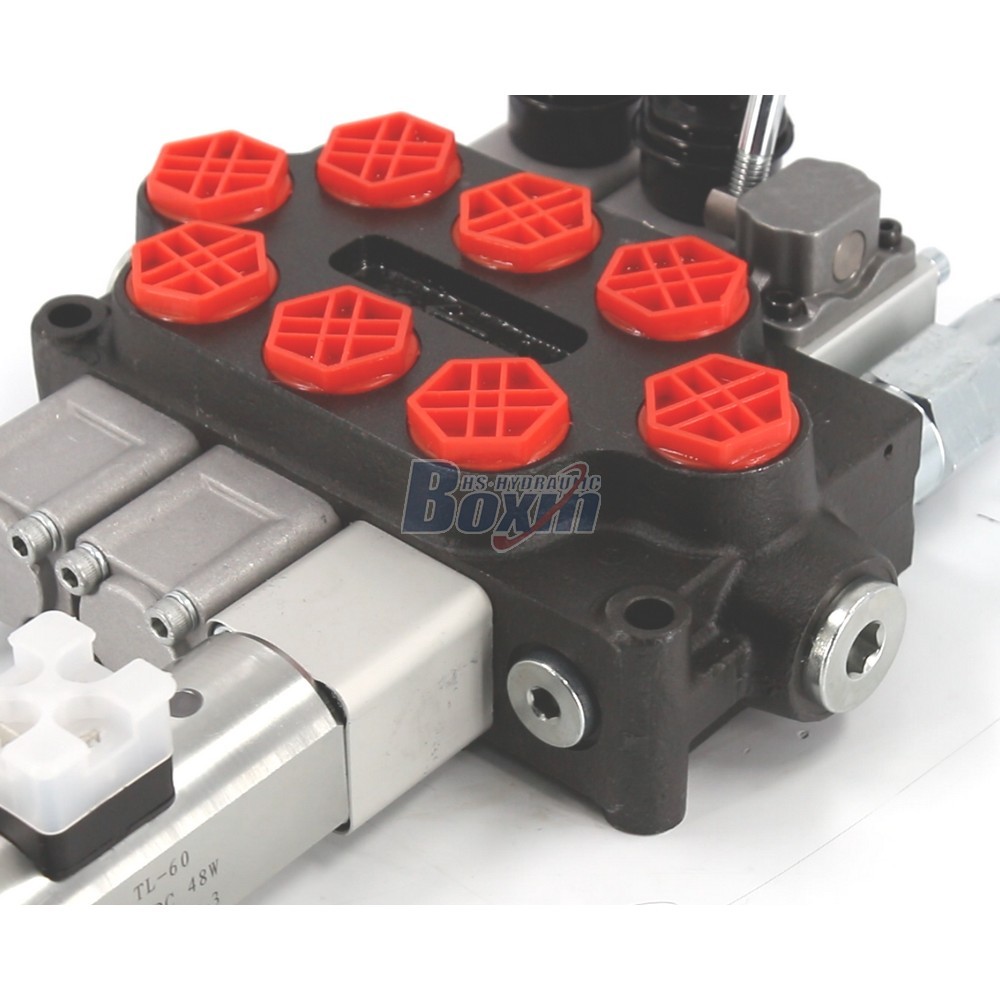

The Q45-DT-2OT is a versatile 3-spool monoblock directional control valve featuring both manual and push-pull electromagnet control. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it is designed for precision and reliability in demanding mobile applications.
| Q45-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Ohjaussauva, Solenoid och käsikäyttö, Manuaalinen ja kaksitoiminen magneettikela, Kaksitoiminen magneettikela |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa |
| Ympäristön lämpötila-alue | -20°C - +80°C |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 45 L/min (11,8 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G1/2 |
| Ulostuloportti | G1/2 |
| Liitäntäkoko | G1/2 |
As a leading manufacturer of high-performance hydraulic solutions, we offer the Q45-DT-2OT 3 Spool Monoblock Directional Valve for global markets. This valve integrates manual and push-pull electromagnet control methods, ensuring flexible operation for material handling, construction, and agricultural machinery. It handles a rated flow of 45 L/min (11.8 US gpm) and pressures up to 315 bar (4600 psi), featuring standard G1/2 ports. We provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. Our factory provides direct wholesale pricing and high-volume supply capabilities. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need reliable components for tractors, mini-excavators, or forklifts, our Q45 series offers robust quality and versatile functionality for industrial vehicle manufacturers and aftermarket suppliers.
