High-quality CBHST1-ISO-110 110cc/rev hydraulic gear pump with 23 MPa rated pressure, ideal for construction, agriculture, and material handling applications. Available for OEM, private labeling, and wholesale orders. We are seeking distributors, wholesalers, and trading partners globally.
| CBHST1-ISO-sarja Hydraulinen hammaspyöräpumppu Parametrit | |
|---|---|
| Iskutilavuus | 50 cm³/kierros, 63 cm³/kierros, 80 cm³/kierros, 100 cm³/kierros, 110 cm³/kierros, 34 cm³/kierros, 43 cm³/kierros, 90 cm³/kierros, 120 cm³/kierros, 82 cm³/kierros |
| Nimellispaine | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Maksimipaine | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Nimellisnopeus | 2000 r/min |
| Maksiminopeus | 2500 r/min |
| Pyörimissuunta | Kaksisuuntainen |
| Materiaali | Valurauta |
| Rakenne | Ulkohampainen hammaspyöräpumppu |
| Laippaversio | ISO-4-kiinnitysaukot |
| Akselityyppi | H: Suorakaiteen muotoinen ura |

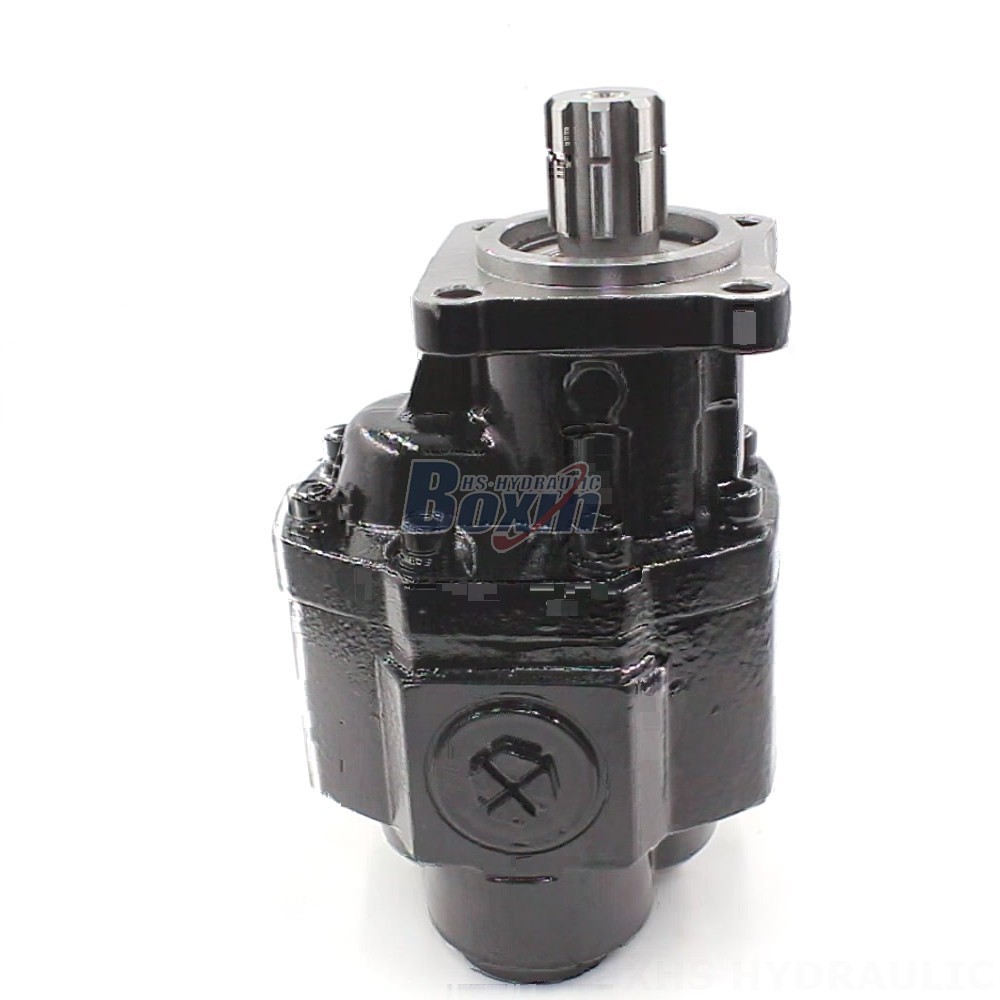

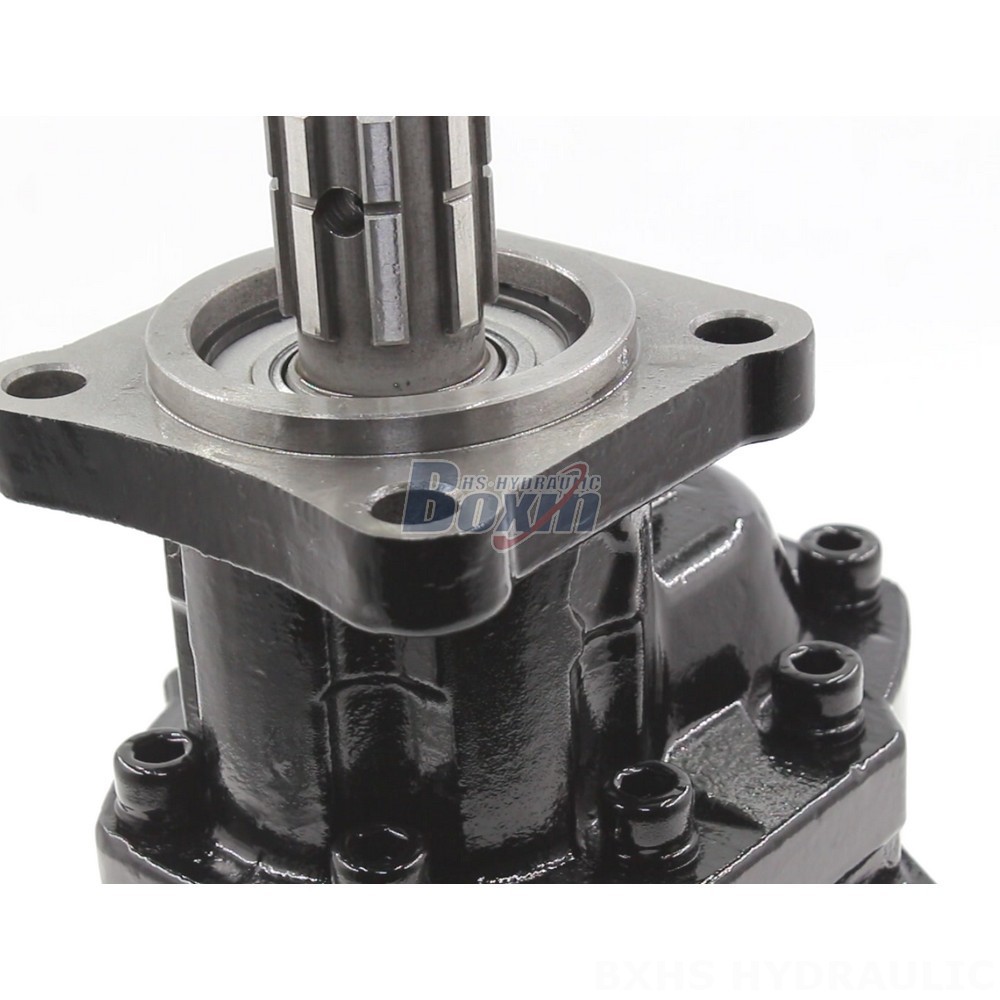

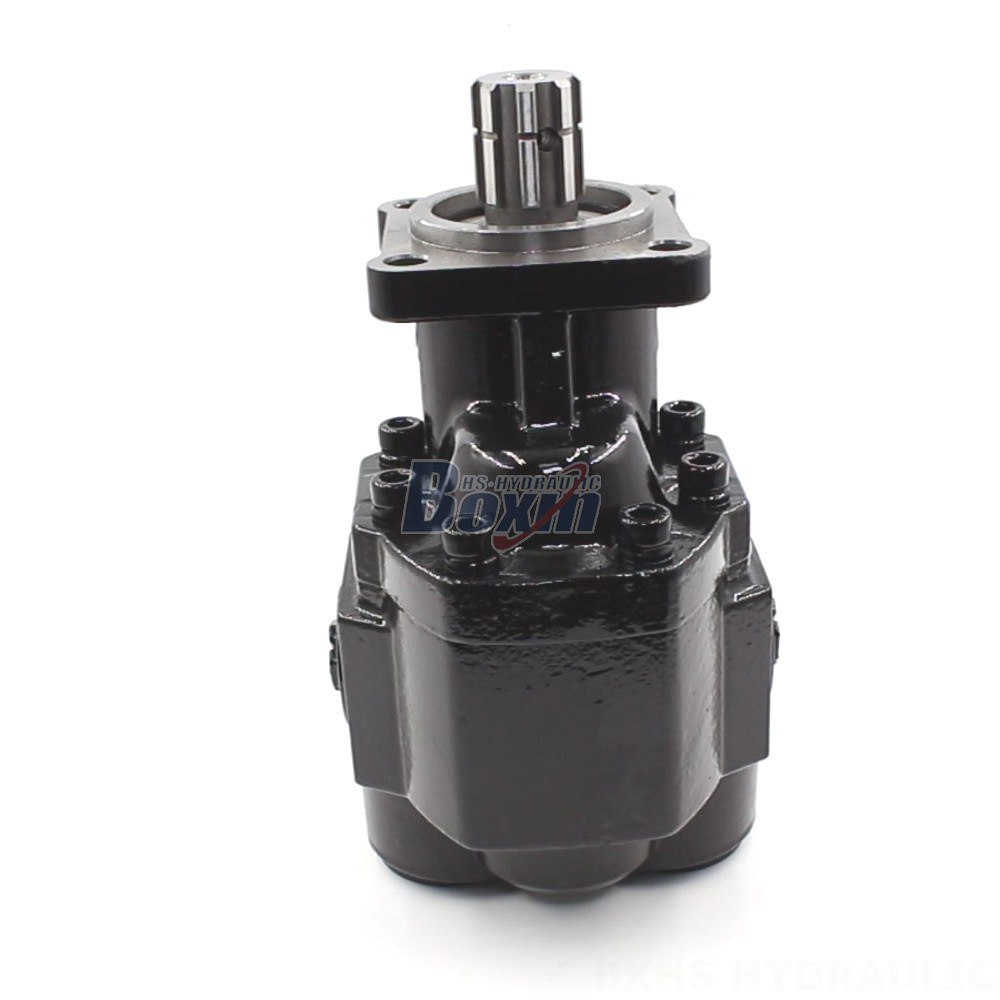

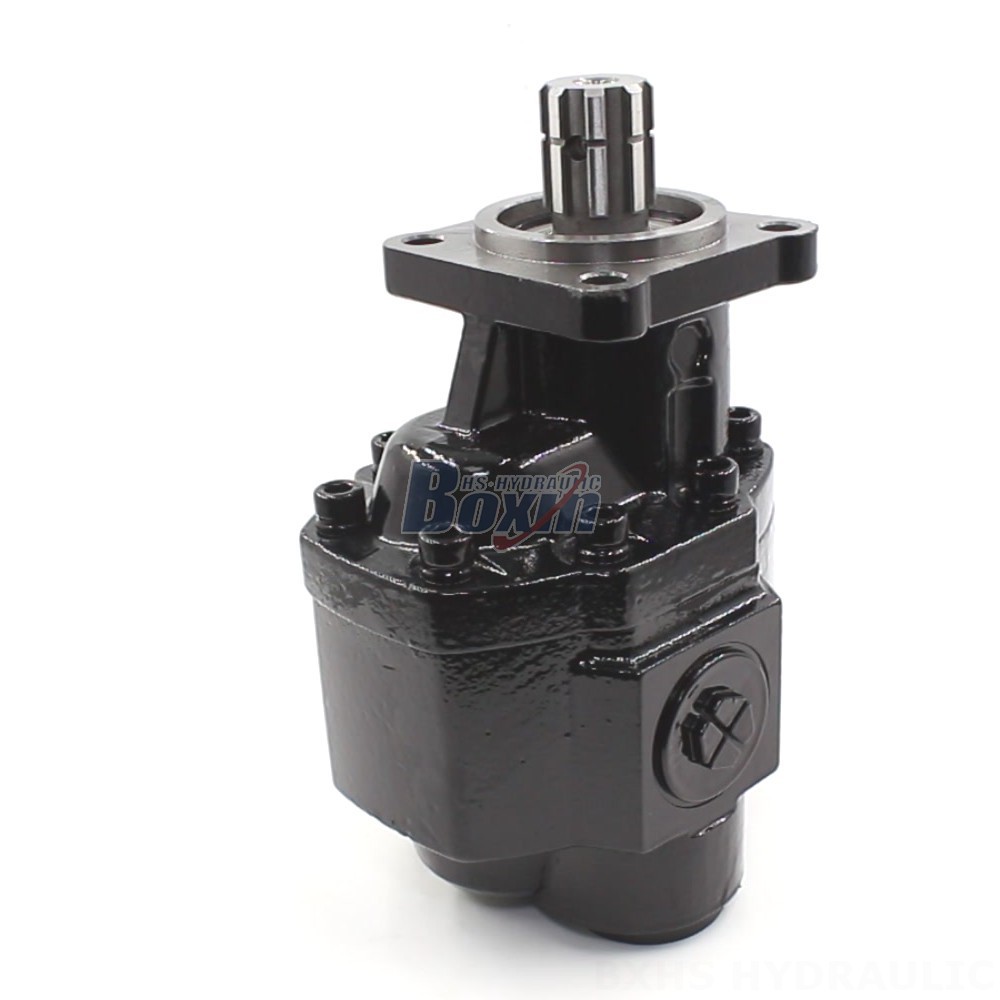

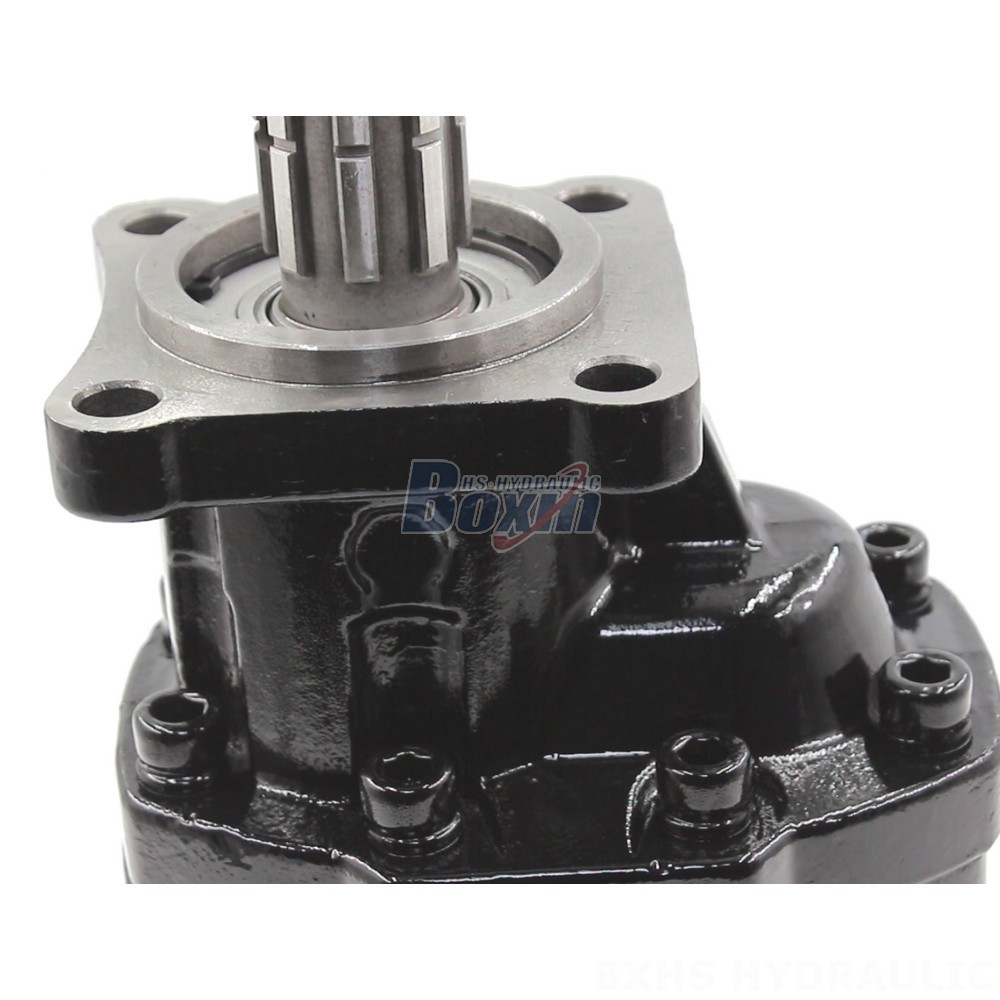

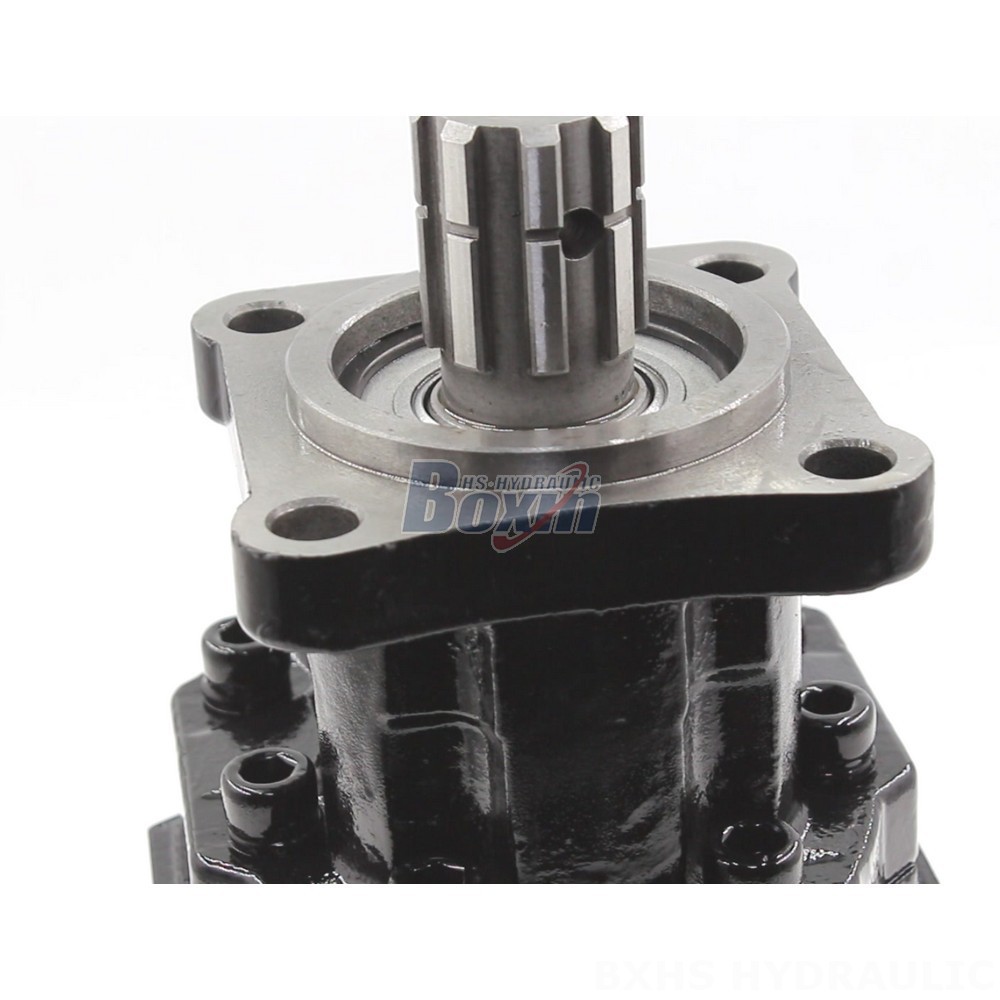

The CBHST1-ISO-110 hydraulic gear pump is a robust and reliable solution for various applications, including material handling, construction and earth moving, industrial vehicles, and agriculture. This high-performance pump boasts a displacement of 110 cc/rev, a rated pressure of 23 MPa (3335 psi), and a maximum speed of 2500 r/min. Its durable cast iron construction and ISO-4 mounting flange ensure easy integration into existing systems. The swashplate design guarantees smooth operation and high efficiency.
**Key Features:**
* Displacement: 110 cc/rev
* Rated Pressure: 23 MPa (3335 psi)
* Max Pressure: 25 MPa (3625 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2500 r/min
* Bidirectional Rotation
* Swashplate Structure
* Cast Iron Material
* ISO-4 Mounting Holes
* Rectangle Spline Shaft (H-Type)
* CBHST1-ISO Series
**Partnership Opportunities:** As a leading hydraulic product manufacturer, we are actively seeking distributors, wholesalers, trading partners, and agents worldwide. We offer a complete range of services, including manufacturing, OEM, private labeling, customization, and wholesale supply. We are a factory direct supplier, ensuring high-quality products at competitive prices. Contact us today to explore lucrative partnership opportunities and expand your product portfolio with our reliable and high-performance hydraulic gear pumps. Let's grow our businesses together!
**Target Applications:** Forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors and front-end loaders, mini-excavators, midi-excavators, harvesters, balers, and sprayers.
