P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

Ohjausmenetelmä:Manuaalinen

Jakaja:4 kelaa

Nimellisvirtaus:80 L/min (21,2 US gpm)

Maksimipaine:250 baaria (3 600 psi)

Tuloportti:SAE 10

Ulostuloportti:SAE 10

Liitäntäkoko:SAE 10

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:P80-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:26*27*11

Bruttopaino:13.40 kg

Saatavuus: Varastossa

1252 Näkymät etsivät tätä tuotetta

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions drawing image

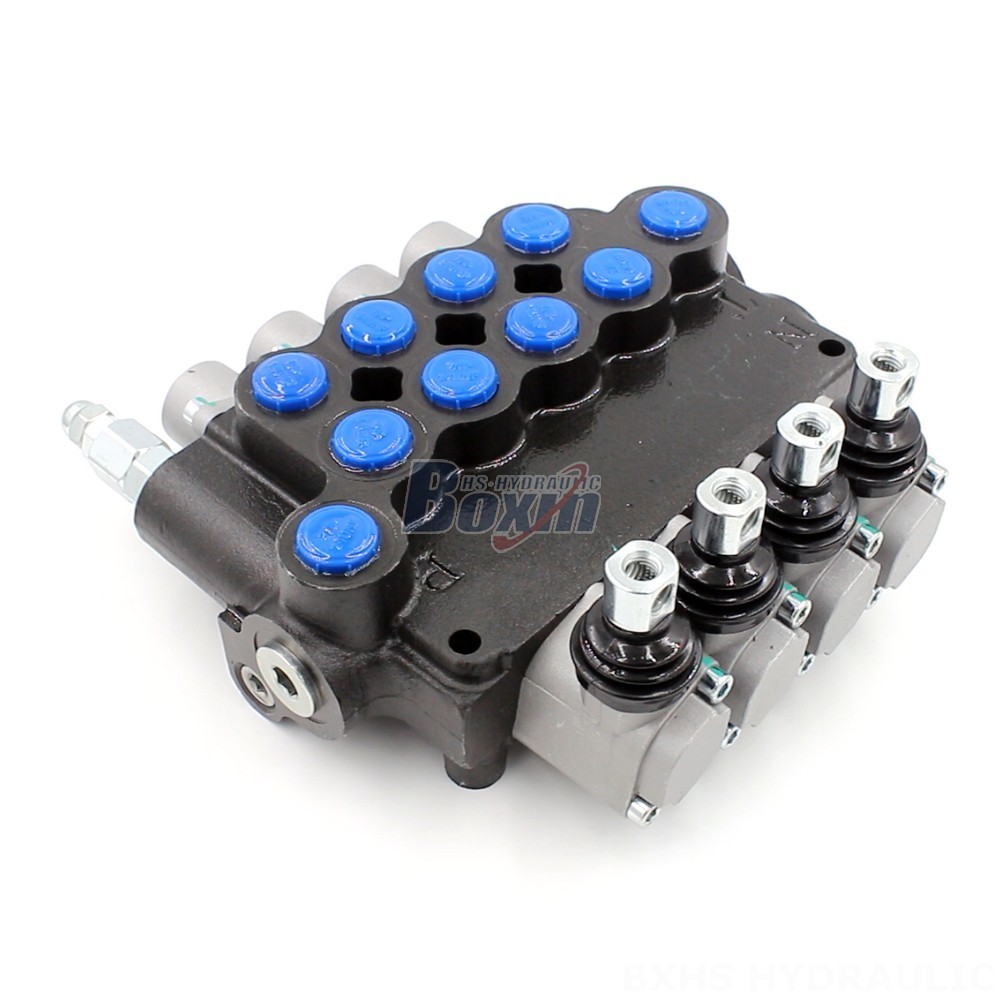

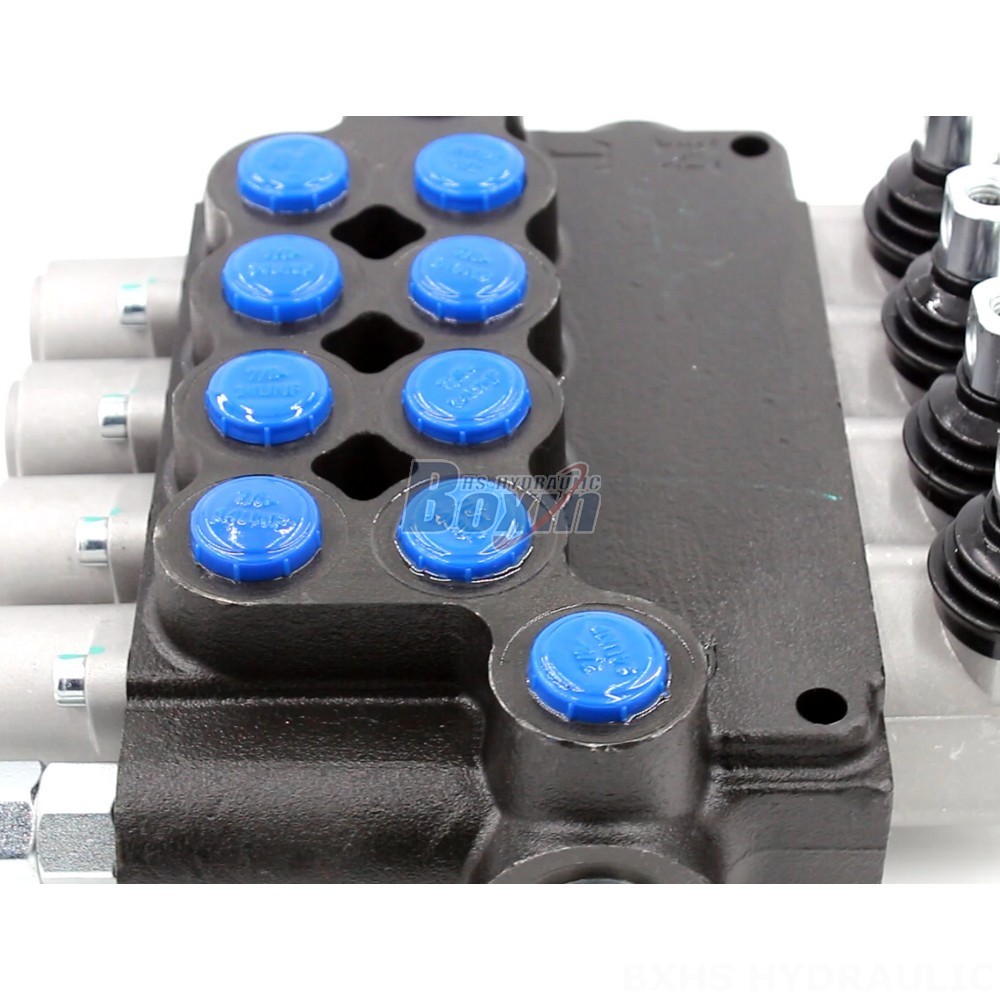

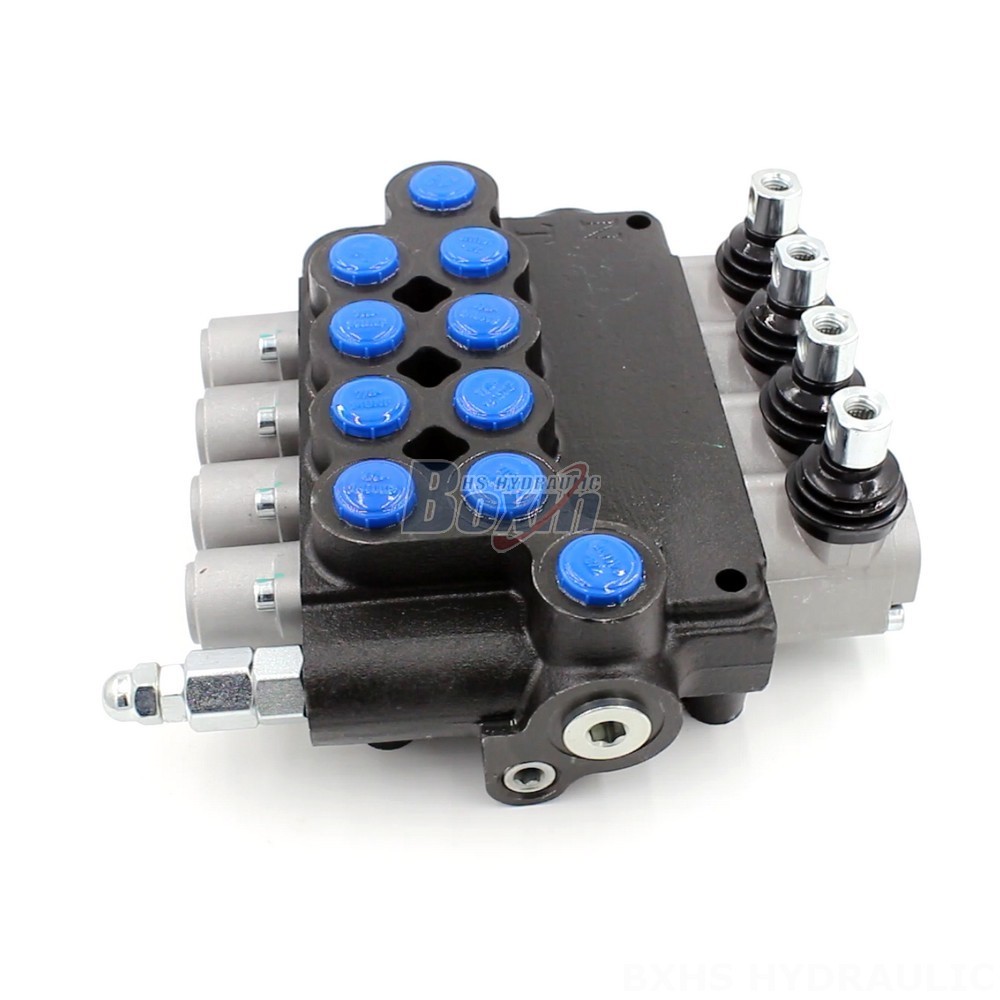

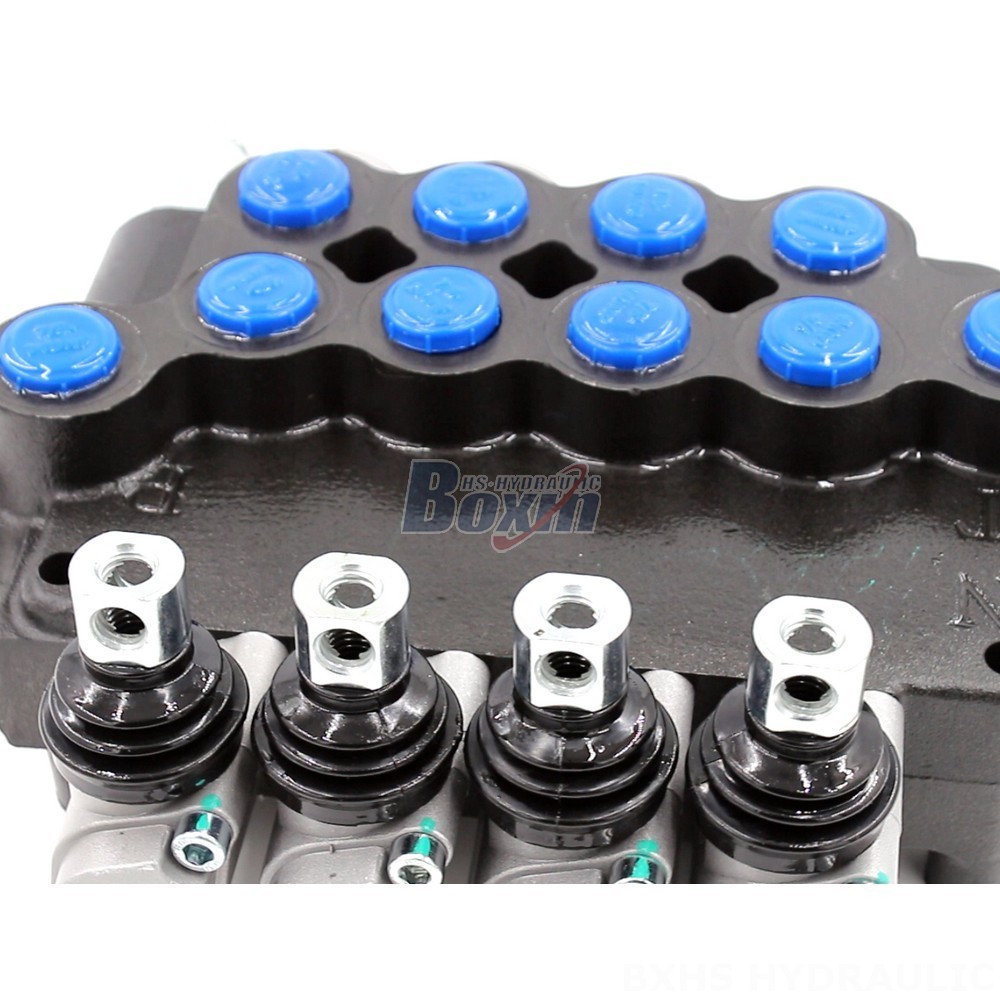

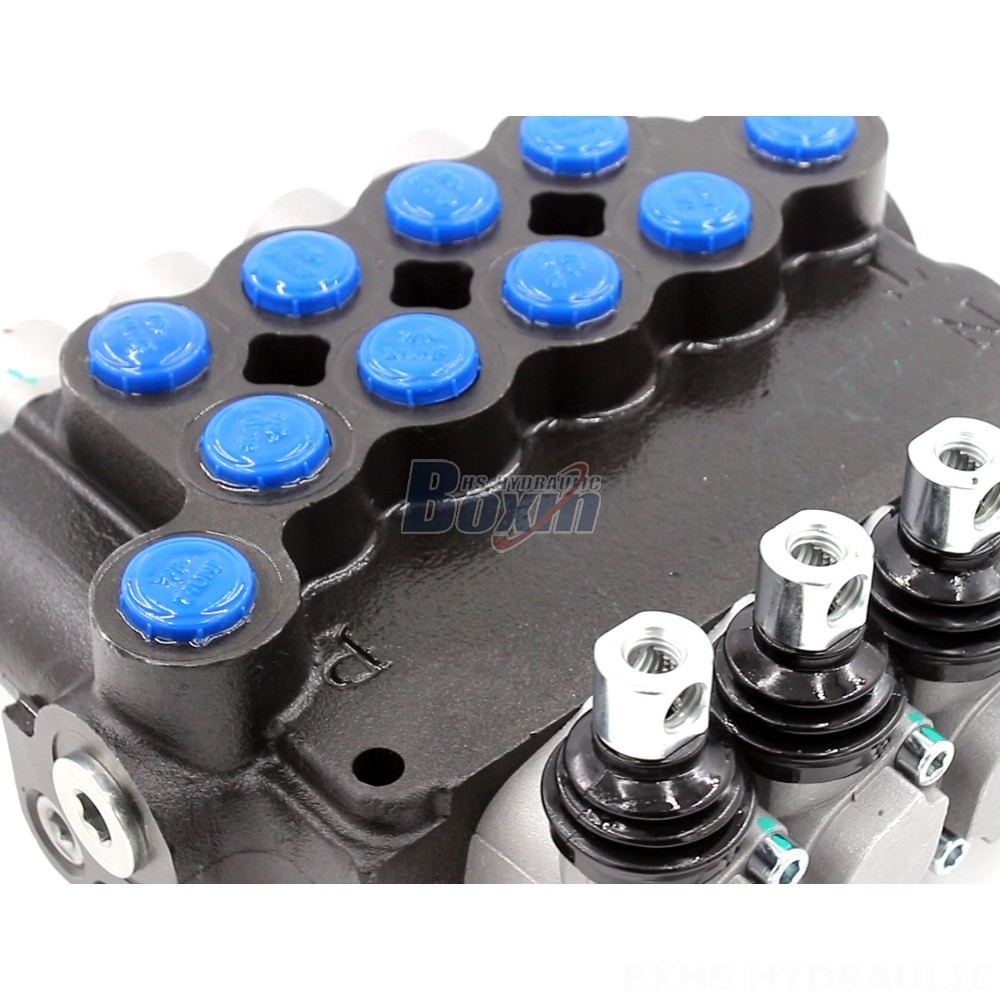

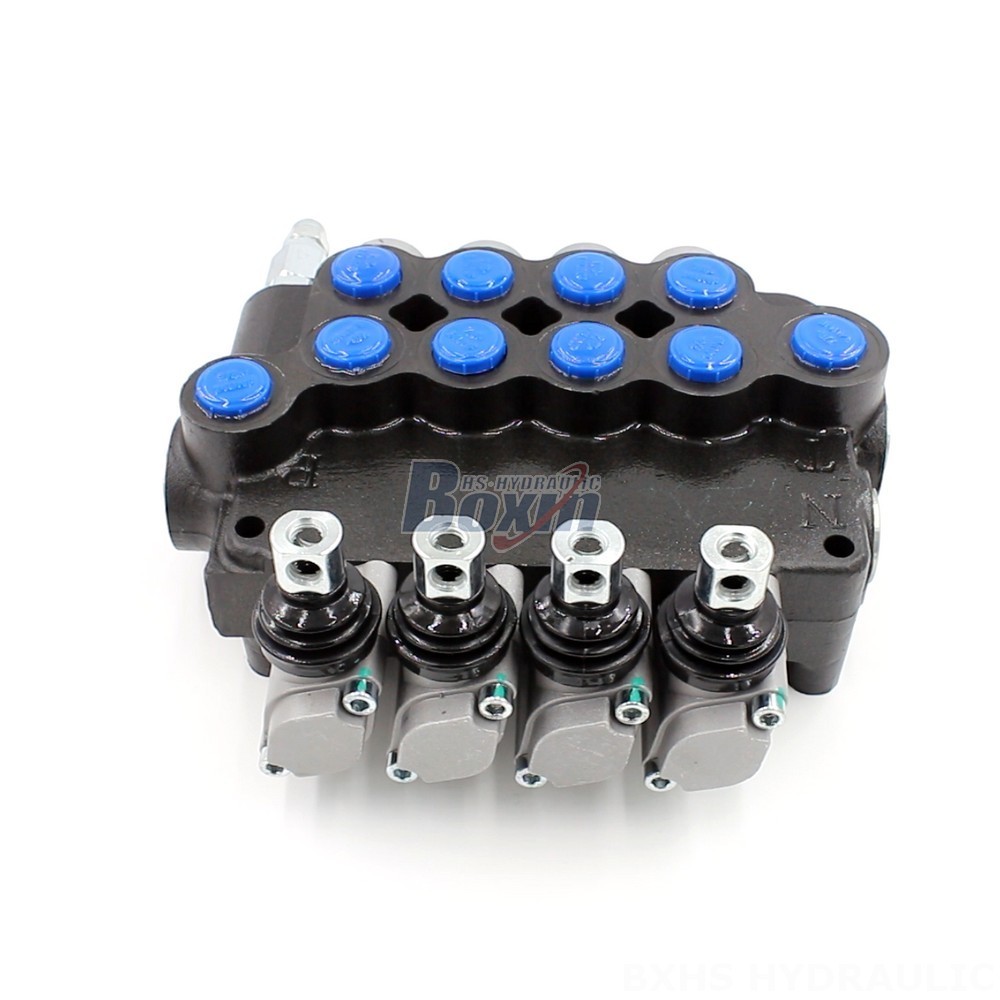

The P80-U78-4OT Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 4-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of machinery.

P80-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Yhdistelmäventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)
Nimellisvirtaus 80 L/min (21,2 US gpm)
Maksimipaine 315 baaria (4 600 psi)
Tuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ulostuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Liitäntäkoko G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 Series monoblock directional valve is a robust and reliable hydraulic solution for controlling hydraulic systems in various applications. With its 4-section design, it offers precise control of multiple hydraulic functions. The valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, ensuring efficient operation even under demanding conditions. The manual control method provides straightforward operation, while the compact monoblock design minimizes installation space. Suitable for a wide range of machinery, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders, this valve is a reliable choice for various industrial and agricultural applications.
