P80-U116-U78-5OT Monoblock Valve | Manufacturer, Supplier & Distributor

Ohjausmenetelmä:Manuaalinen

Jakaja:5 kelaa

Nimellisvirtaus:80 L/min (21,2 US gpm)

Maksimipaine:250 baaria (3 600 psi)

Tuloportti:SAE 10

Ulostuloportti:SAE 12

Liitäntäkoko:SAE 10

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:P80-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:26*30*11

Bruttopaino:16.00 kg

Saatavuus: Varastossa

969 Näkymät etsivät tätä tuotetta

P80-U116-U78-5OT Monoblock Valve | Manufacturer, Supplier & Distributor

P80-U116-U78-5OT Monoblock Valve | Manufacturer, Supplier & Distributor

P80-U116-U78-5OT Monoblock Valve | Manufacturer, Supplier & Distributor drawing image

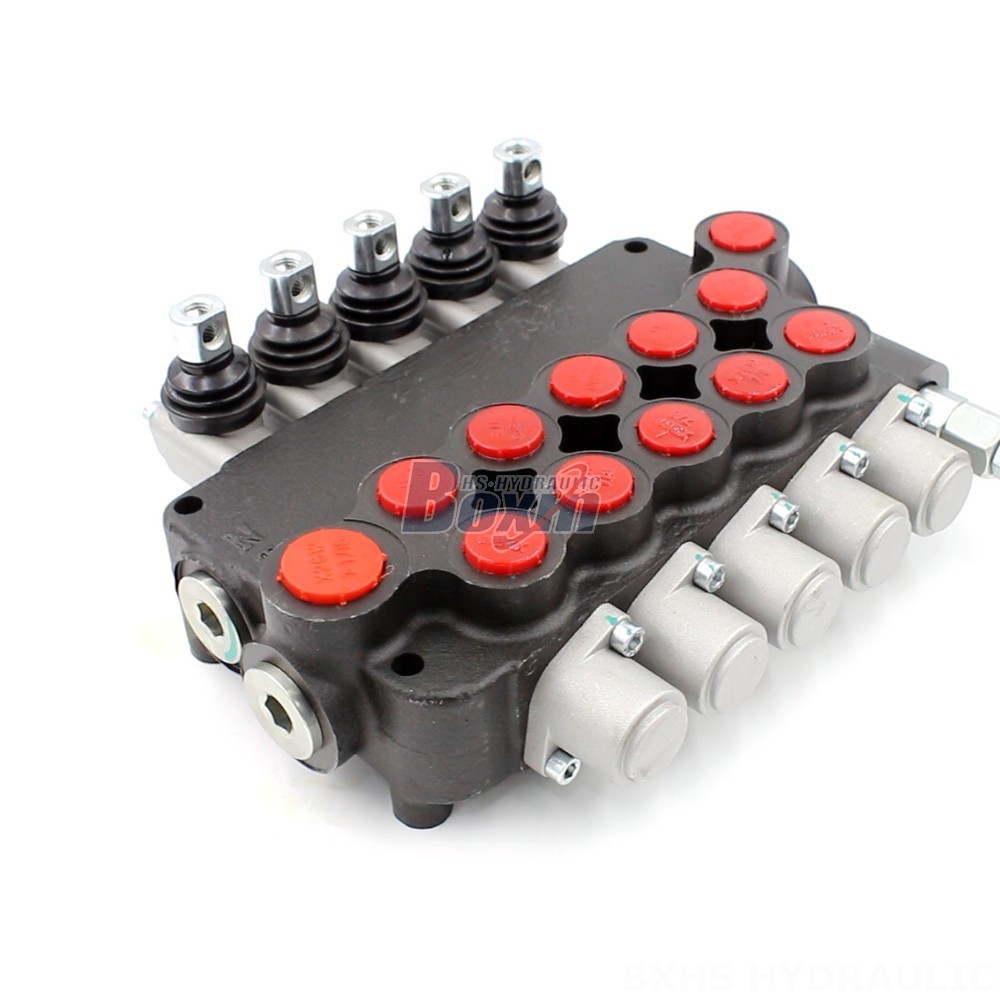

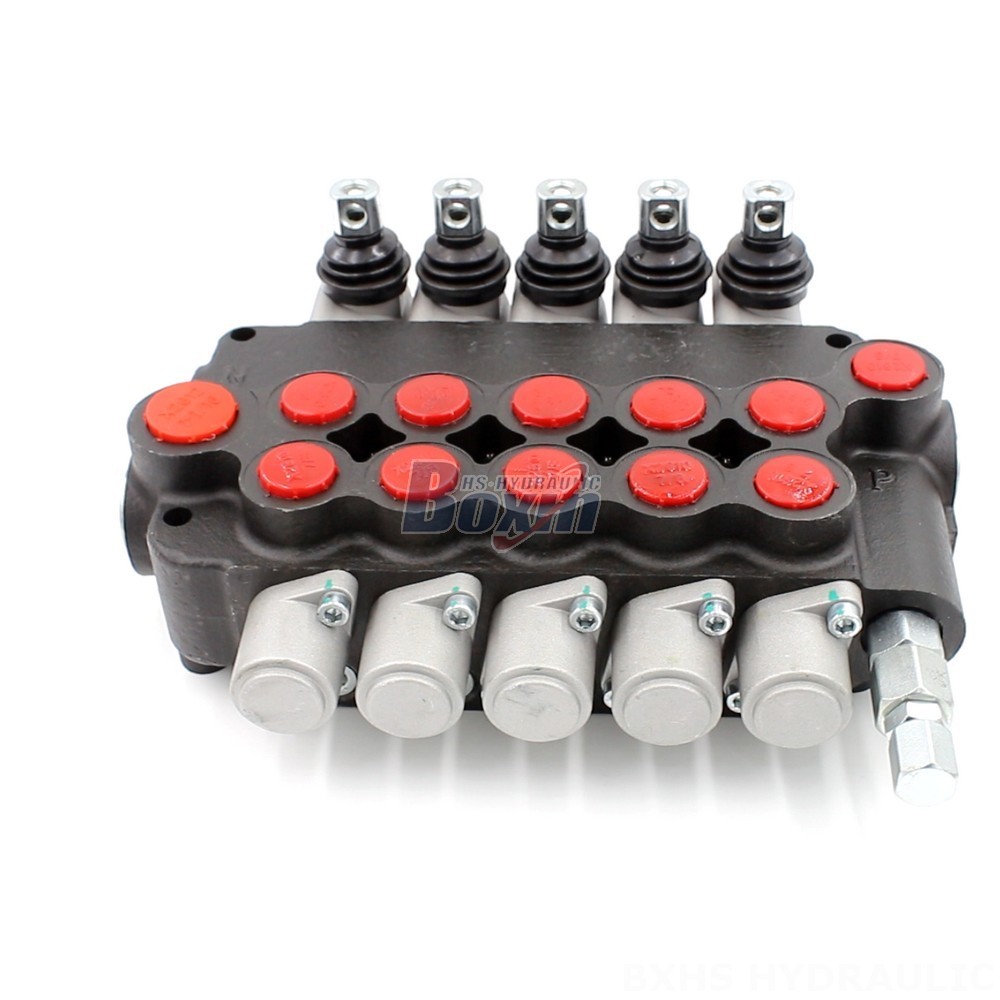

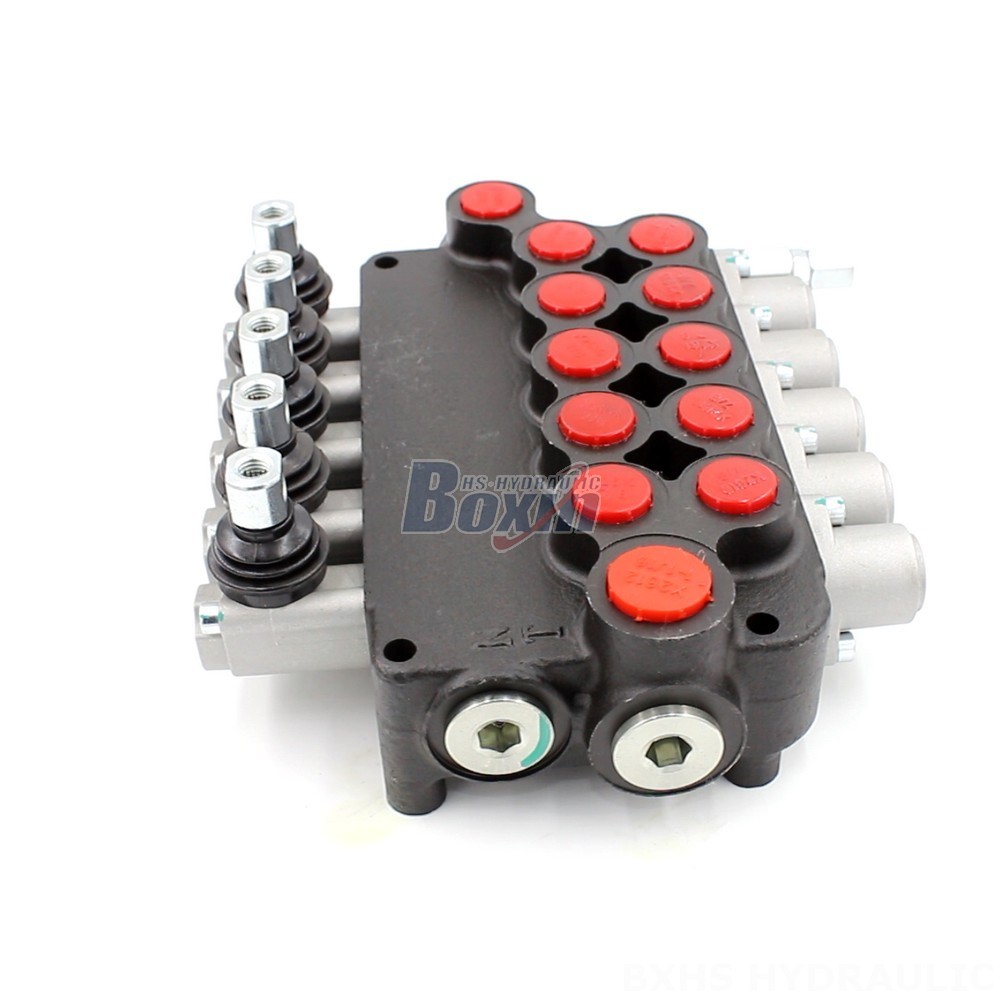

The P80-U116-U78-5OT Monoblock Valve is a high-performance hydraulic flow control valve designed for a wide range of construction and industrial equipment, including telehandlers, forklifts, and excavators. It features a 5-section, manual control design, a rated flow of 80 L/min, and a maximum pressure of 250 bar.

P80-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Yhdistelmäventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)
Nimellisvirtaus 80 L/min (21,2 US gpm)
Maksimipaine 315 baaria (4 600 psi)
Tuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ulostuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Liitäntäkoko G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-U116-U78-5OT Monoblock Valve is a robust and reliable hydraulic flow control valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a 5-section monoblock valve design with manual control, providing precise control of hydraulic fluid flow. The valve is rated for a flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of equipment sizes and operating conditions. The valve operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is designed to function in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). With its 5 spool design and P80 Series designation, this valve offers a high degree of versatility and reliability, ensuring optimal performance in a variety of applications.
