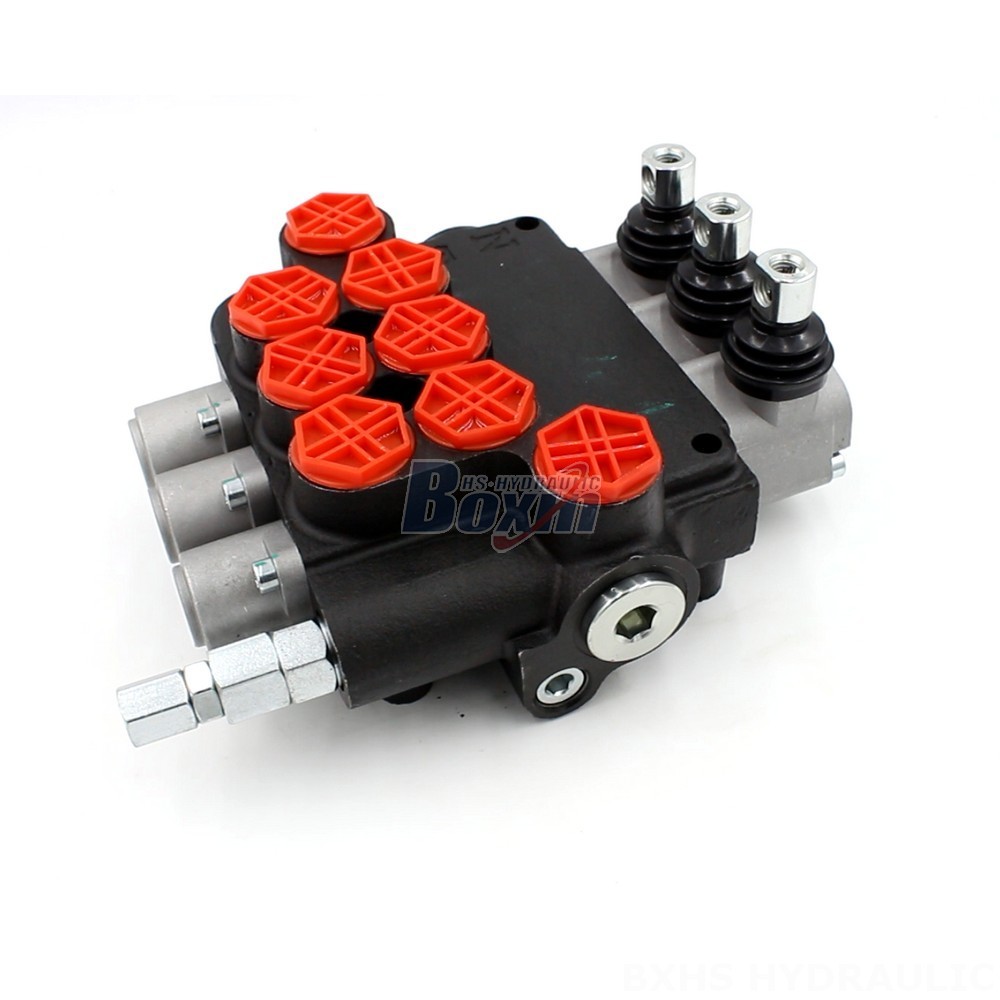

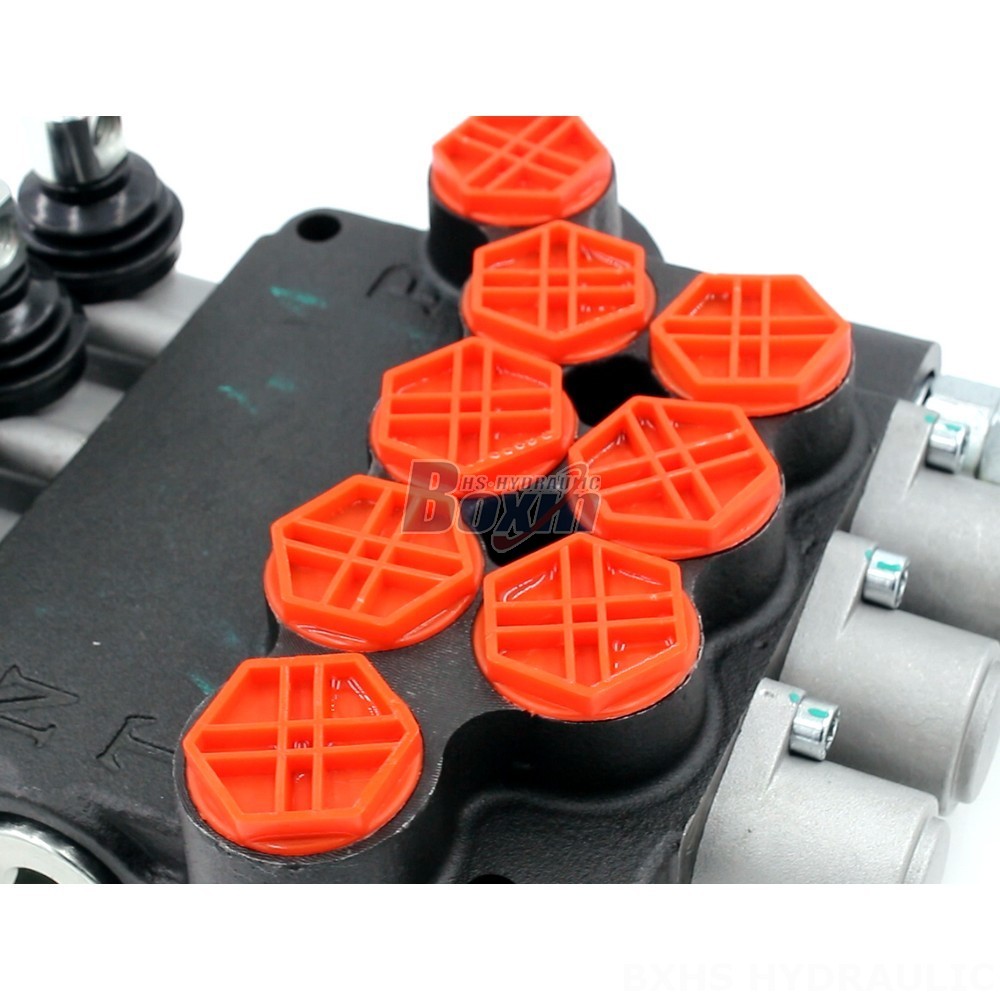

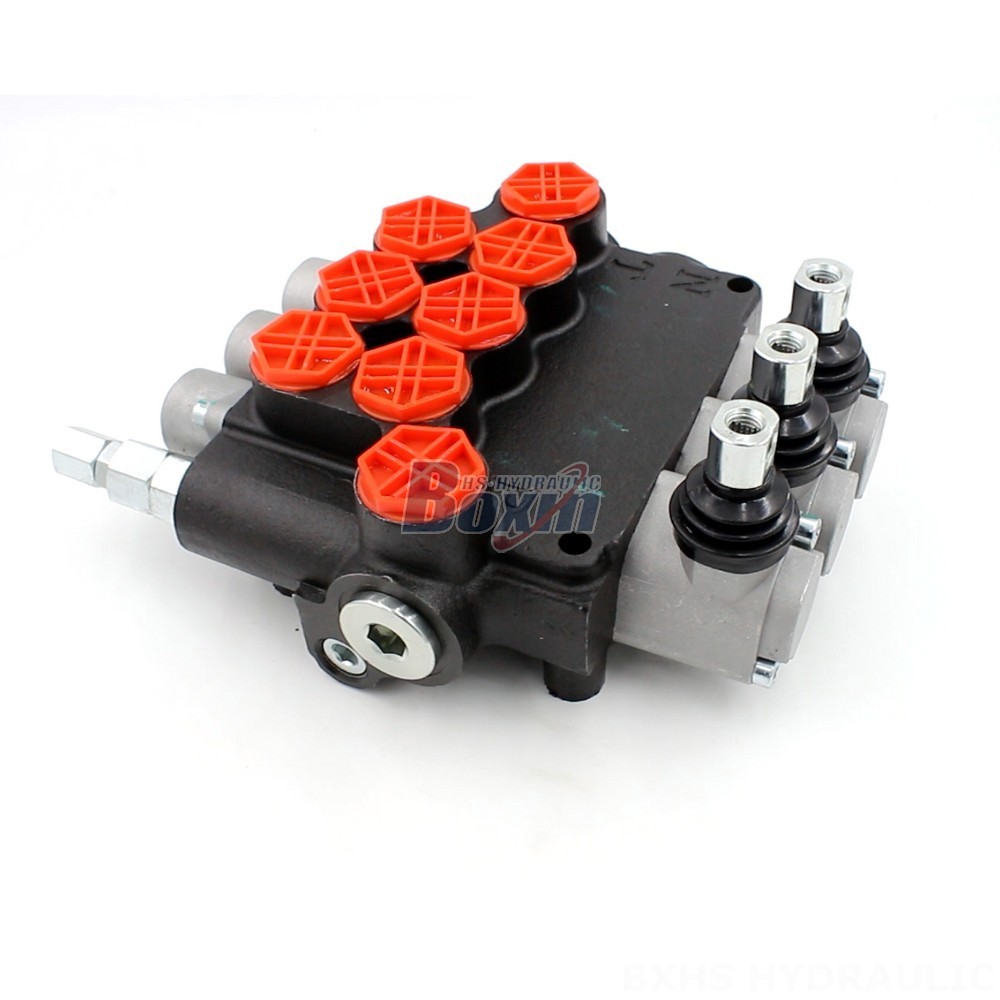

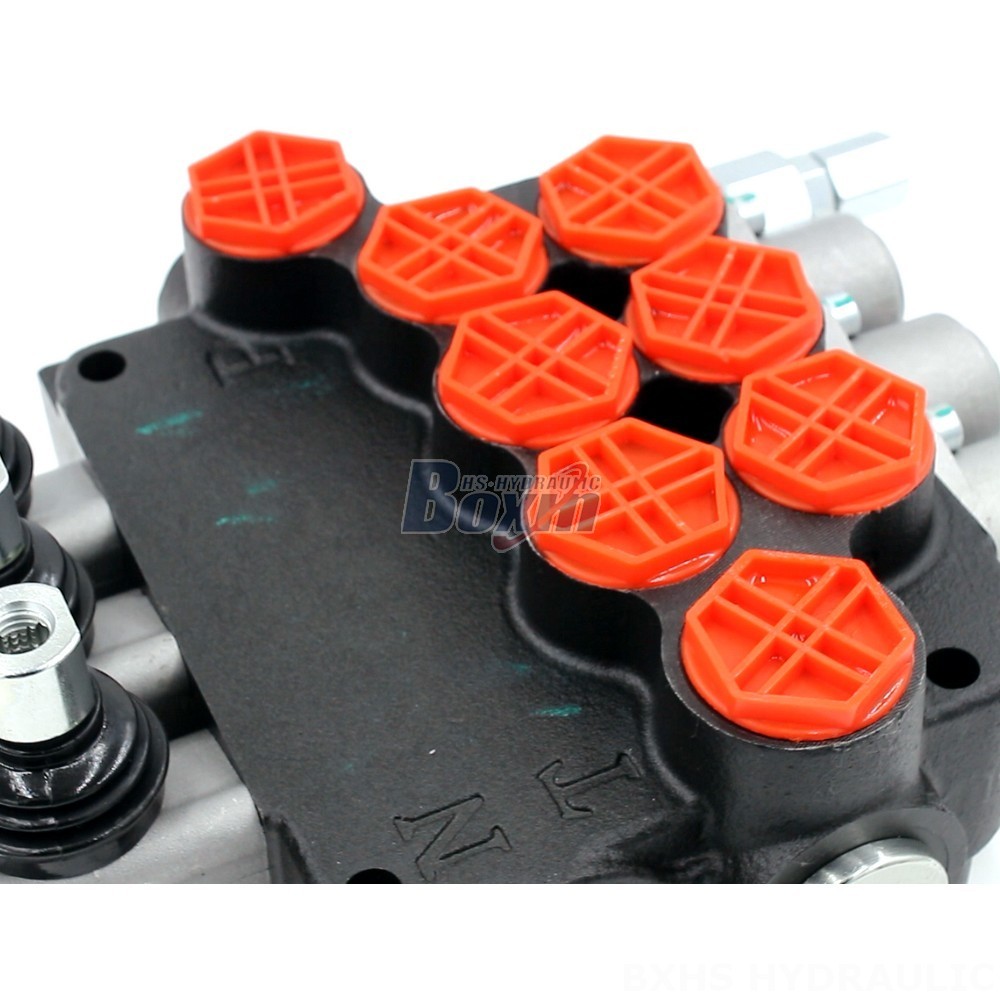

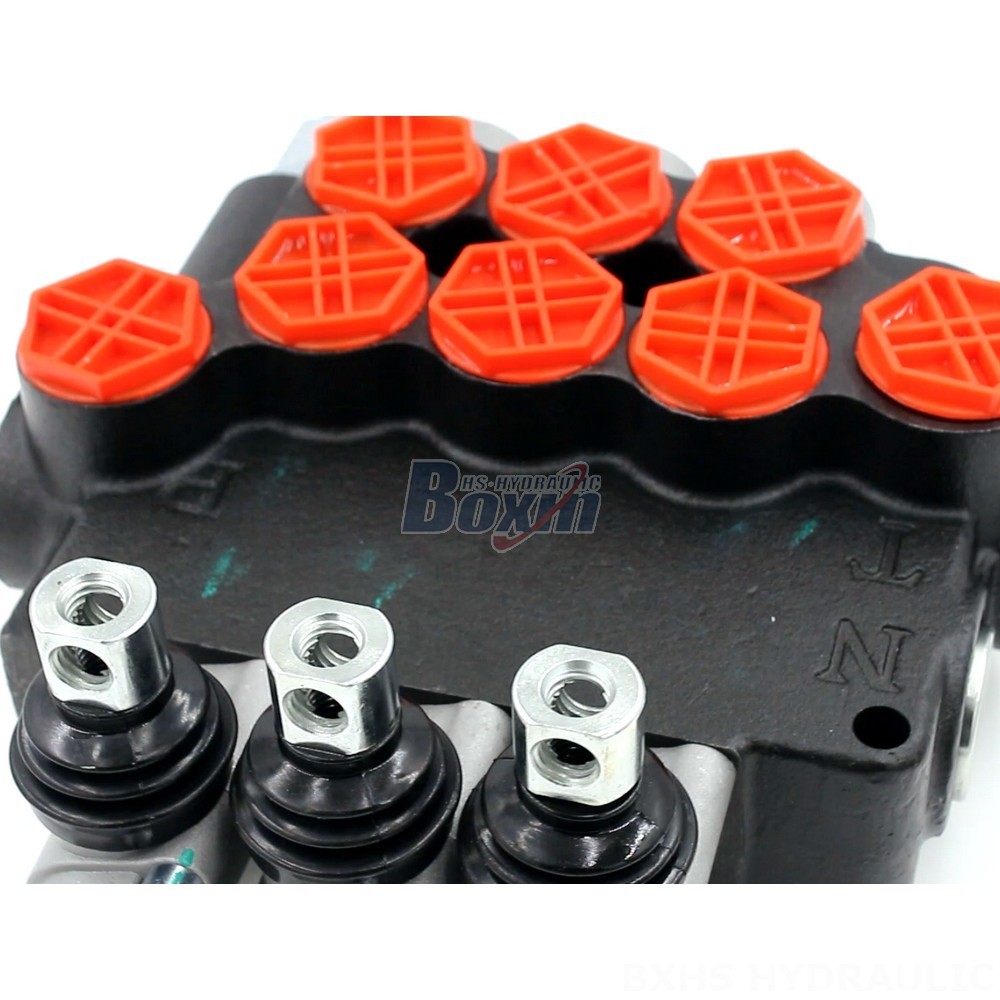

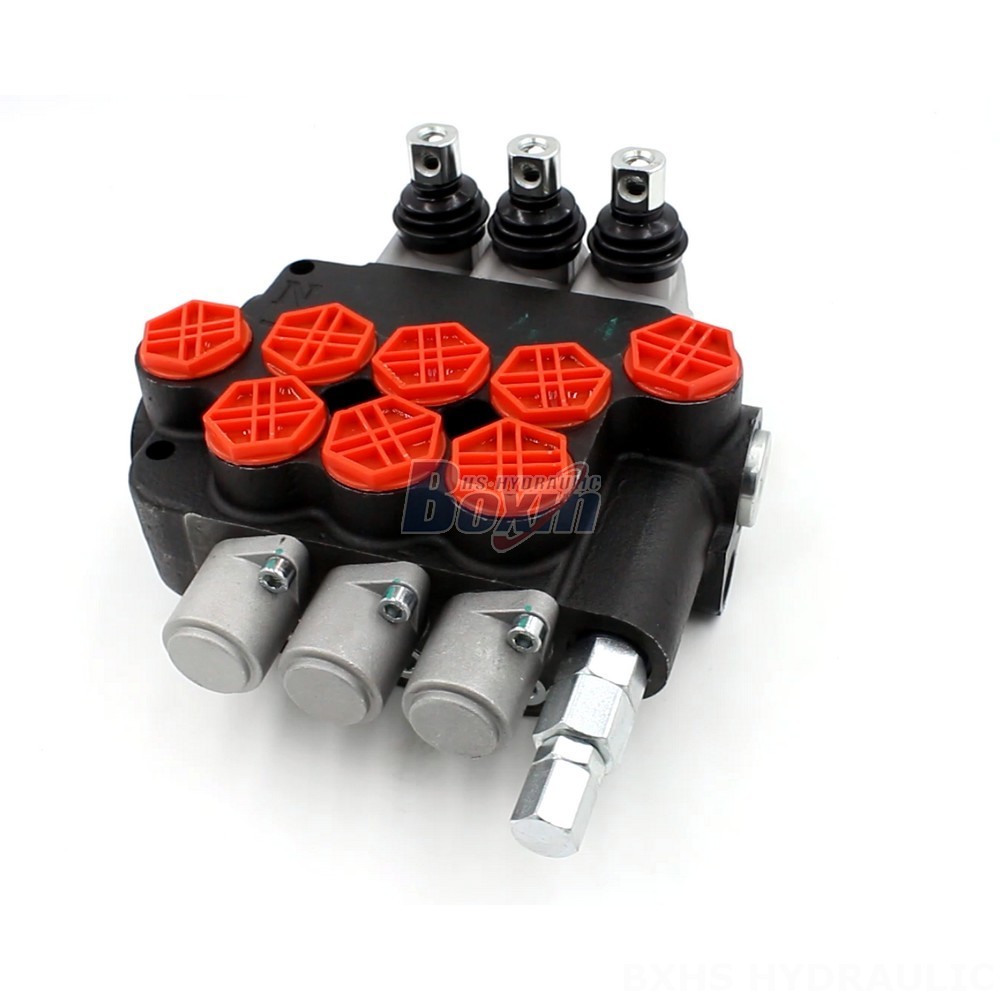

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

Ohjausmenetelmä:Manuaalinen

Jakaja:3 kelaa

Nimellisvirtaus:80 L/min (21,2 US gpm)

Maksimipaine:250 baaria (3 600 psi)

Tuloportti:G3/4

Ulostuloportti:G3/4

Liitäntäkoko:G3/4

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:P80-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:26*23*11

Bruttopaino:10.70 kg

Saatavuus: Varastossa

1210 Näkymät etsivät tätä tuotetta

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve

P80-G34-OT Manual 3 Spool Monoblock Directional Valve drawing image

The Hydraulic Flow Control Valve with Relief P80-G34-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in construction, material handling, and industrial vehicles. This manual control, 3-section, monoblock valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi).

P80-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Yhdistelmäventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)
Nimellisvirtaus 80 L/min (21,2 US gpm)
Maksimipaine 315 baaria (4 600 psi)
Tuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ulostuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Liitäntäkoko G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 series hydraulic flow control valve is a 3-spool monoblock directional valve with manual control. It is designed to regulate the flow of hydraulic fluid in various applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This reliable and durable hydraulic valve is ideal for demanding applications in construction, material handling, and industrial settings.
