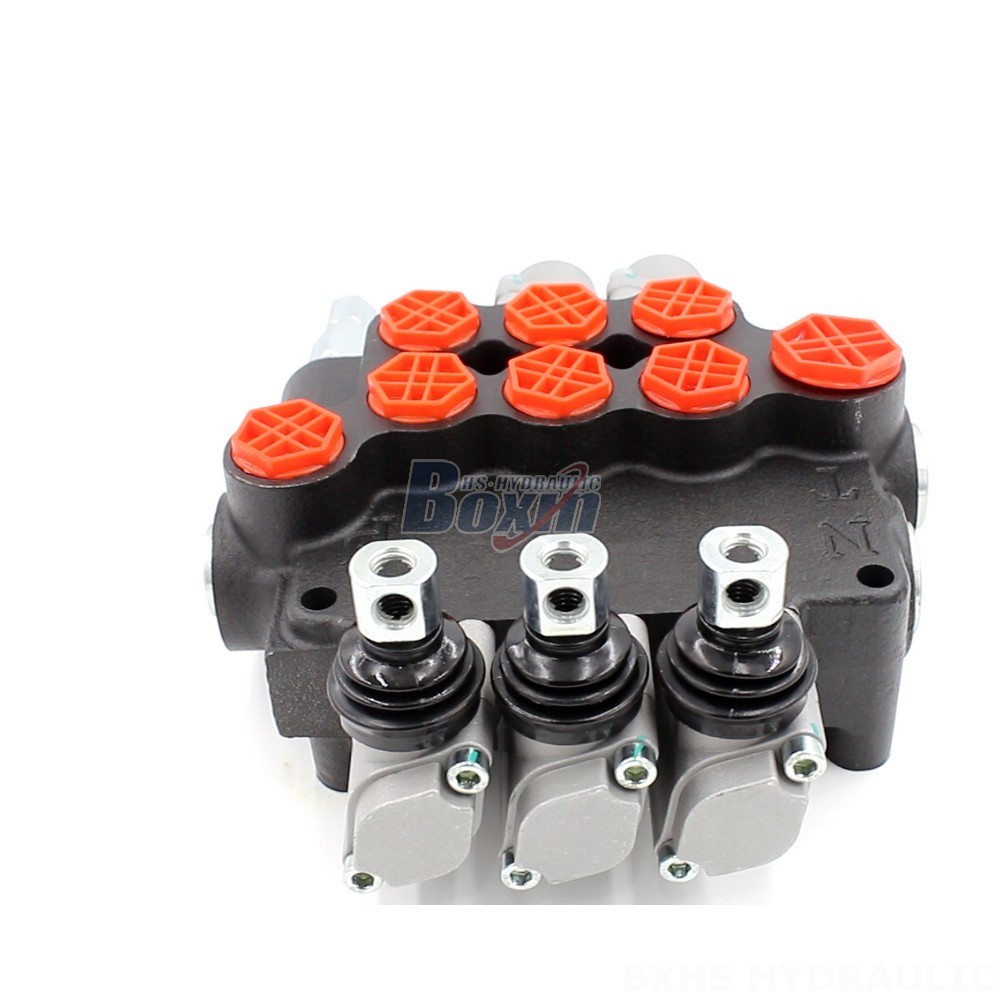

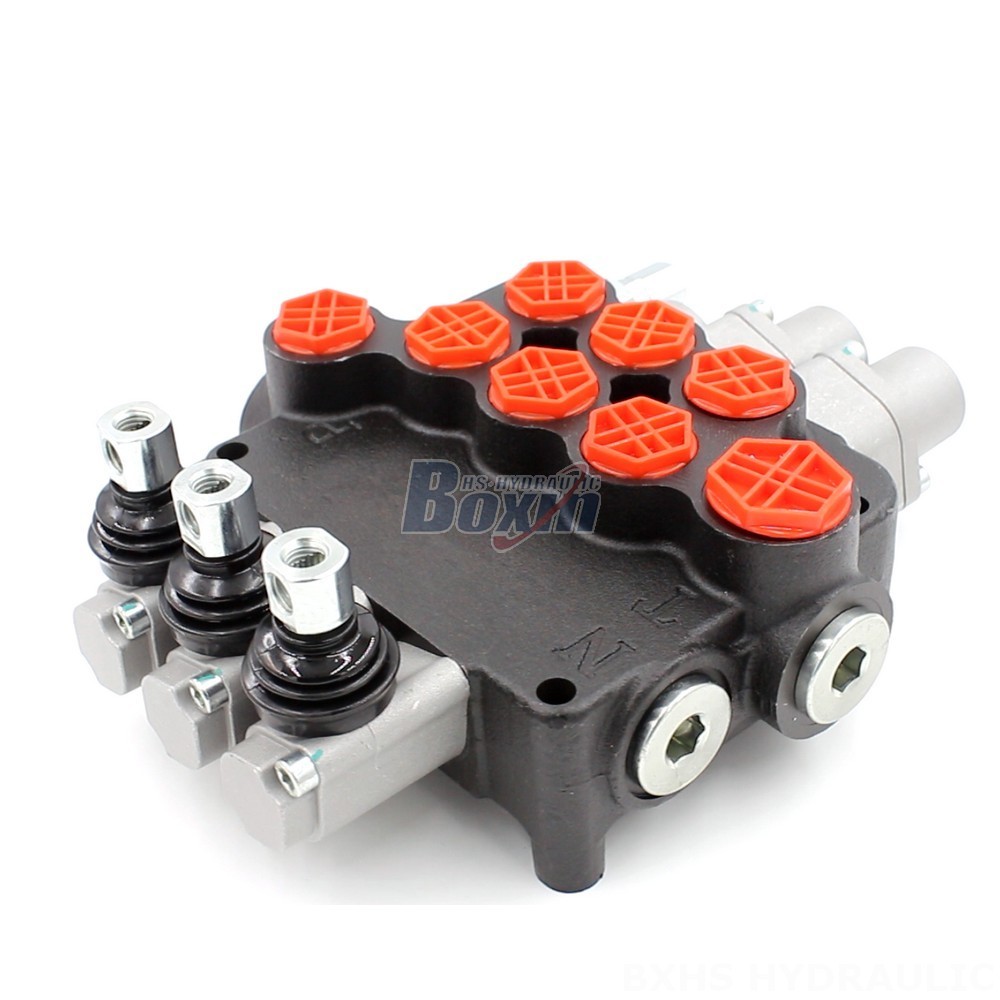

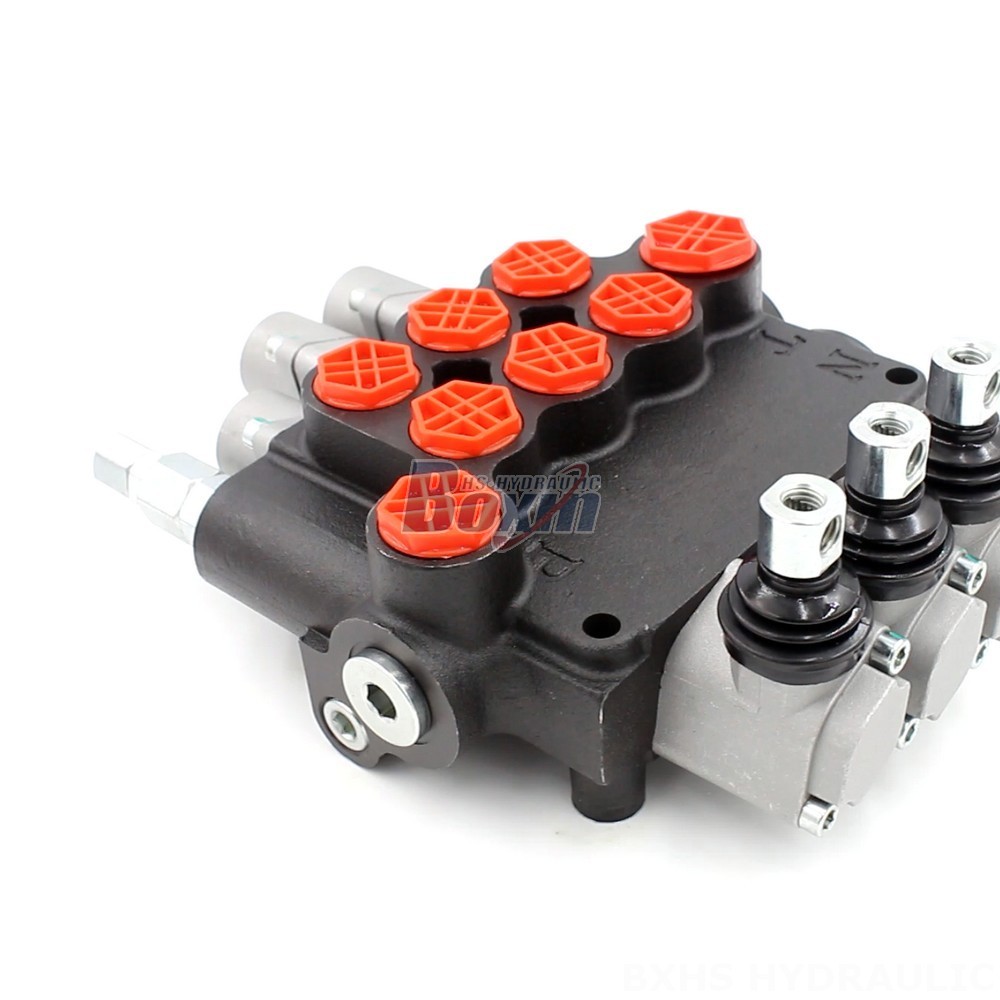

The P80-G12-G34 is a high-performance, manual, 3-spool monoblock directional valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. It features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, and excavators.
| P80-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 80 L/min (21,2 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ulostuloportti | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Liitäntäkoko | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This robust hydraulic valve offers exceptional control and reliability in demanding environments. With its 3-spool configuration, it provides precise direction control of hydraulic actuators. The monoblock construction ensures high strength and durability, while the manual control allows for easy operation. The P80-G12-G34 is compatible with a wide range of operating fluids and temperatures, making it suitable for various applications. It features a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s. Its compact design and lightweight construction allow for easy installation and integration into various hydraulic systems. This valve is designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders, among other industrial vehicles.
