Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

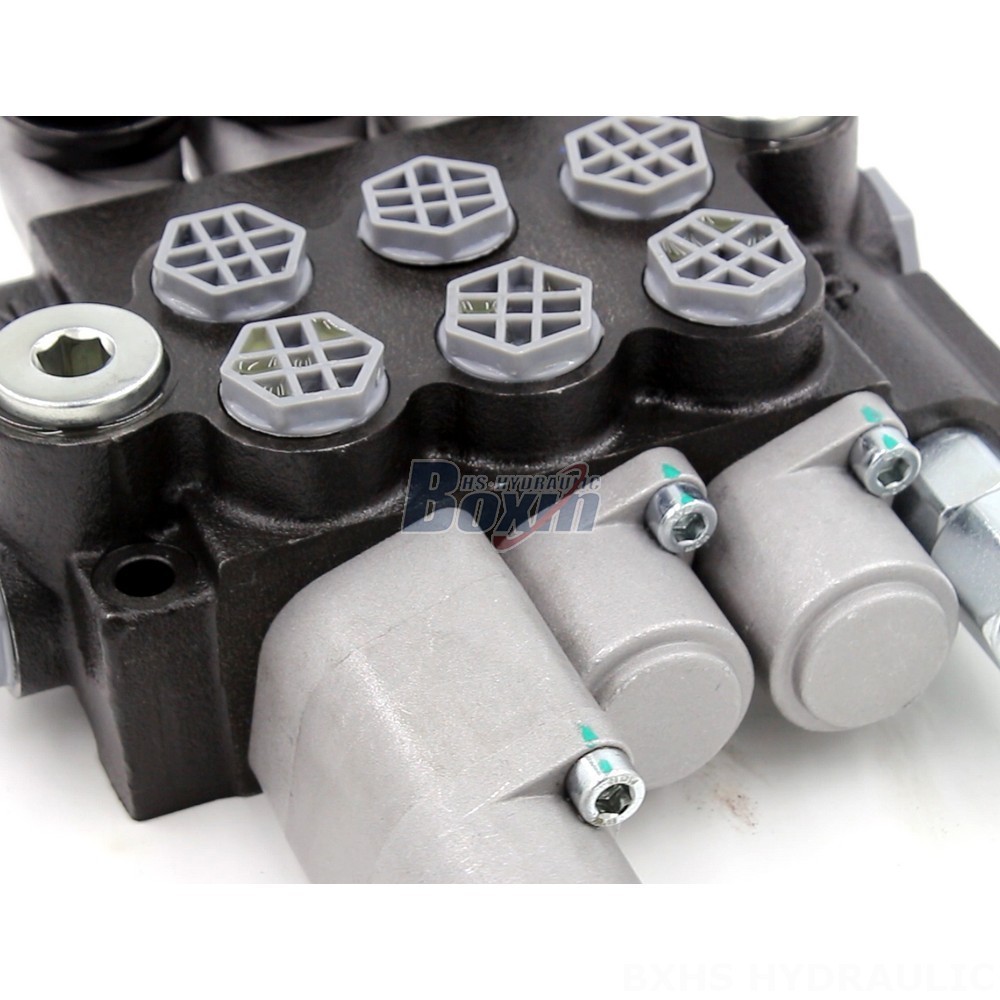

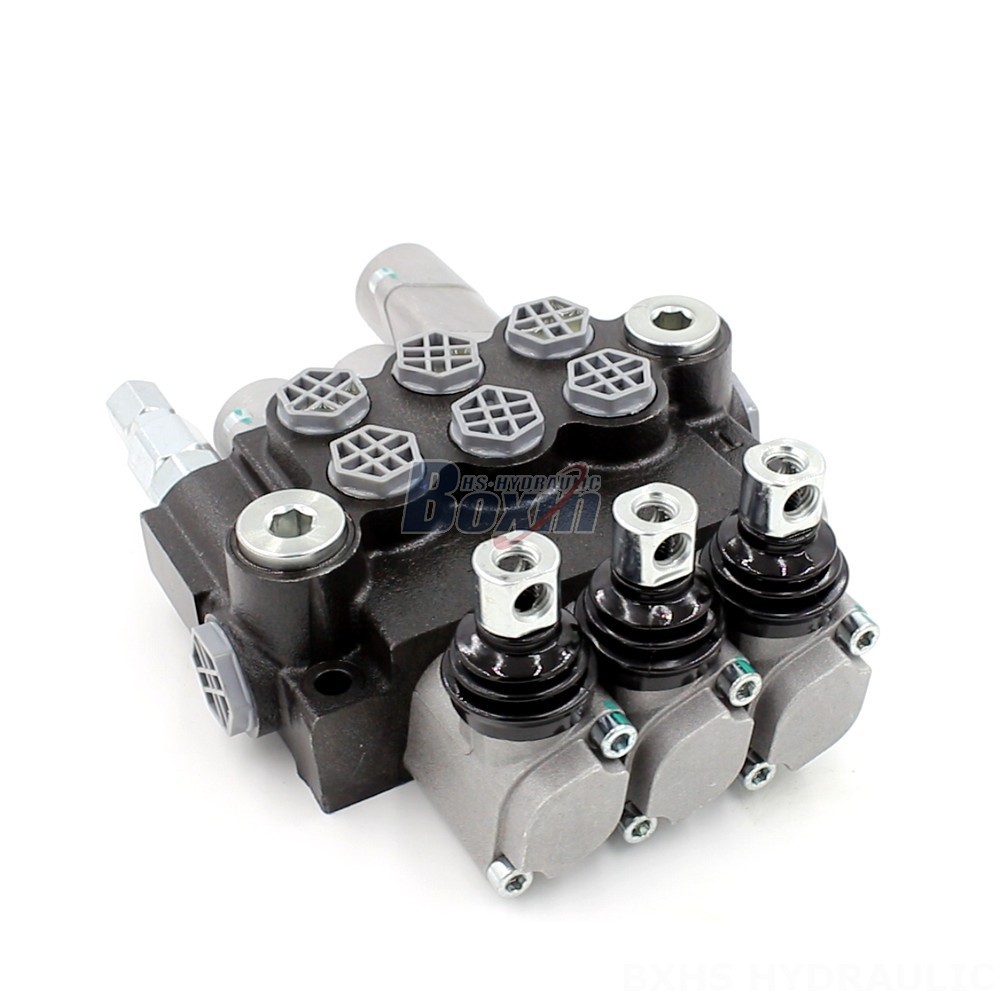

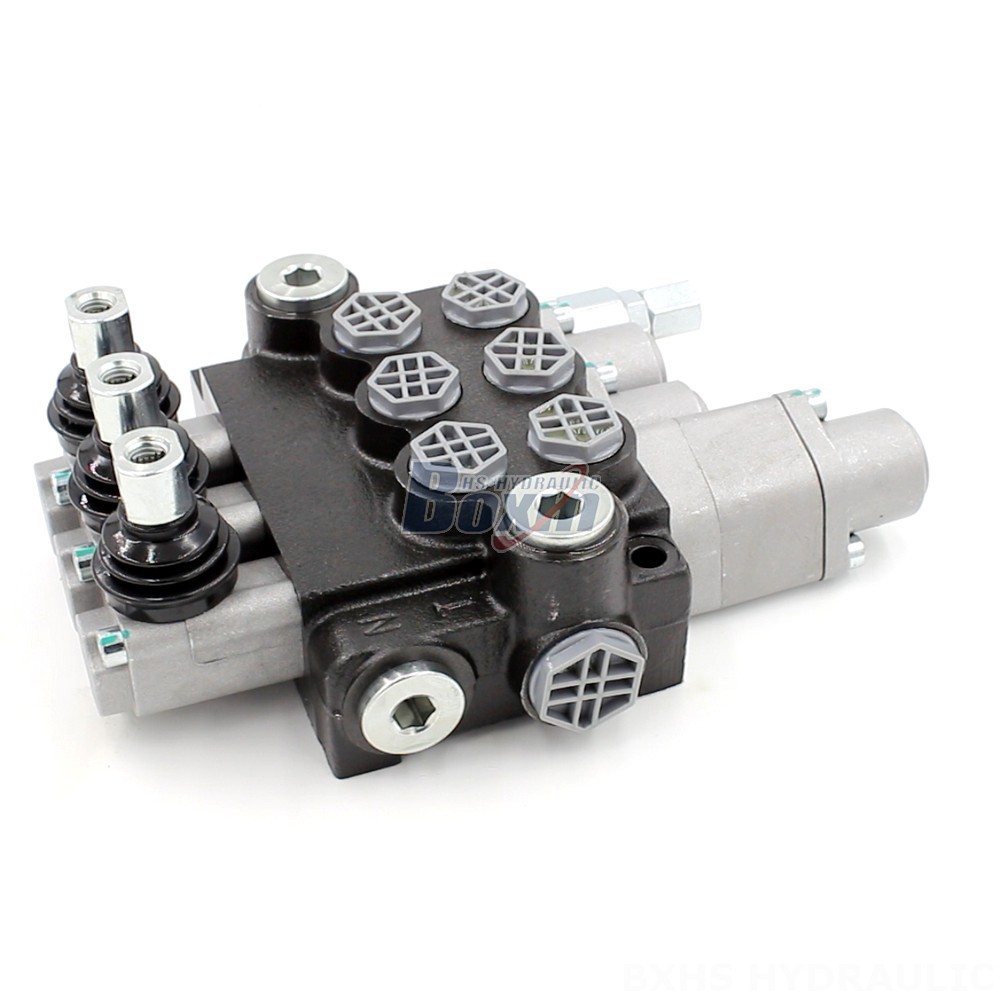

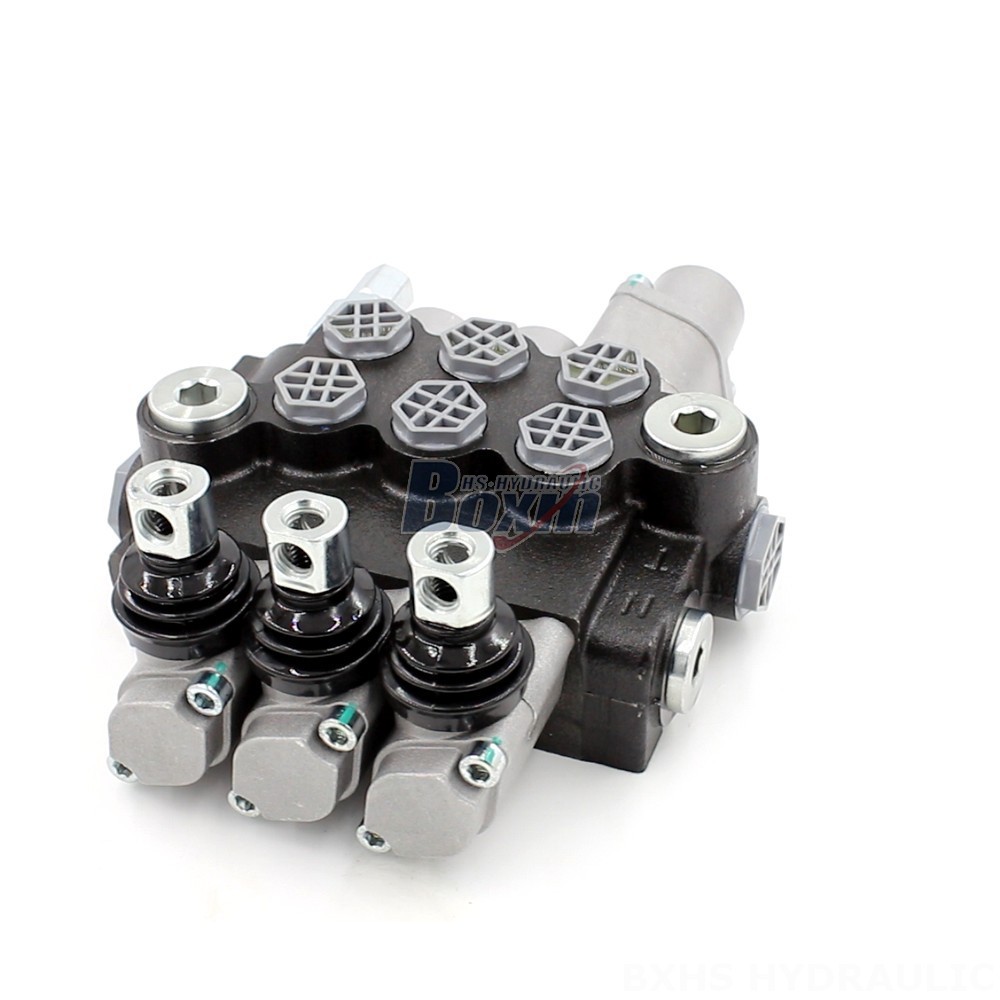

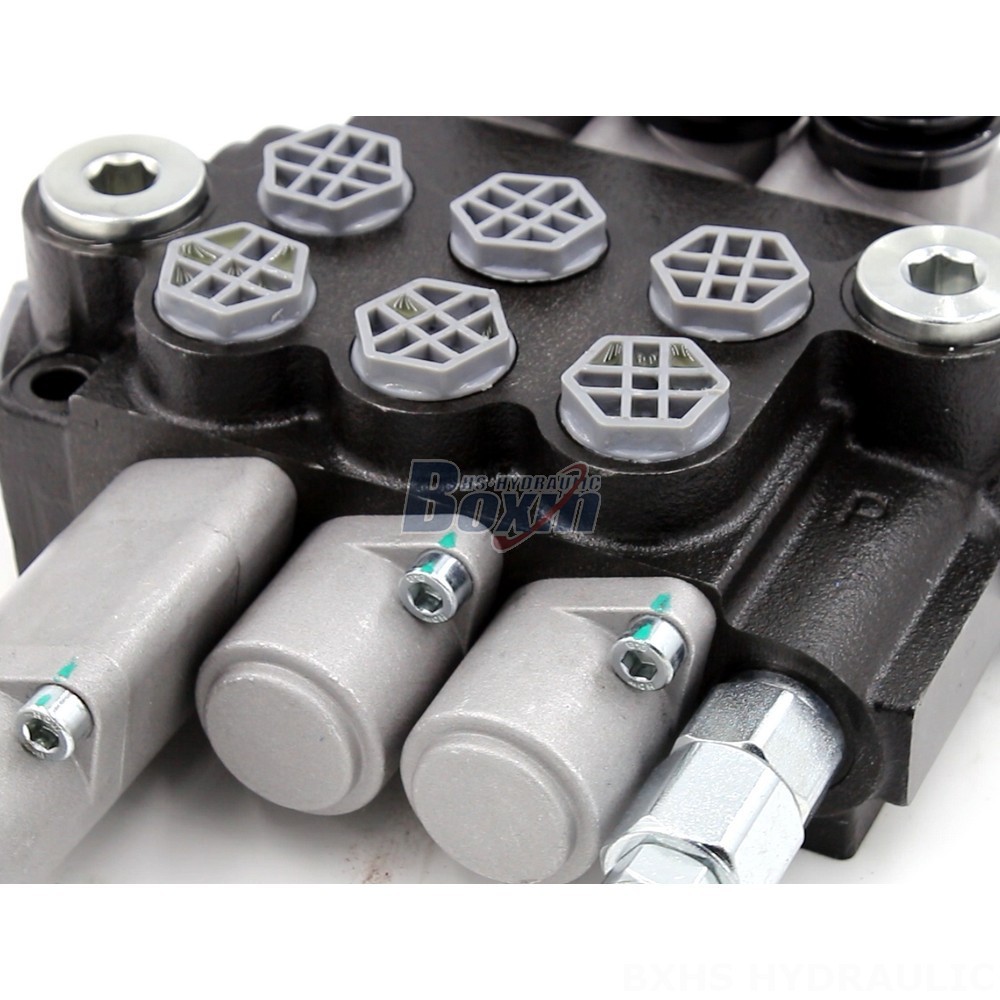

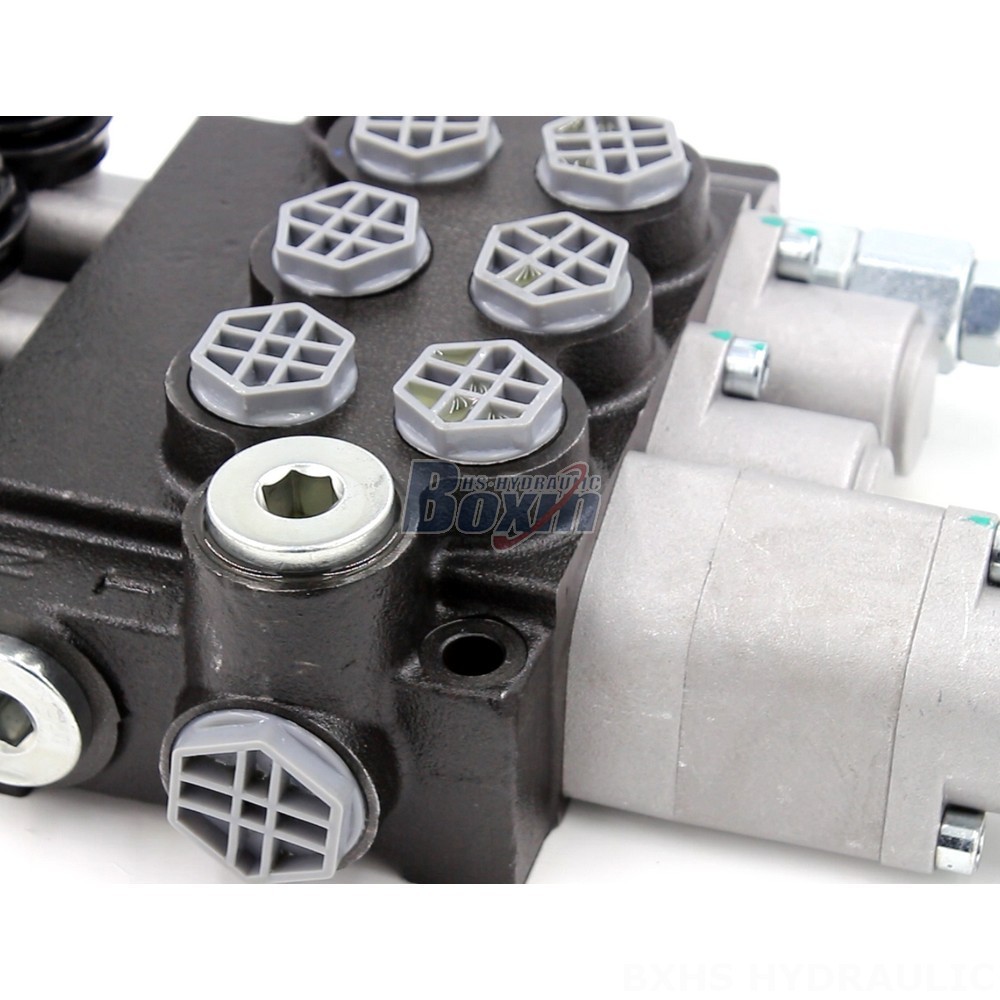

The P40-G12-G38 3 Way Directional Control Valve is a reliable and versatile hydraulic valve designed for use in a wide range of construction, industrial and agricultural applications. This monoblock valve features a manual control method and a rated flow of 40 L/min, making it ideal for operating various equipment like telehandlers, forklifts, cranes, and excavators.
| P40-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen, Solenoidi ja kaapeli |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 40 L/min (10,5 US gpm) |
| Maksimipaine | 250 baaria (3 600 psi) |
| Tuloportti | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ulostuloportti | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Liitäntäkoko | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38 3 Way Directional Control Valve is a high-performance hydraulic valve designed for demanding applications. It features a 3-section, monoblock design with a manual control method. The valve is rated for a flow rate of 40 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosity ranges of 15 - 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The P40 series valve is ideal for use in construction equipment, material handling applications, industrial vehicles, and agriculture. Its robust design and reliable performance make it suitable for various heavy-duty applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
