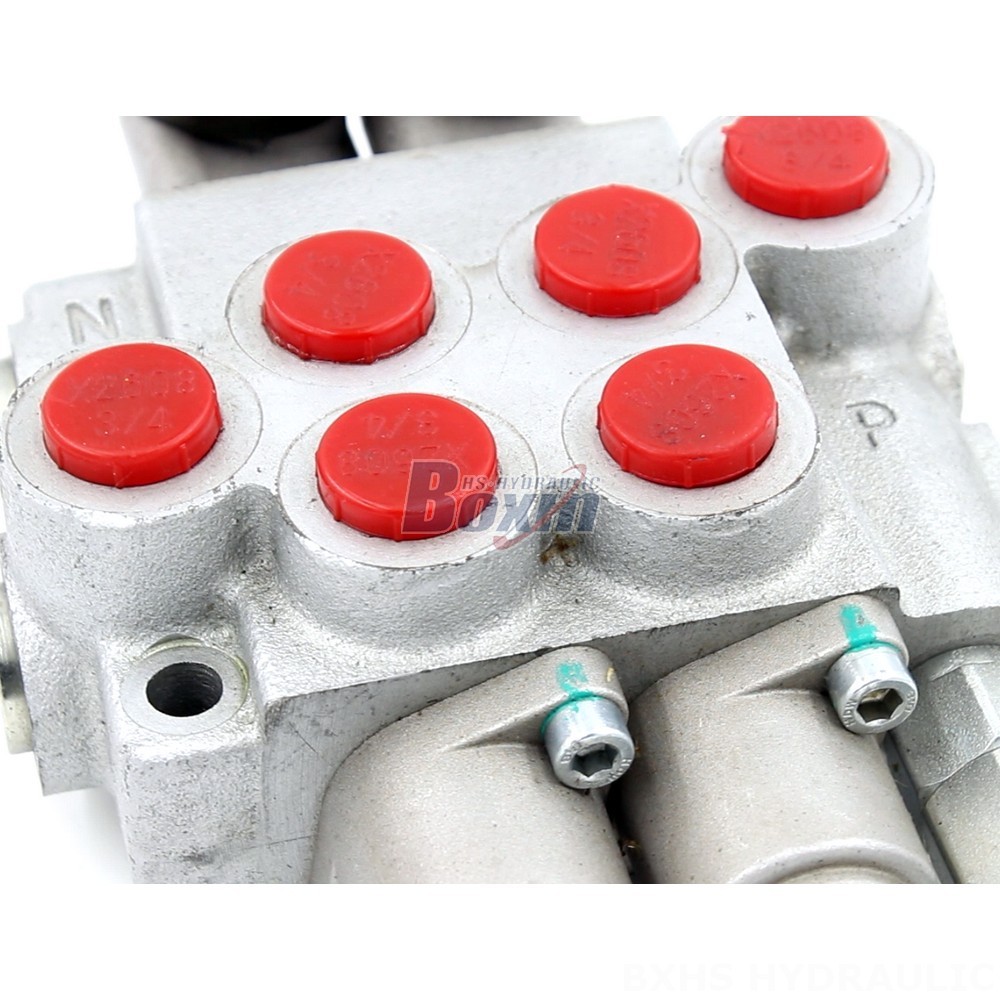

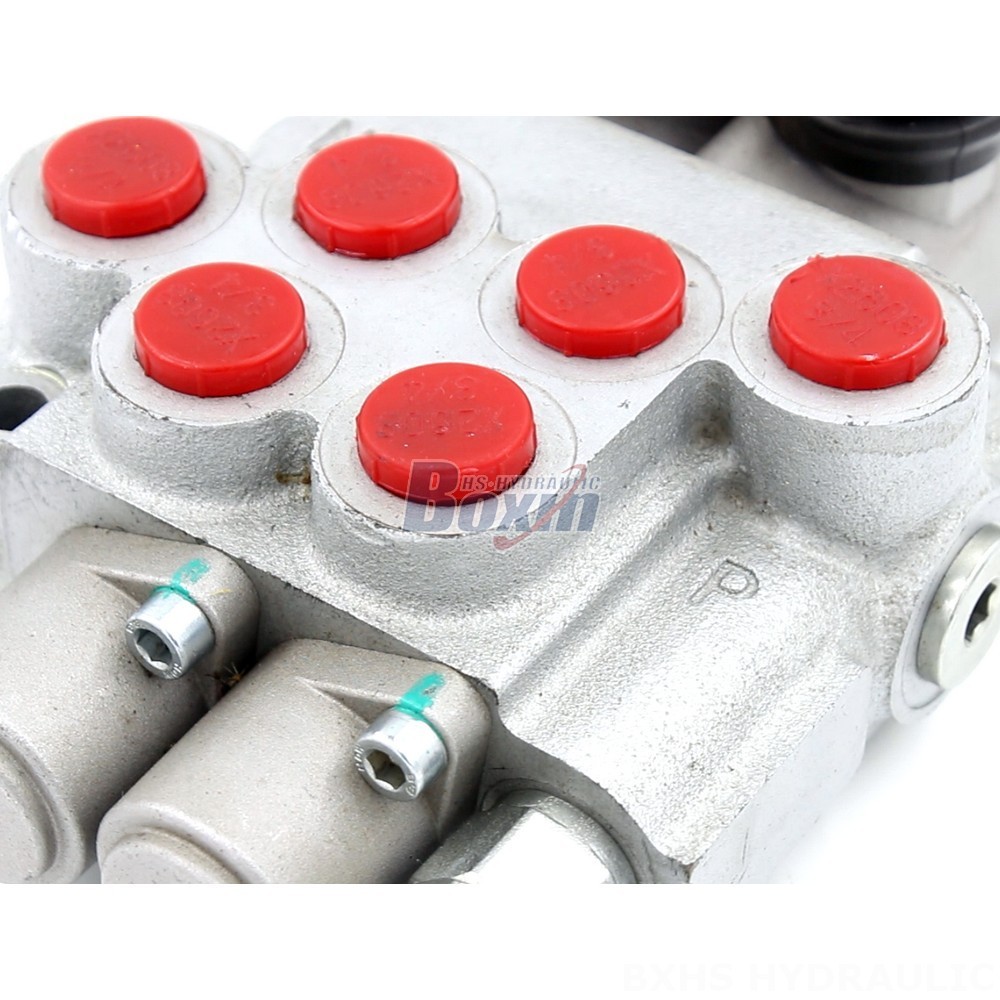

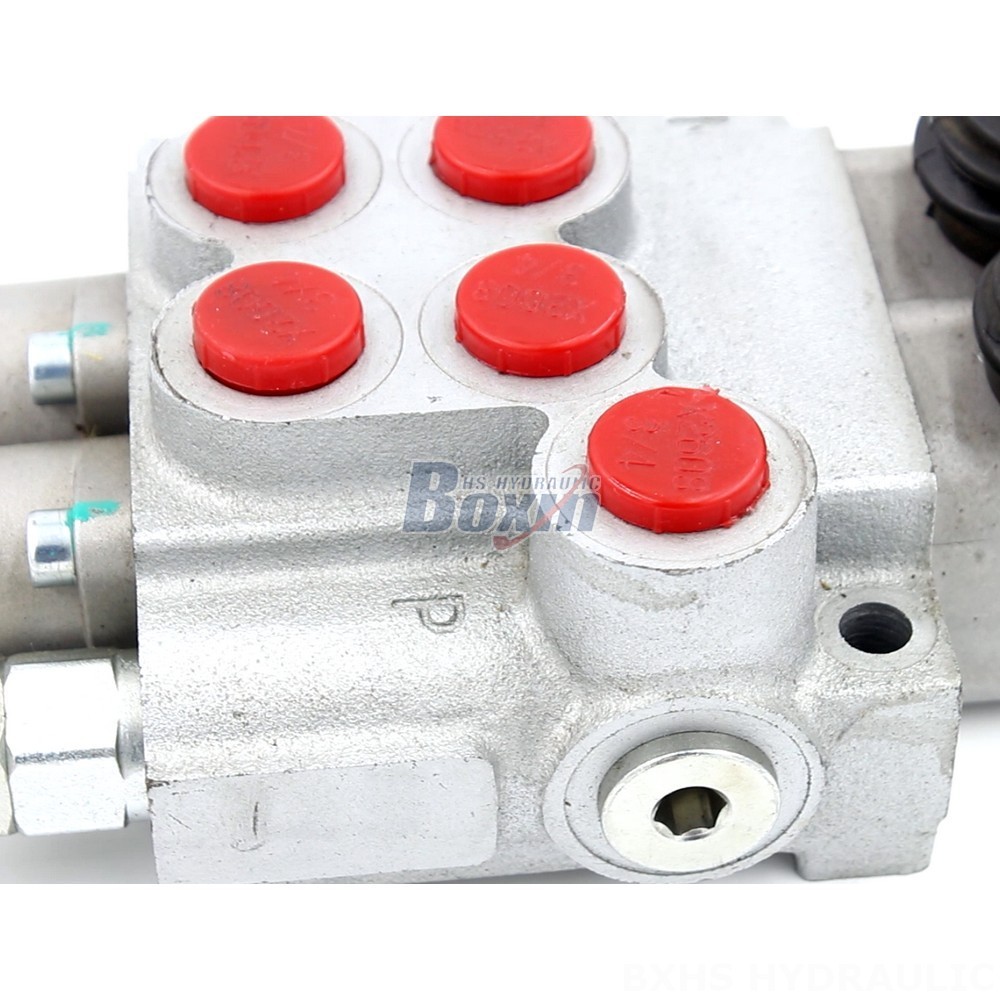

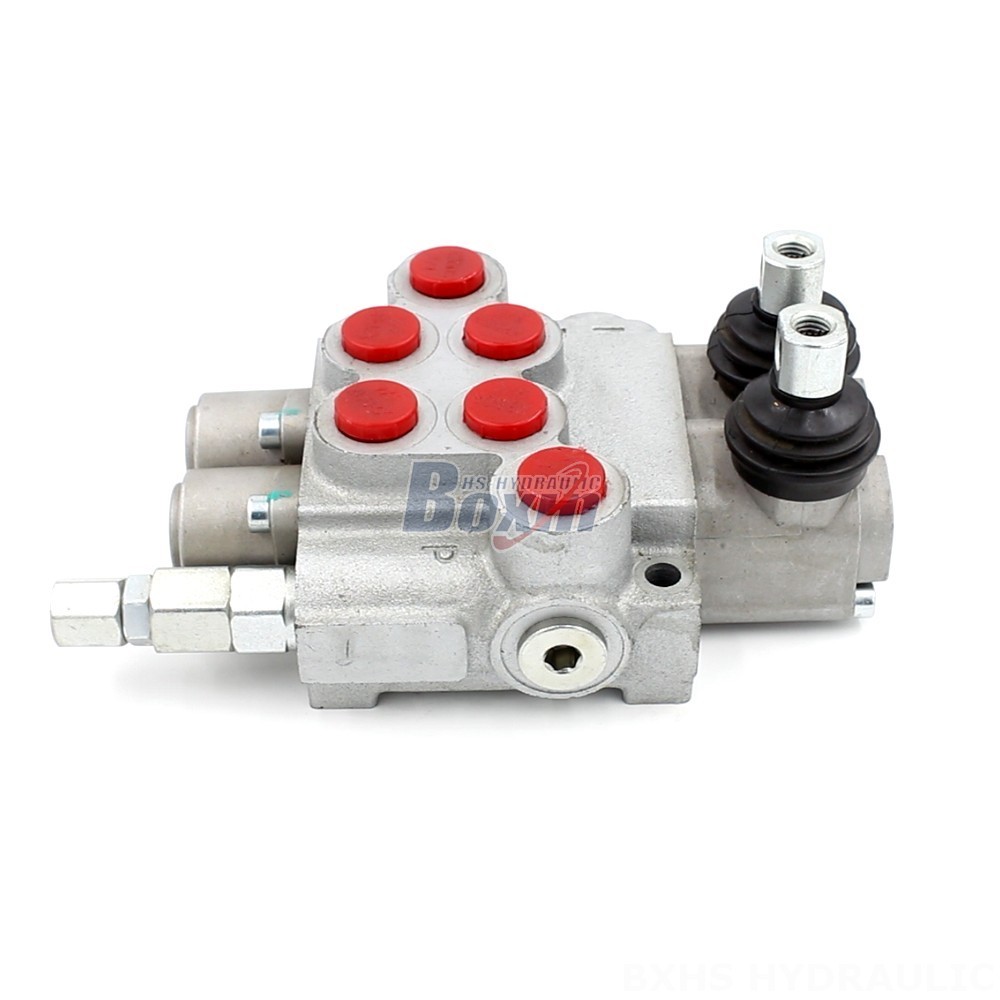

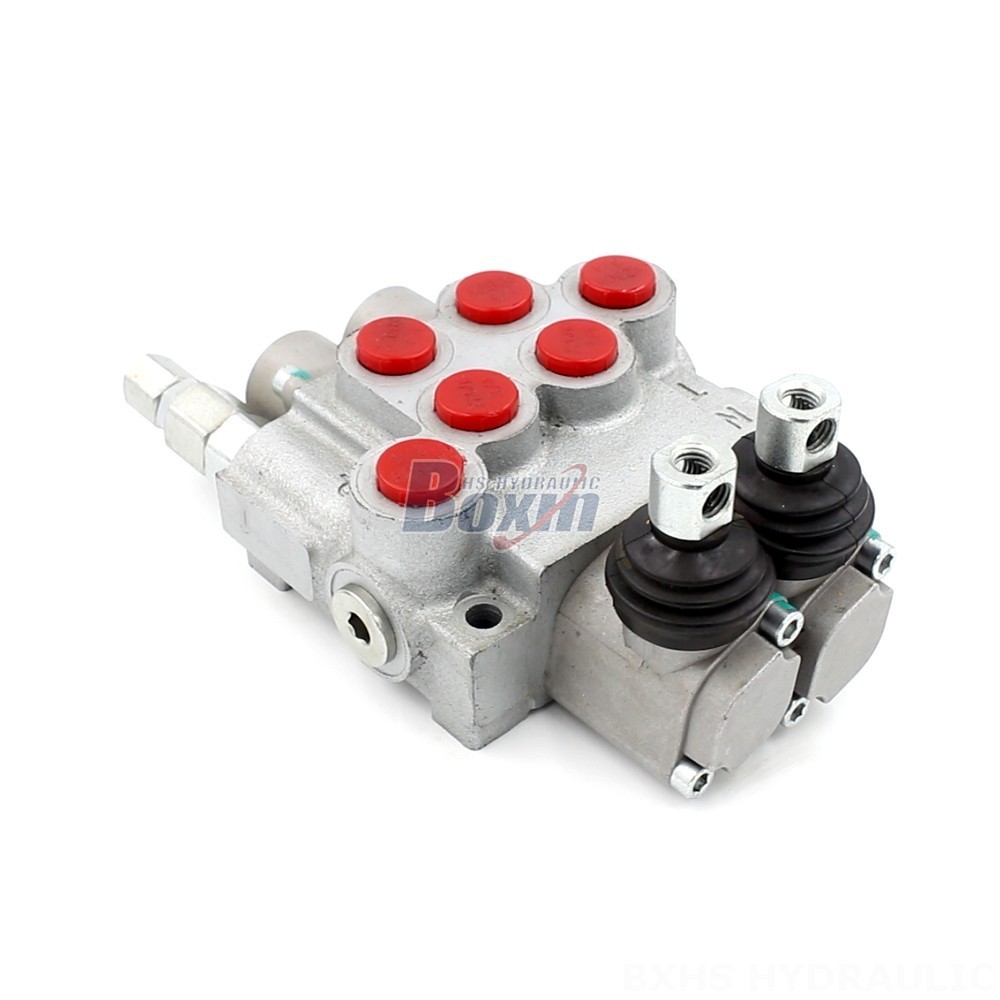

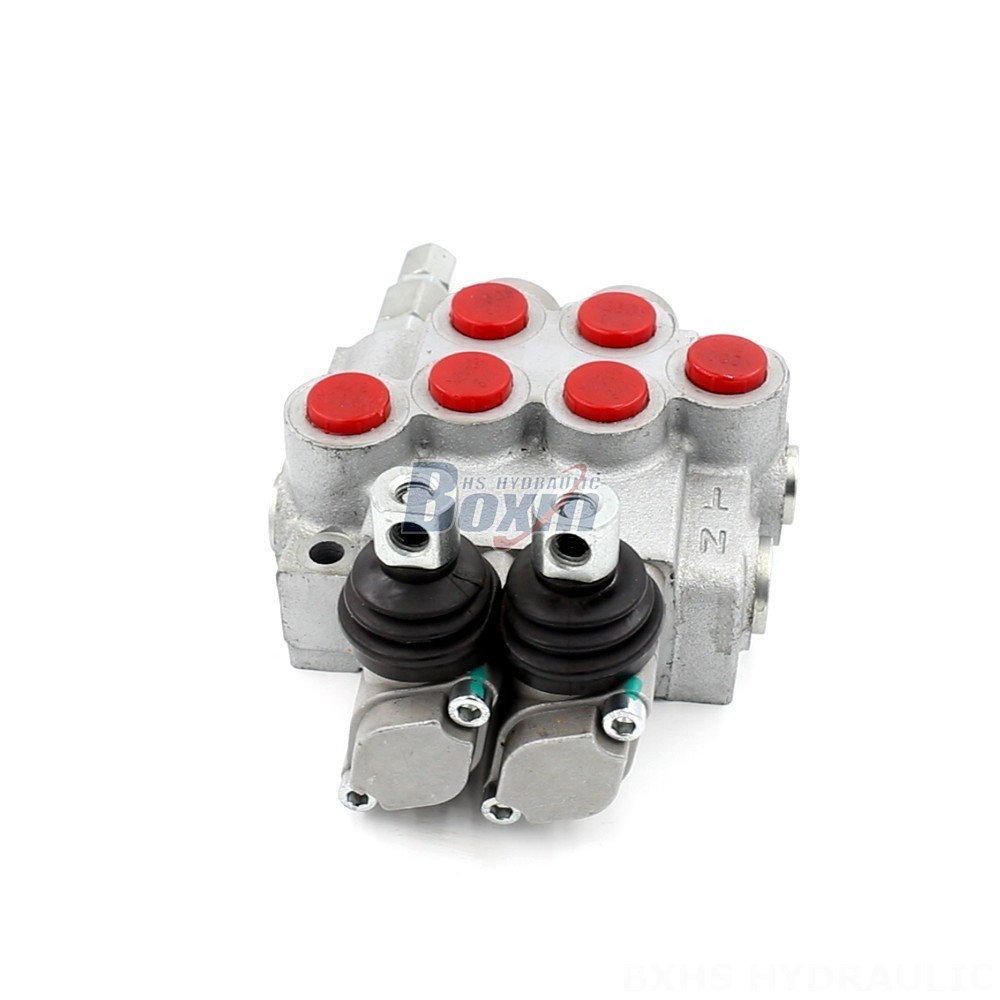

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

Ohjausmenetelmä:Manuaalinen

Jakaja:2 kelaa

Nimellisvirtaus:40 L/min (10,5 US gpm)

Maksimipaine:250 baaria (3 600 psi)

Tuloportti:G3/8

Ulostuloportti:G3/8

Liitäntäkoko:G3/8

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:P40-DKL-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:23*18*13

Bruttopaino:5.00 kg

Saatavuus: Varastossa

1173 Näkymät etsivät tätä tuotetta

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable drawing image

The P40-DKL 2-Spool Hydraulic Valve is a manual speed control valve designed for hydraulic cylinders in various applications, including material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.

P40-DKL-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa
Nimellisvirtaus 40 L/min (10,5 US gpm)
Maksimipaine 250 baaria (3 600 psi)
Tuloportti G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ulostuloportti G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Liitäntäkoko G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso
Rakennetyyppi Yhdistelmäventtiili
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)

The P40-DKL 2-Spool Hydraulic Valve is a high-quality, durable valve designed for controlling the speed of hydraulic cylinders. It features a manual control method and a 2-section monoblock structure. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for use in a wide range of operating conditions, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is compatible with a variety of hydraulic fluids, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This versatile valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
