P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

Ohjausmenetelmä:Manuaalinen

Jakaja:2 kelaa

Nimellisvirtaus:120 l/min (31,7 US gpm)

Maksimipaine:250 baaria (3 600 psi)

Tuloportti:G3/4

Ulostuloportti:G1

Liitäntäkoko:G3/4

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:P120-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:30*39*17

Bruttopaino:19.00 kg

Saatavuus: Varastossa

990 Näkymät etsivät tätä tuotetta

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization drawing image

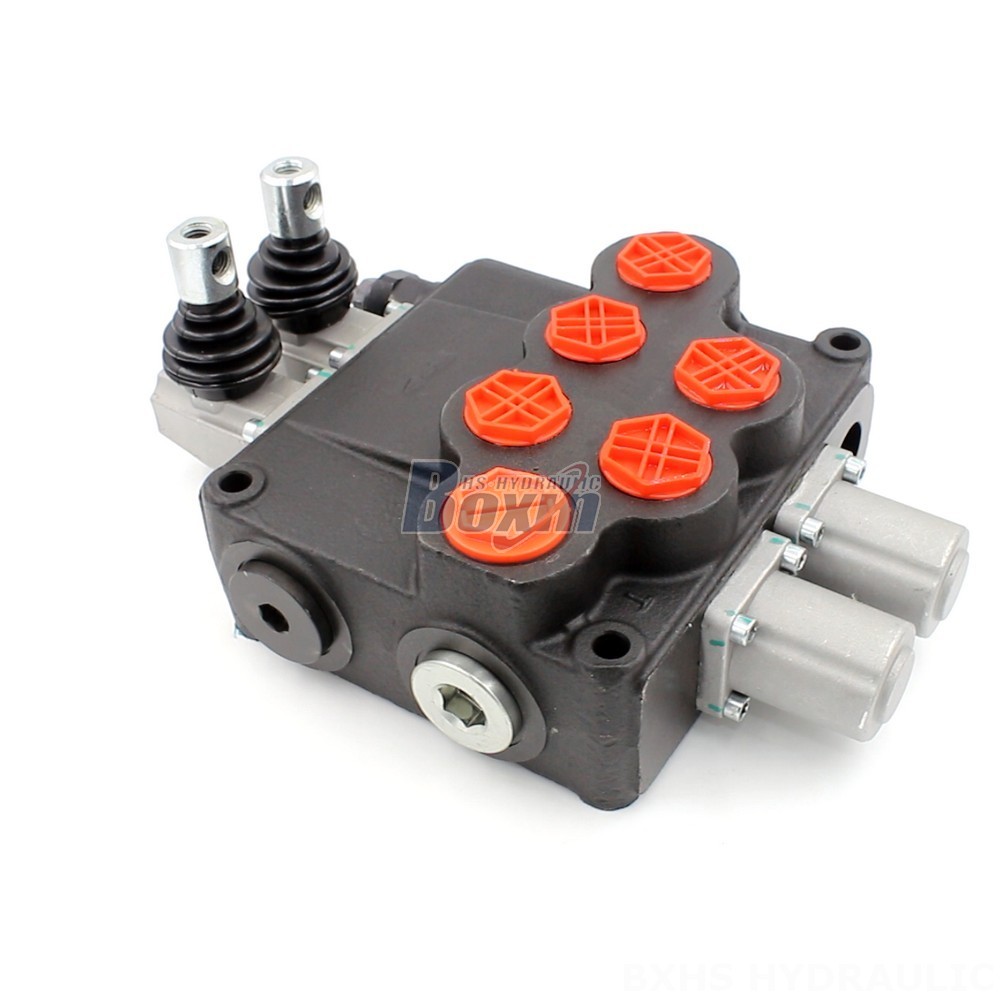

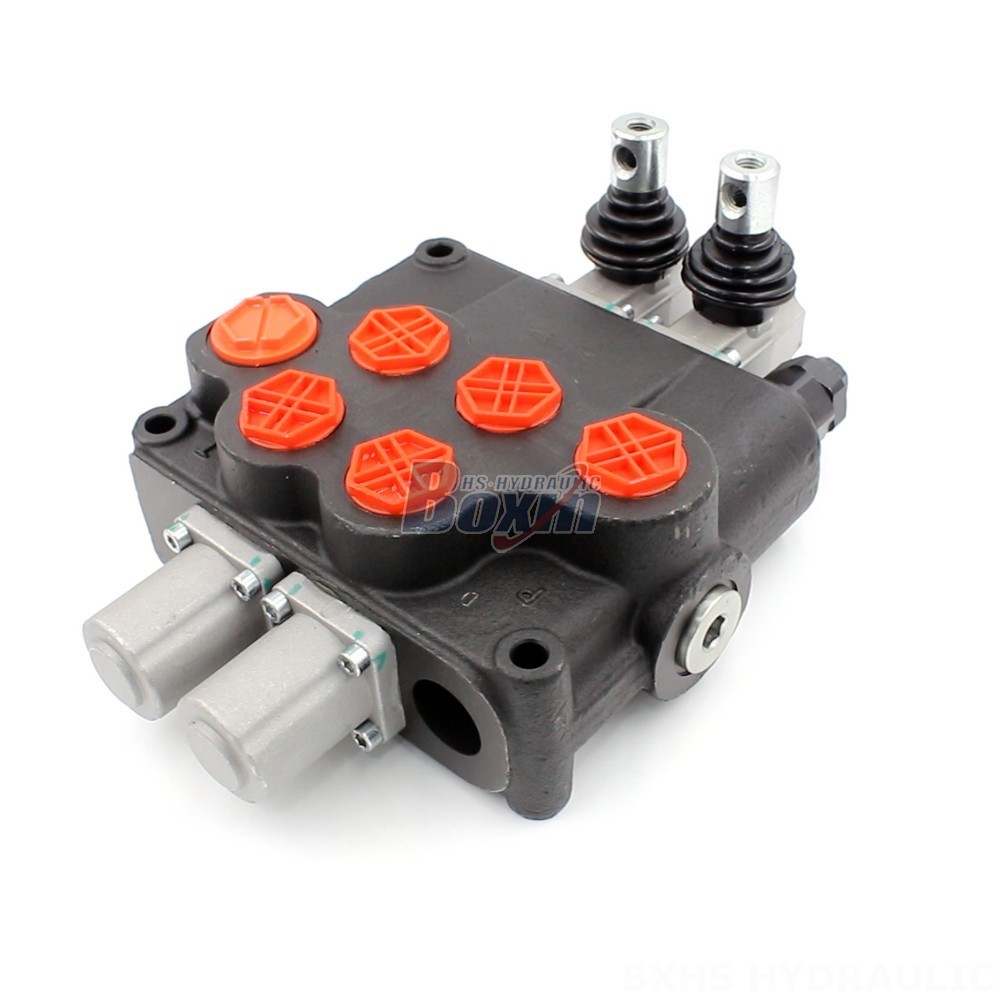

The P120 2-Spool Hydraulic Valve is a robust and reliable monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks.

P120-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa
Nimellisvirtaus 120 l/min (31,7 US gpm)
Maksimipaine 250 baaria (3 600 psi)
Tuloportti G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Ulostuloportti G1, SAE 16, 1 NPT, M36×2
Liitäntäkoko G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso
Rakennetyyppi Yhdistelmäventtiili
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)

This high-performance hydraulic distributor valve is part of the P120 series and is specifically designed for 2-spool operation. It offers a compact and durable design with a robust monoblock construction. The valve is manually controlled and features a rated flow of 120 L/min (31.7 US gpm) with a maximum pressure rating of 250 bar (3600 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), ensuring reliable performance in various operating conditions. The P120 2-Spool Hydraulic Valve can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). It is widely applicable in various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
