Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Ohjausmenetelmä:Manuaalinen

Jakaja:5 kelaa

Nimellisvirtaus:45 L/min (11,8 US gpm)

Maksimipaine:315 baaria (4 600 psi)

Tuloportti:G3/8

Ulostuloportti:G3/8

Liitäntäkoko:G3/8

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:SD5-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:35*31*21

Bruttopaino:12.50 kg

Saatavuus: Varastossa

1372 Näkymät etsivät tätä tuotetta

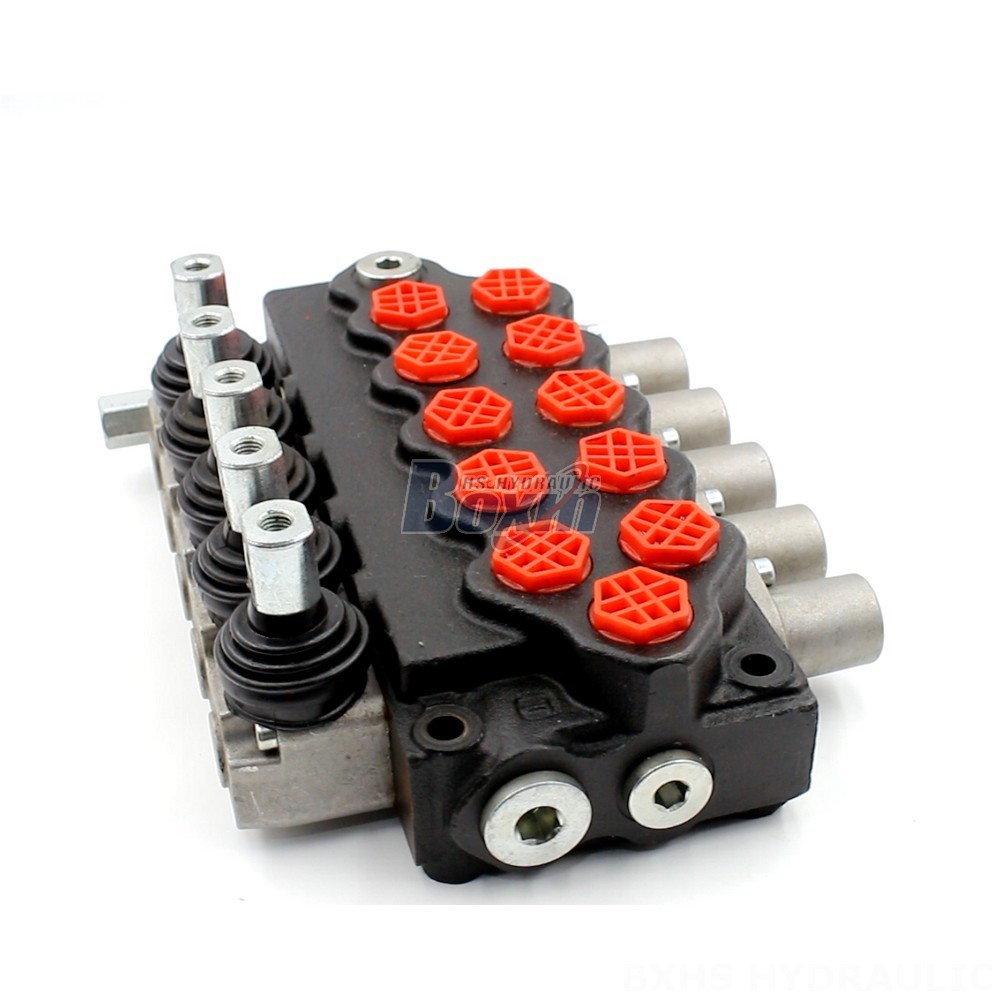

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM drawing image

The SD5-G38 Series Lever Hydraulic Valve is a 5-section, manual monoblock directional valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This high-performance valve features a rated flow of 40 L/min and a maximum pressure of 305 bar, making it ideal for demanding operating conditions.

SD5-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa
Ympäristön lämpötila-alue -40 °C - +60 °C (-40 °F - +140 °F)
Rakennetyyppi Yhdistelmäventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)
Nimellisvirtaus 40 L/min (10,5 US gpm)
Maksimipaine 305 baaria (4 400 psi)
Tuloportti G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Ulostuloportti G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Liitäntäkoko G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Series Lever Hydraulic Valve is a robust and reliable 5-section, manual monoblock directional valve. It is designed for use in a wide range of heavy-duty applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, and other construction and industrial vehicles. This valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for demanding operating conditions. The valve also features a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in various environments. We offer wholesale and OEM options, making it easy for you to find the perfect solution for your needs. Contact us today to learn more about this high-performance hydraulic valve.
