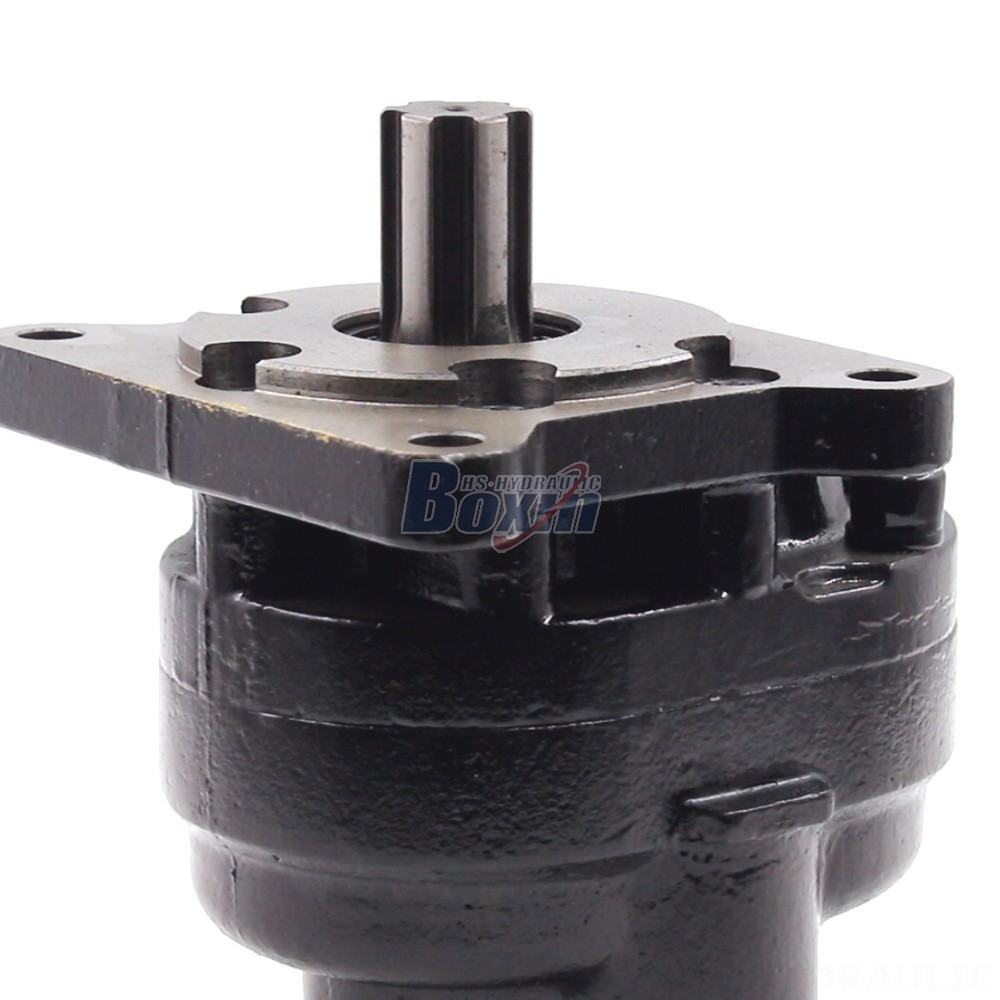

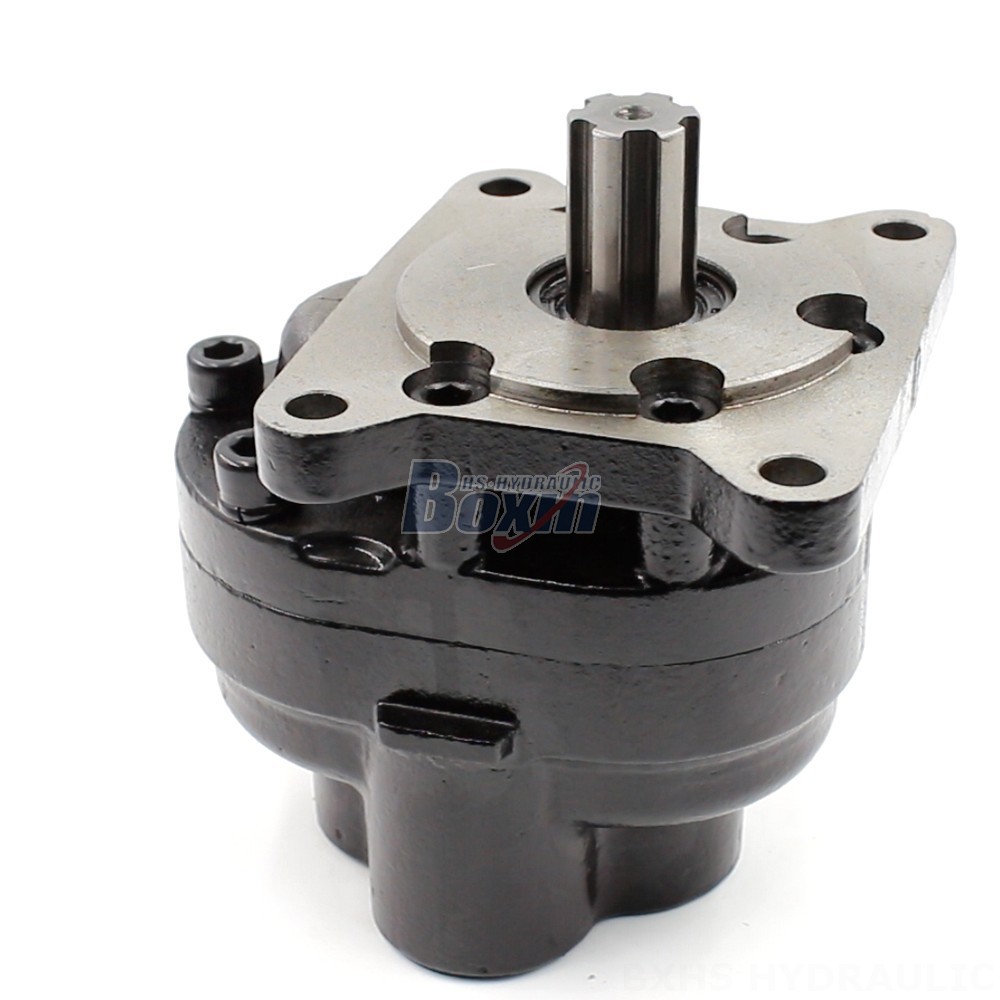

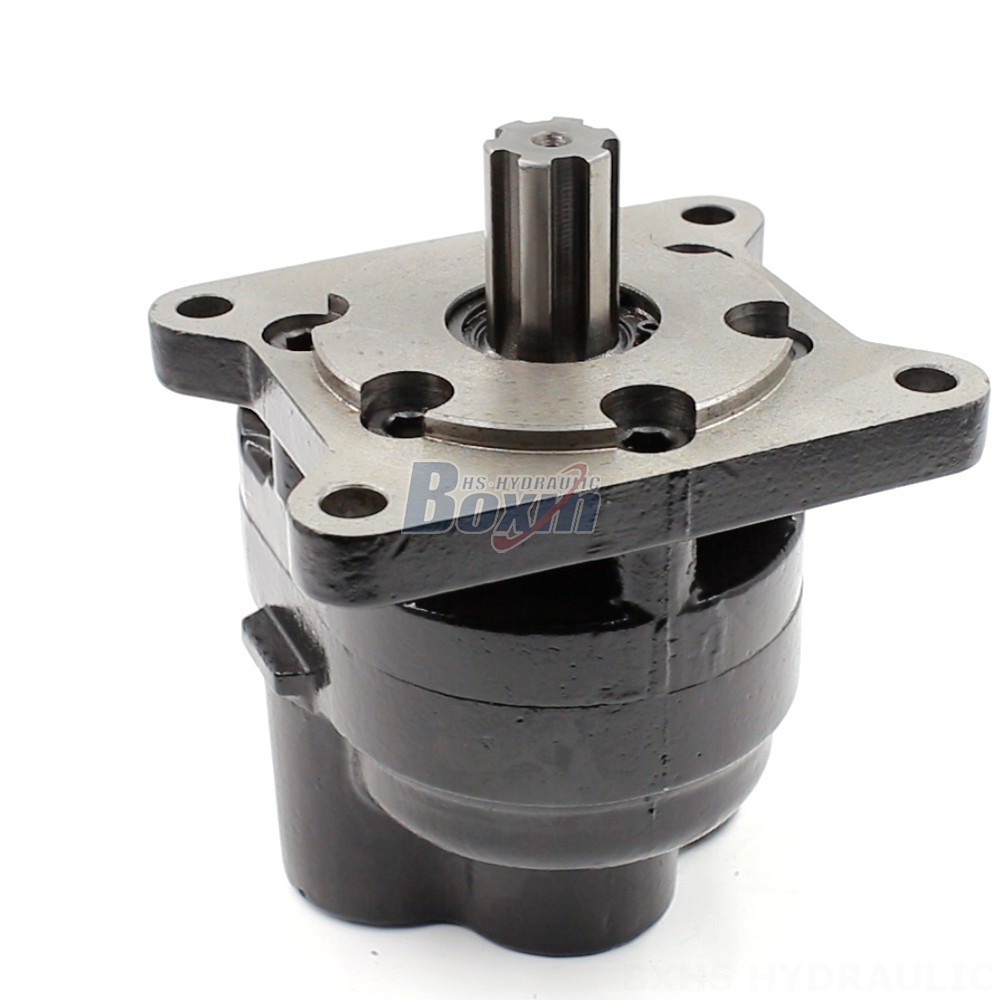

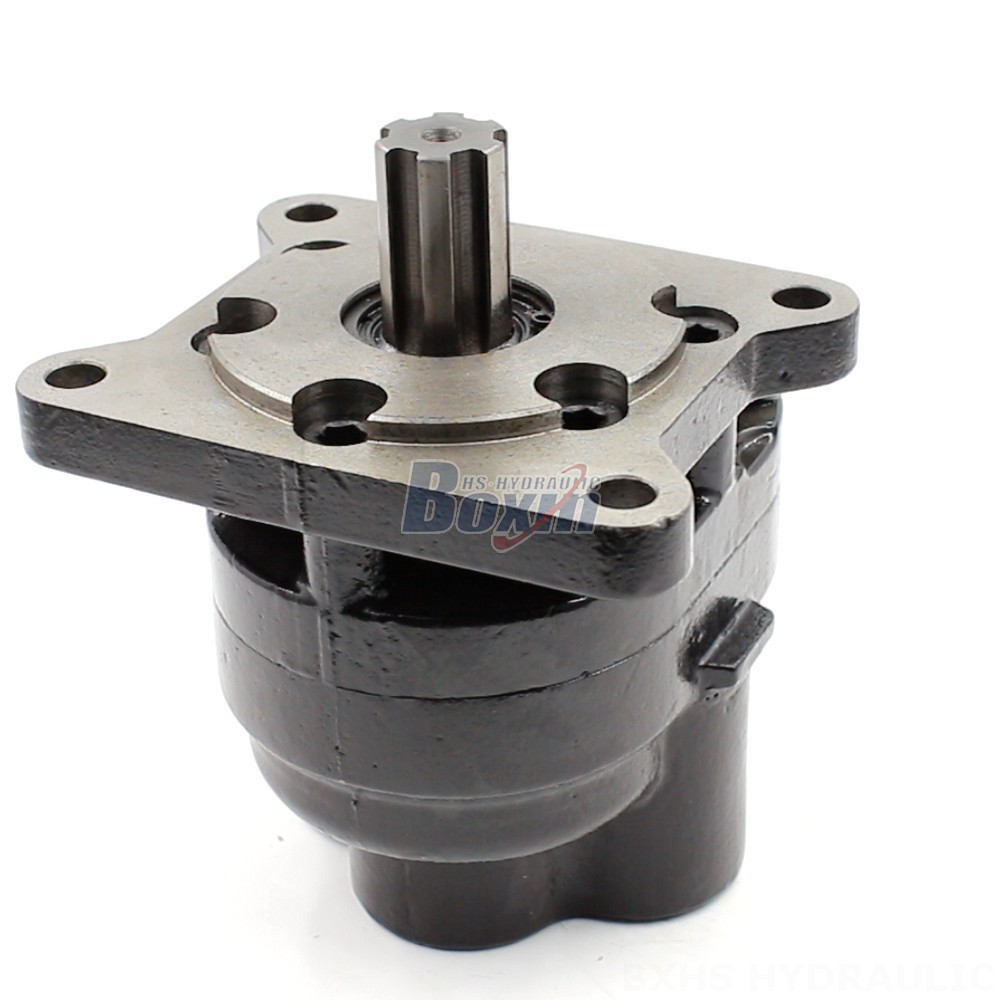

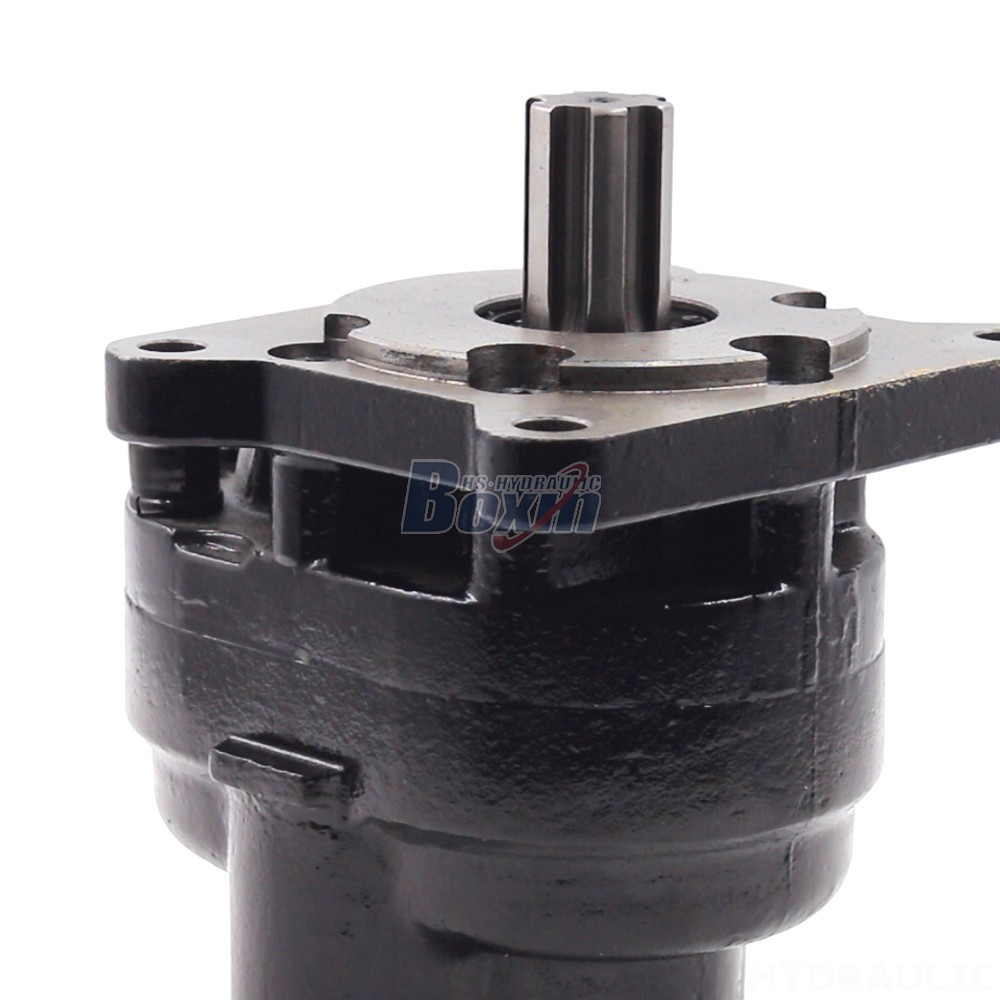

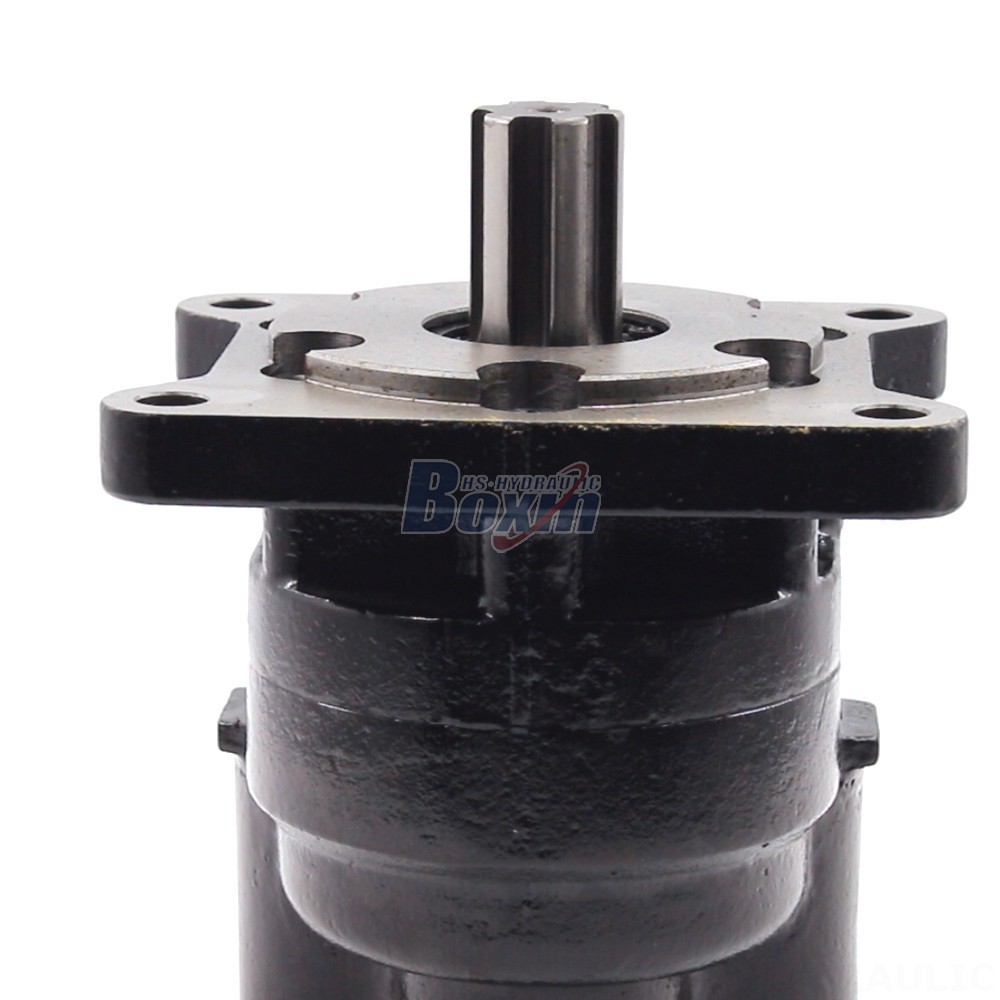

The Industrial-Grade Hydraulic Gear Pump is a highly customizable product designed for a wide range of applications in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles. With its rugged cast iron construction and B-Square flange, this pump is built to withstand demanding operating conditions.
| CBHS-F5-sarja Hydraulinen hammaspyöräpumppu Parametrit | |
|---|---|
| Iskutilavuus | 32 cm³/kierros, 50 cm³/kierros, 63 cm³/kierros, 20 cm³/kierros |
| Nimellispaine | 20 MPa (2900 psi) |
| Maksimipaine | 25 MPa (3625 psi) |
| Nimellisnopeus | 2000 r/min |
| Maksiminopeus | 2500 r/min |
| Pyörimissuunta | Vasen (vastapäivään), Oikea (myötäpäivään) |
| Materiaali | Valurauta |
| Rakenne | Ulkohampainen hammaspyöräpumppu |
| Laippaversio | B-Neliölaippa |
| Akselityyppi | H: Suorakaiteen muotoinen ura, X: Evolutoitu ura, P: Tavallinen näppäin |
**Industrial-Grade Hydraulic Gear Pump: Customized Manufacturing and Distribution**
**Product Highlights:**
- Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
- Rated Pressure: 20 MPa (2900 psi)
- Rated Speed: 2000 r/min
- Max Speed: 2200 r/min
- Rotation: L: Left (counter-clockwise), R: Right (clockwise)
- Structure: Internal Gear Pump
- Material: Cast Iron
- Flange Version: B-Square Flange
- Shaft Type: P: Plain Key, H: Rectangle Spline, X: Involute Spline
- Series: CBHS-F5 Series
- Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
- Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
**Key Features and Benefits:**
- **Customized Manufacturing:** Tailored to meet specific application requirements, ensuring optimal performance and efficiency.
- **High-Quality Materials:** Durable cast iron construction ensures longevity and reliability in demanding environments.
- **B-Square Flange:** Industry-standard mounting configuration for easy integration into existing systems.
- **Versatile Shaft Options:** Plain key, rectangle spline, and involute spline shaft types available to accommodate various drive requirements.
- **Wide Range of Applications:** Suitable for a variety of industrial applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
