Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve

Ohjausmenetelmä:Manuaalinen

Jakaja:1 kela

Nimellisvirtaus:40 L/min (10,5 US gpm)

Maksimipaine:250 baaria (3 600 psi)

Tuloportti:G1/2

Ulostuloportti:G1/2

Liitäntäkoko:G1/2

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:P40-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:23*16*11

Bruttopaino:3.00 kg

Saatavuus: Varastossa

1060 Näkymät etsivät tätä tuotetta

Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve

Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve

Hydraulic Valve Manufacturer | P40-G12-1OT Directional Valve drawing image

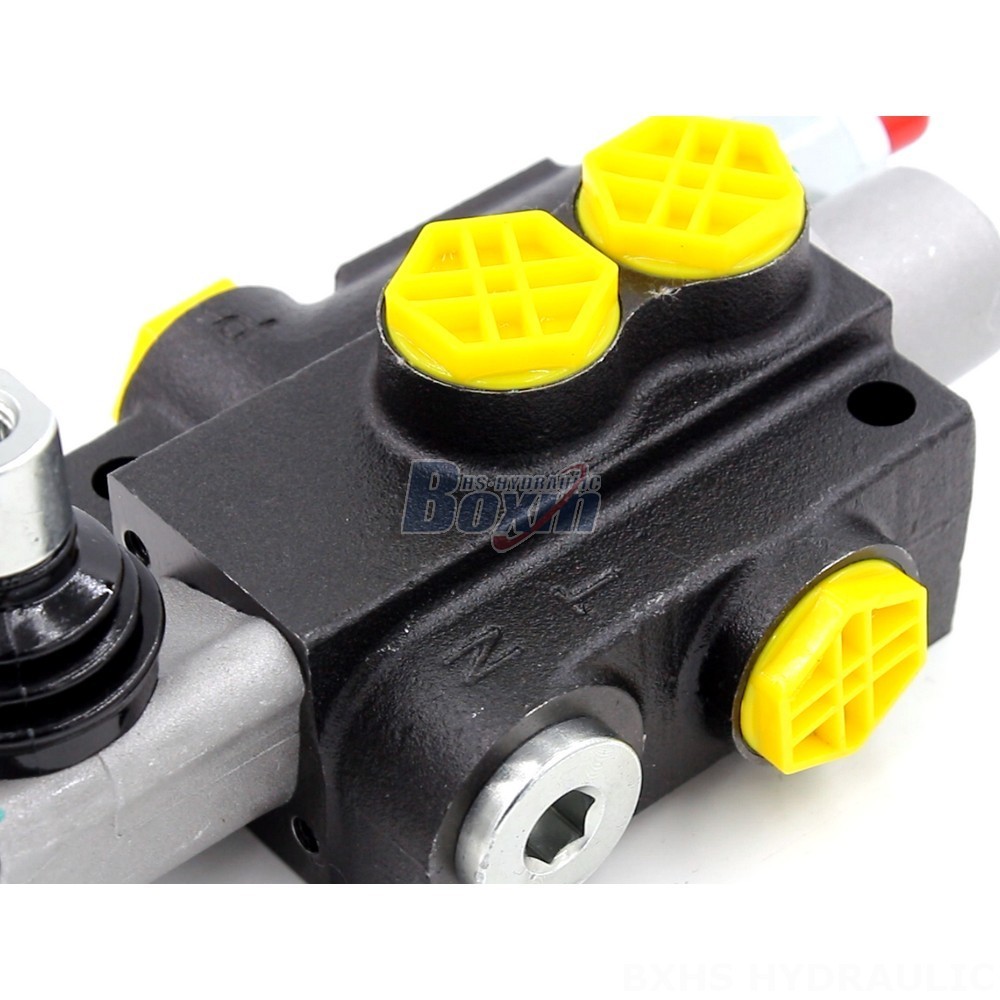

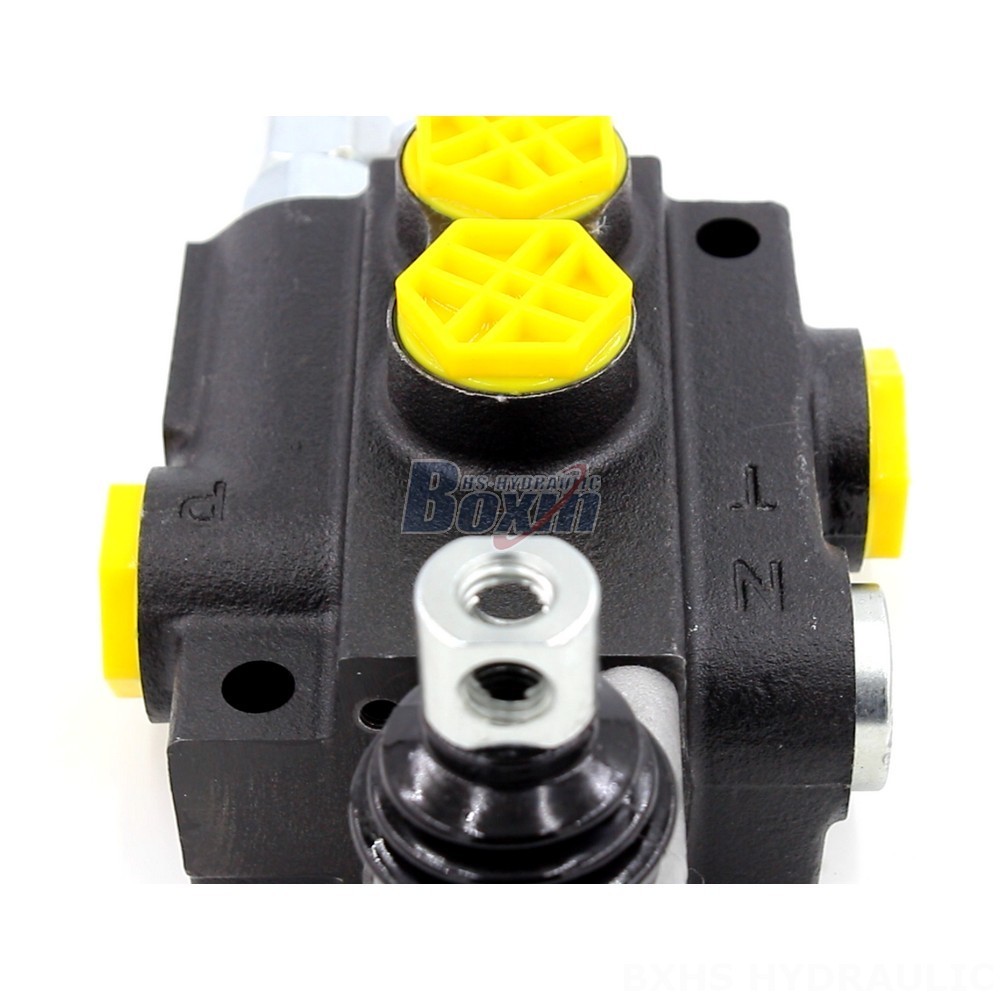

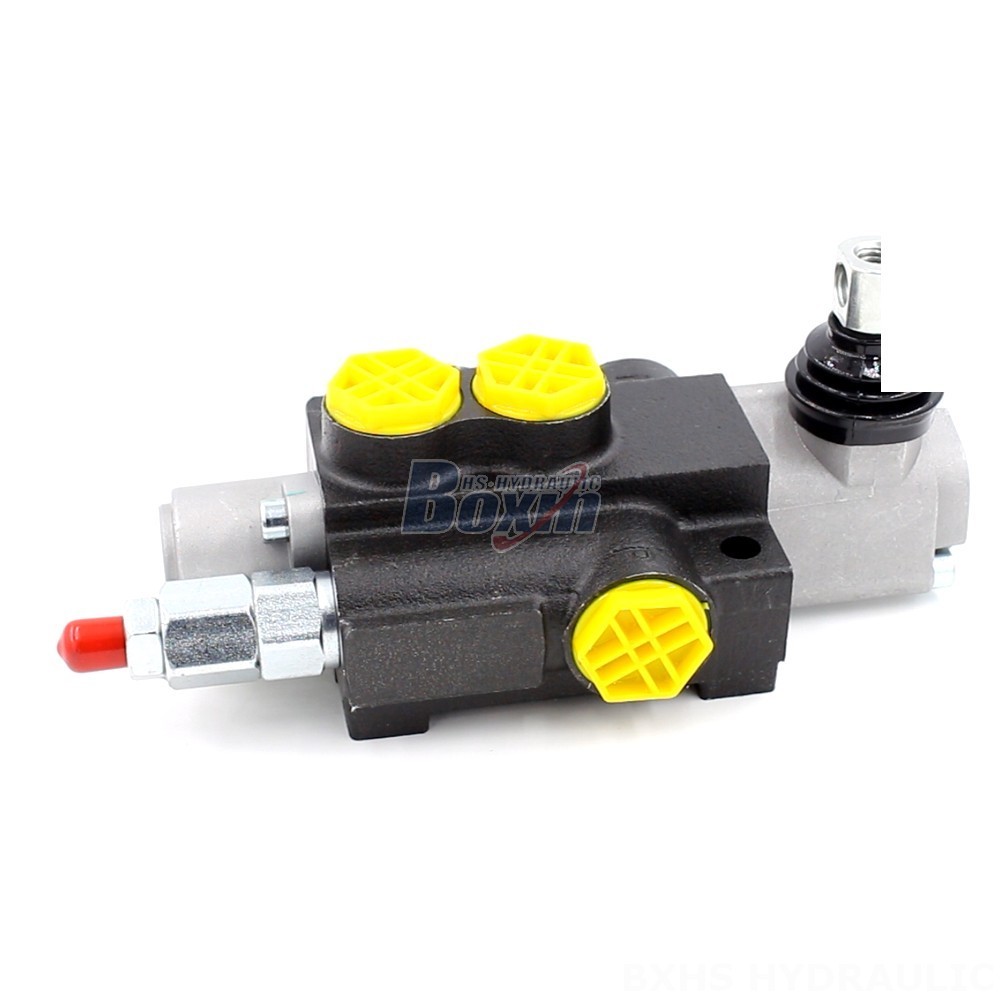

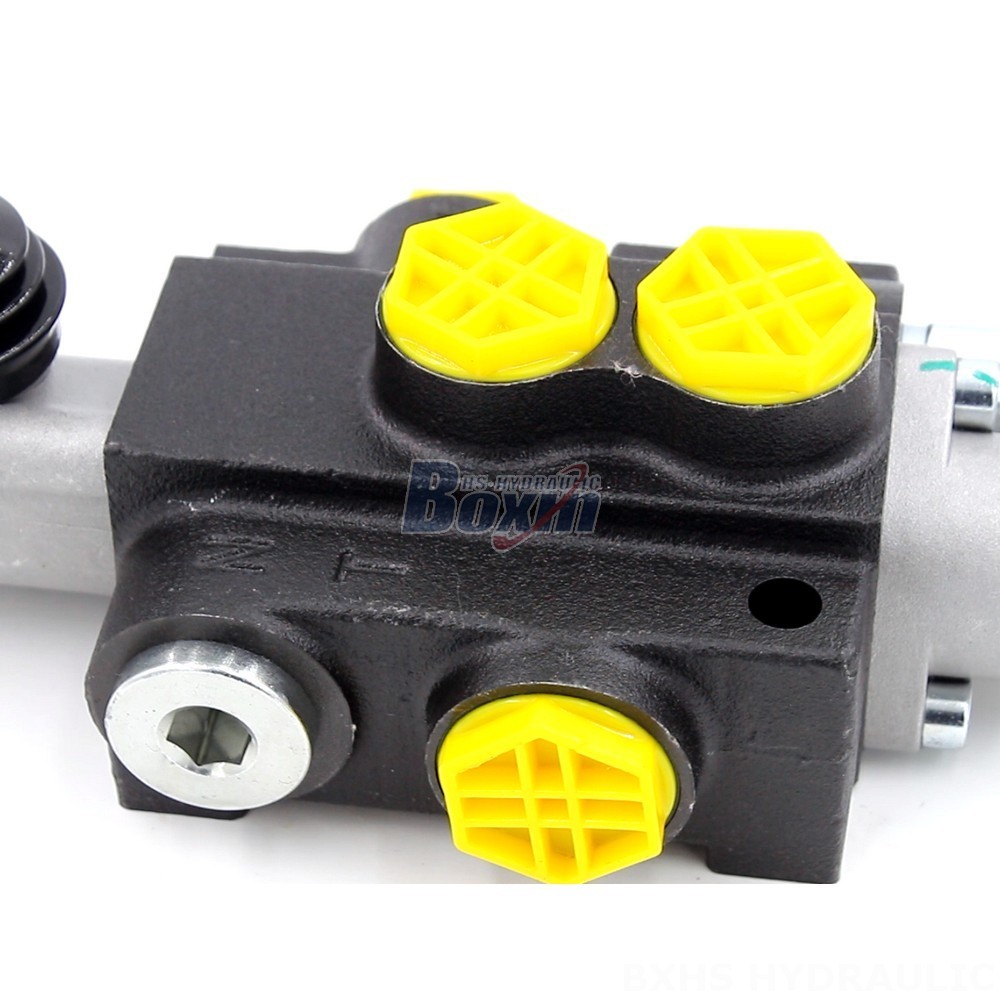

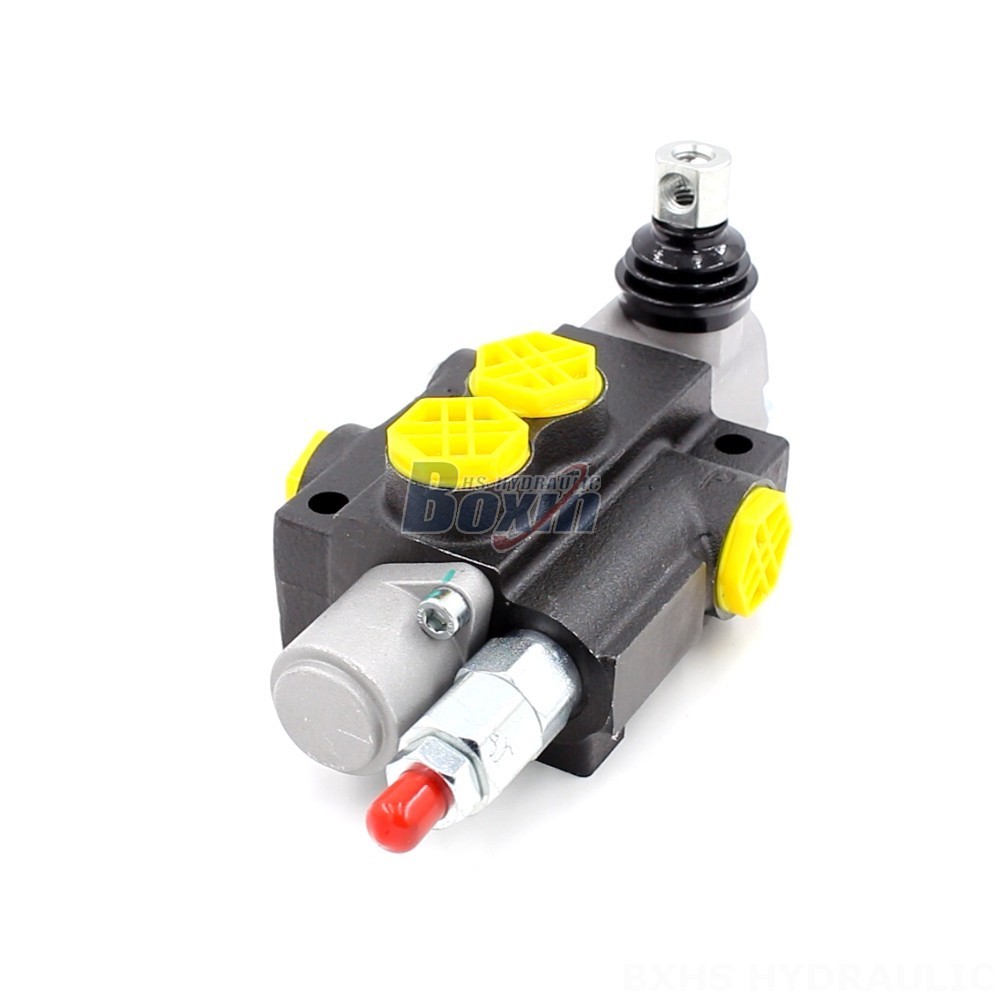

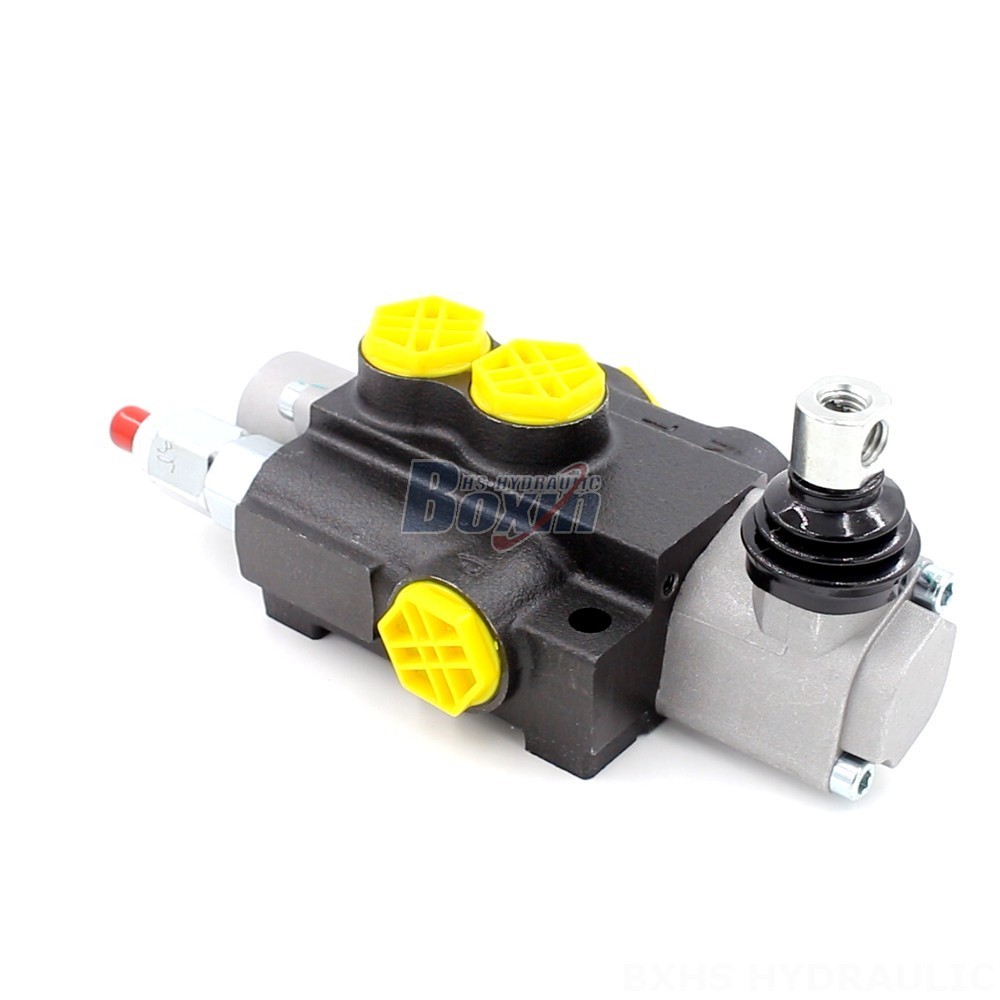

The P40-G12-1OT Directional Valve is a high-performance, manual control, monoblock hydraulic valve designed for various applications in construction, agriculture, and industrial vehicles. It features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for telehandlers, forklifts, cranes, stackers, and more.

P40-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen, Solenoidi ja kaapeli
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Yhdistelmäventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)
Nimellisvirtaus 40 L/min (10,5 US gpm)
Maksimipaine 250 baaria (3 600 psi)
Tuloportti G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ulostuloportti G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Liitäntäkoko G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-1OT Directional Valve is a robust and reliable hydraulic valve designed for demanding applications. It features a single spool and a single section with manual control, providing precise flow control and directional switching. Its monoblock construction ensures high strength and durability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle a wide range of hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s allows for use in various fluid conditions. The P40-G12-1OT is designed for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its rugged construction and wide operating temperature range of -40°C to +80°C make it suitable for use in challenging environments.
