Introducing the SD18 model hydraulic valve, designed for industrial applications. This factory-direct, customizable valve offers precision control, durability, and efficiency. Its compact monoblock design houses a single section with a 120 L/min rated flow capacity and a maximum pressure of 315 bar. The valve operates within a viscosity range of 12 - 400 mm²/s and an ambient temperature range of -40°C to +80°C. It finds application in various industries, including material handling, construction, agriculture, and industrial vehicles.
| SD18-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa |
| Nimellisvirtaus | 160 L/min (42,2 US gpm) |
| Maksimipaine | 305 baaria (4 400 psi) |
| Tuloportti | G1/2, G1, SAE 16 |
| Ulostuloportti | G1, SAE 16 |
| Liitäntäkoko | G1, SAE 16 |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso |
| Rakennetyyppi | Yhdistelmäventtiili |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Käyttöviskositeettialue | 12 - 400 mm²/s (12 cSt - 400 cSt) |

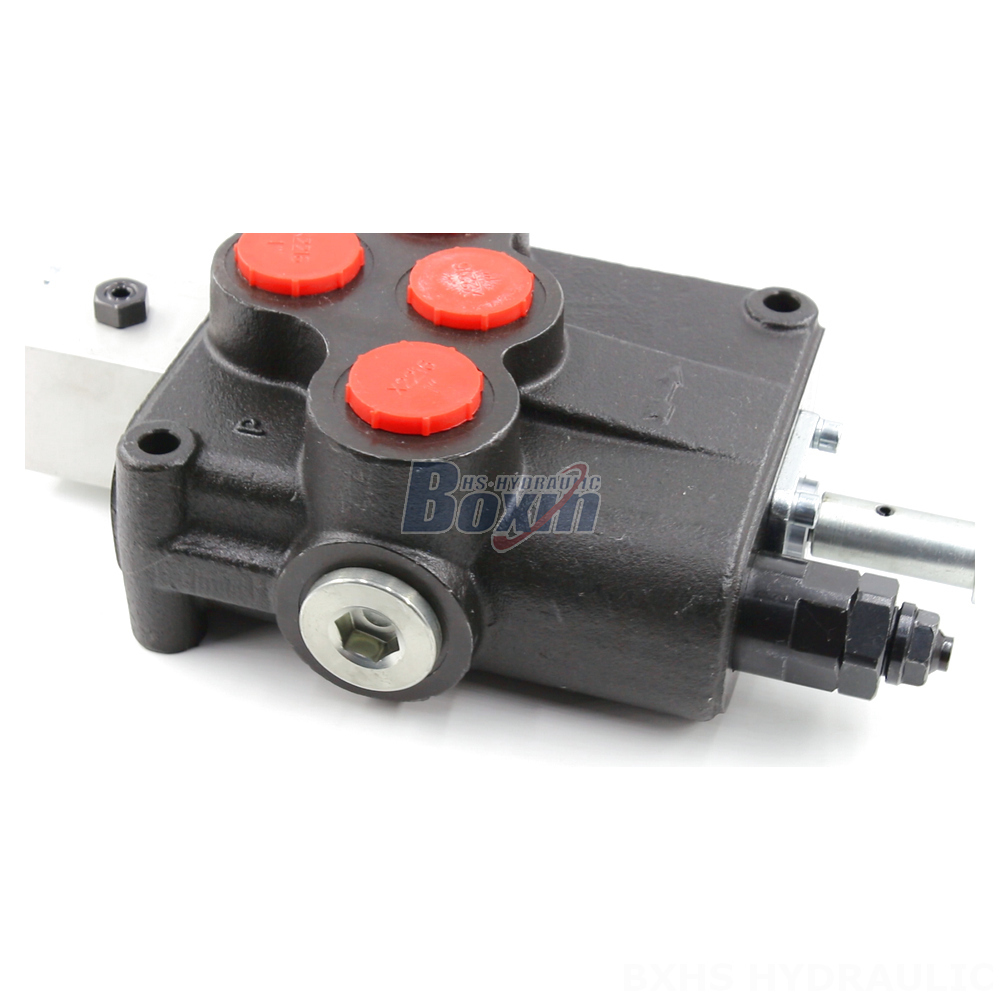

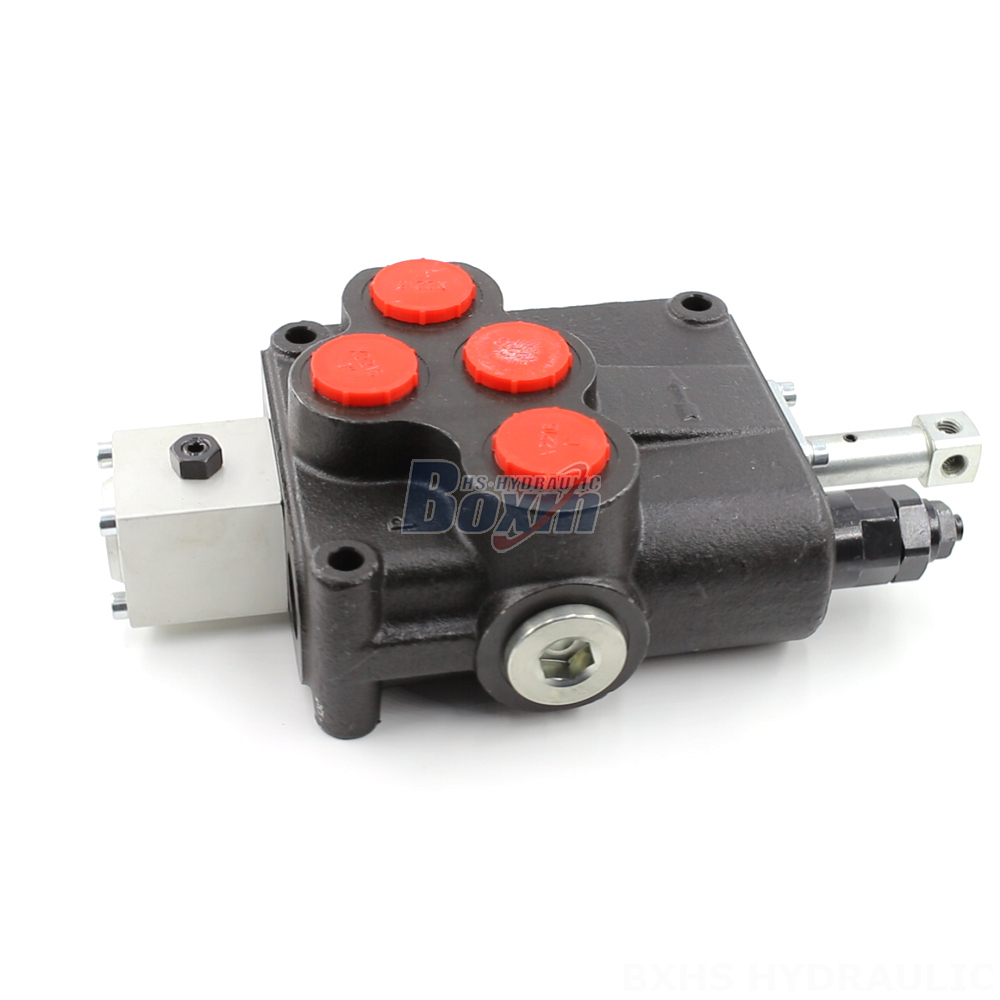

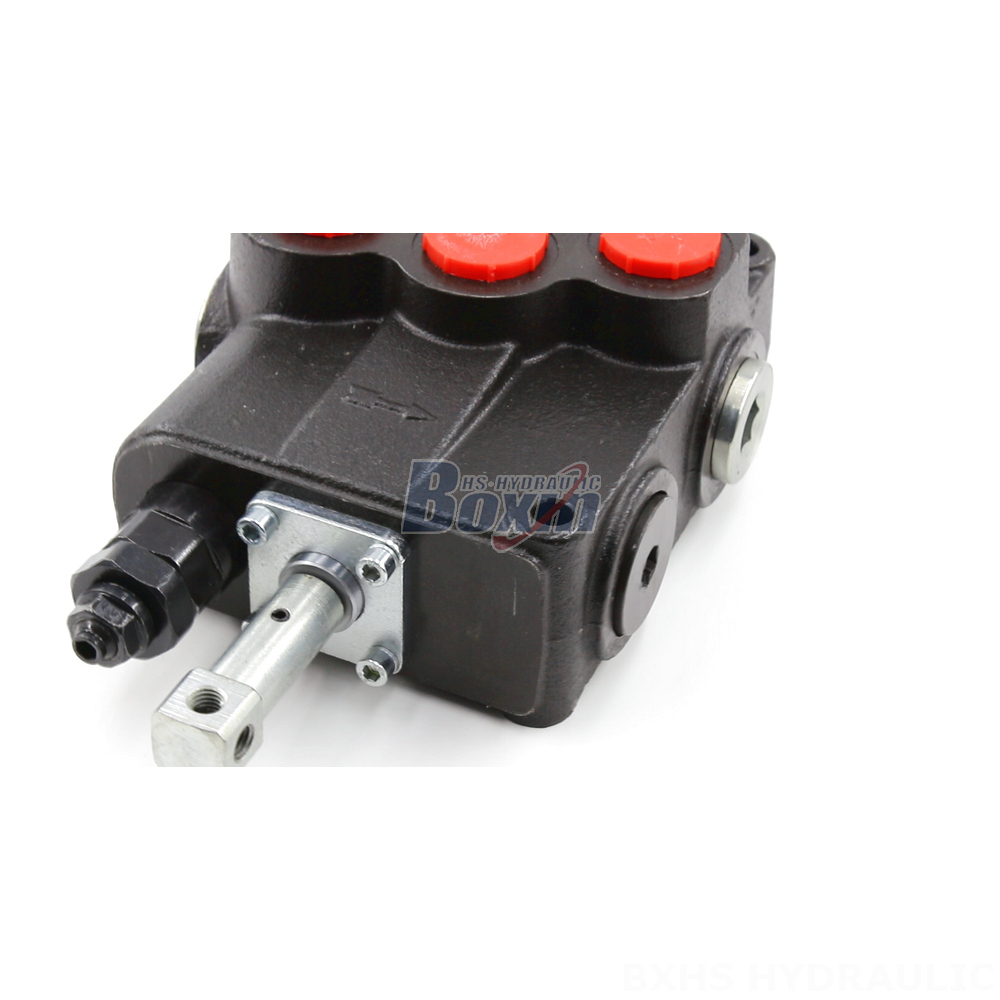

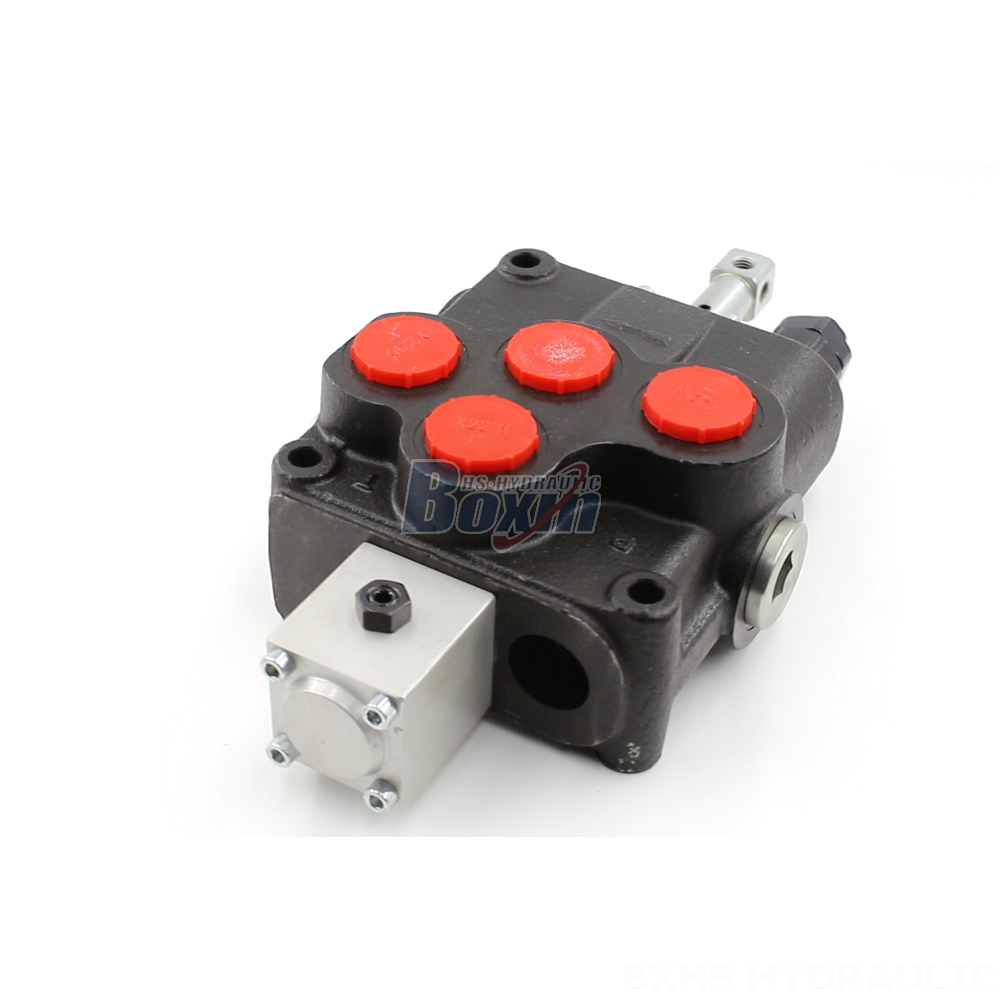

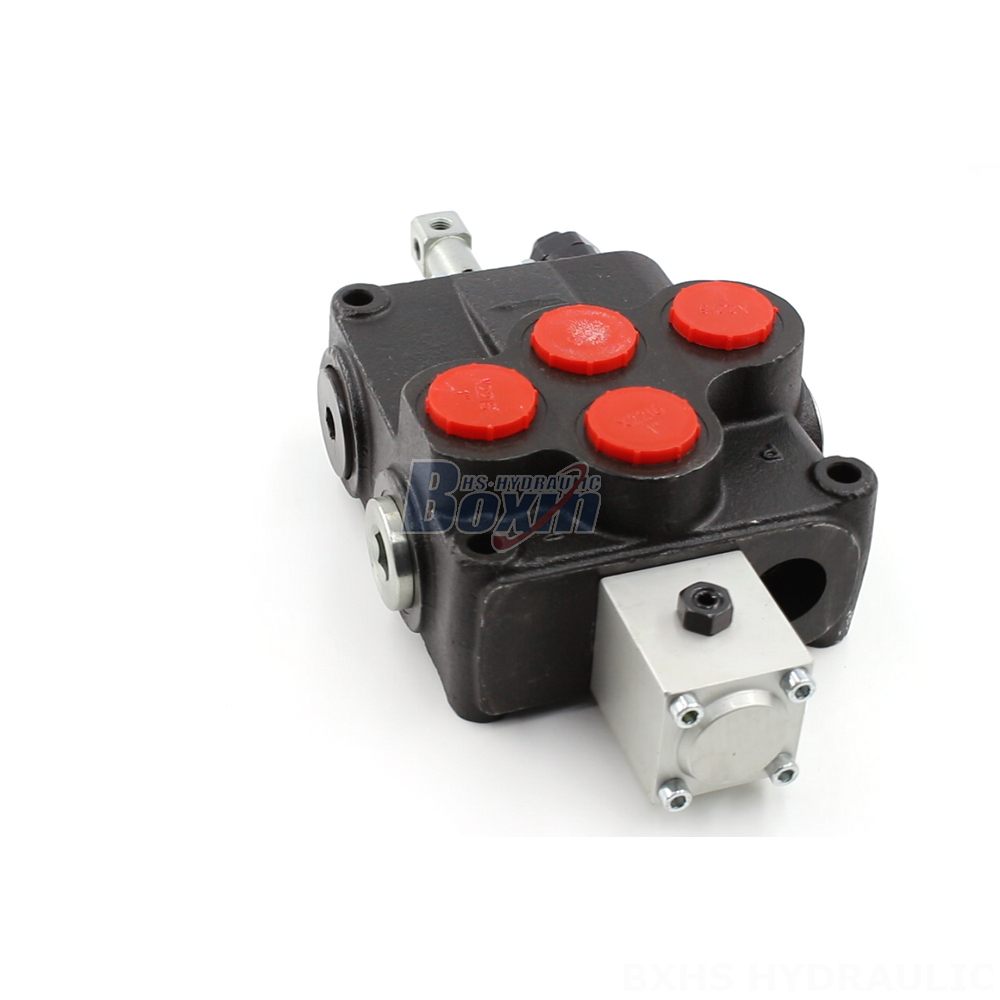

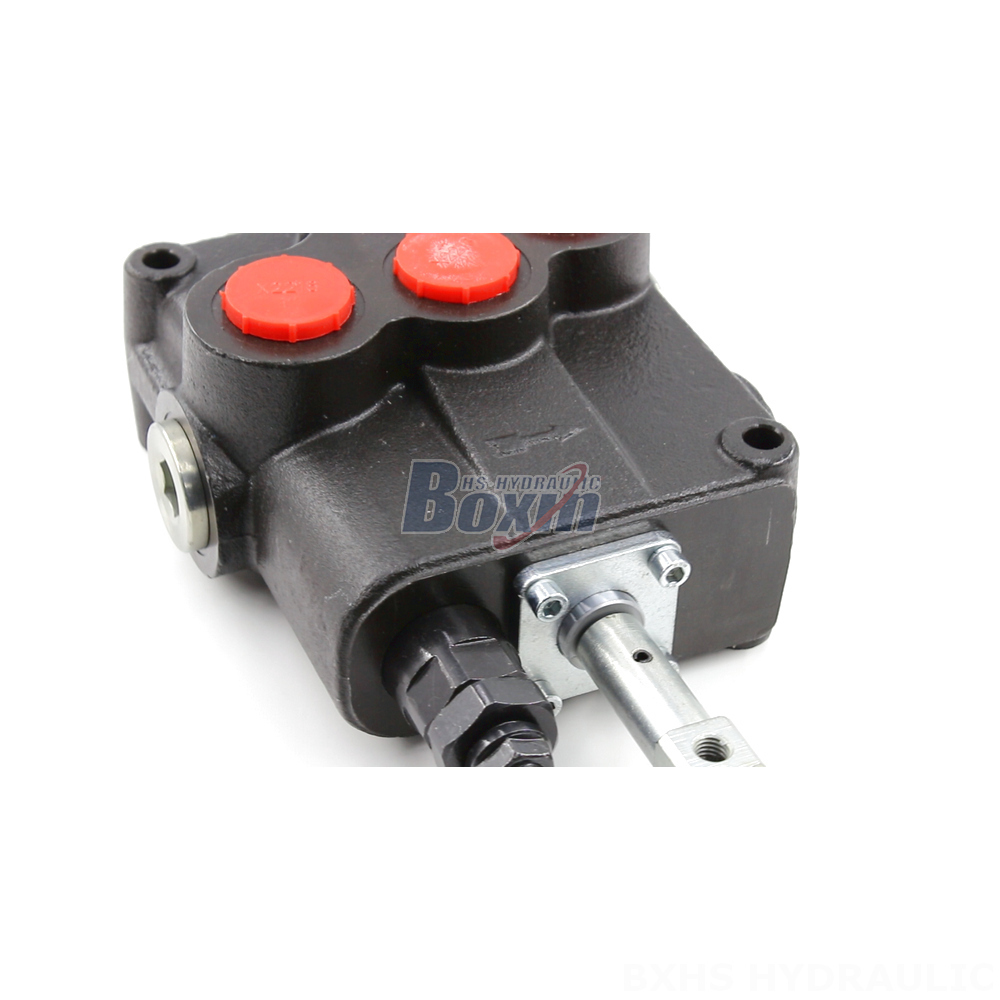

**SD18 Model Hydraulic Valve for Industrial Applications**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD18 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, BACKHOE, SEEDING MACHINE, HARVESTER, BALER, SKIP LOADER, WOOD SPLITTER
The SD18 hydraulic valve is designed for durability, efficiency, and precision control in demanding industrial applications. Its compact monoblock design ensures structural integrity and minimizes leakage points. The valve's single section design simplifies installation and maintenance, while its 120 L/min rated flow capacity and 315 bar maximum pressure provide ample power for various hydraulic systems. The valve operates within a wide viscosity range and ambient temperature range, making it suitable for diverse operating conditions. It is commonly used in material handling equipment, construction machinery, agricultural vehicles, and industrial vehicles, among other applications.
