Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

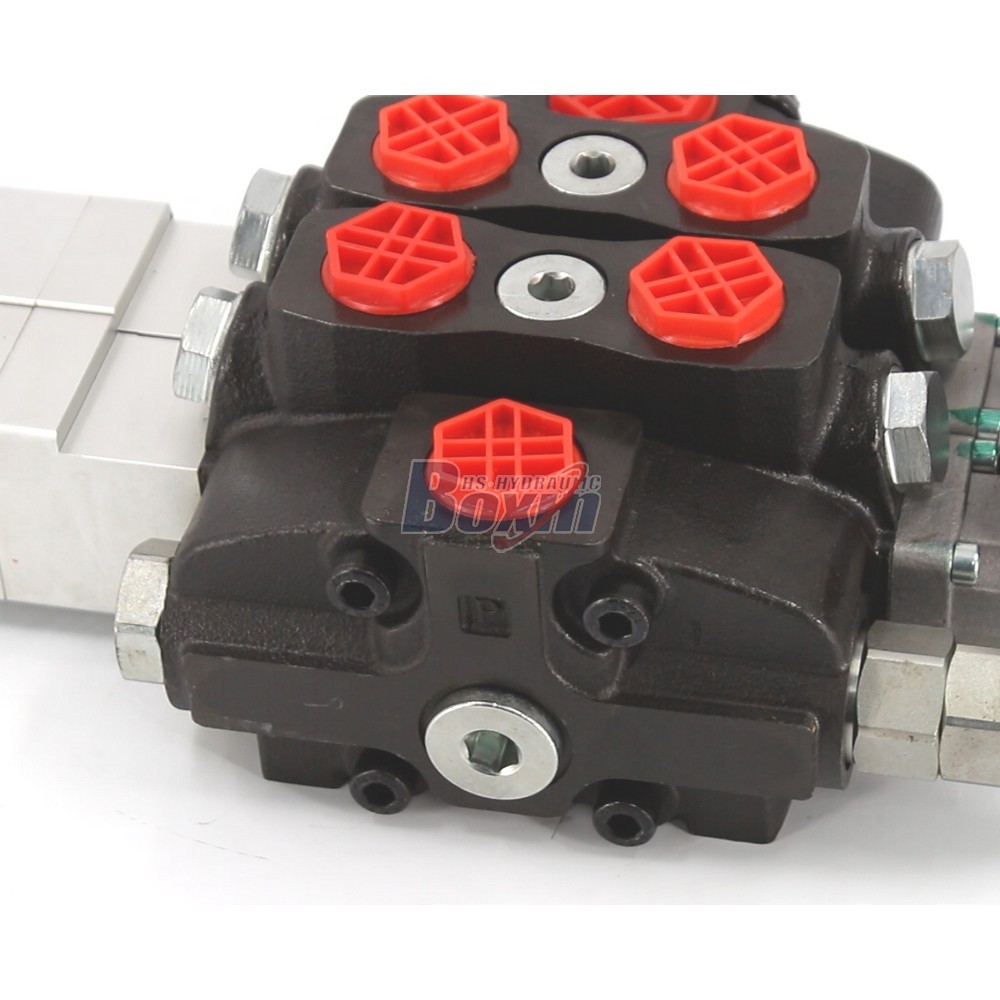

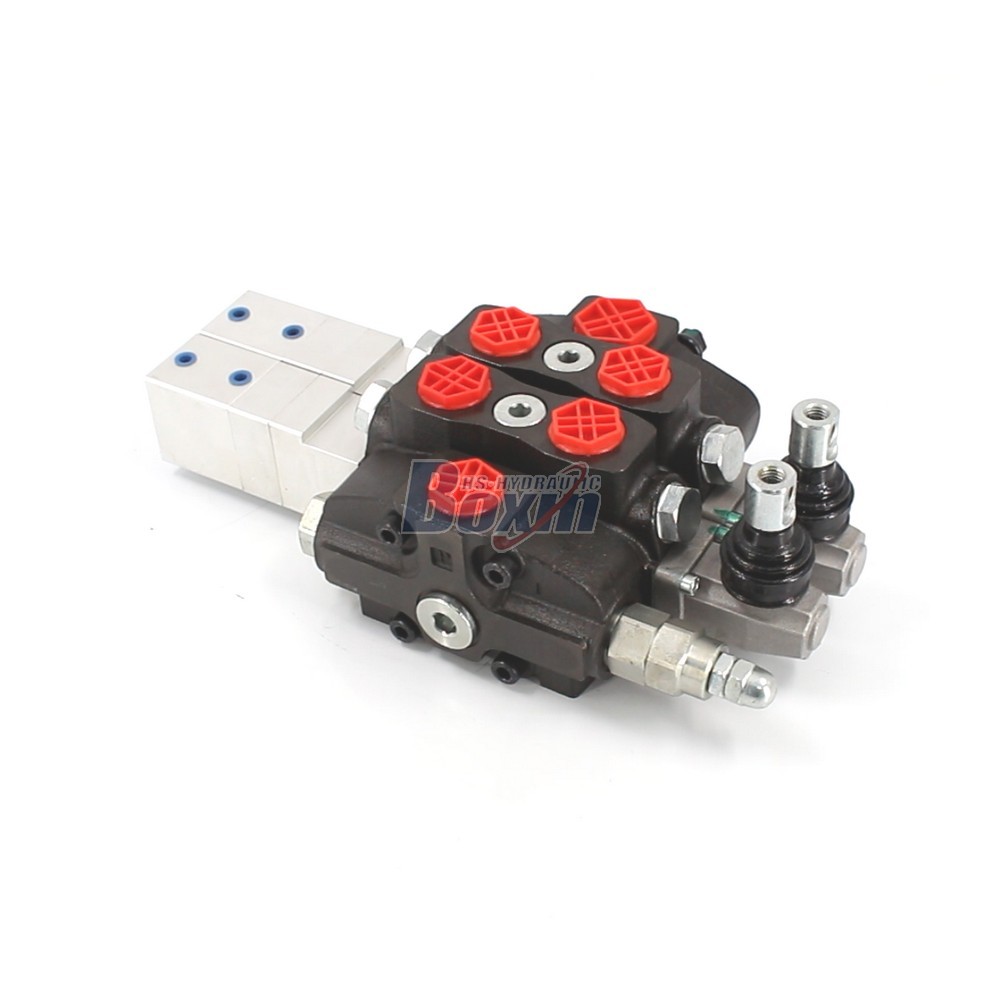

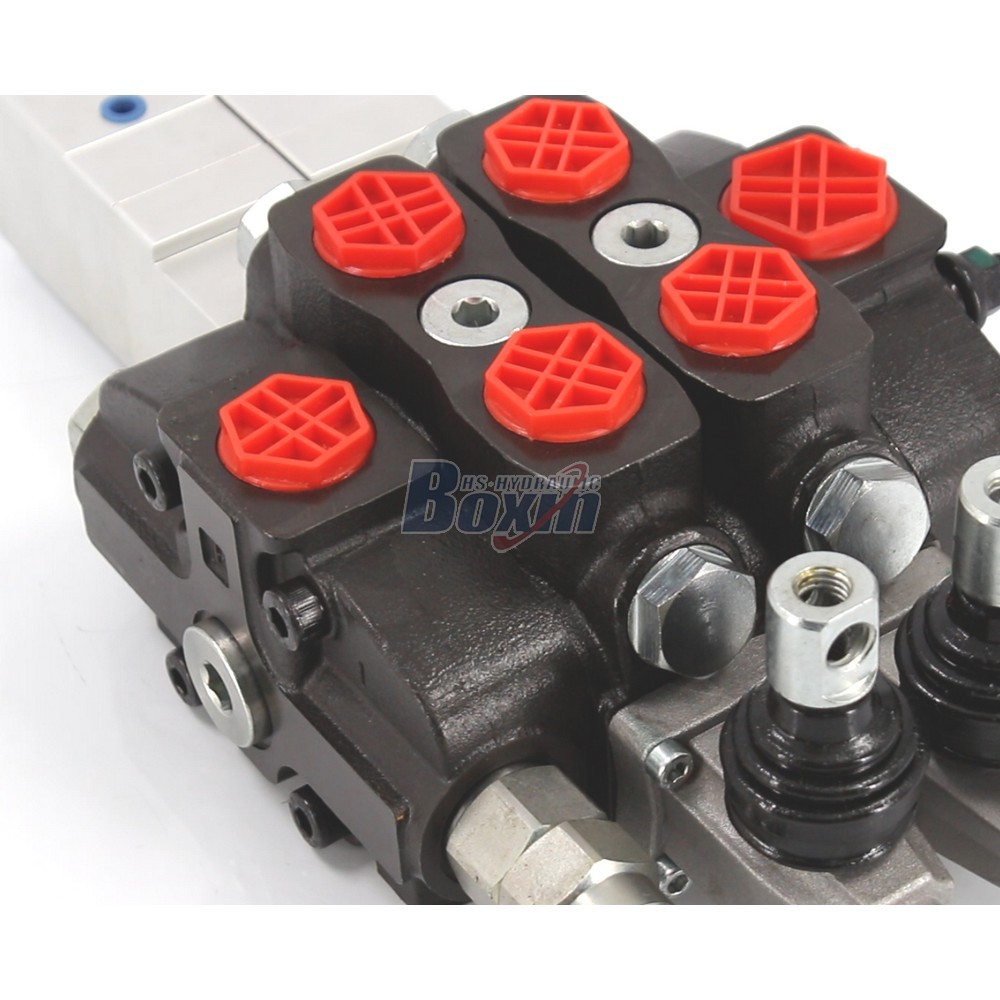

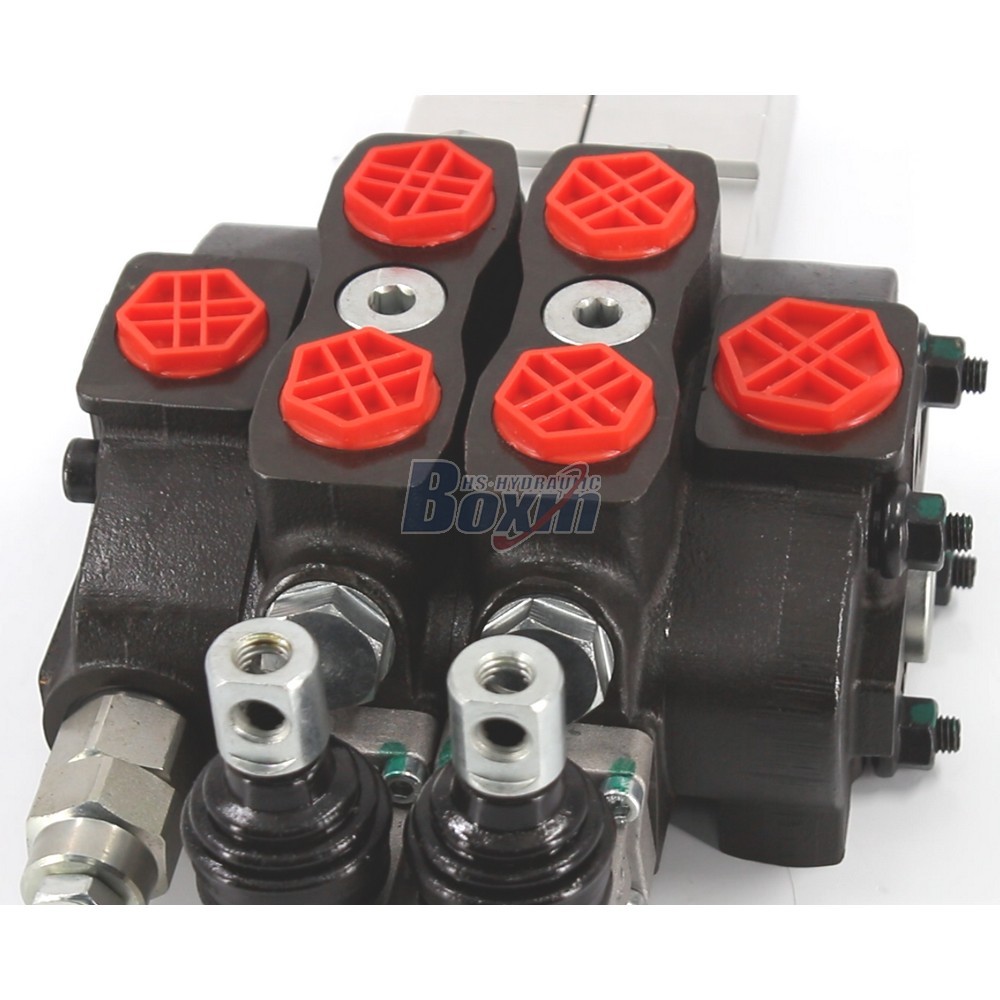

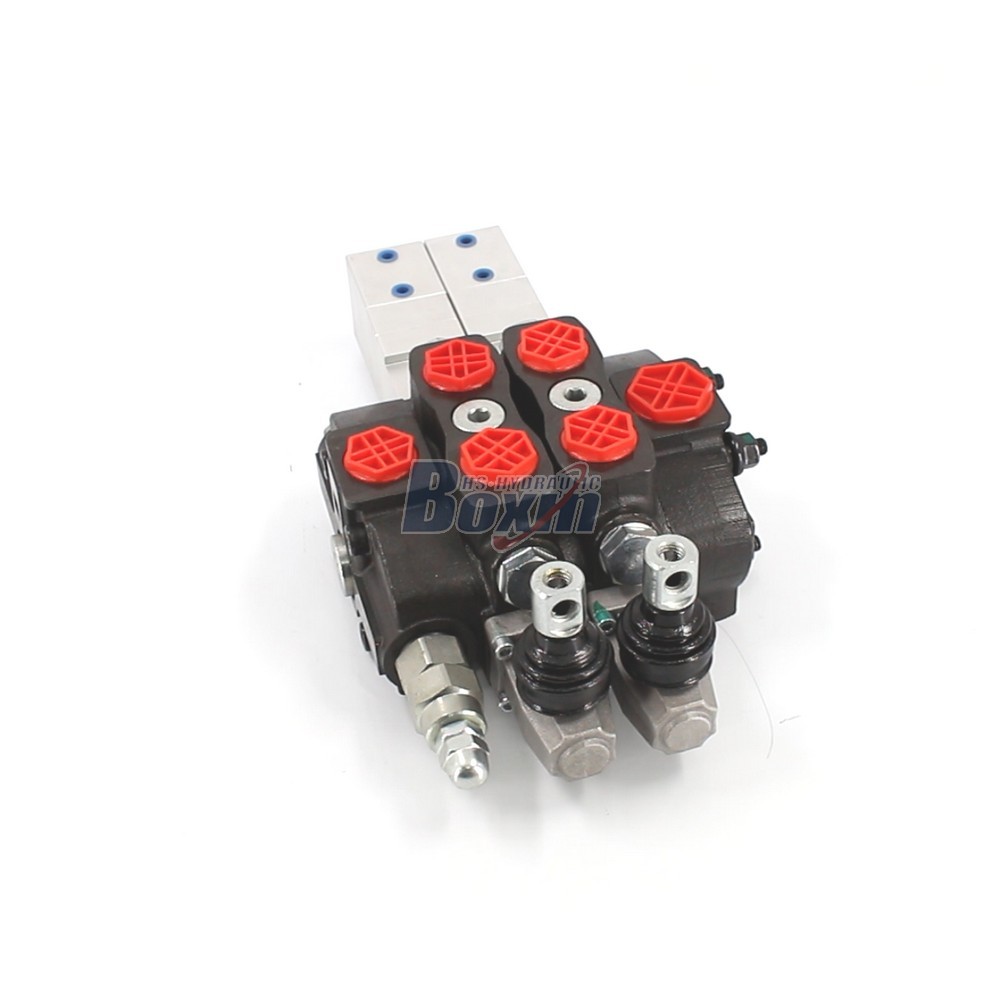

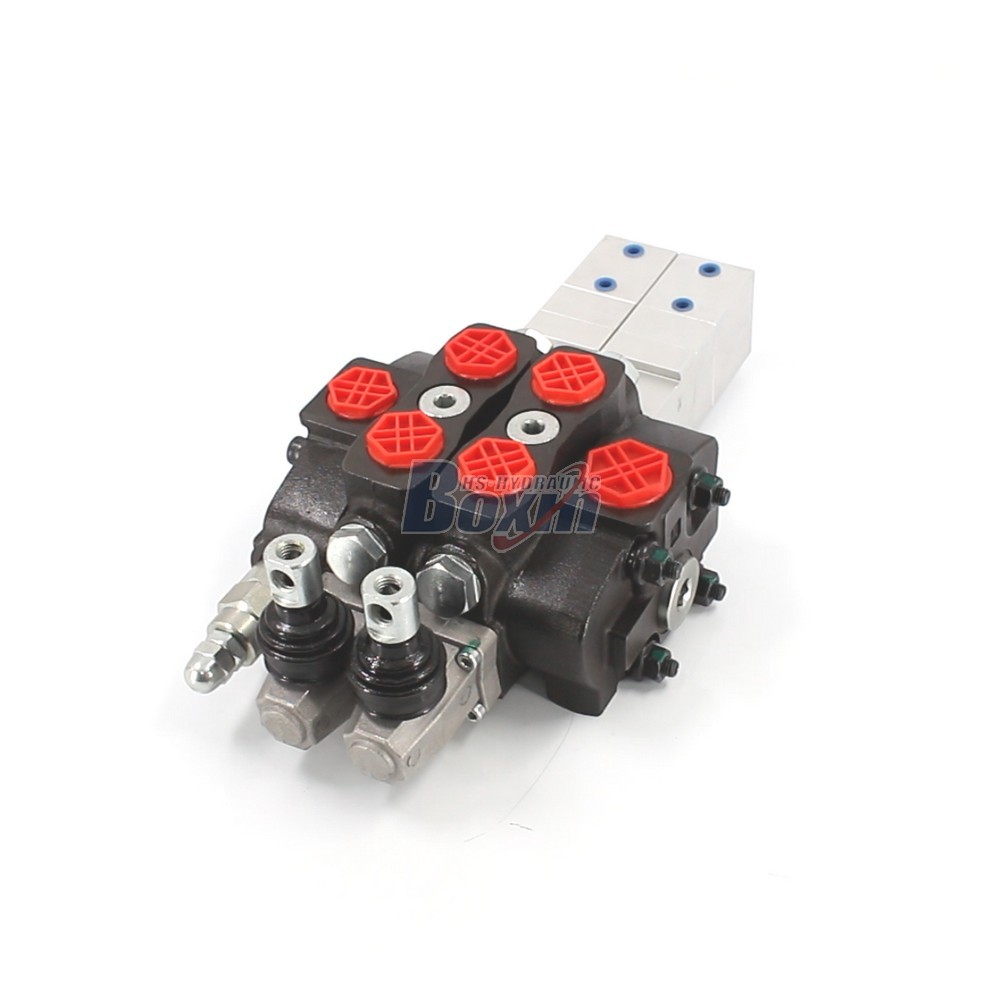

Manufacturer direct sale of the SD8 Series Pneumatic Sectional Valve, featuring a 2-spool design with an 80 L/min rated flow and 350 bar maximum pressure capacity for diverse industrial and agricultural applications.
| SD8-sarja Suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa, 8 kelaa, 9 kelaa, 10 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Jaksoventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso |
| Käyttöviskositeettialue | 12 - 400 mm²/s (12 cSt - 400 cSt) |
| Nimellisvirtaus | 90 L/min (23,8 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G1/2, G3/4, SAE 10 |
| Ulostuloportti | G1/2, G3/4, SAE 10, 3/4 NPT |
| Liitäntäkoko | G1/2, SAE 10 |
As a leading heavy-duty hydraulic manufacturer, we offer the SD8 Series Pneumatic Sectional Valve directly from our factory. This 2-spool valve supports a rated flow of 80 L/min (21.2 US gpm) and functions efficiently under pressures up to 350 bar (5100 psi). Designed for versatility, it features G1/2 inlet and G3/4 outlet ports, making it ideal for forklifts, mini-excavators, tractors, and waste compactors. We provide comprehensive OEM, ODM, and custom manufacturing services to meet specific technical requirements. Our facility supports large-scale wholesale and private labeling solutions for global partners. We are actively seeking professional distributors, wholesalers, agents, and traders to expand our global supply chain. Benefit from factory-direct pricing, robust technical support, and reliable quality for construction, material handling, and agricultural machinery sectors.
