Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

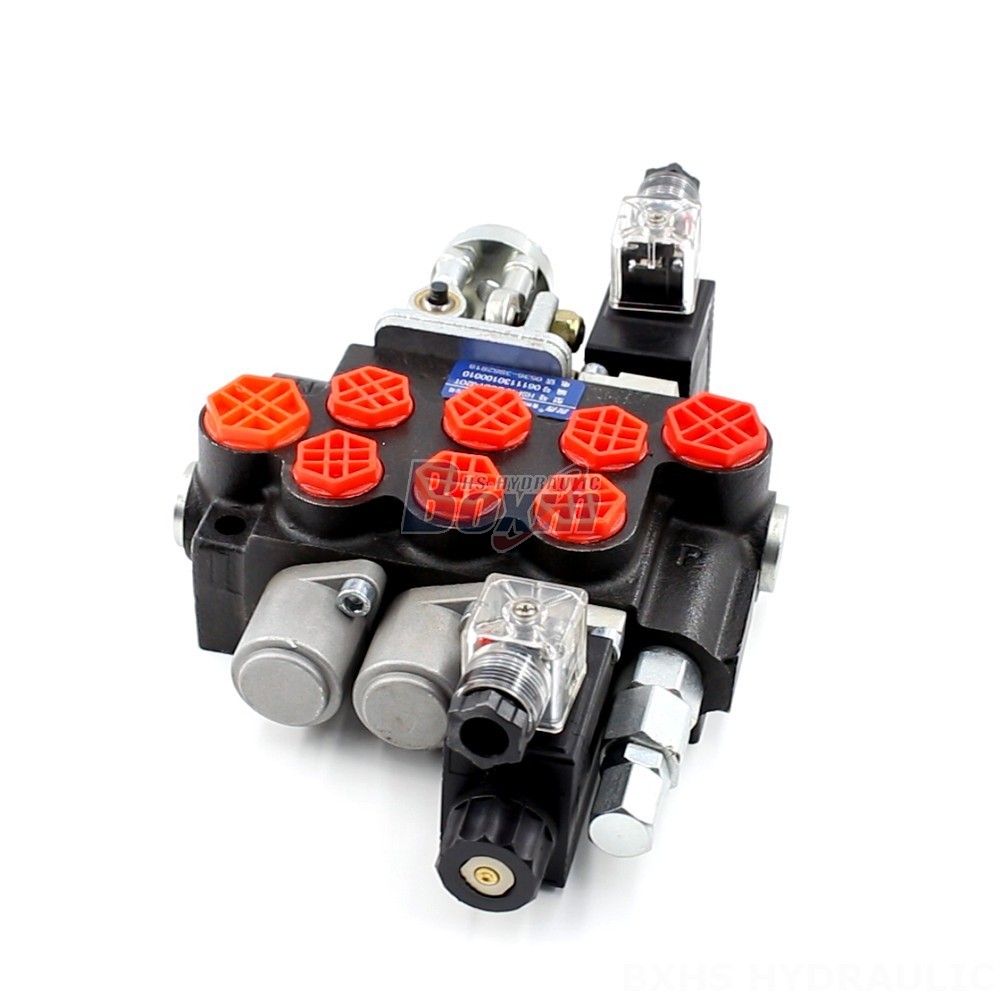

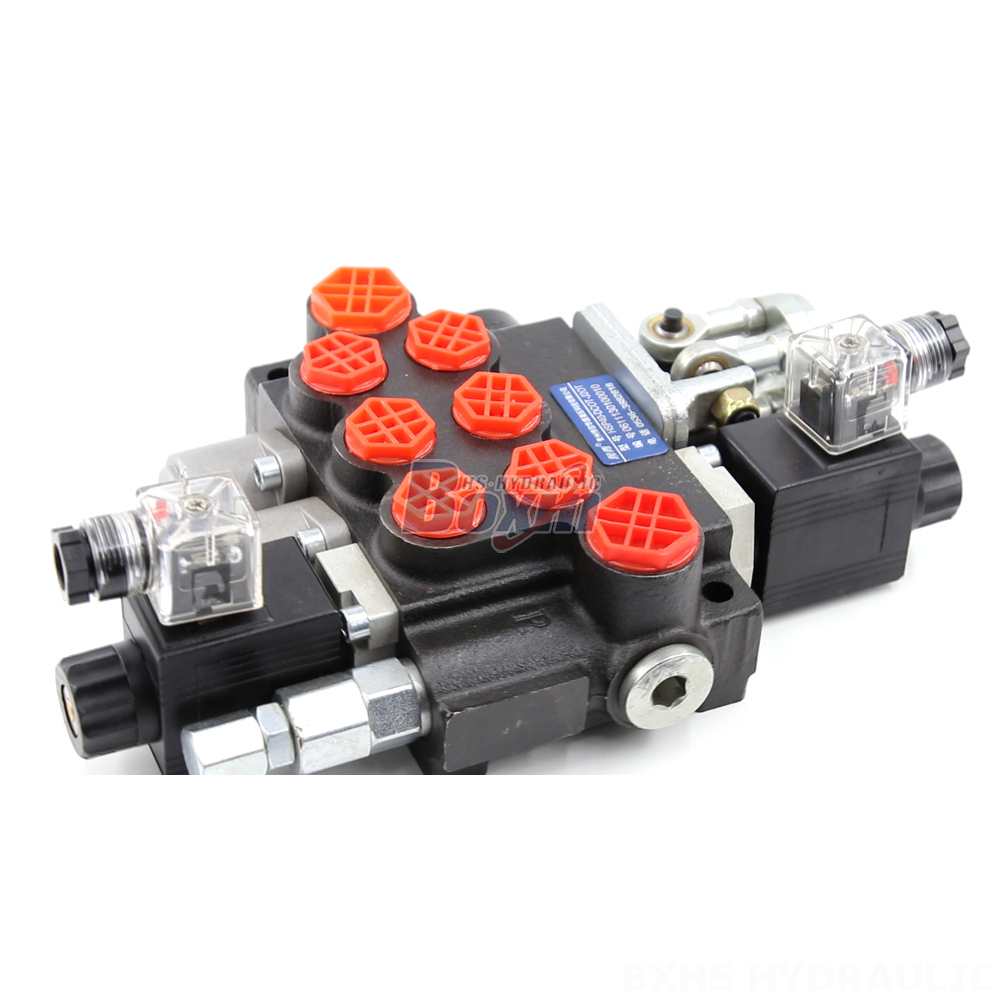

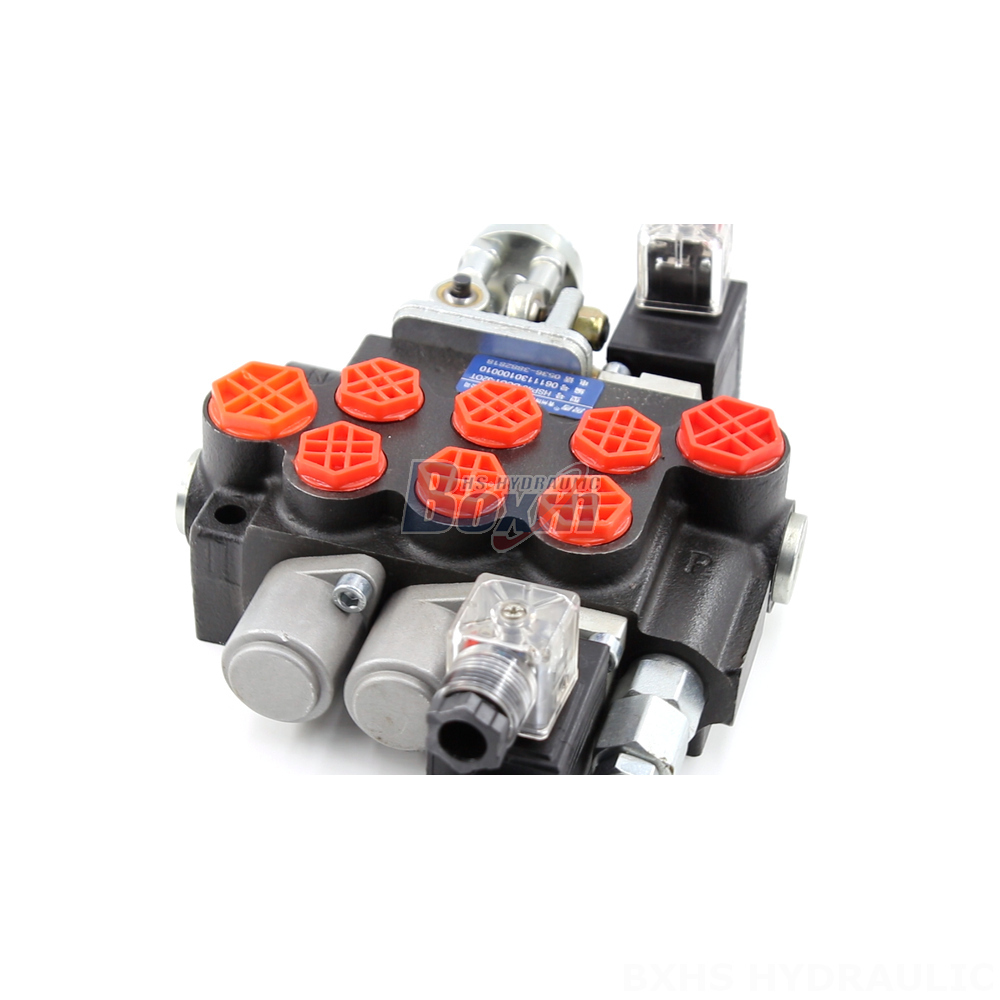

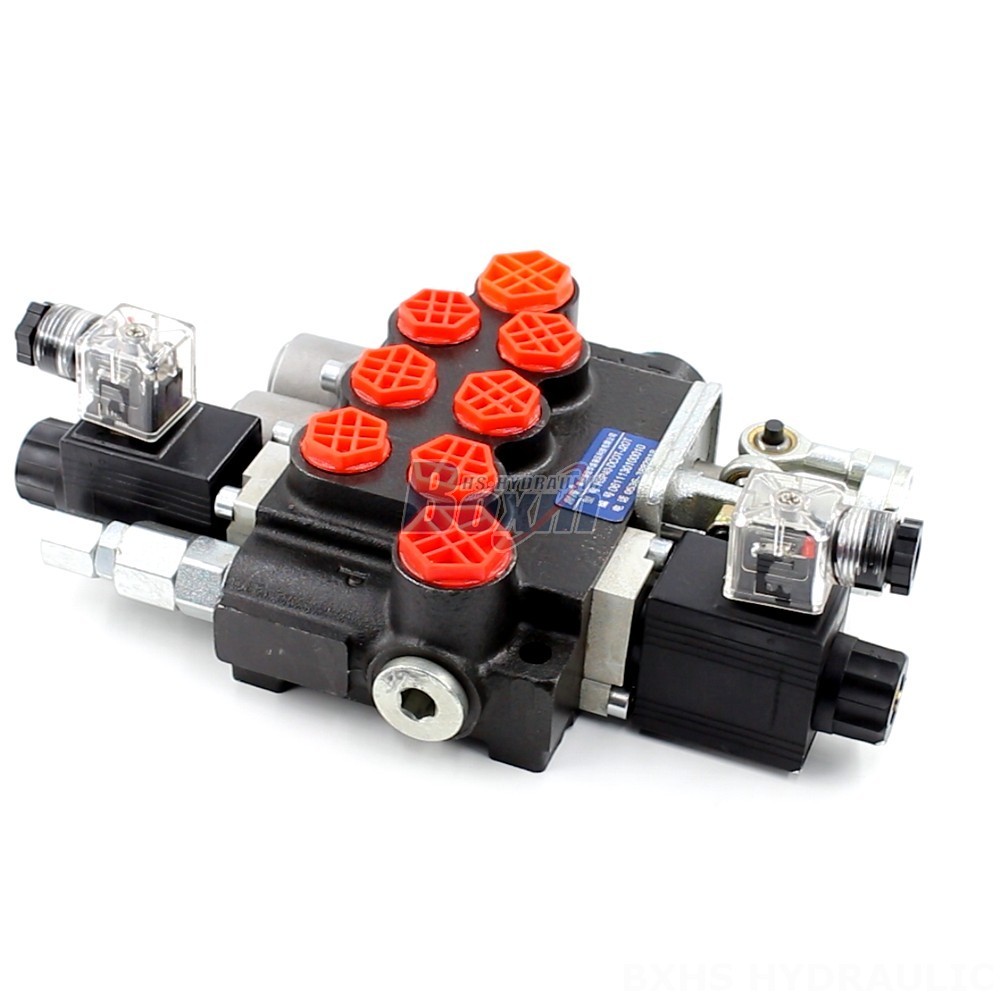

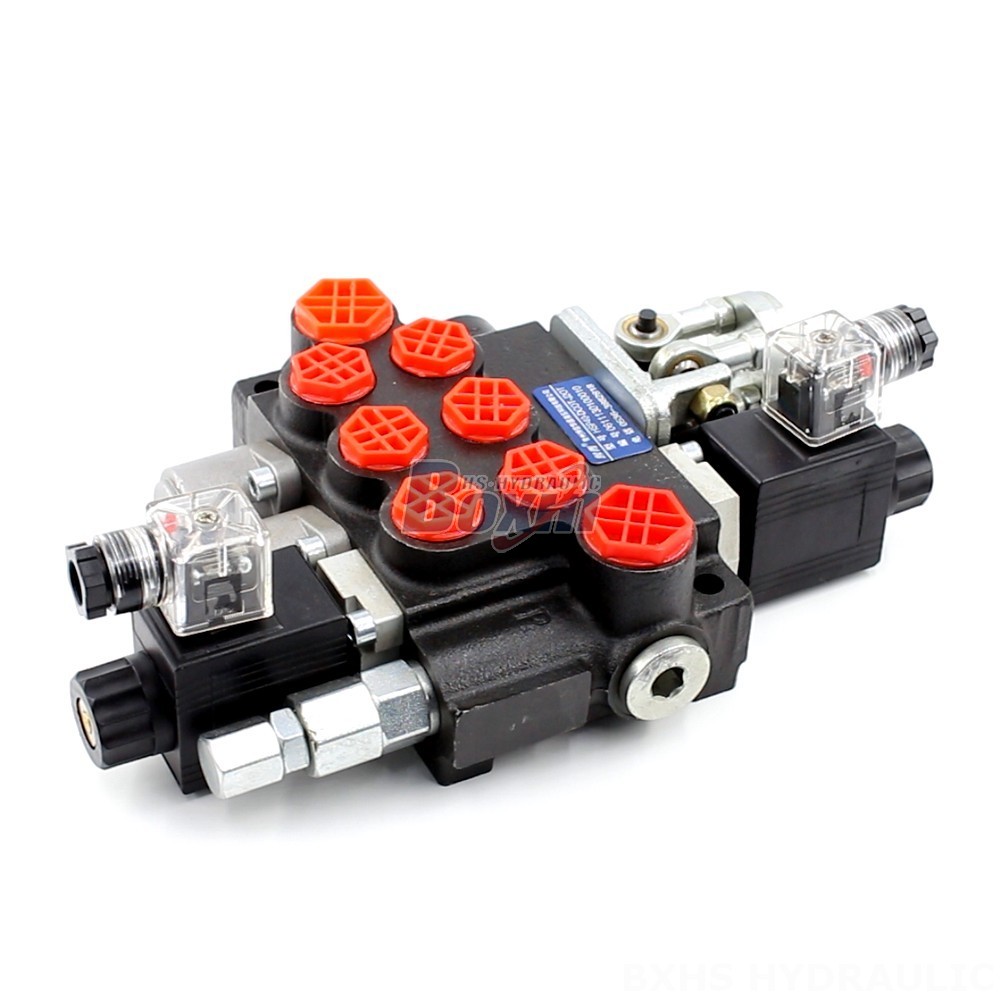

The P40 Series Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for heavy-duty applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This 3-spool valve offers both solenoid and joystick control options, delivering precise and responsive hydraulic control for a wide range of equipment.
| P40-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Solenoidi ja ohjaussauva, Ohjaussauva ja manuaalinen, Solenoidi ja kaapeli |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 40 L/min (10,5 US gpm) |
| Maksimipaine | 250 baaria (3 600 psi) |
| Tuloportti | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ulostuloportti | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Liitäntäkoko | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Hydraulic Directional Control Valve is a high-performance monoblock valve featuring a compact and robust design for reliable operation in demanding environments. It is equipped with 3 spools, offering versatile control options for hydraulic systems. The valve can be controlled via solenoid actuators or a joystick, providing flexibility and user-friendly operation. It is capable of handling high flow rates up to 40 L/min (10.5 US gpm) and withstands high pressures up to 250 bar (3600 psi). With a wide operating viscosity range and ambient temperature tolerance, this valve ensures optimal performance in various operating conditions. Its versatile design and robust construction make it suitable for a variety of applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. The valve is also designed for various equipment, such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. We offer a range of services, including manufacturing, OEM, ODM, and customization options to meet specific customer requirements.
