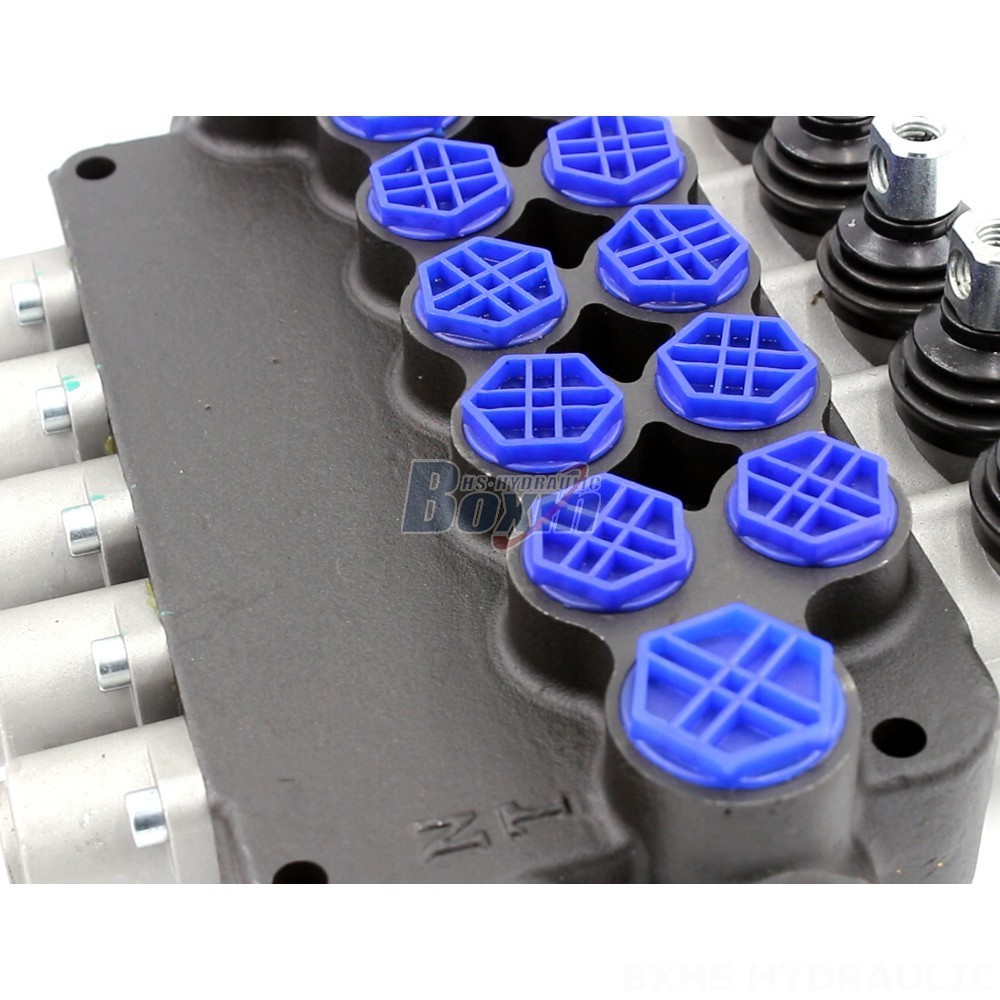

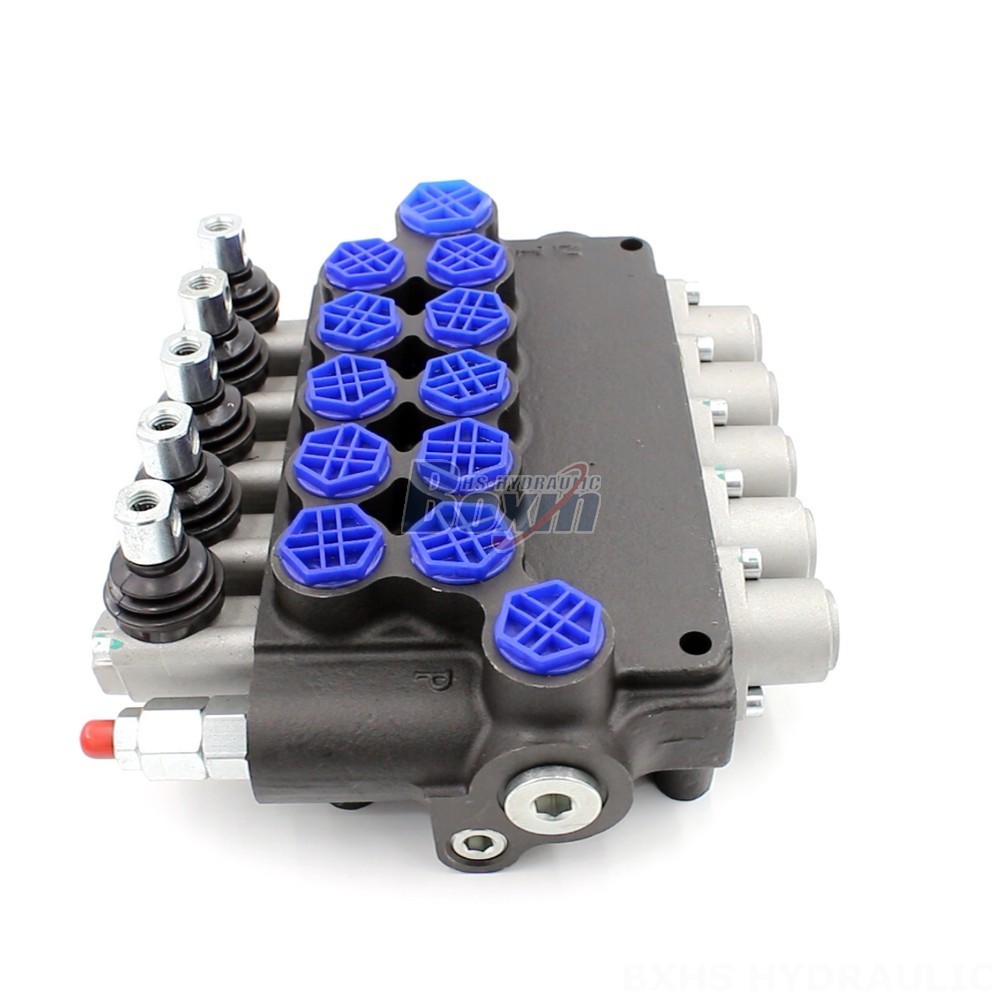

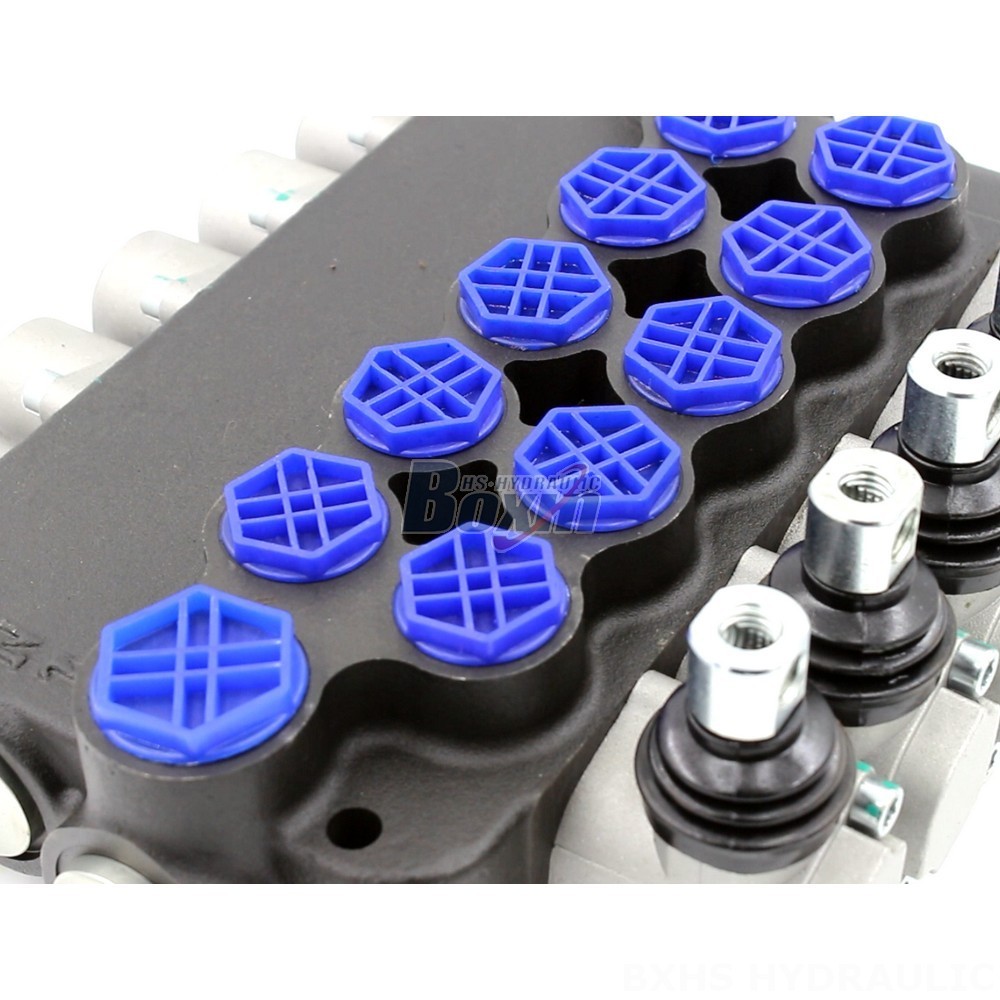

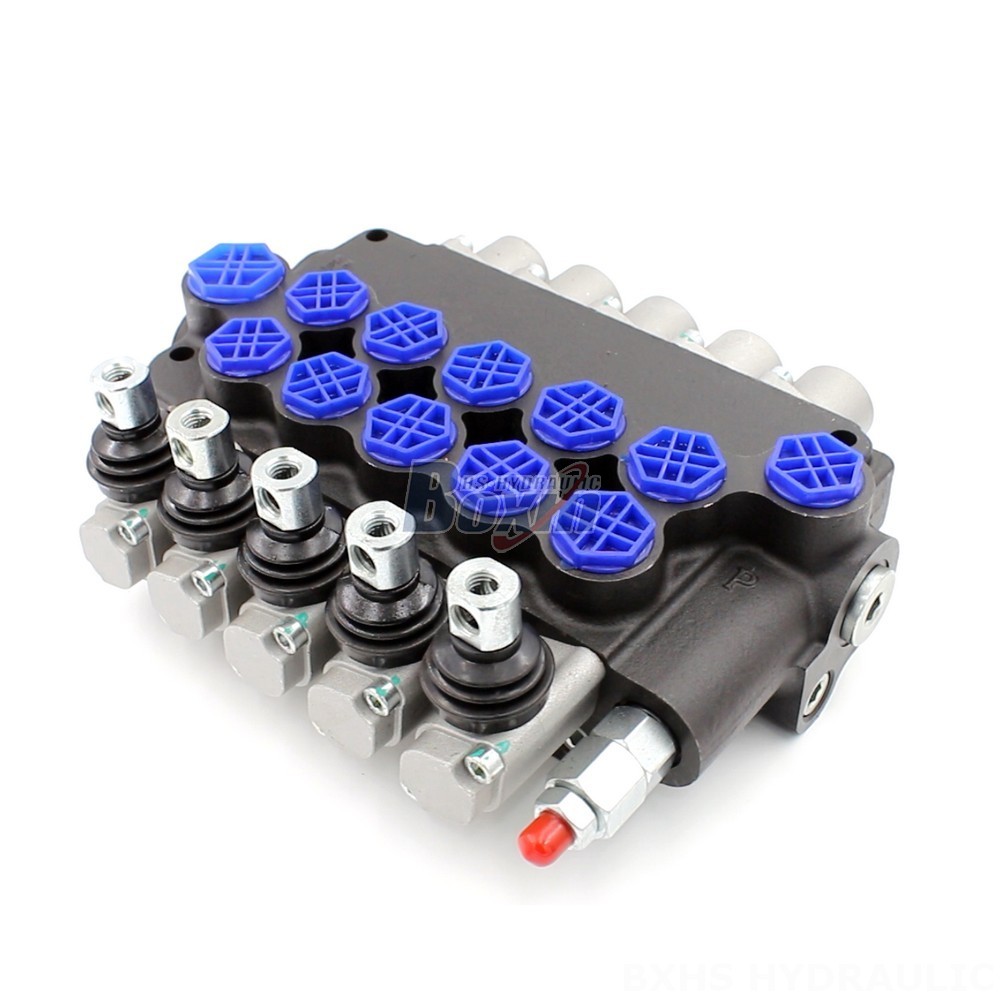

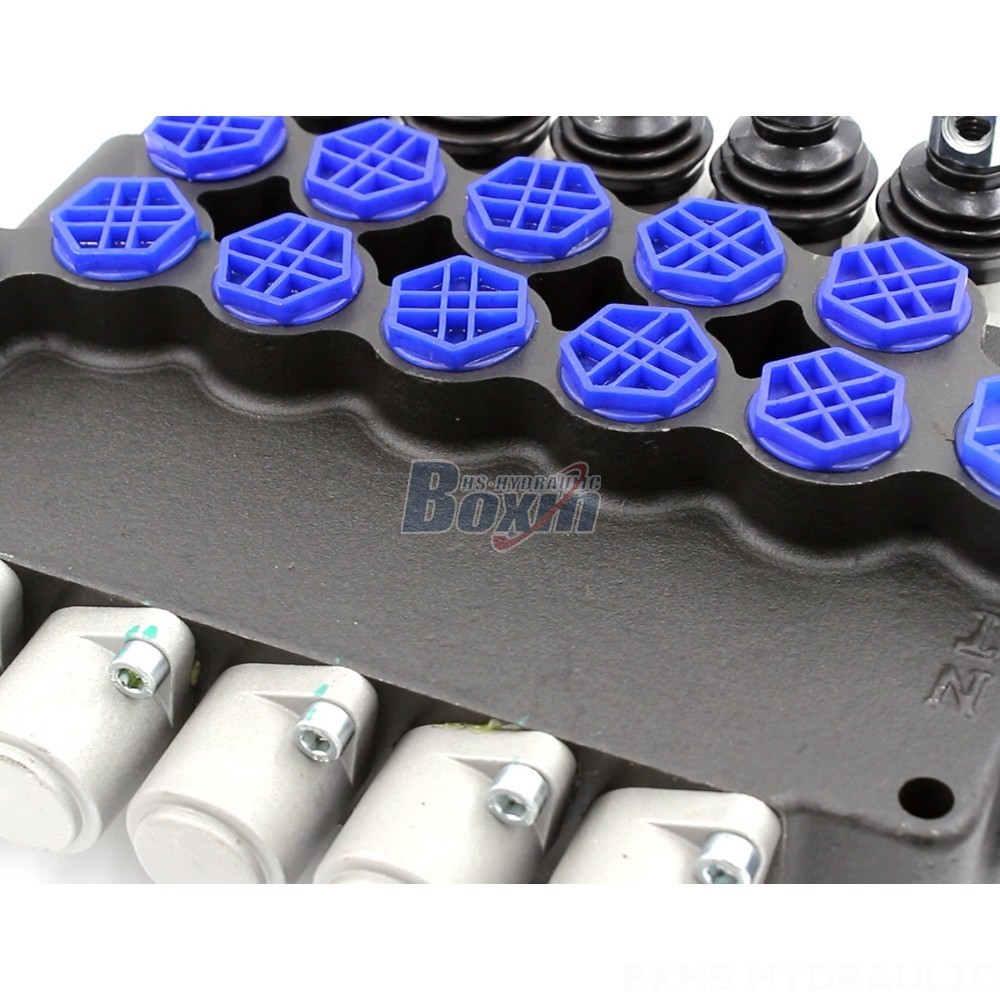

The P80F Series Electric Actuated Hydraulic Directional Control Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of construction and material handling equipment. This 5-section, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.
| P80F-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa |
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva |
| Liitäntäkoko | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Ulostuloportti | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Maksimipaine | 315 baaria (4 600 psi) |
| Nimellisvirtaus | 80 L/min (21,2 US gpm) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Tuloportti | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
This electric actuated hydraulic directional control valve from the P80F series is a robust and versatile solution for controlling hydraulic systems in heavy-duty machinery. It offers a 5-section, monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for reliability and durability, this valve boasts a wide operating viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 5-spool configuration, it provides precise and efficient control for various functions. Its versatility makes it suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers.
