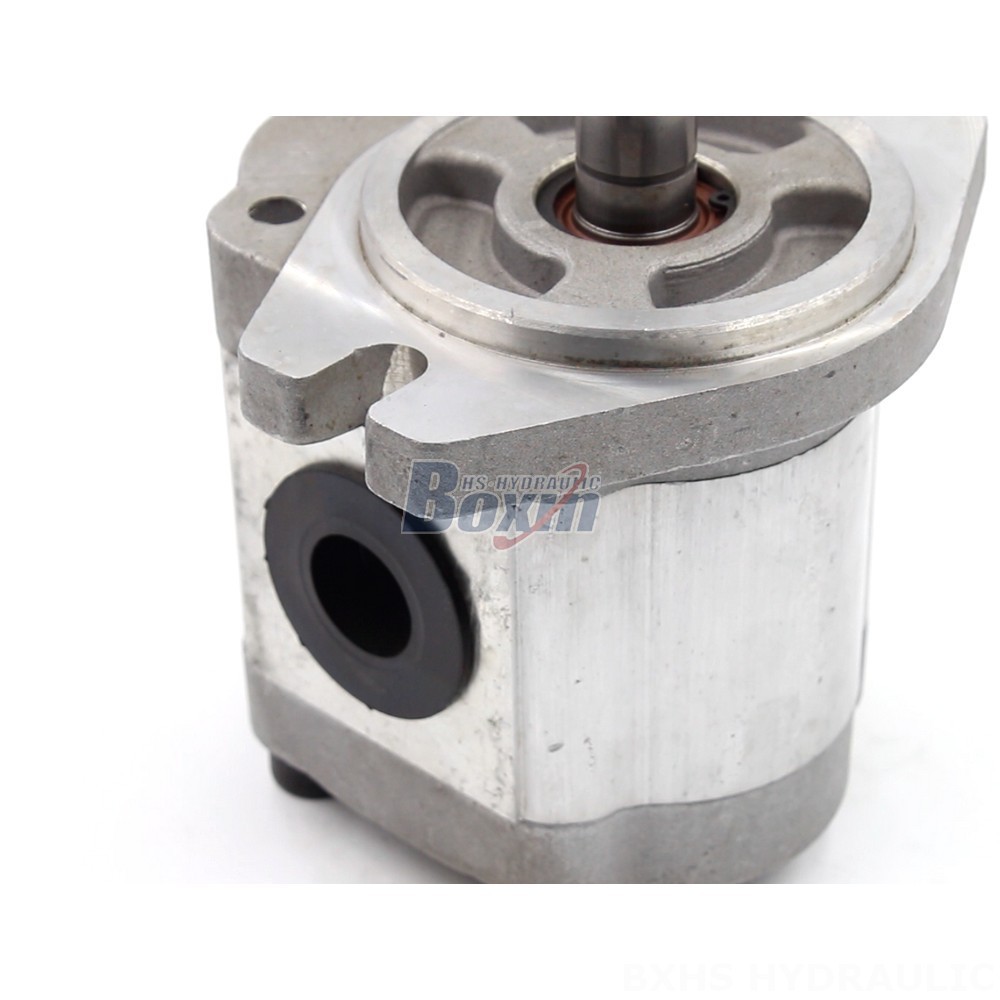

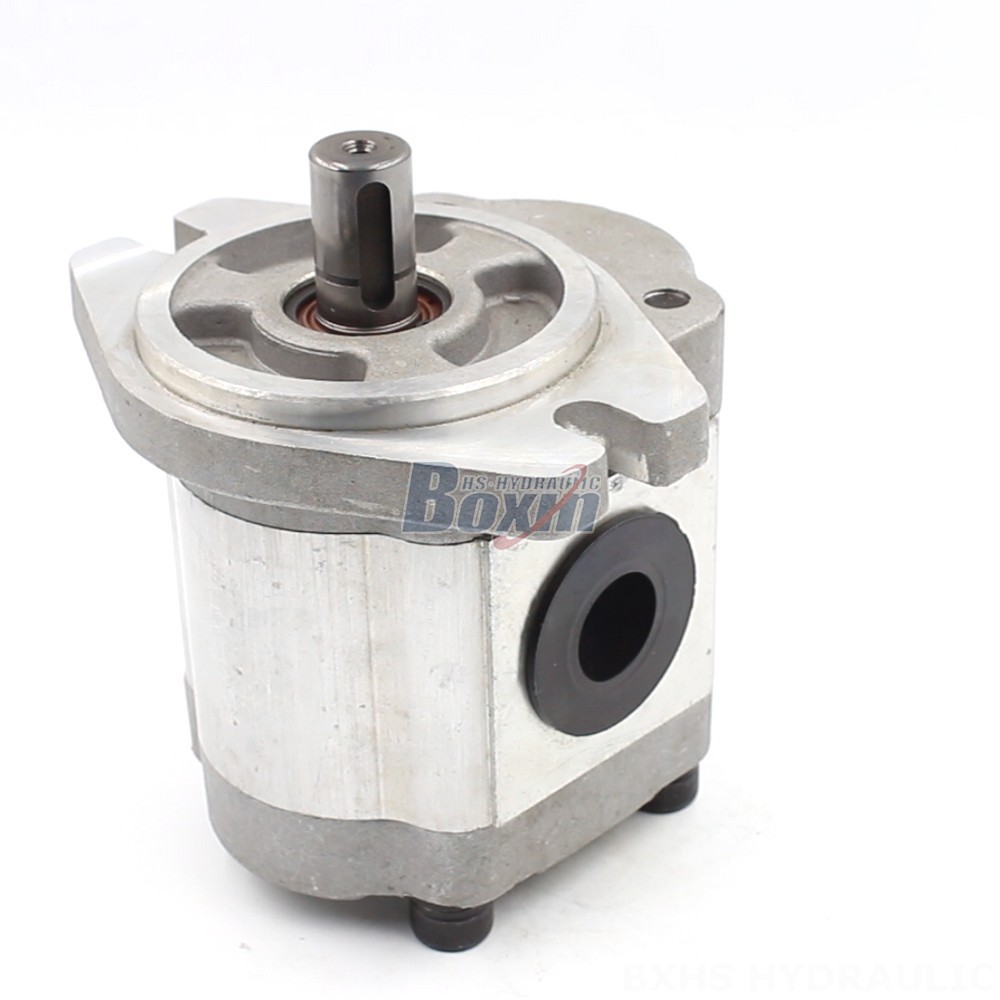

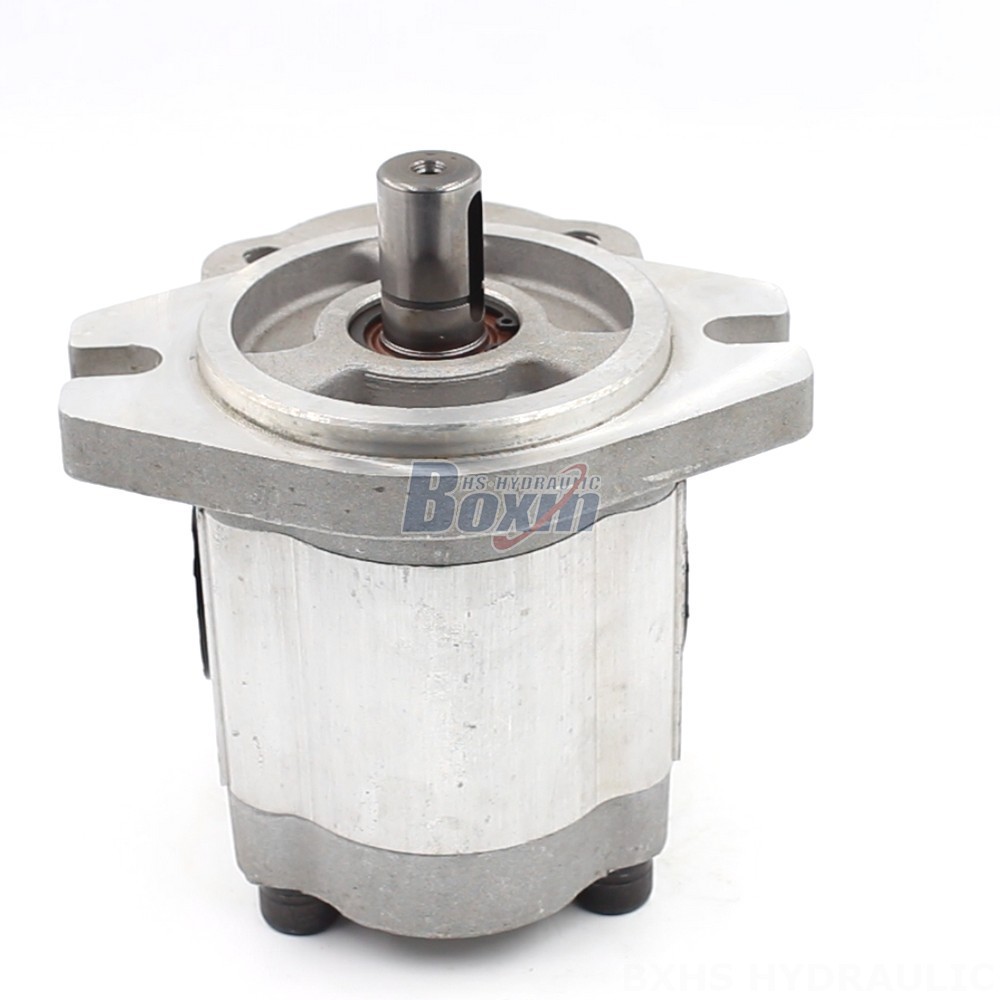

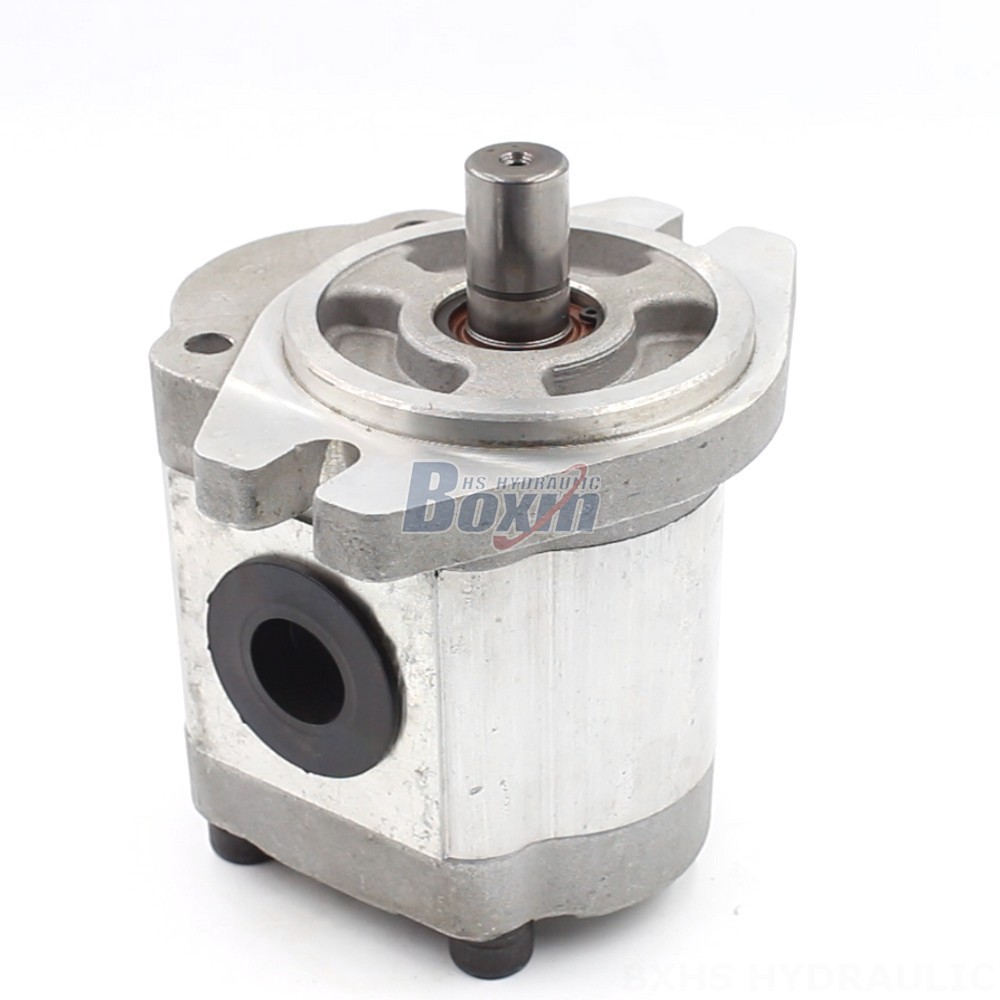

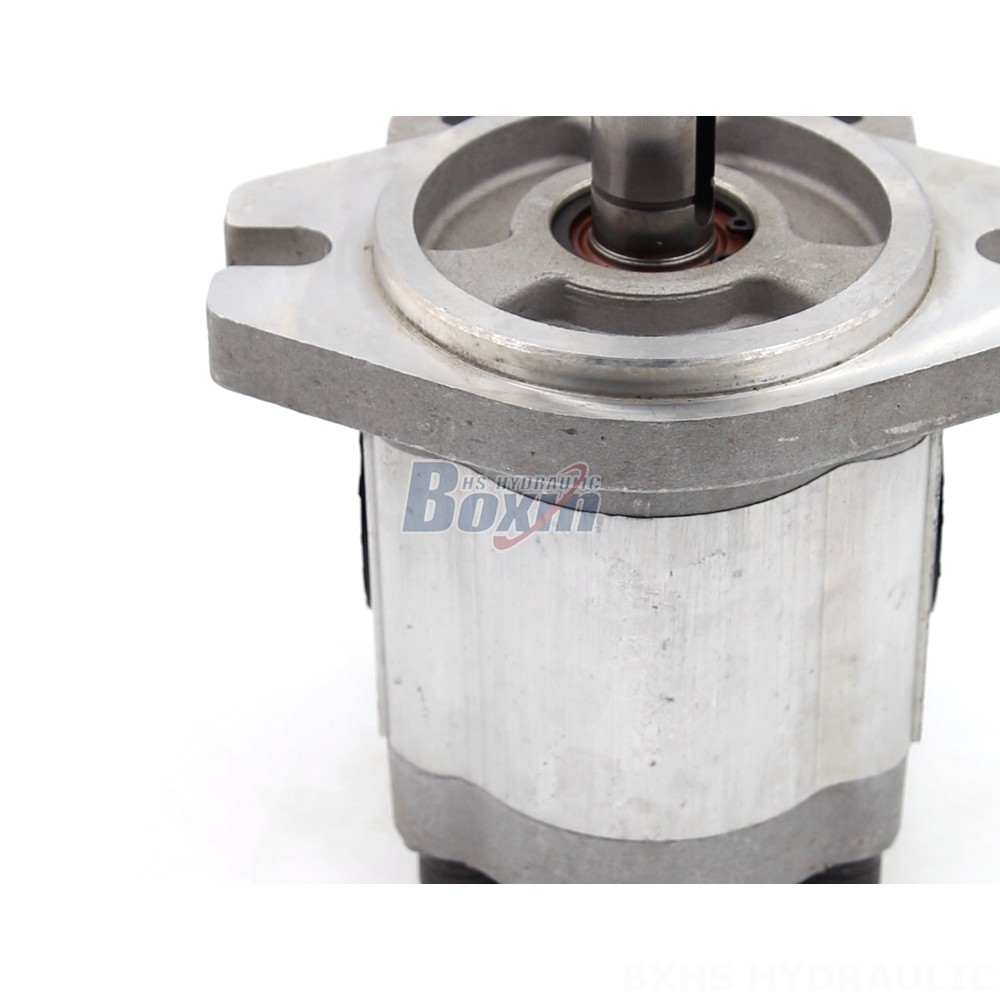

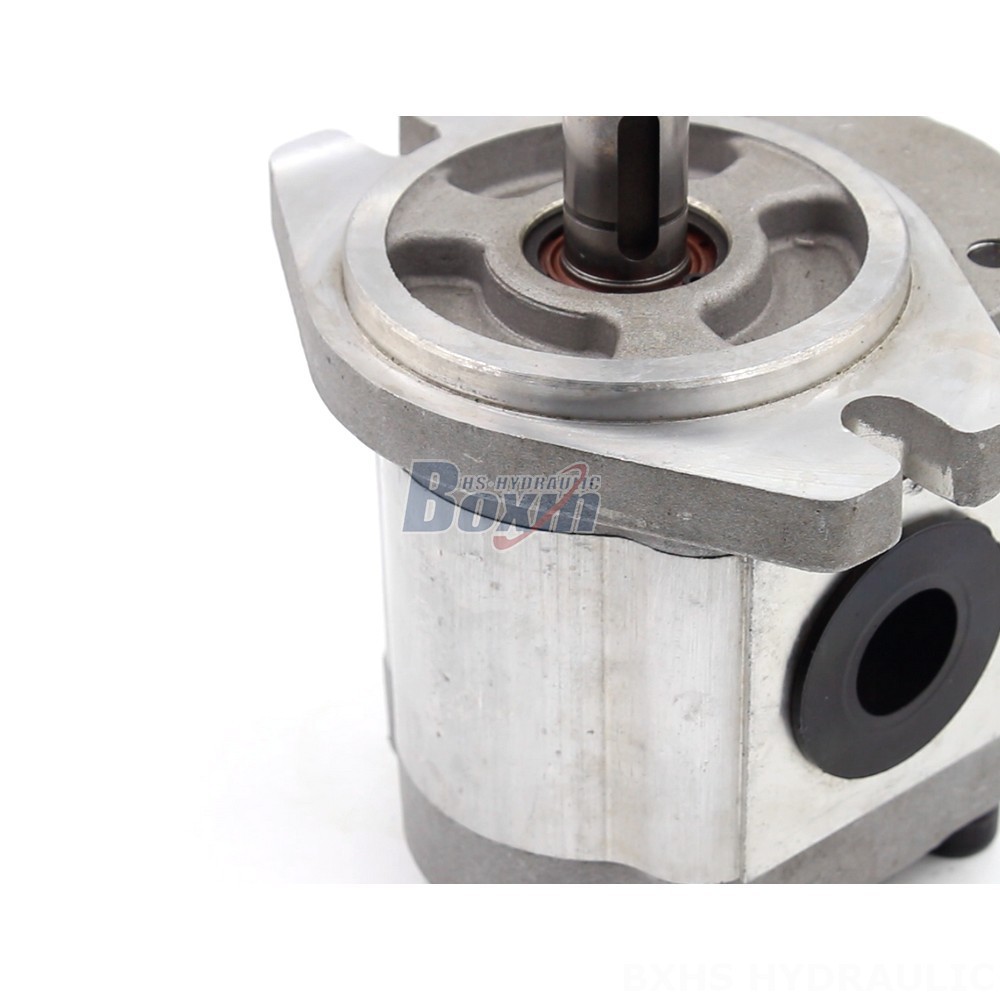

This high-performance, 14 cc/rev hydraulic gear pump is manufactured directly from our factory and is ideal for various applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With a durable aluminium construction and A-oval flange, this pump is built to last and perform reliably in demanding environments.
| CBHS-FL3-sarja Hydraulinen hammaspyöräpumppu Parametrit | |
|---|---|
| Iskutilavuus | 10 cm³/kierros, 4 cm³/kierros, 20 cm³/kierros, 16 cm³/kierros, 14 cm³/kierros, 6 cm³/kierros |
| Nimellispaine | 20 MPa (2900 psi) |
| Maksimipaine | 25 MPa (3625 psi) |
| Nimellisnopeus | 2000 r/min |
| Maksiminopeus | 3000 r/min |
| Pyörimissuunta | Vasen (vastapäivään), Oikea (myötäpäivään) |
| Materiaali | Alumiini |
| Rakenne | Ulkohampainen hammaspyöräpumppu |
| Laippaversio | A-Soikea laippa |
| Akselityyppi | H: Suorakaiteen muotoinen ura, X: Evolutoitu ura, P: Tavallinen näppäin |
This robust hydraulic gear pump delivers exceptional performance with a displacement of 14 cc/rev. It is designed for high-pressure applications, boasting a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump features an internal gear design and is constructed from durable aluminium. It comes with an A-oval flange and a plain key shaft, making it compatible with a wide range of applications. This versatile pump is part of the CBHS-FL3 series and is specifically designed for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. Its high performance and reliability make it a suitable choice for various industries including material handling, construction, earth moving, agriculture, and industrial vehicles.
