Introducing the robust P80 Series Electro-Hydraulic Monoblock Directional Valve, meticulously engineered for diverse hydraulic applications across industries. With its electro-hydraulic control, 2-section monoblock structure, and impressive flow rate of 80 L/min, this valve delivers exceptional performance in demanding conditions. Its wide operating temperature range (-40°C to +80°C) and compatibility with various applications, including forklifts, telehandlers, and construction machinery, make it an ideal choice for OEMs and distributors seeking reliable hydraulic solutions.
| P80-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 80 L/min (21,2 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ulostuloportti | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Liitäntäkoko | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

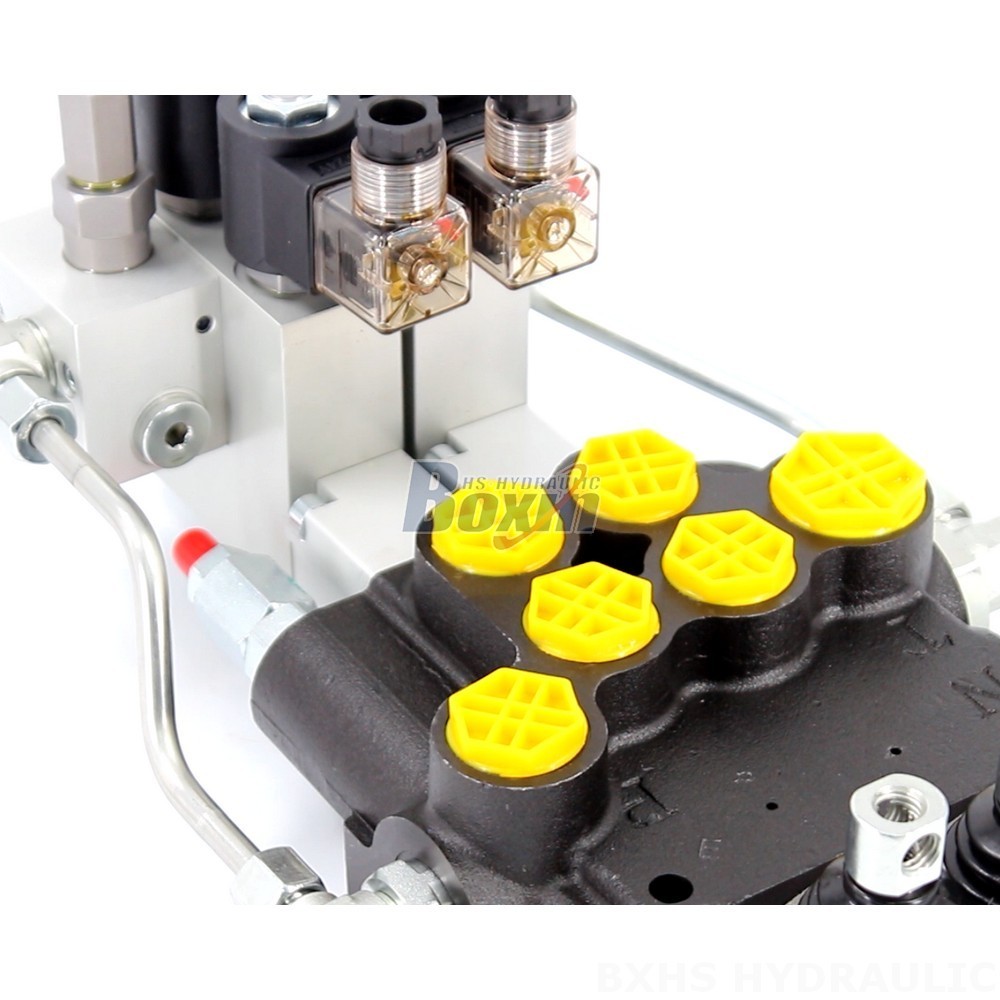

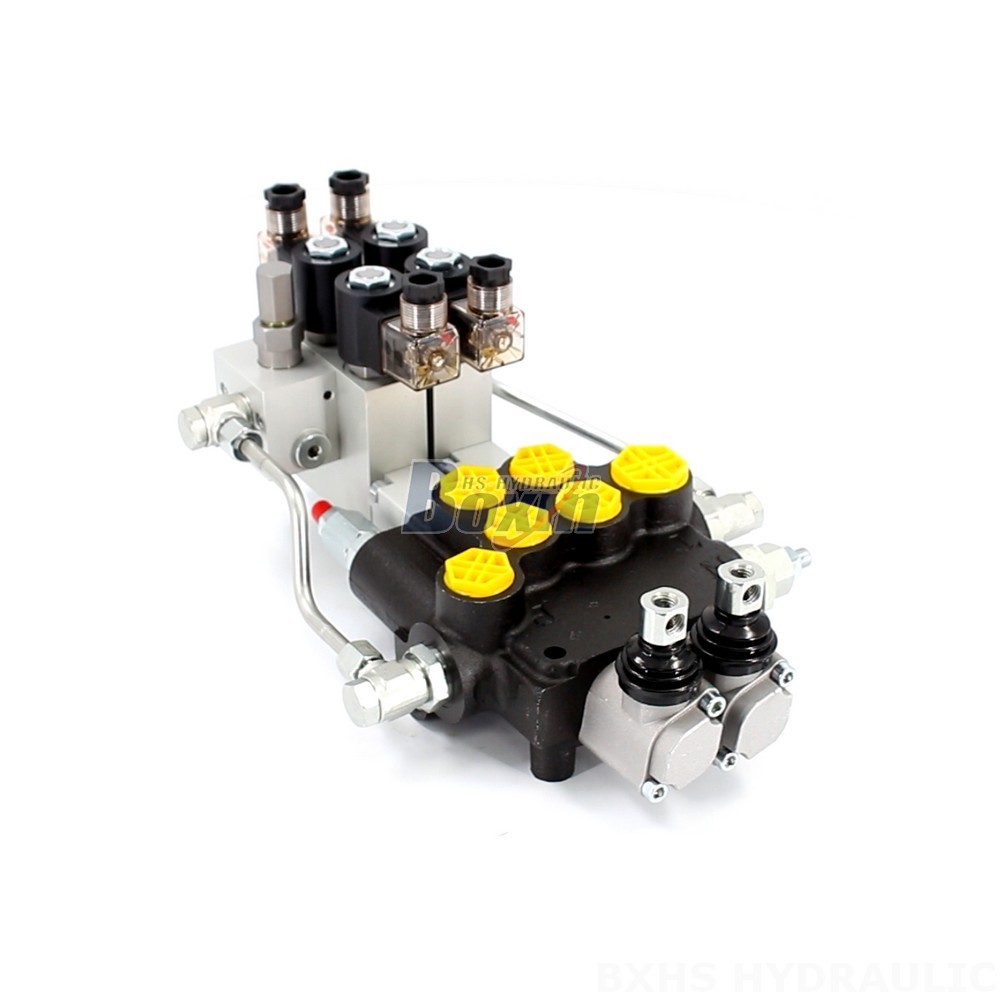

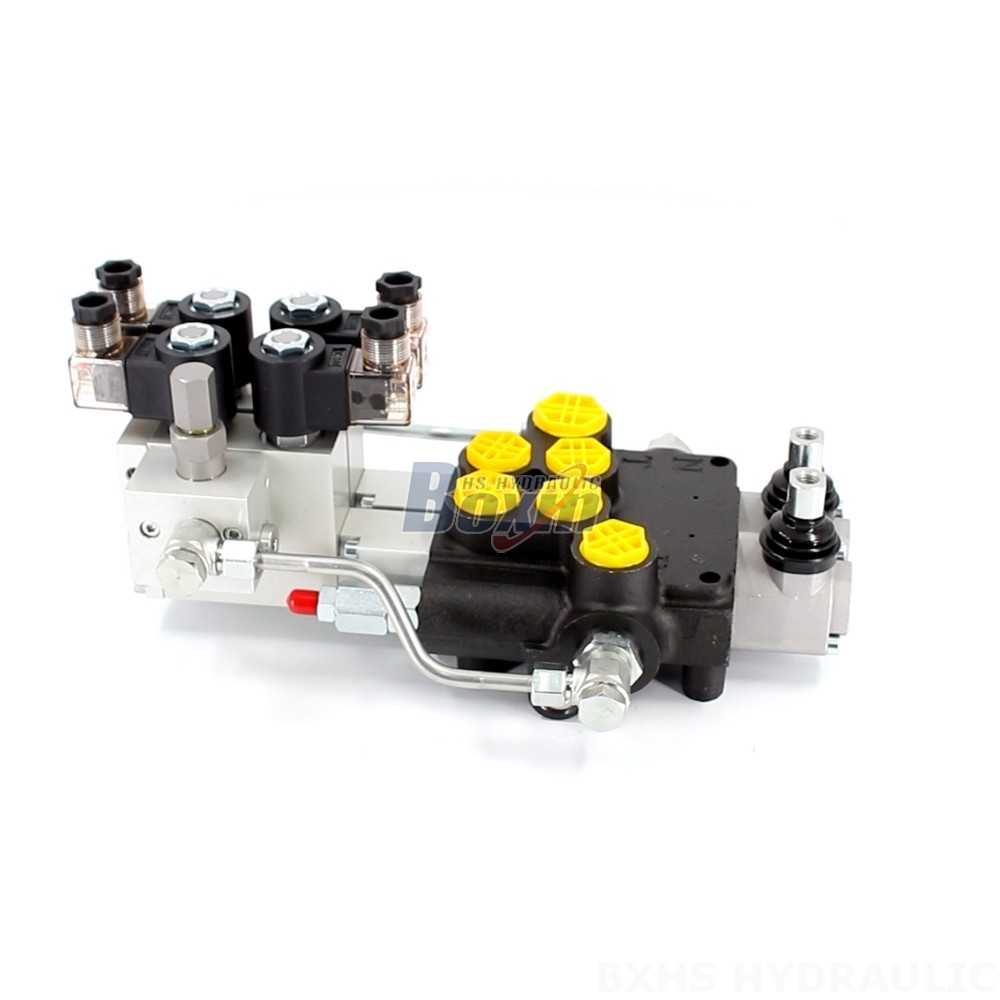

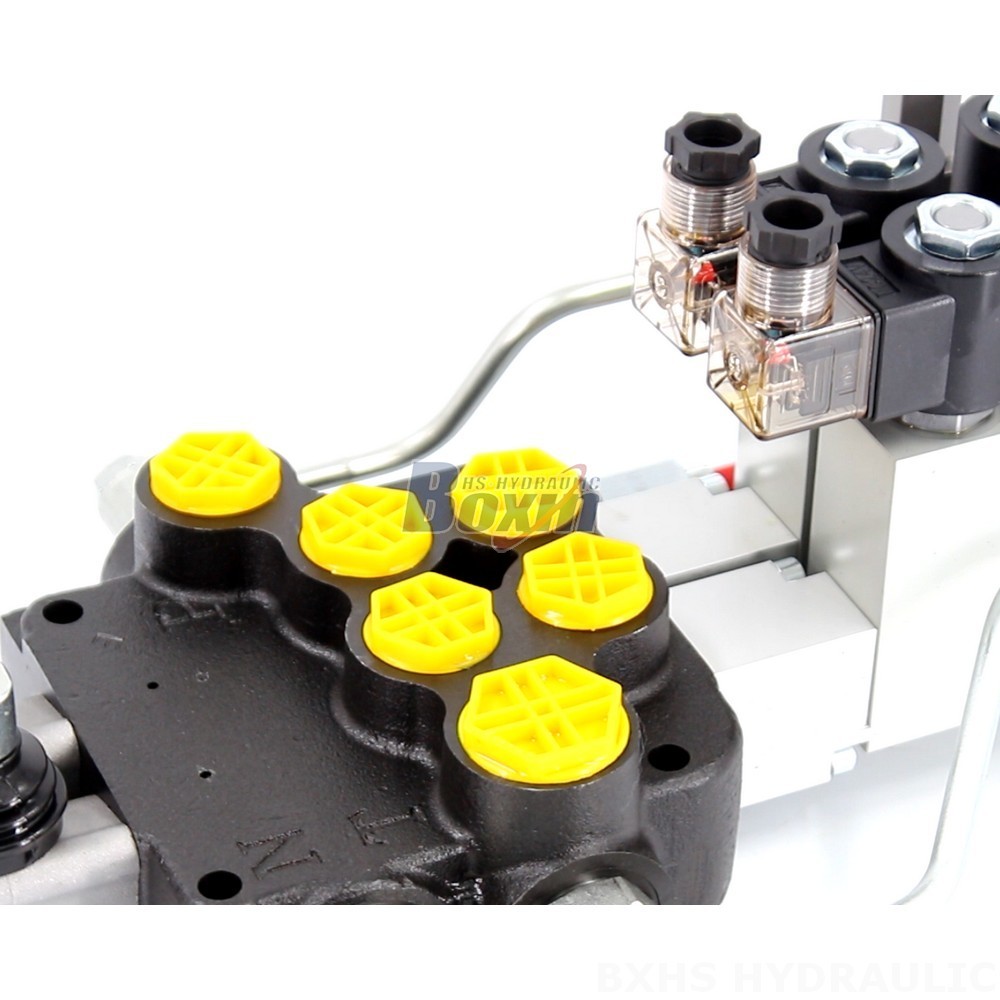

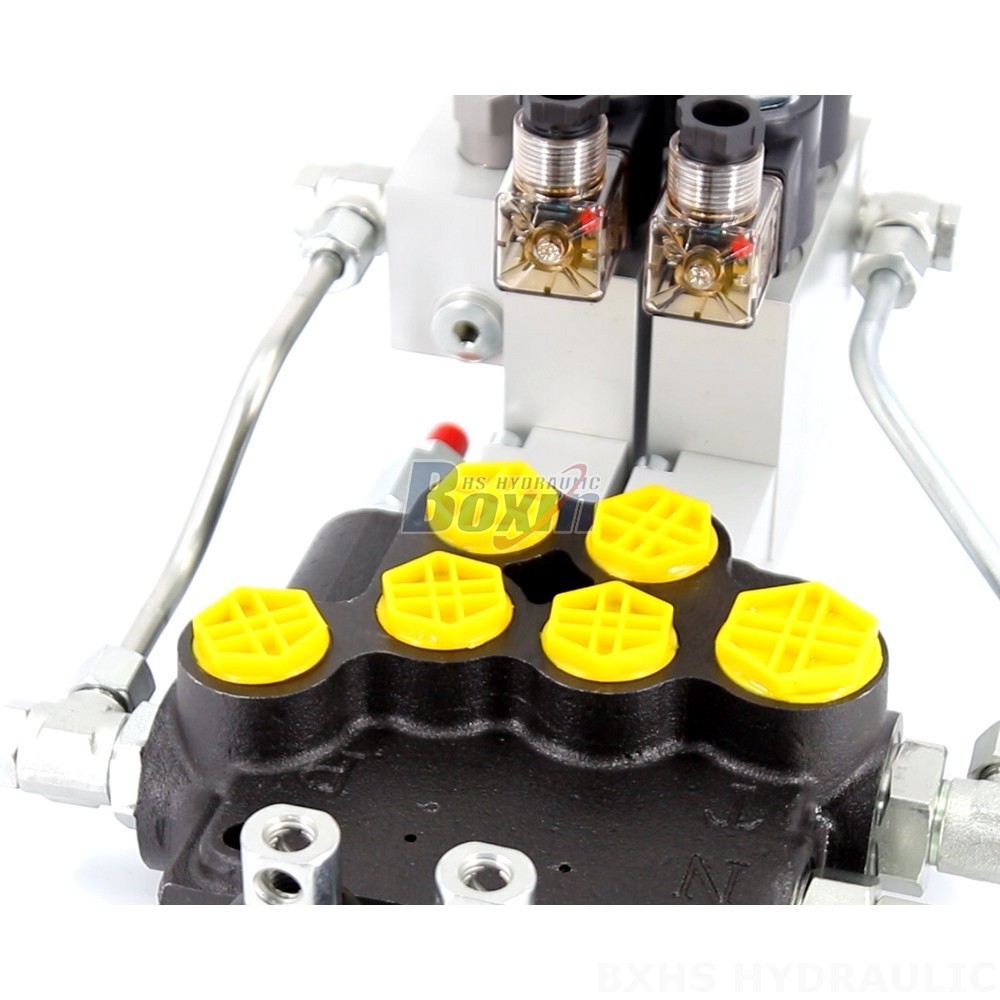

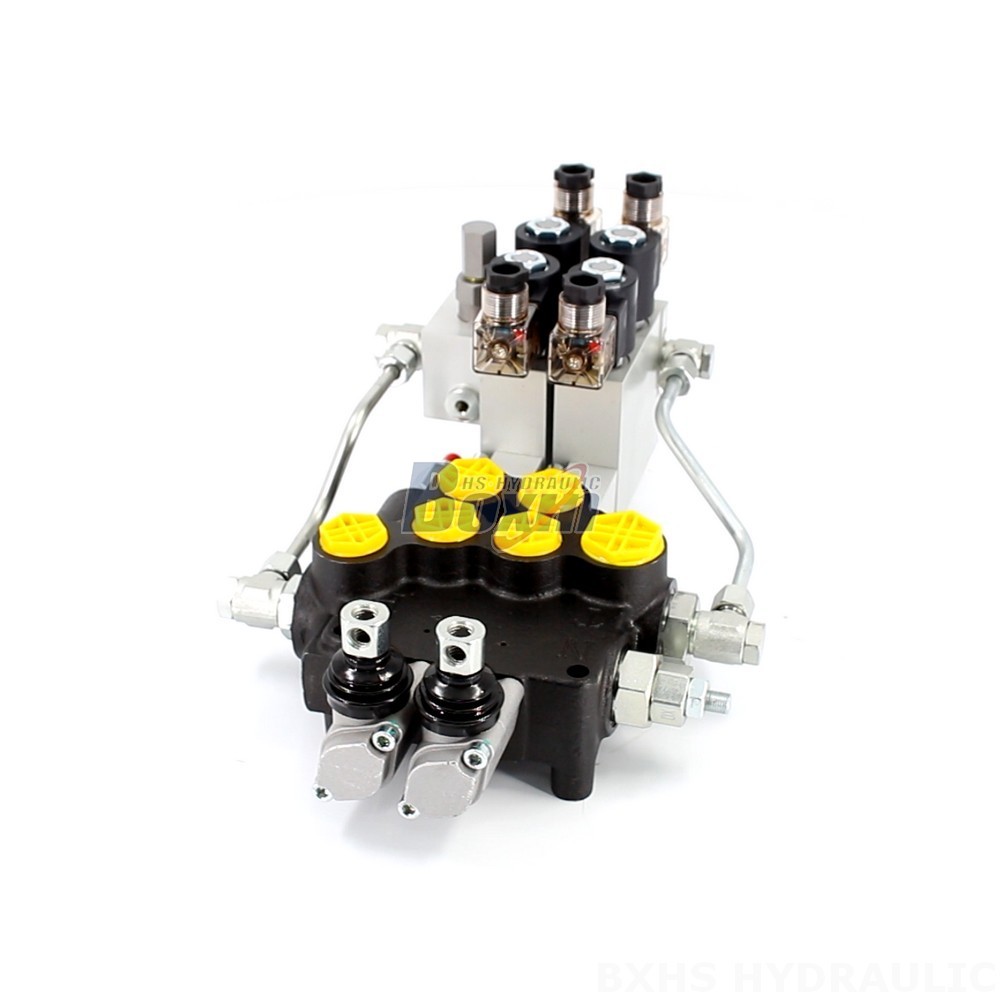

**Electro-Hydraulic Monoblock Directional Valve - P80 Series**
**Control Method:** Electro-hydraulic
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
The P80 Series Electro-Hydraulic Monoblock Directional Valve is designed for applications requiring precise control of hydraulic flow. It features a compact and robust monoblock construction, providing excellent durability in harsh operating conditions. The valve's electro-hydraulic control mechanism allows for remote or automated operation, enhancing efficiency and reducing maintenance requirements.
With a maximum pressure capacity of 250 bar and a flow rate of 80 L/min, the P80 Series valve is suitable for a wide range of hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s ensures compatibility with various hydraulic fluids. Additionally, the valve's wide ambient temperature range (-40°C to +80°C) allows for reliable operation in diverse climatic conditions.
The P80 Series Electro-Hydraulic Monoblock Directional Valve is an ideal solution for manufacturers and distributors seeking high-performance hydraulic components. Its versatility, durability, and ease of integration make it a preferred choice for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
