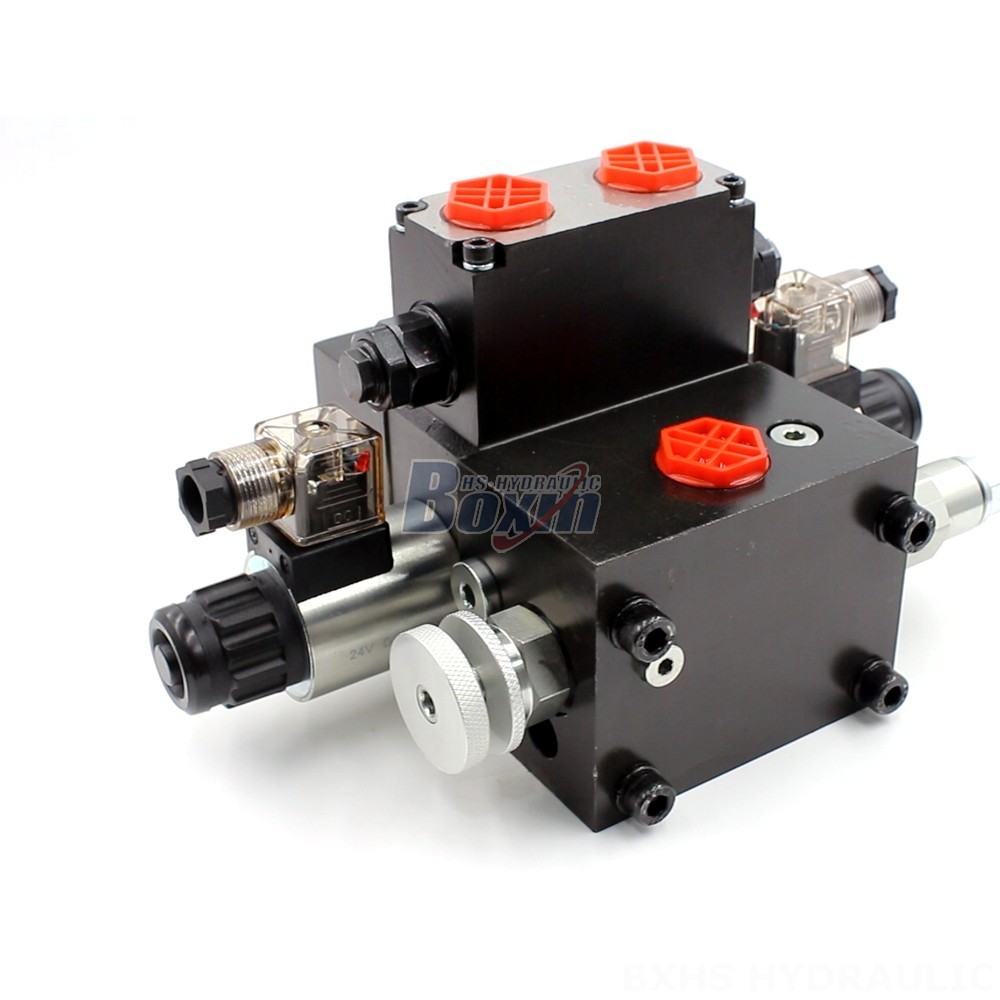

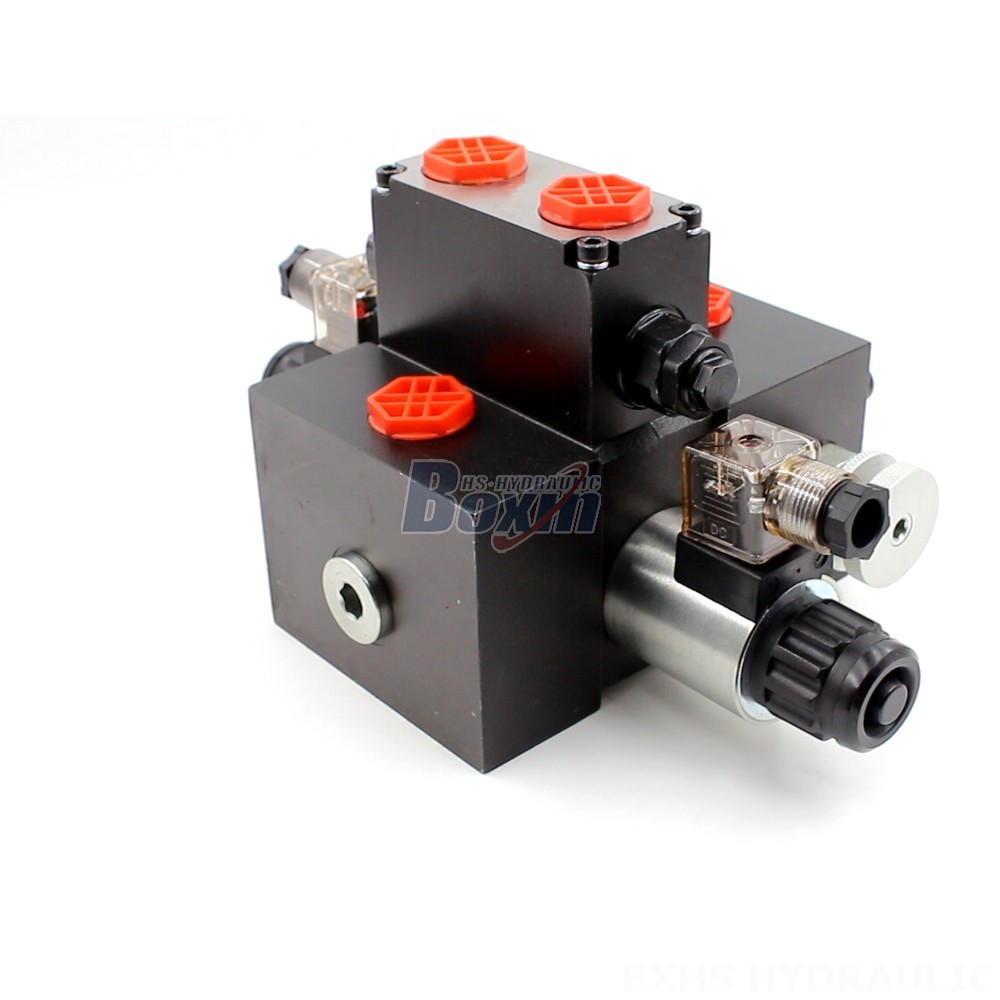

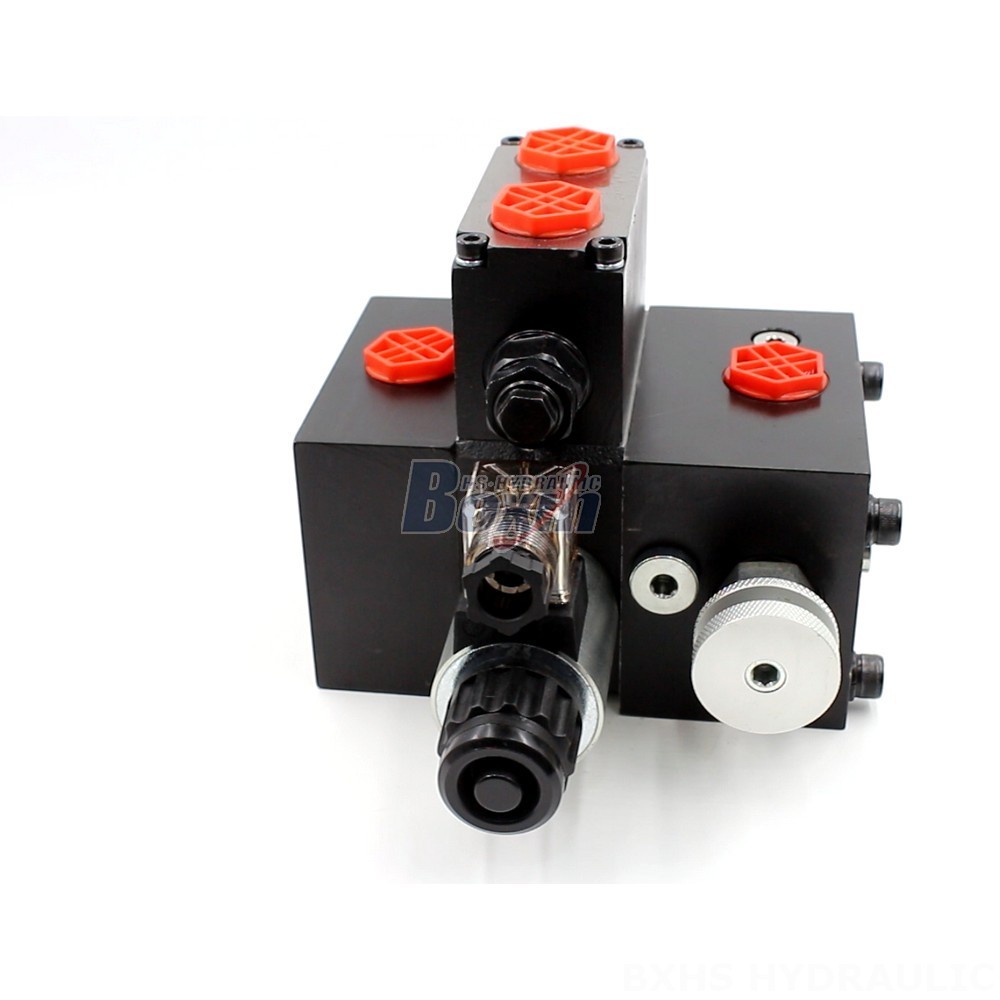

DCV58F 1-Spool Solenoid Directional Valve is a sectional valve with solenoid control, featuring a rated flow of 60 L/min and a maximum pressure of 350 bar. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is widely applicable in material handling, construction, agriculture, and industrial vehicles.
| DCV58F-sarja Suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Solenoidi, Solenoid och käsikäyttö |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa, 8 kelaa, 9 kelaa, 10 kelaa, 11 kelaa, 12 kelaa |
| Nimellisvirtaus | 60 L/min (15,8 US gpm) |
| Maksimipaine | 350 baaria (5 100 psi) |
| Tuloportti | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ulostuloportti | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Liitäntäkoko | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso, 11 jakso, 12 jakso |
| Rakennetyyppi | Jaksoventtiili |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
The DCV58F 1-Spool Solenoid Directional Valve is a highly versatile and reliable valve designed to meet the demands of various hydraulic systems. Its key features include:
- **Solenoid Control:** The valve is operated using a solenoid, providing precise and responsive control.
- **Sectional Design:** As a sectional valve, it offers flexibility in customizing the valve configuration to specific application requirements.
- **High Flow Capacity:** With a rated flow of 60 L/min, the valve is capable of handling high flow rates, ensuring efficient operation of hydraulic systems.
- **Robust Construction:** Built to withstand pressures up to 350 bar, the valve is suitable for demanding applications.
- **Wide Operating Range:** The valve operates effectively within a wide viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C), making it suitable for various operating conditions.
This valve finds applications in a wide range of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is commonly used in equipment such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
