The HSDVG32 4 Spool Proportional Control Valve is an advanced hydraulic valve technology designed for demanding applications in various industries. With its high flow rate of 140 L/min and maximum pressure of 315 bar, it provides precise and efficient control of hydraulic systems. The electric proportional and manual control options offer versatility and flexibility in operation.
| HSDVG32-sarja Proportionaalinen ohjausventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Elektrohydraulinen, Solenoidi, Hydraulinen ja Manuaalinen, Kaapeli, Sähköinen verrannollinen, Solenoid och käsikäyttö, Sähköinen verrannollinen ja manuaalinen |
| Jakaja | 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa, 8 kelaa, 9 kelaa, 10 kelaa, 11 kelaa, 12 kelaa |
| Ympäristön lämpötila-alue | -40 °C - +80 °C (-40 °F - +176 °F) |
| Rakennetyyppi | Jaksoventtiili |
| Jakso | 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso, 8 jakso, 9 jakso, 10 jakso, 11 jakso, 12 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 140 L/min (37 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G3/4 |
| Ulostuloportti | G3/4 |
| Liitäntäkoko | G1/2, G3/4 |

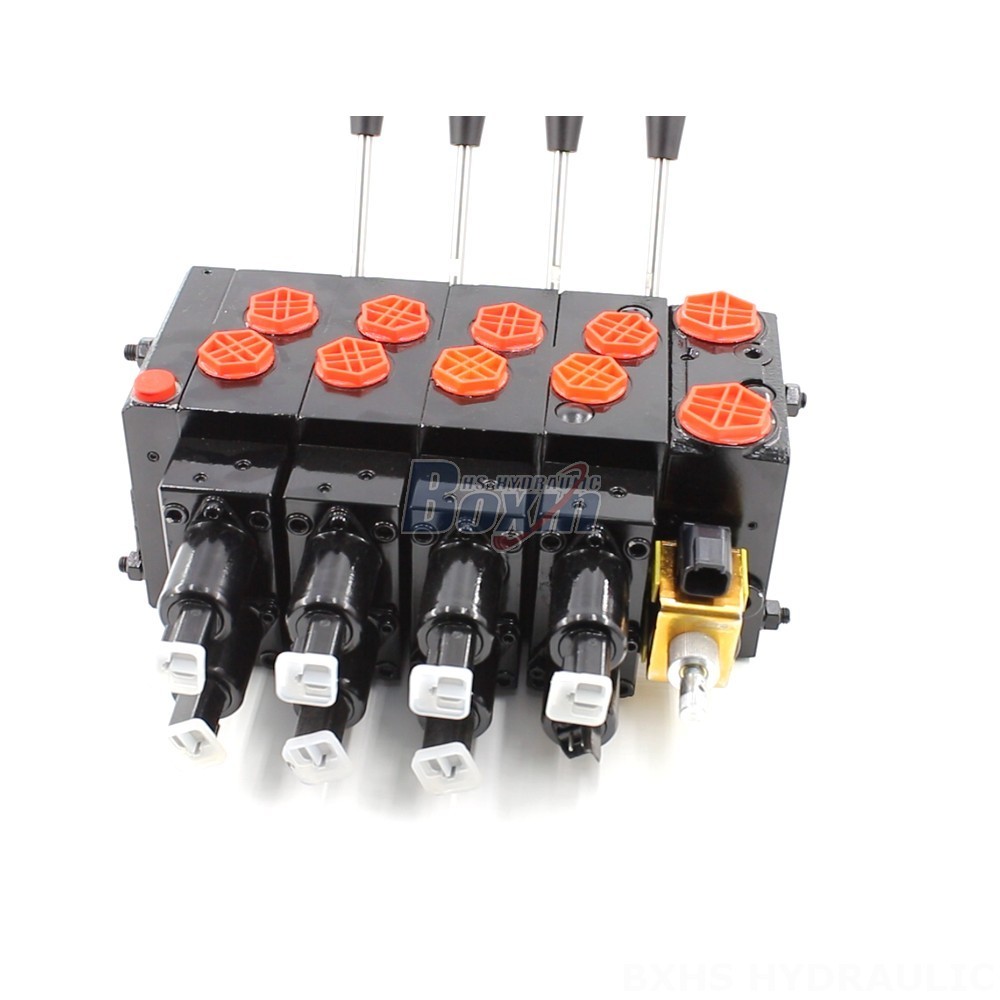

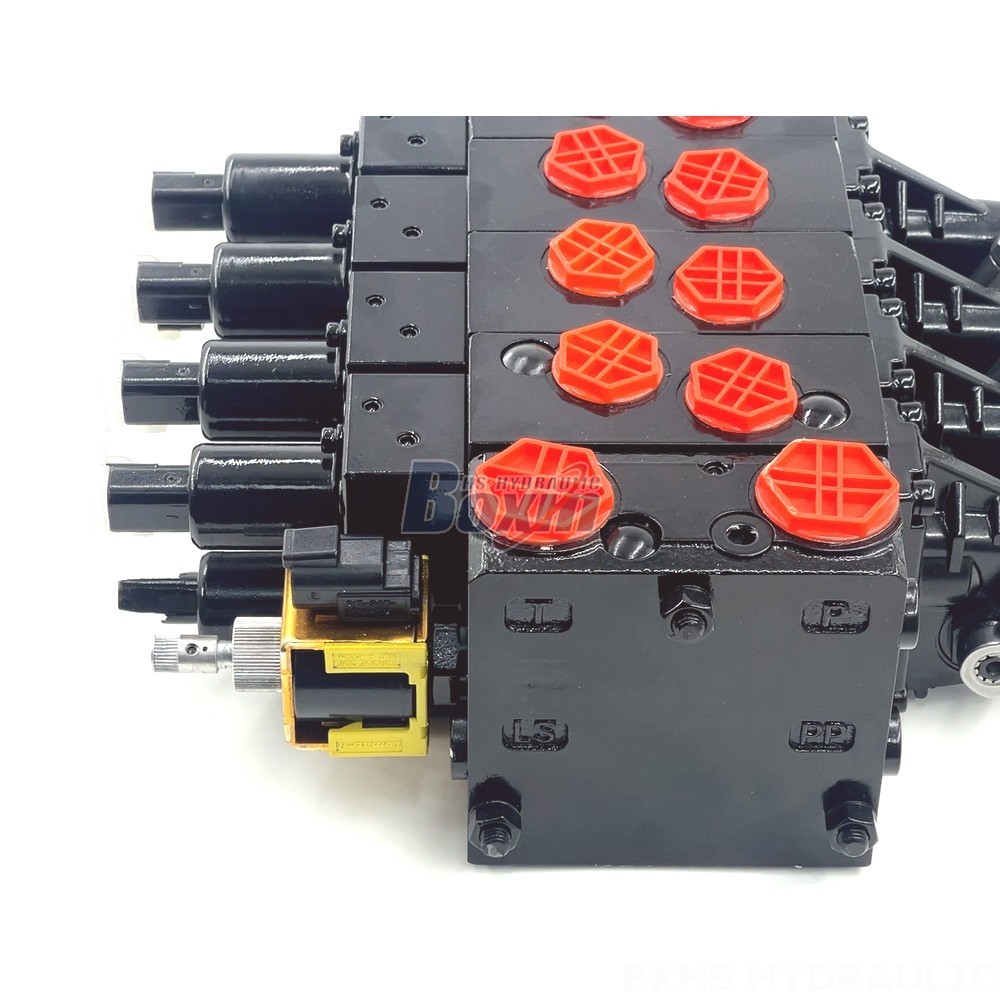

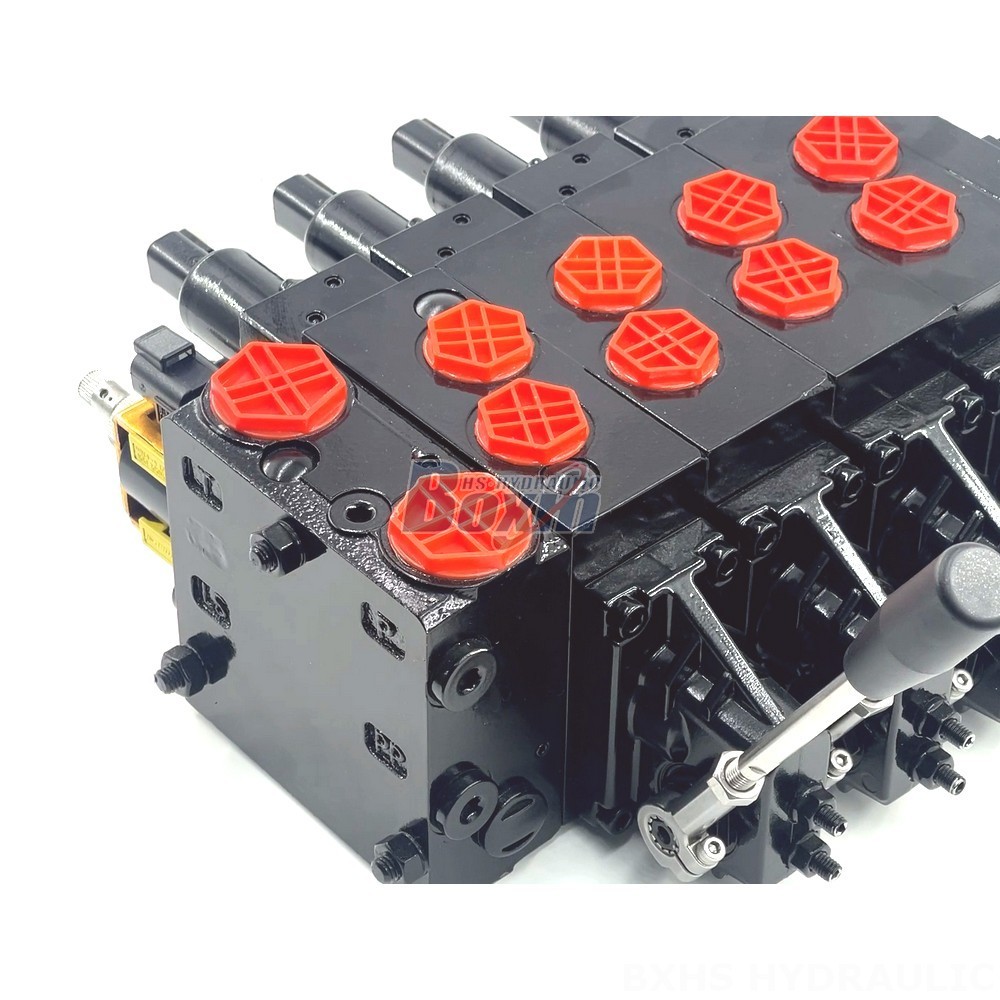

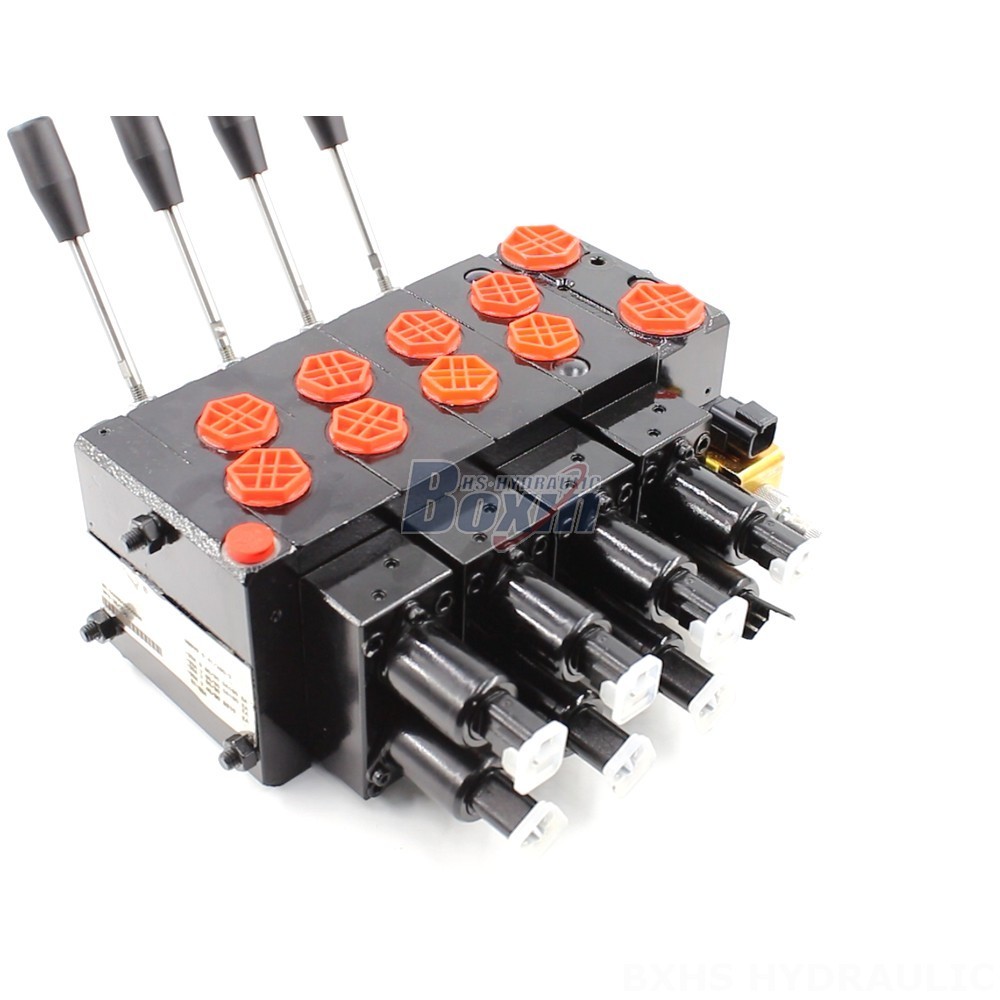

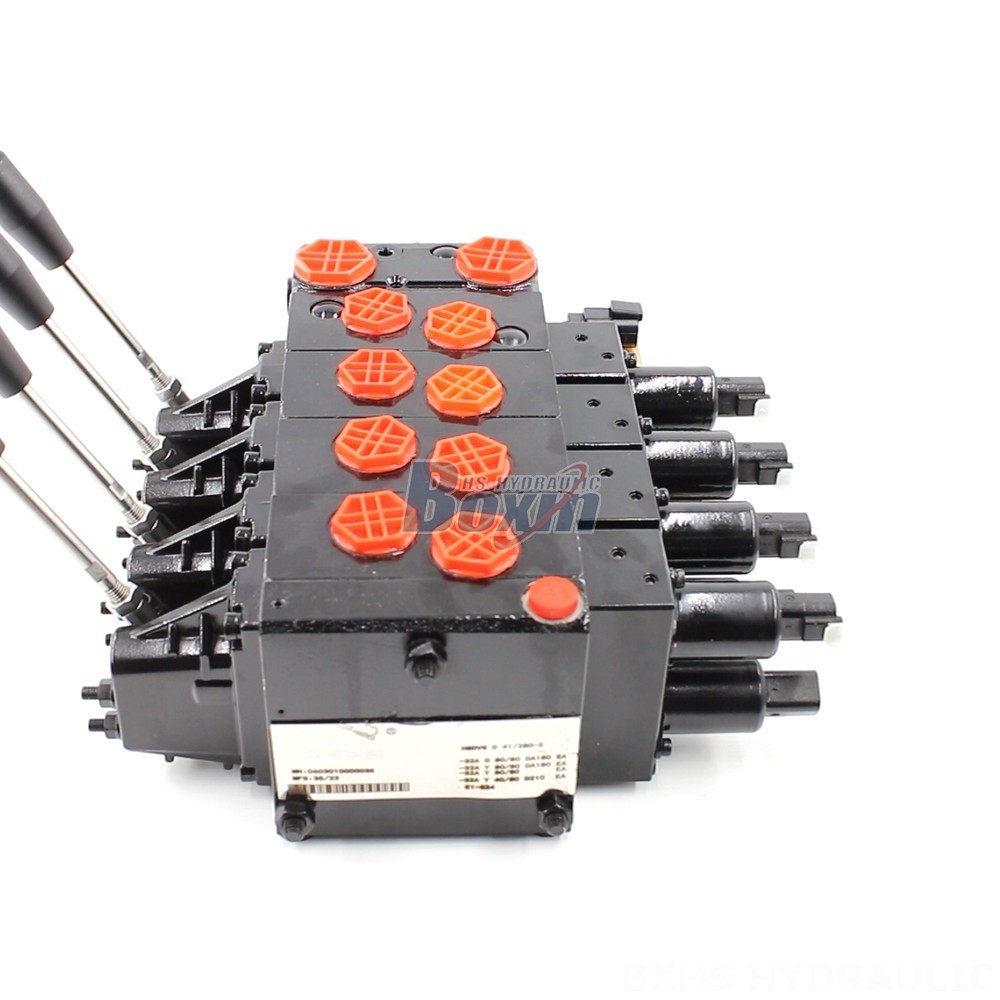

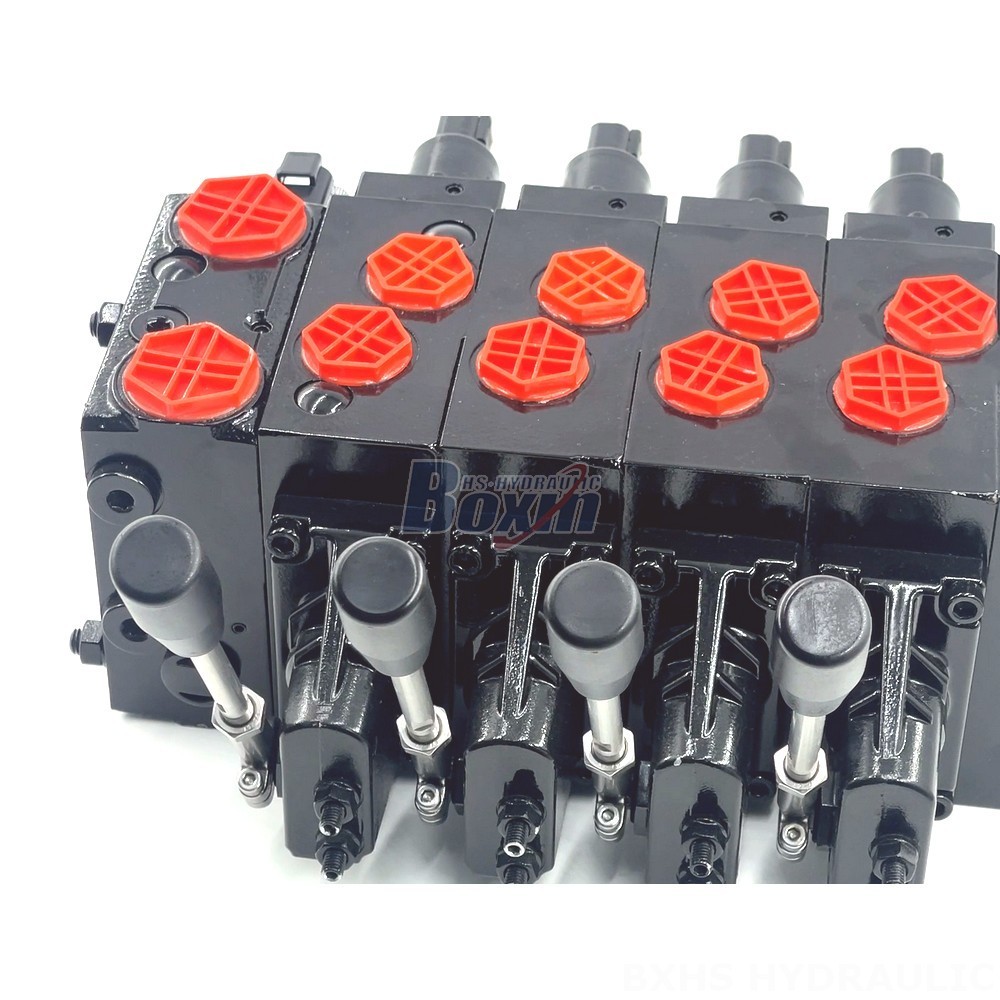

**HSDVG32 4 Spool Proportional Control Valve**
The HSDVG32 4 Spool Proportional Control Valve is a sectional valve with four spools, providing independent control of multiple hydraulic circuits. It is constructed from high-quality materials to ensure durability and reliability in harsh operating conditions. The valve features an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
**Key Features:**
* Rated Flow: 140 L/min (37 US gpm)
* Max Pressure: 315 bar (4600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: HSDVG32 Series
* Control Method: Electric proportional and Manual
* Section: 4 Section
* Structure Type: Sectional valve
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
The HSDVG32 4 Spool Proportional Control Valve is ideal for applications requiring precise flow control and high pressure capabilities. Its versatility and reliability make it suitable for a wide range of hydraulic systems in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles.
