Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika
Innovaatio ajaa kehitystä ja teknologia luo tulevaisuutta
1176 Näkymät etsivät tätä tuotetta
Advanced Hydraulic Gear Pumps - CBHS-F550 Series. Wholesale & OEM. Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev. Rated Pressure: 20 MPa (2900 psi). Rated Speed: 2000 r/min. Max Speed: 2200 r/min. These pumps are widely used in material handling, construction and earth moving, agriculture, and industrial vehicles.
| CBHS-F5-sarja Hydraulinen hammaspyöräpumppu Parametrit | |
|---|---|
| Iskutilavuus | 32 cm³/kierros, 50 cm³/kierros, 63 cm³/kierros, 20 cm³/kierros |
| Nimellispaine | 20 MPa (2900 psi) |
| Maksimipaine | 25 MPa (3625 psi) |
| Nimellisnopeus | 2000 r/min |
| Maksiminopeus | 2500 r/min |
| Pyörimissuunta | Vasen (vastapäivään), Oikea (myötäpäivään) |
| Materiaali | Valurauta |
| Rakenne | Ulkohampainen hammaspyöräpumppu |
| Laippaversio | B-Neliölaippa |
| Akselityyppi | H: Suorakaiteen muotoinen ura, X: Evolutoitu ura, P: Tavallinen näppäin |

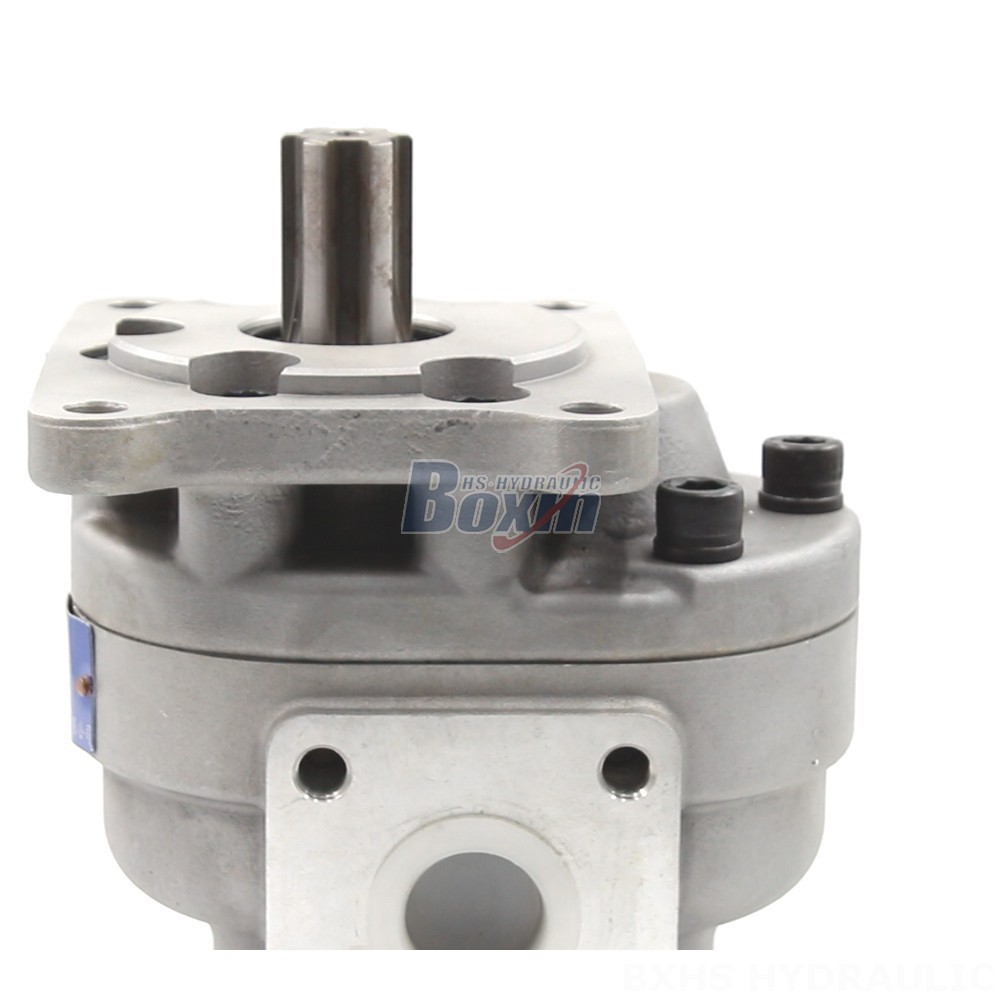

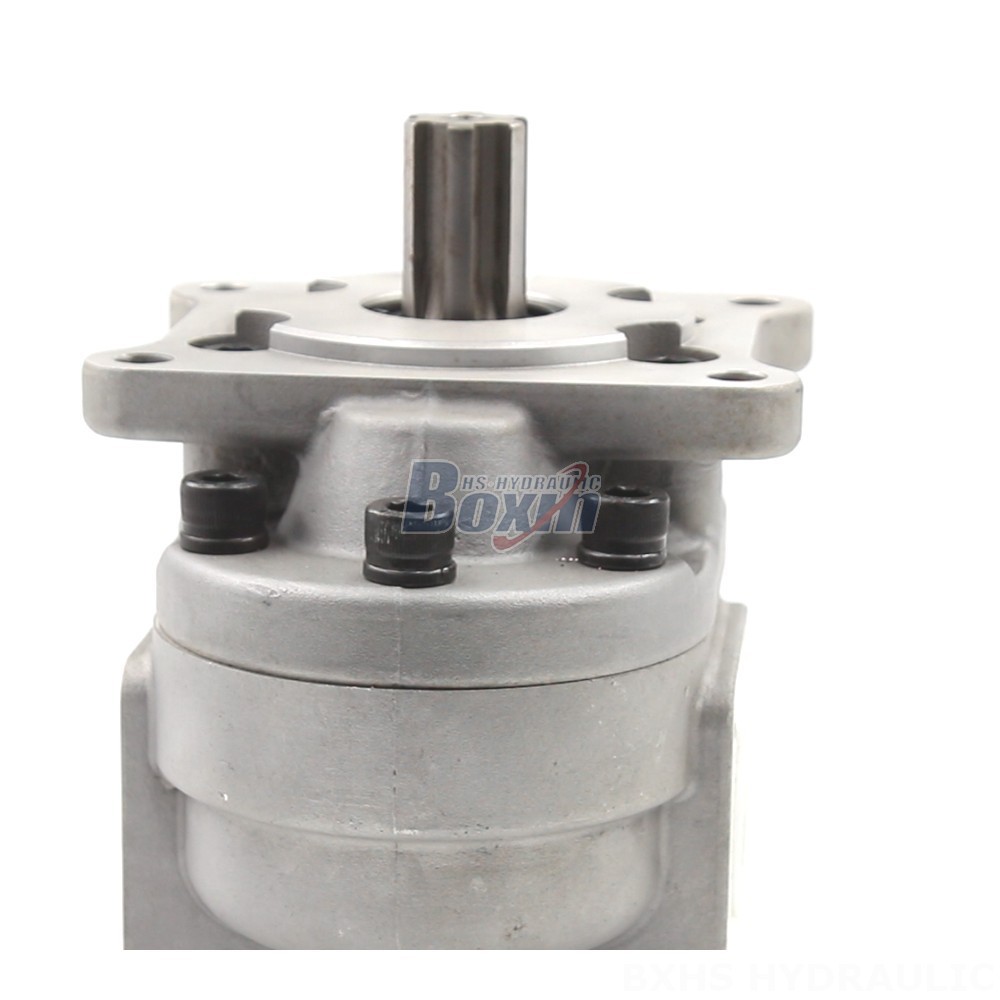

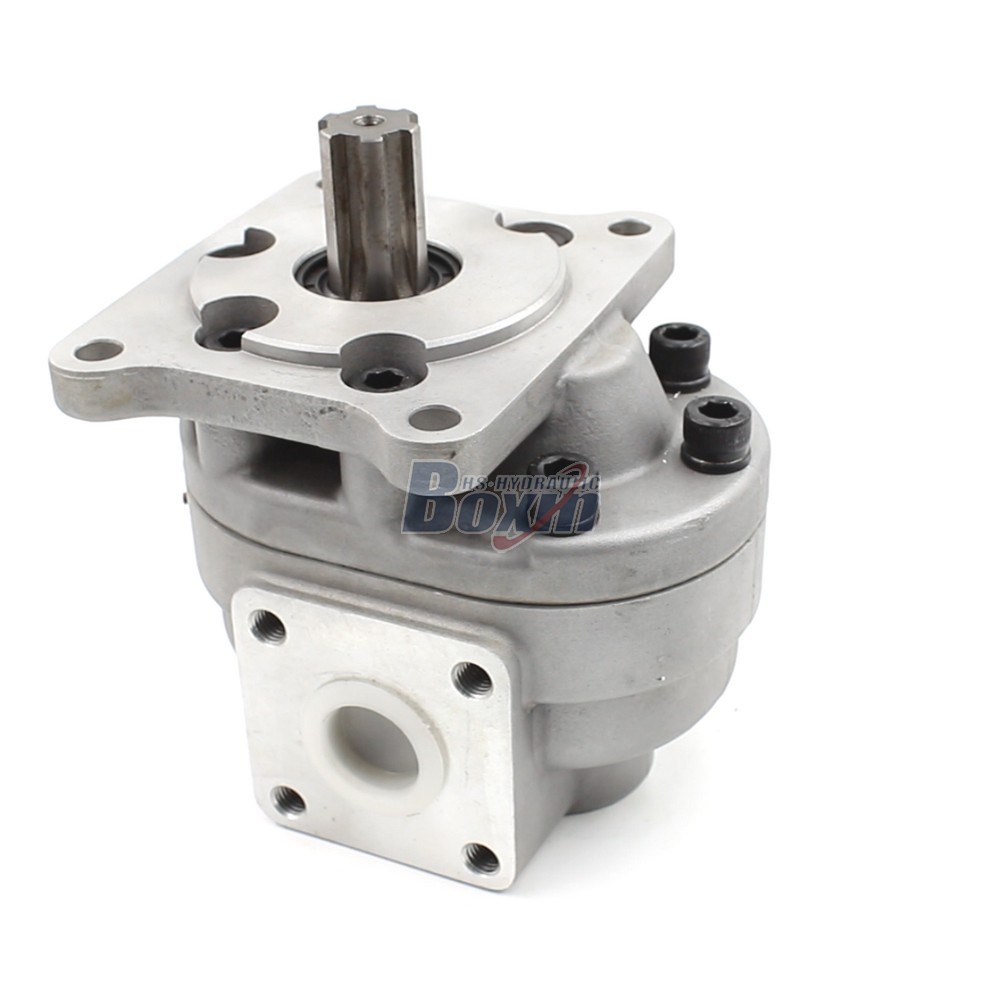

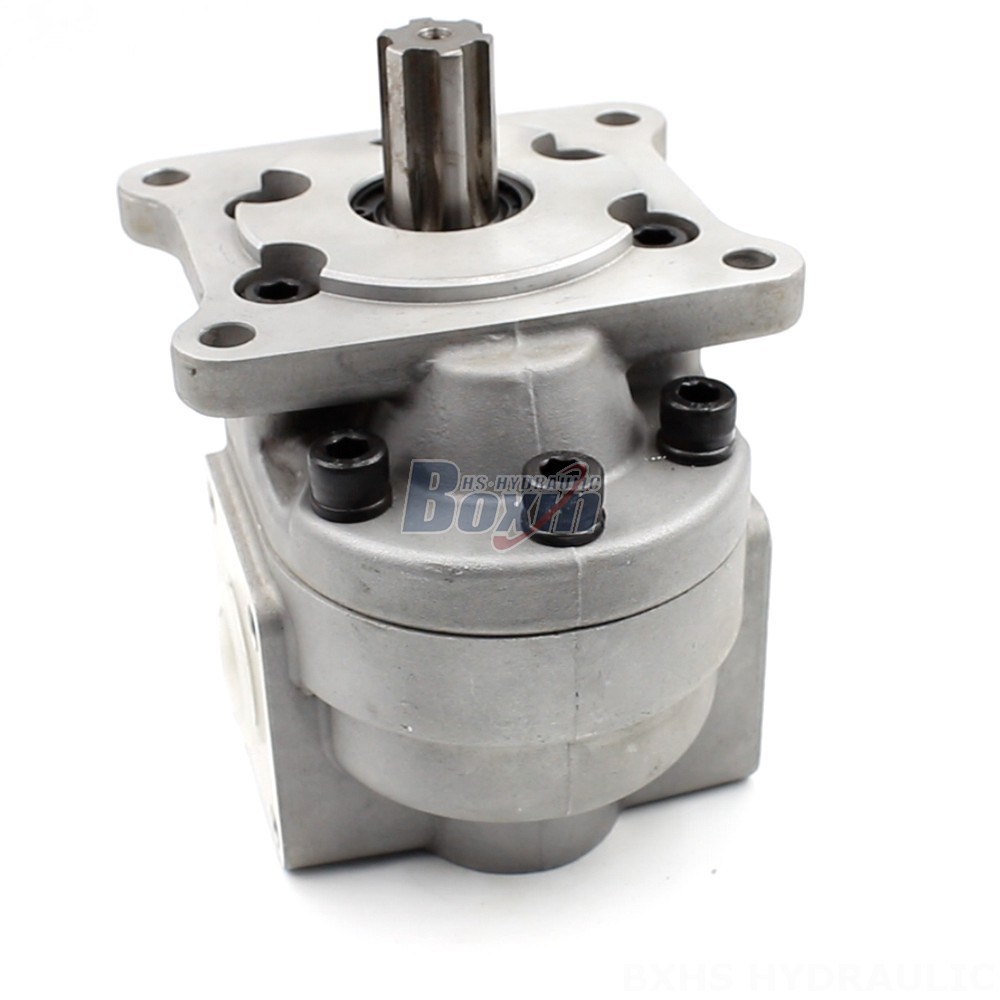

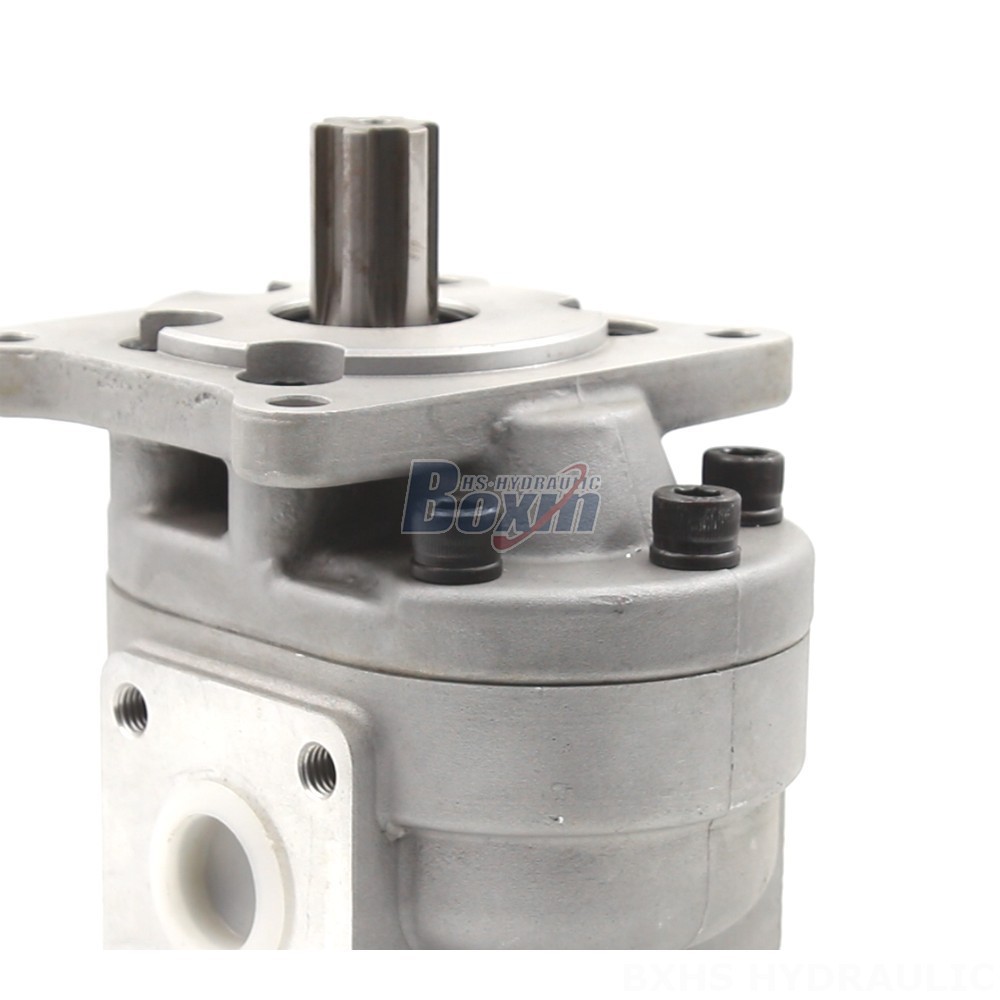

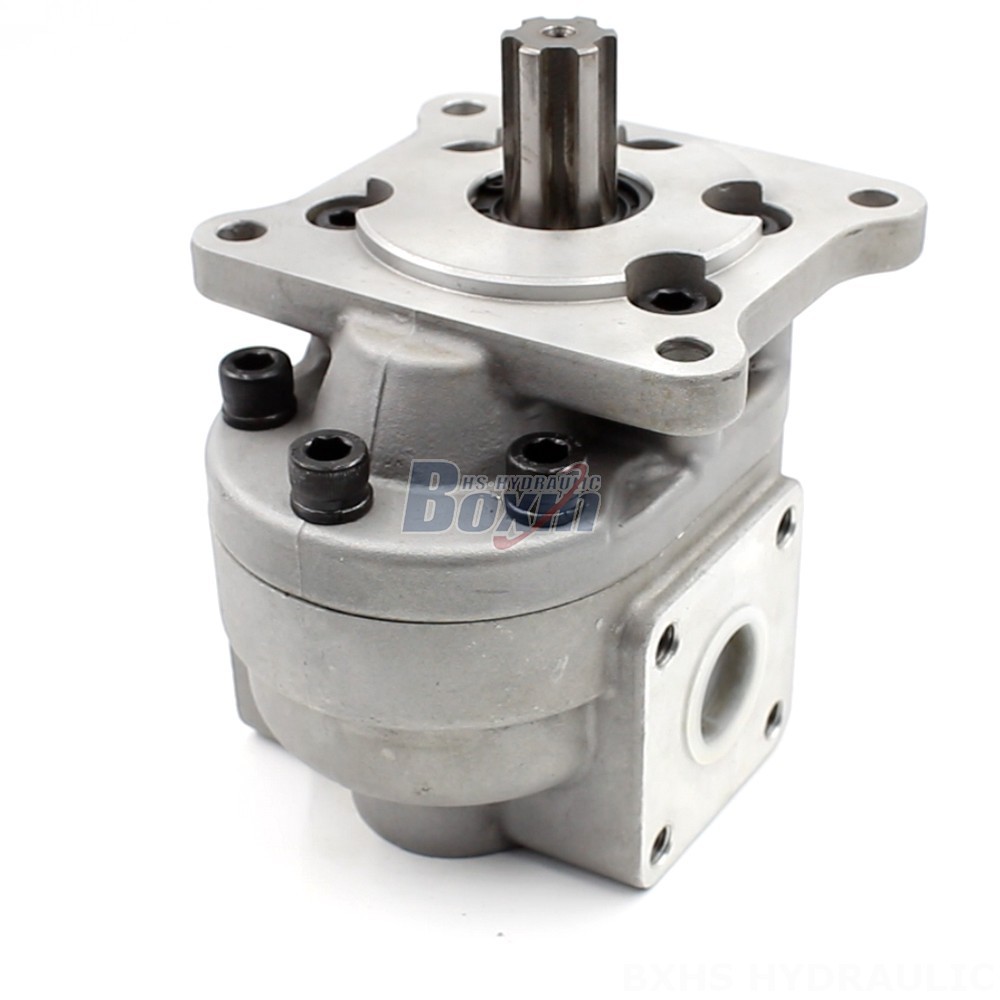

**Advanced Hydraulic Gear Pumps - CBHS-F550 Series**
**Product Description**
The Advanced Hydraulic Gear Pumps - CBHS-F550 Series are designed to provide high performance and reliability in a wide range of applications. These pumps feature a robust cast iron construction and are available with a variety of displacement options to meet the specific requirements of your application.
**Key Features**
* Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
* Rated Pressure: 20 MPa (2900 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2200 r/min
* Rotation: Left (counter-clockwise), Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: Plain Key, Rectangle Spline, Involute Spline
* Series: CBHS-F5 Series
* Application Area: MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
**Benefits**
* High performance and reliability
* Robust cast iron construction
* Variety of displacement options
* Wide range of applications
**Contact us today to learn more about the Advanced Hydraulic Gear Pumps - CBHS-F550 Series.**
