Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

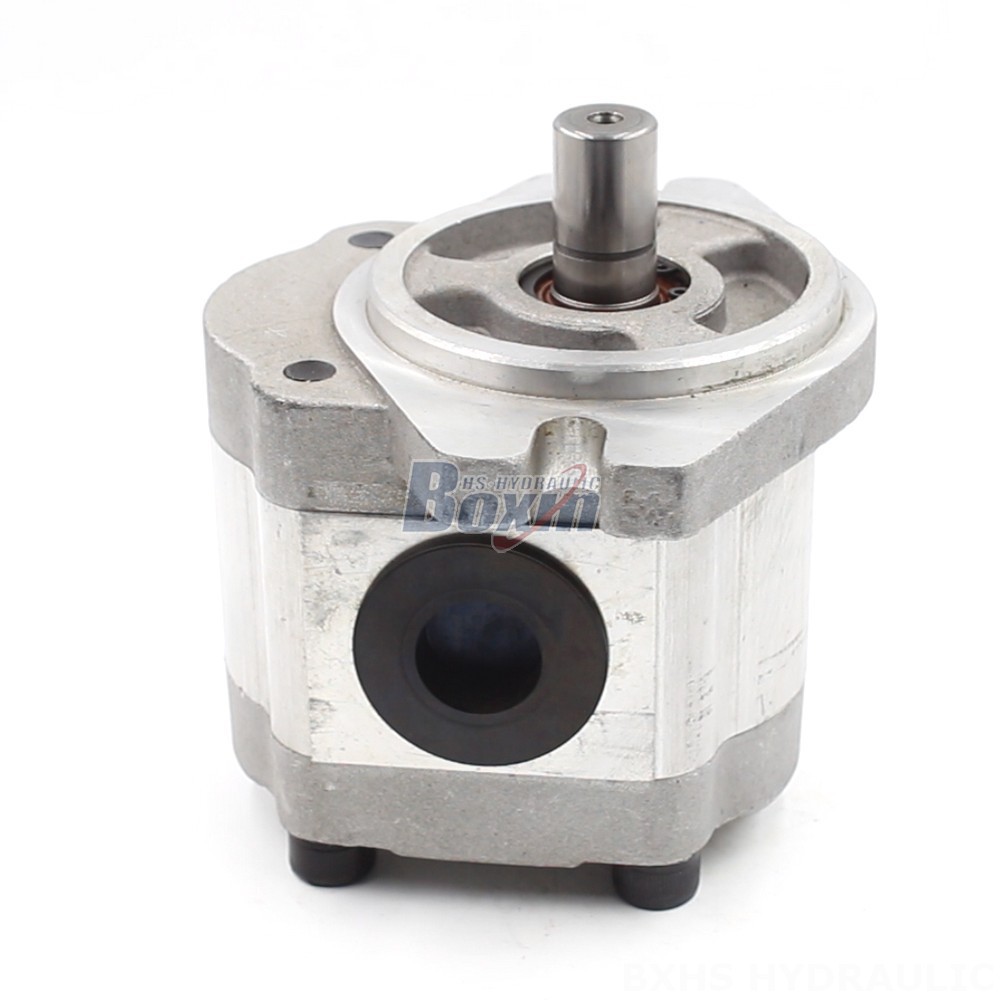

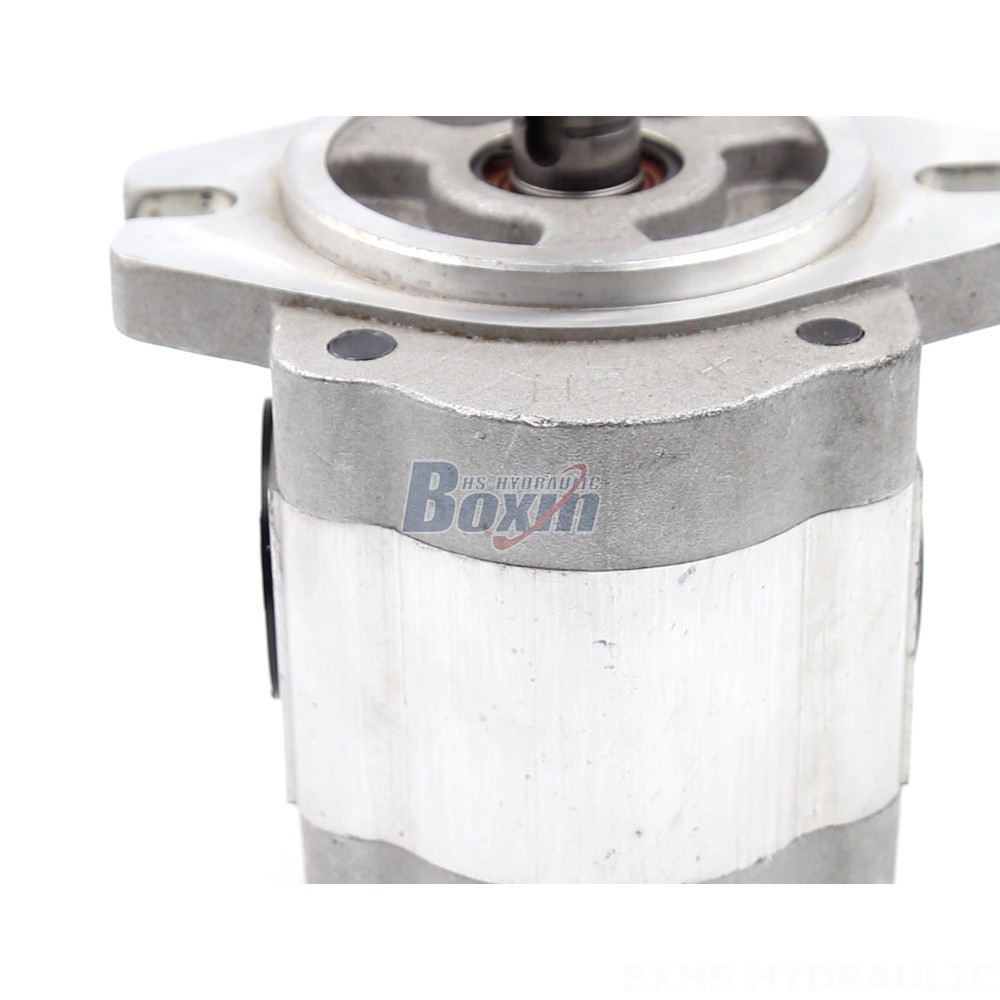

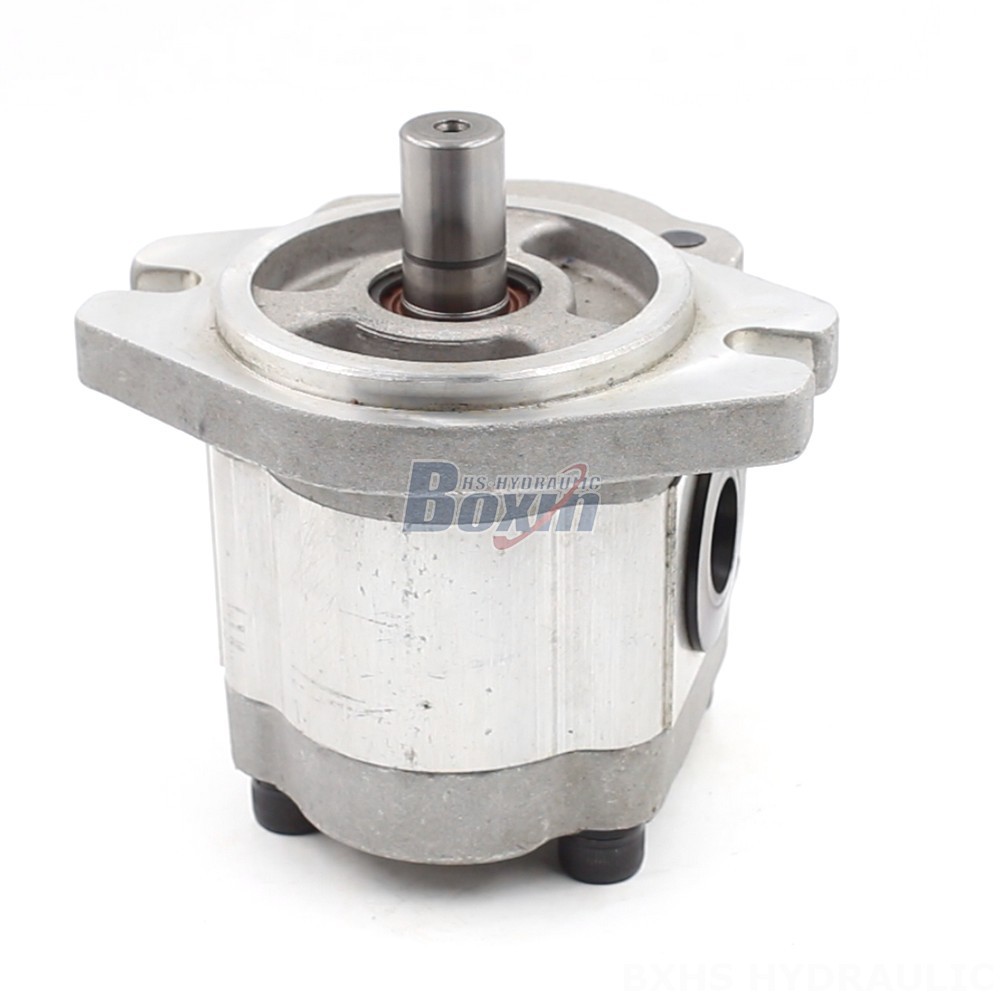

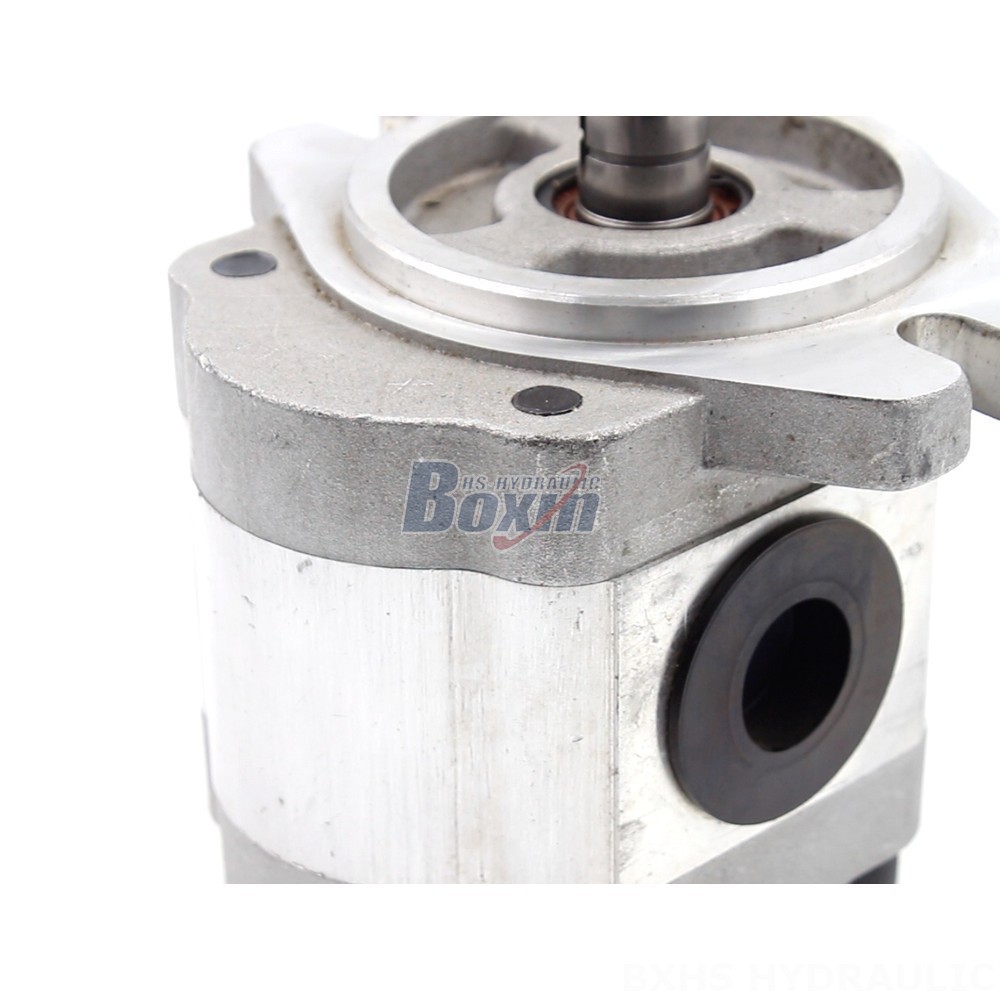

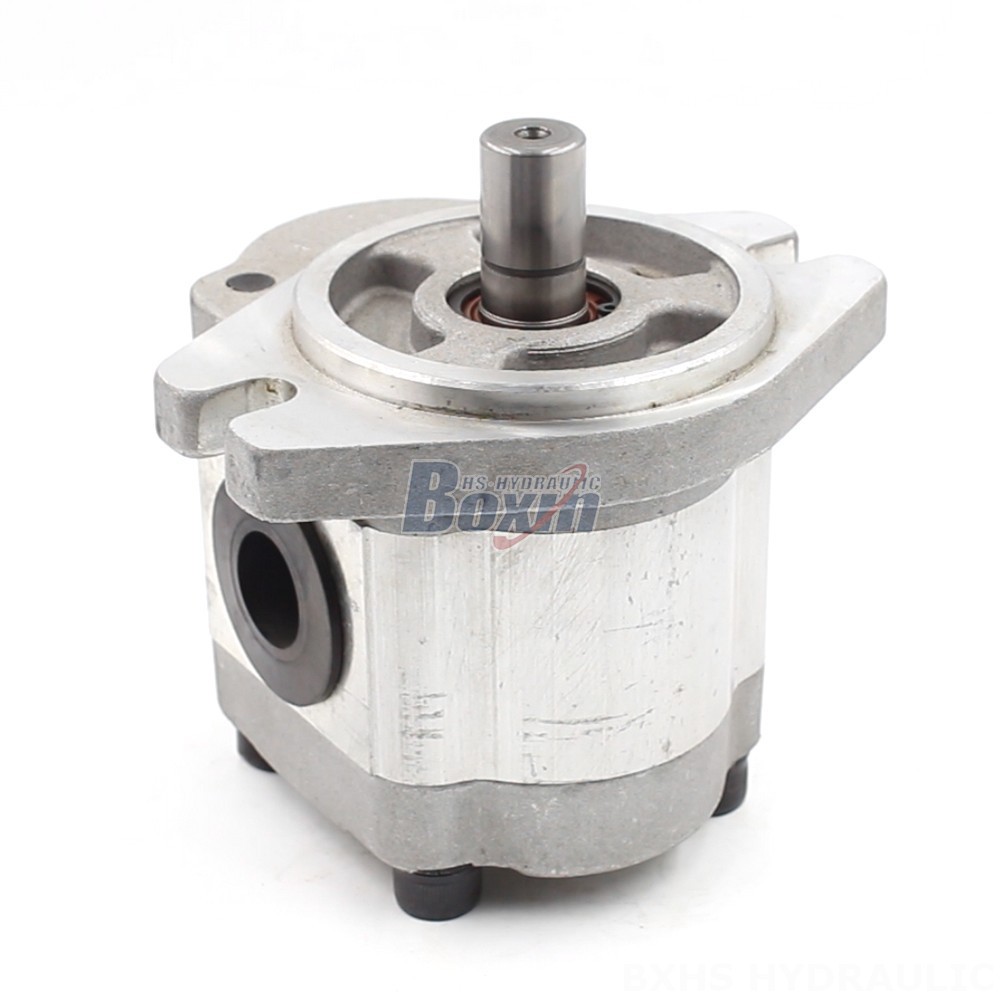

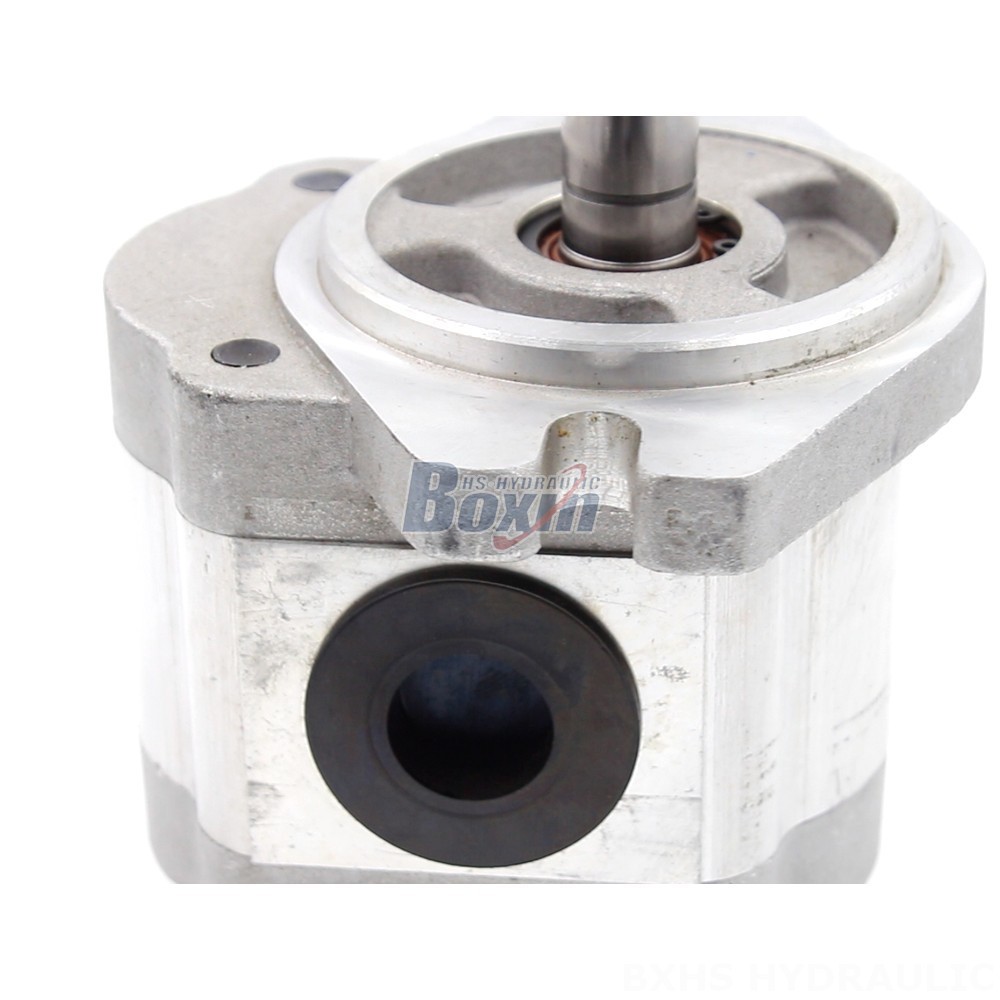

This 6 cc/rev Hydraulic Gear Pump is designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min.
| CBHS-FL3-sarja Hydraulinen hammaspyöräpumppu Parametrit | |
|---|---|
| Iskutilavuus | 10 cm³/kierros, 4 cm³/kierros, 20 cm³/kierros, 16 cm³/kierros, 14 cm³/kierros, 6 cm³/kierros |
| Nimellispaine | 20 MPa (2900 psi) |
| Maksimipaine | 25 MPa (3625 psi) |
| Nimellisnopeus | 2000 r/min |
| Maksiminopeus | 3000 r/min |
| Pyörimissuunta | Vasen (vastapäivään), Oikea (myötäpäivään) |
| Materiaali | Alumiini |
| Rakenne | Ulkohampainen hammaspyöräpumppu |
| Laippaversio | A-Soikea laippa |
| Akselityyppi | H: Suorakaiteen muotoinen ura, X: Evolutoitu ura, P: Tavallinen näppäin |
This high-performance 6 cc/rev Hydraulic Gear Pump is engineered for demanding applications. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, capable of reaching a maximum speed of 3000 r/min. Built with an internal gear pump structure and crafted from durable aluminium, this pump features an A-Oval Flange and a Plain Key shaft. It belongs to the CBHS-FL3 Series and is specifically designed for use in various heavy-duty equipment, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers. Its reliability and performance make it an ideal choice for manufacturers and distributors seeking high-quality hydraulic gear pumps for diverse applications.
