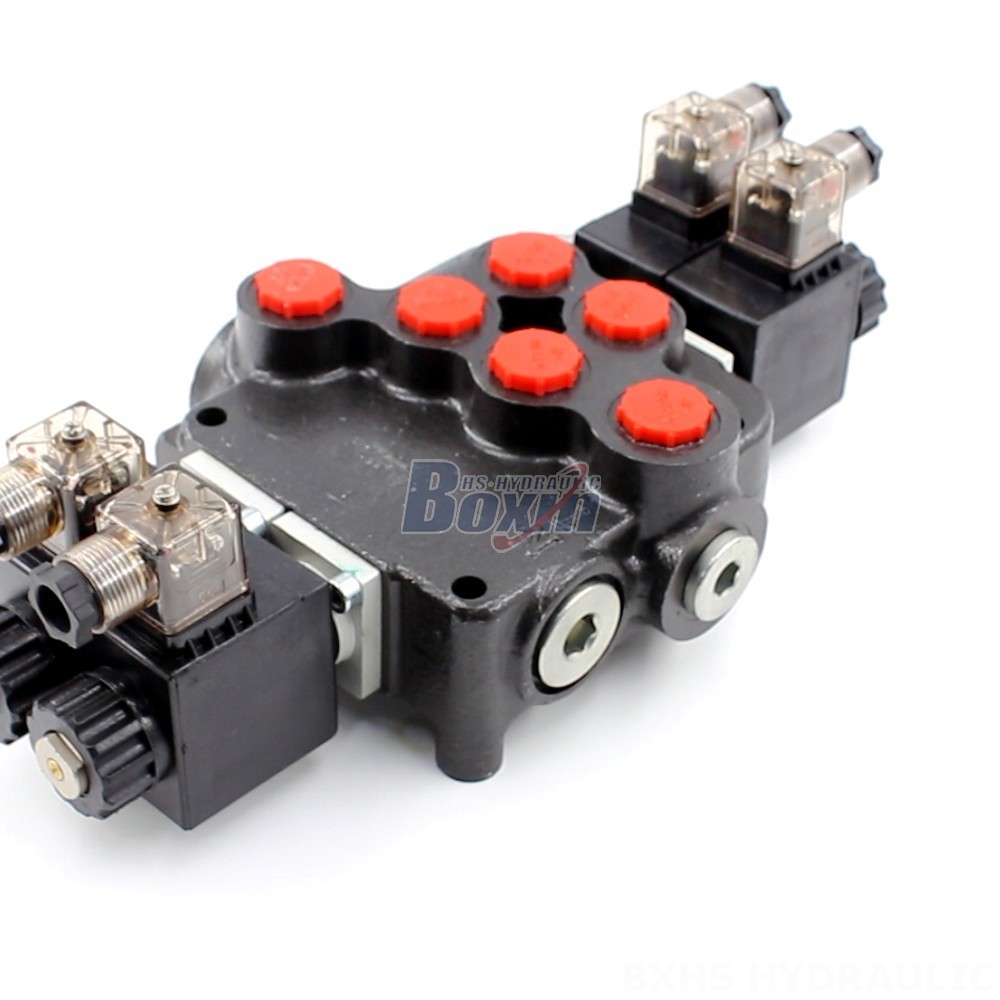

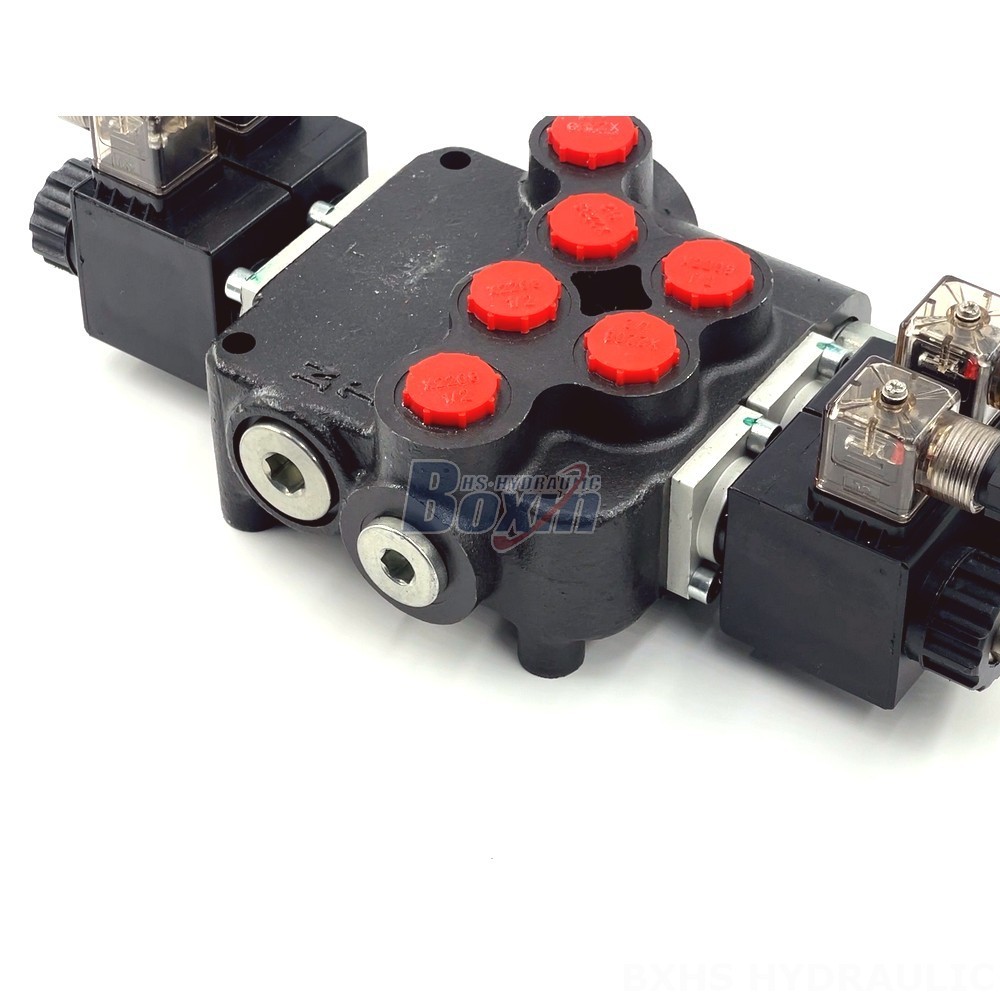

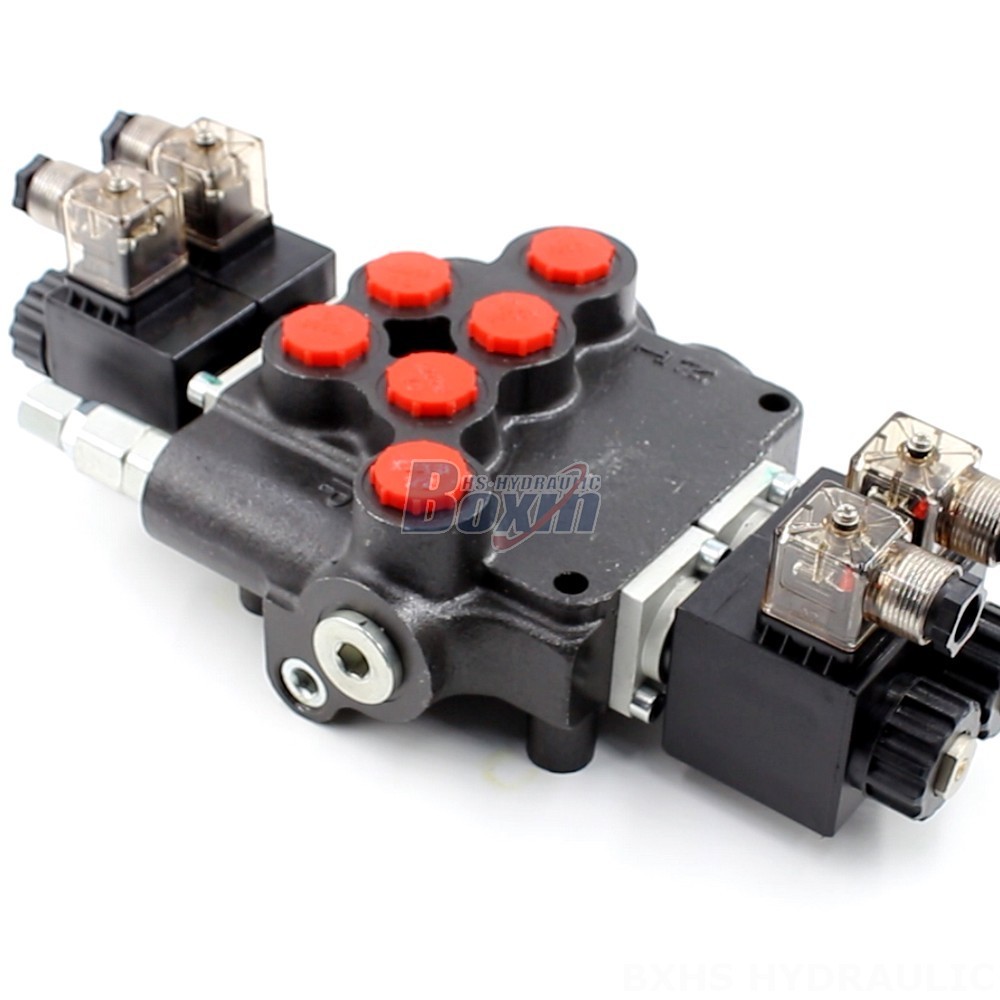

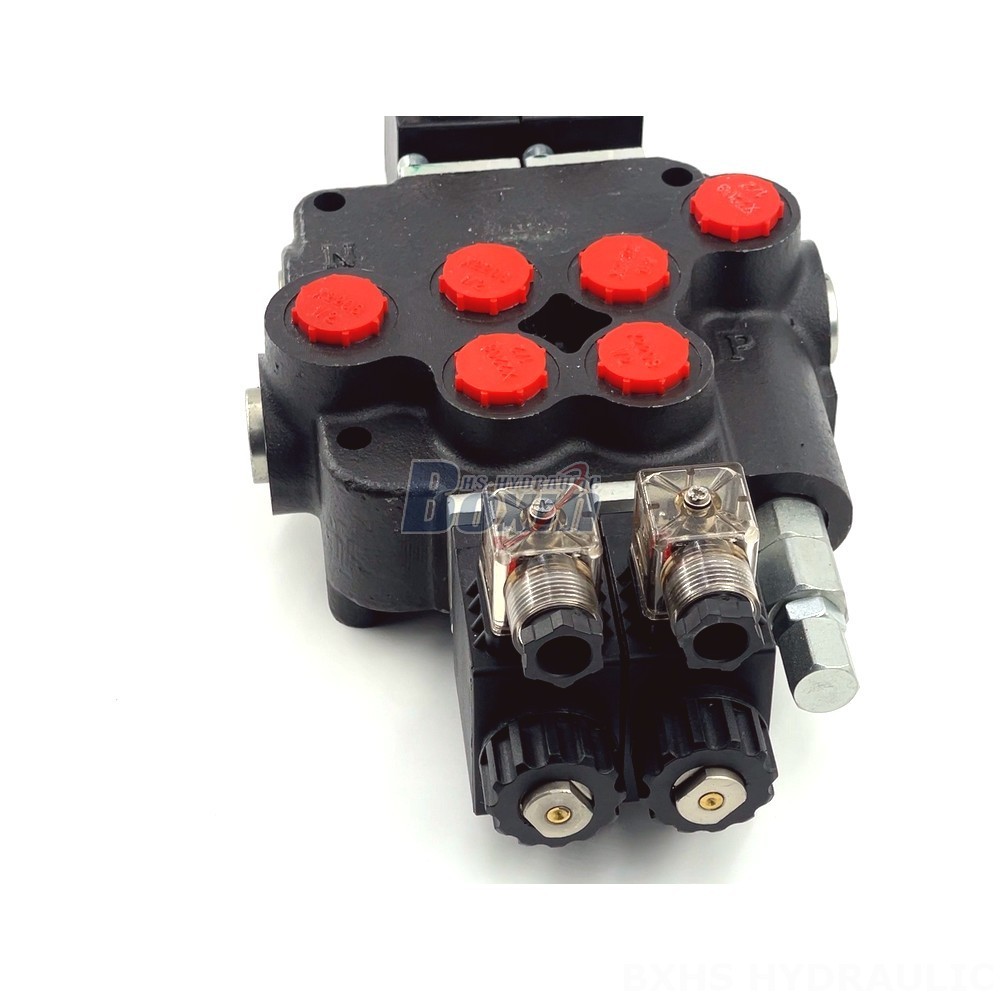

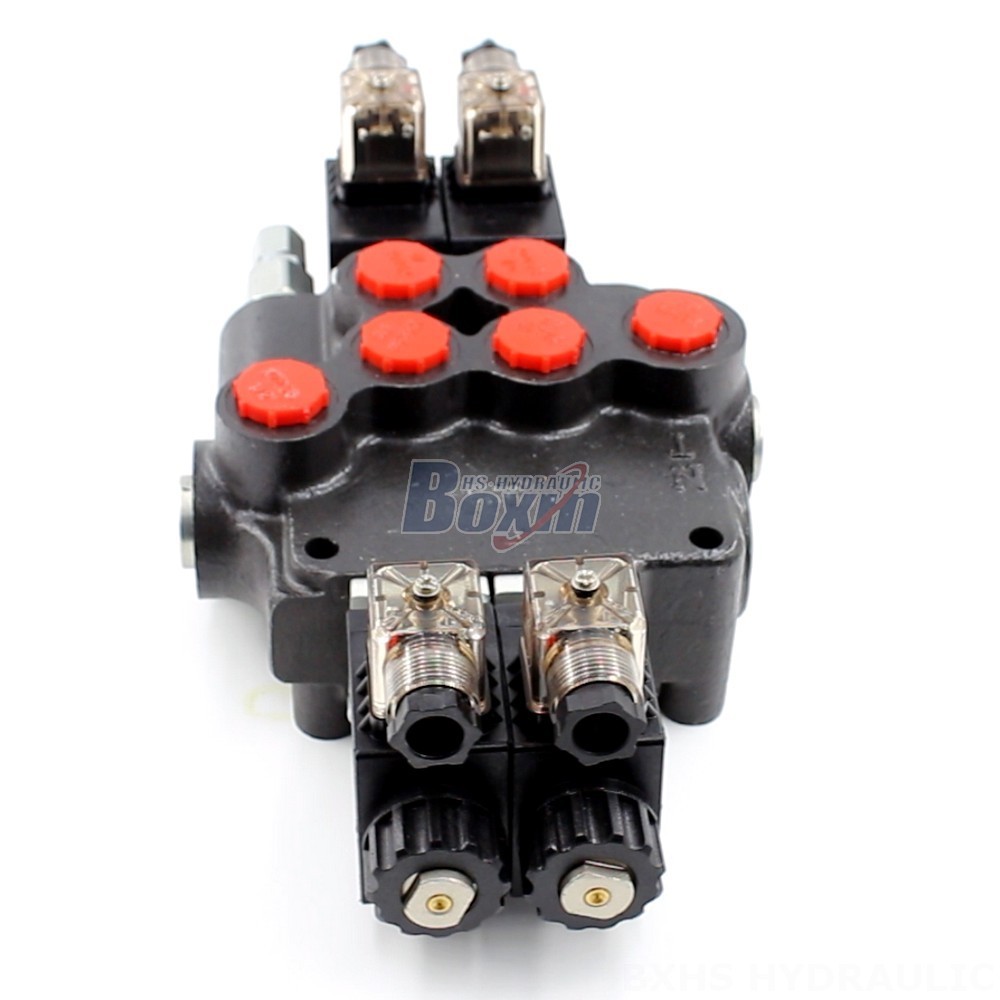

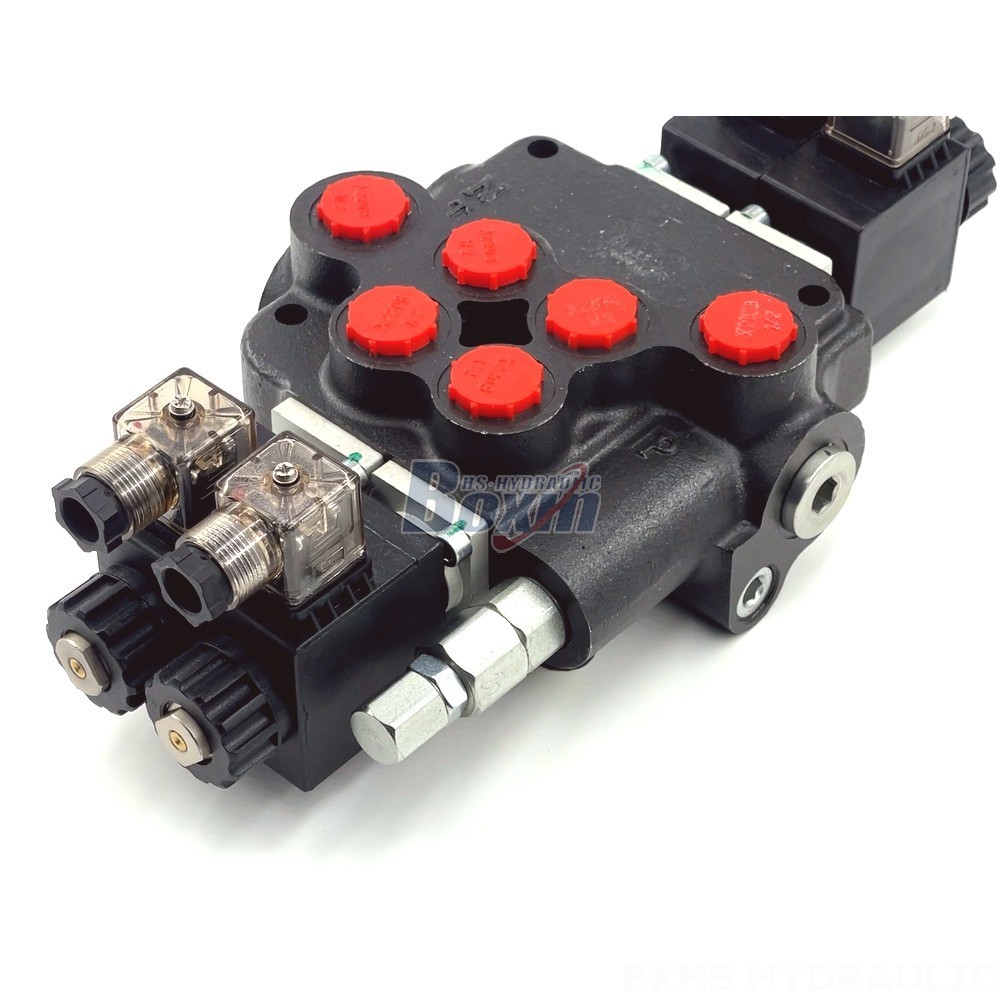

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

Ohjausmenetelmä:Solenoidi

Jakaja:2 kelaa

Nimellisvirtaus:80 L/min (21,2 US gpm)

Maksimipaine:200 baaria (2 900 psi)

Tuloportti:G3/4

Ulostuloportti:G3/4

Liitäntäkoko:G1/2

Tuotemerkki:BXHS

Tuotetyyppi:Monolohkoinen suuntaventtiili

Tuotesarja:P80-sarja Monolohkoinen suuntaventtiili

Pakkauskoko:37*18*11

Bruttopaino:9.50 kg

Saatavuus: Varastossa

1152 Näkymät etsivät tätä tuotetta

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable

2-Spool Hydraulic Valve | P80 Model | Factory Direct & Customizable drawing image

Our P80 model Two Output Hydraulic Levers is a 2-spool, monoblock hydraulic valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a high flow rate and pressure capacity, making it suitable for demanding operations. The valve is available in a variety of configurations and can be customized to meet your specific requirements.

P80-sarja Monolohkoinen suuntaventtiili Parametrit
Ohjausmenetelmä Manuaalinen, Pneumattinen, Elektropneumaattinen, Elektrohydraulinen, Solenoidi, Hydraulinen, Hydraulinen ja Manuaalinen, Kaapeli, Ohjaussauva, Ohjaussauva ja manuaalinen
Jakaja 1 kela, 2 kelaa, 3 kelaa, 4 kelaa, 5 kelaa, 6 kelaa, 7 kelaa
Ympäristön lämpötila-alue -40 °C - +80 °C (-40 °F - +176 °F)
Rakennetyyppi Yhdistelmäventtiili
Jakso 1 jakso, 2 jakso, 3 jakso, 4 jakso, 5 jakso, 6 jakso, 7 jakso
Käyttöviskositeettialue 15 - 75 mm²/s (15 cSt - 75 cSt)
Nimellisvirtaus 80 L/min (21,2 US gpm)
Maksimipaine 315 baaria (4 600 psi)
Tuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ulostuloportti G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Liitäntäkoko G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 model Two Output Hydraulic Levers is a powerful and versatile hydraulic valve, featuring a 2-spool design and a robust monoblock construction. This valve delivers a high flow rate of 80 L/min (21.2 US gpm) and can withstand pressures up to 250 bar (3600 psi), making it suitable for heavy-duty applications. It's designed for use in a range of vehicles and equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve's solenoid control system offers precise and reliable operation. It's also built to withstand extreme temperatures, operating reliably in environments from -40°C to +80°C (-40°F to +176°F). Our P80 model is available directly from the factory and can be customized to meet your specific needs. Contact us today for more information about this powerful and reliable hydraulic valve.
