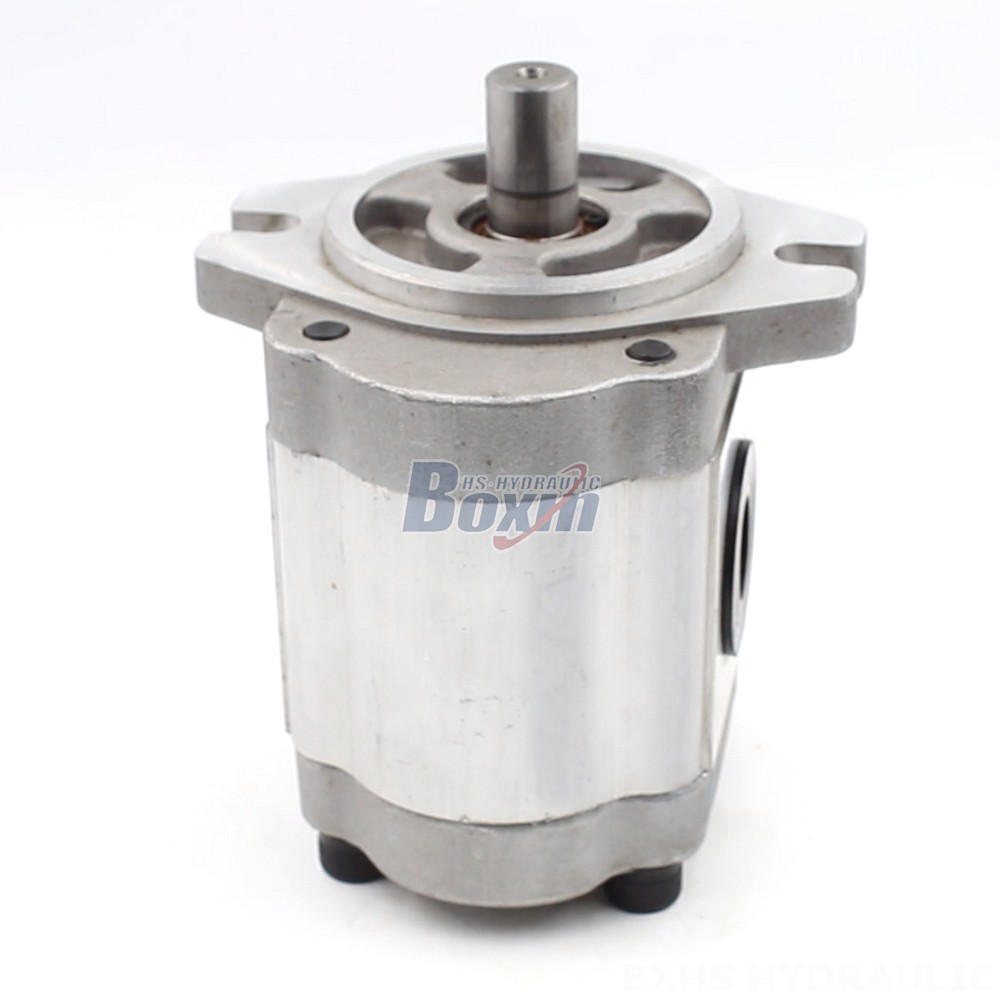

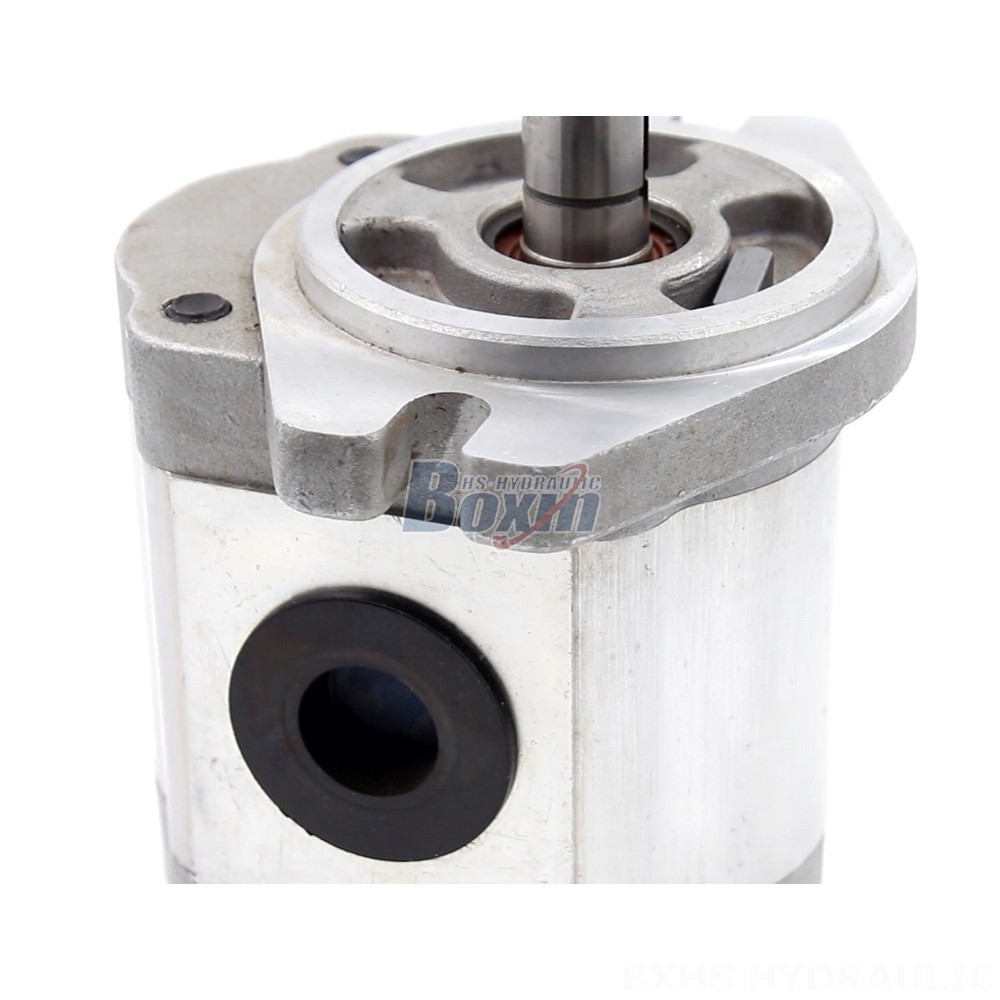

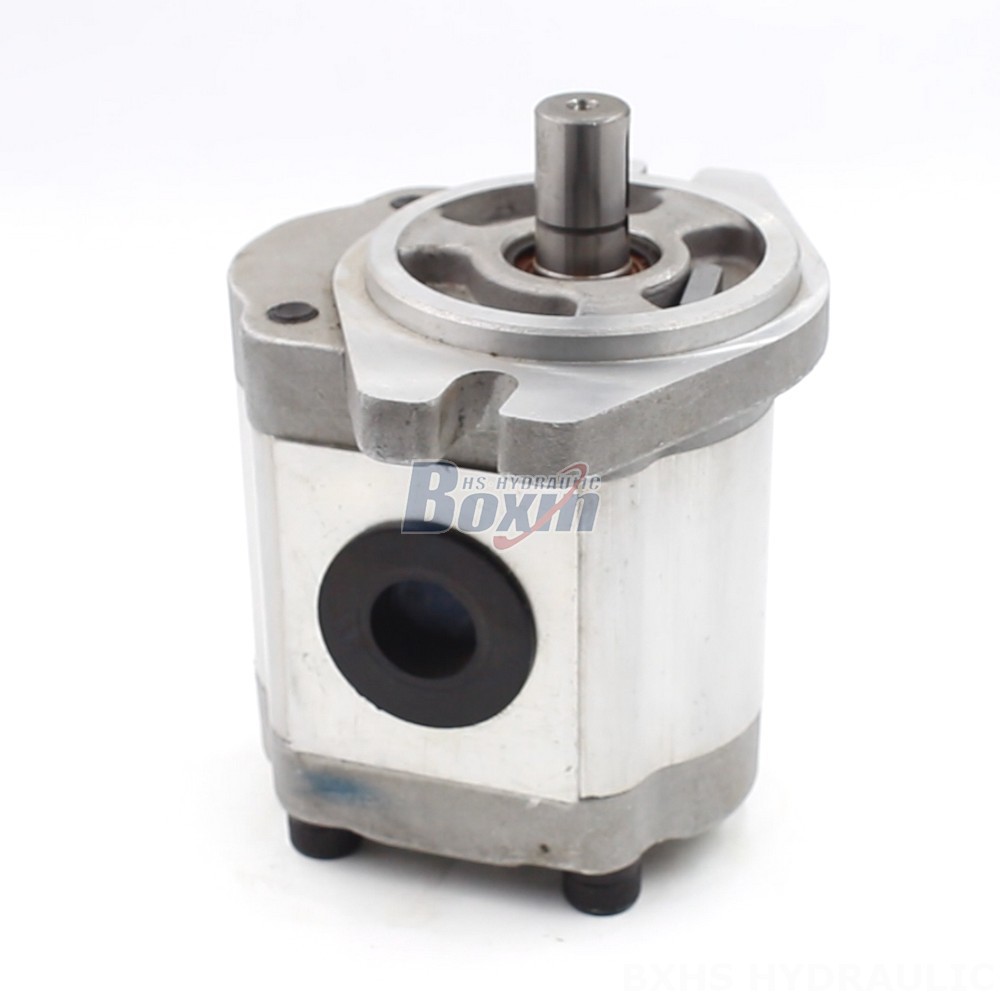

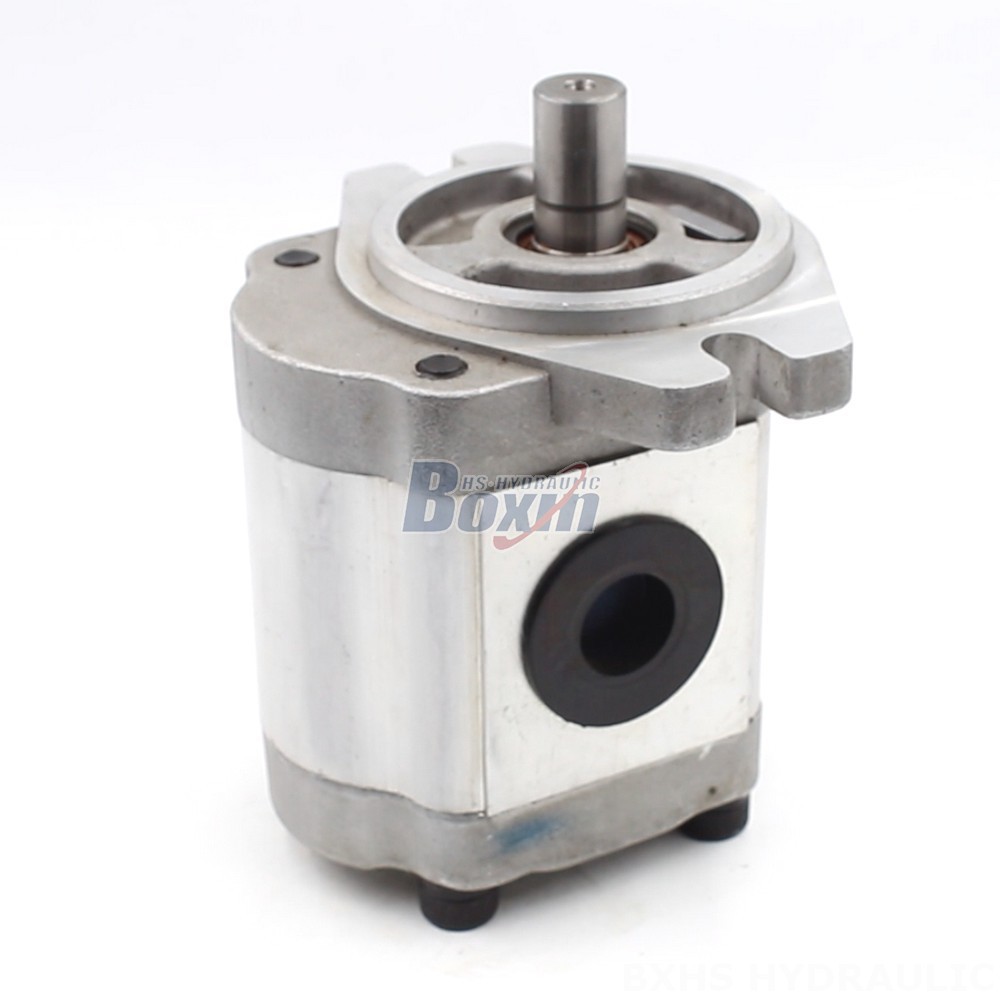

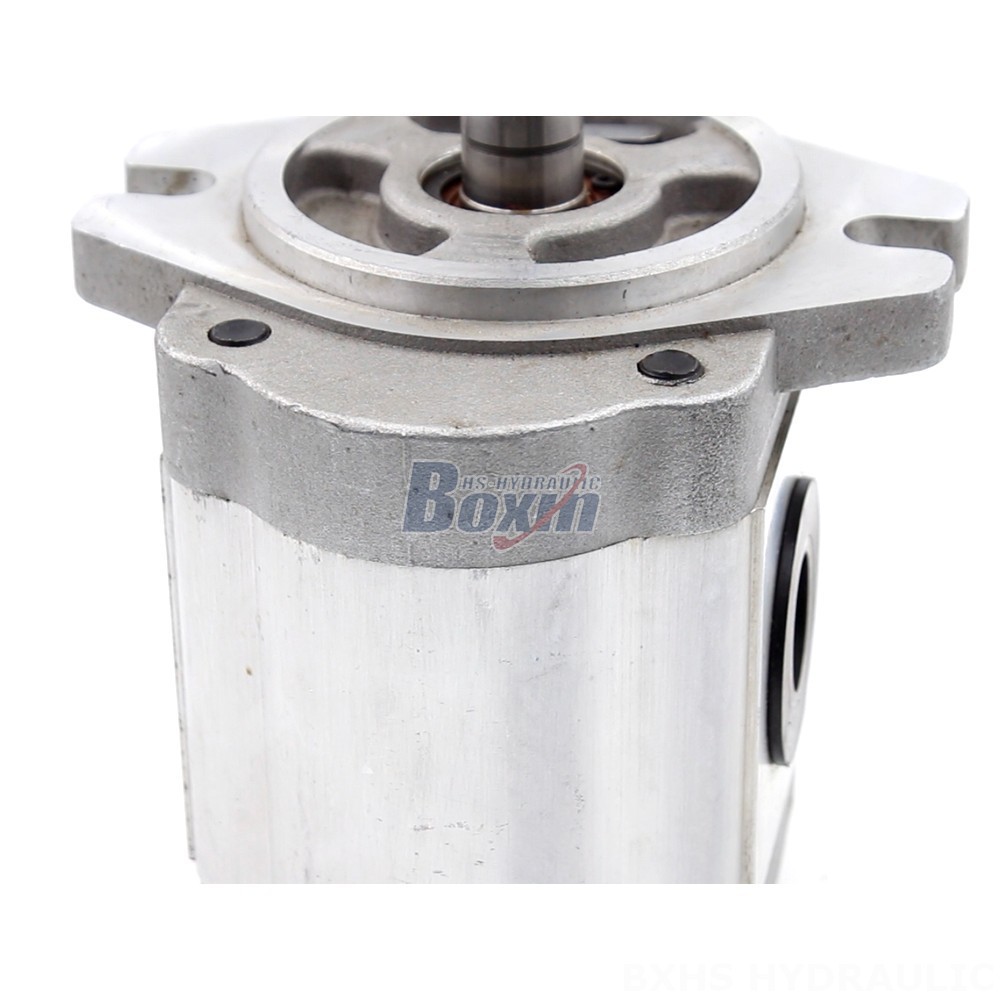

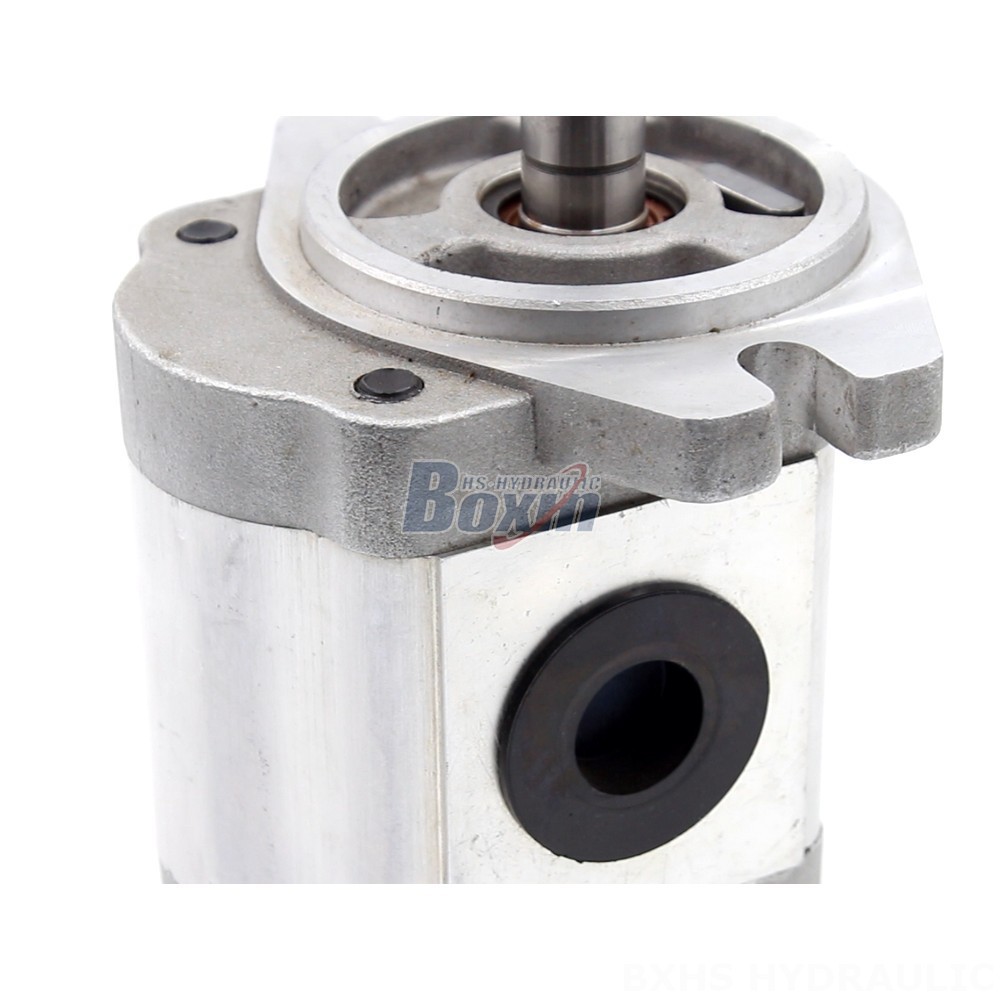

This 16 cc/rev hydraulic gear pump is designed for high-performance applications in construction, agriculture, and material handling. It features a durable aluminum construction, high pressure rating, and customizable options to meet your specific needs. The pump is suitable for various equipment types, including forklifts, telehandlers, skid steer loaders, and more.
| CBHS-FL3-sarja Hydraulinen hammaspyöräpumppu Parametrit | |
|---|---|
| Iskutilavuus | 10 cm³/kierros, 4 cm³/kierros, 20 cm³/kierros, 16 cm³/kierros, 14 cm³/kierros, 6 cm³/kierros |
| Nimellispaine | 20 MPa (2900 psi) |
| Maksimipaine | 25 MPa (3625 psi) |
| Nimellisnopeus | 2000 r/min |
| Maksiminopeus | 3000 r/min |
| Pyörimissuunta | Vasen (vastapäivään), Oikea (myötäpäivään) |
| Materiaali | Alumiini |
| Rakenne | Ulkohampainen hammaspyöräpumppu |
| Laippaversio | A-Soikea laippa |
| Akselityyppi | H: Suorakaiteen muotoinen ura, X: Evolutoitu ura, P: Tavallinen näppäin |
This 16 cc/rev hydraulic gear pump is a heavy-duty, high-performance solution for various applications. It boasts a 20 MPa (2900 psi) rated pressure and a 2000 r/min rated speed, with a maximum speed of 3000 r/min. This pump features a robust internal gear design, constructed from aluminum for long-lasting durability. Its A-Oval flange and plain key shaft provide flexible mounting options. The CBHS-FL3 Series pump is specifically designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles. This makes it a versatile option for a wide range of equipment types, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini- and midi- excavators, tractors and front-end loaders, harvesters, balers, and sprayers.
