Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

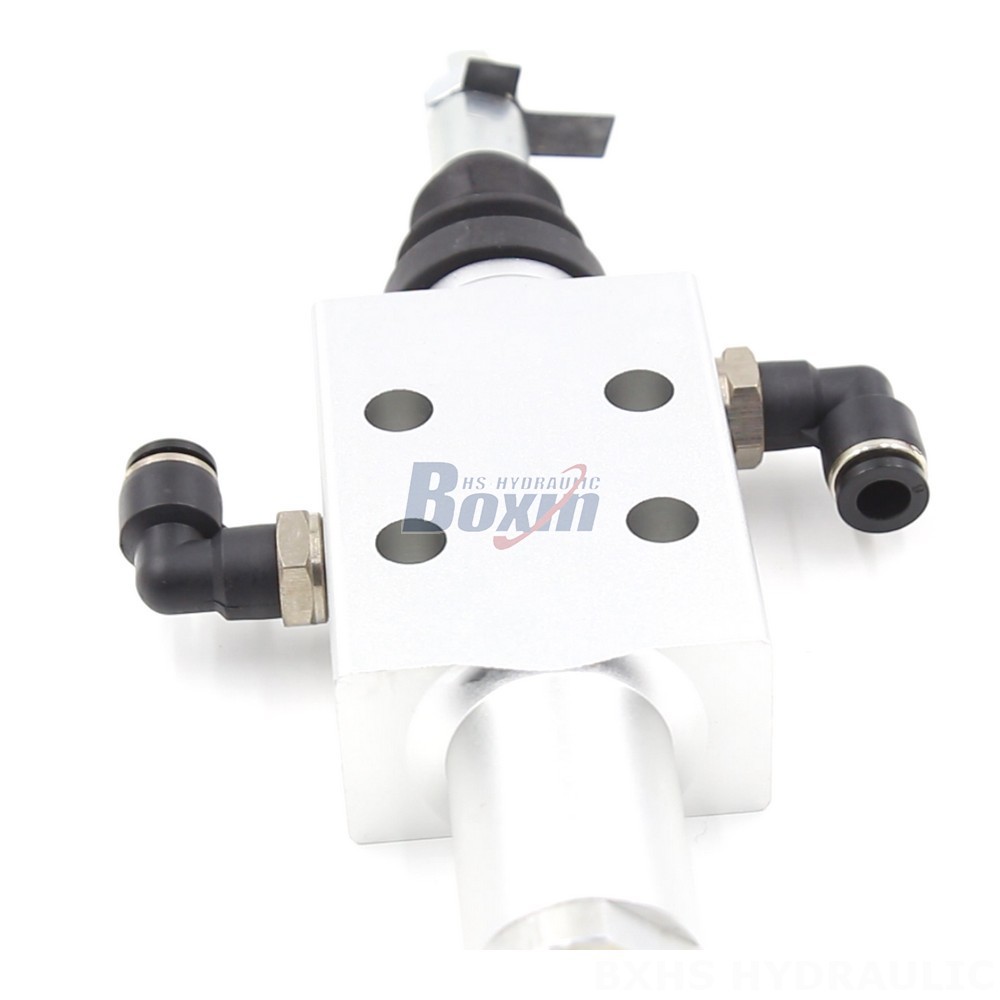

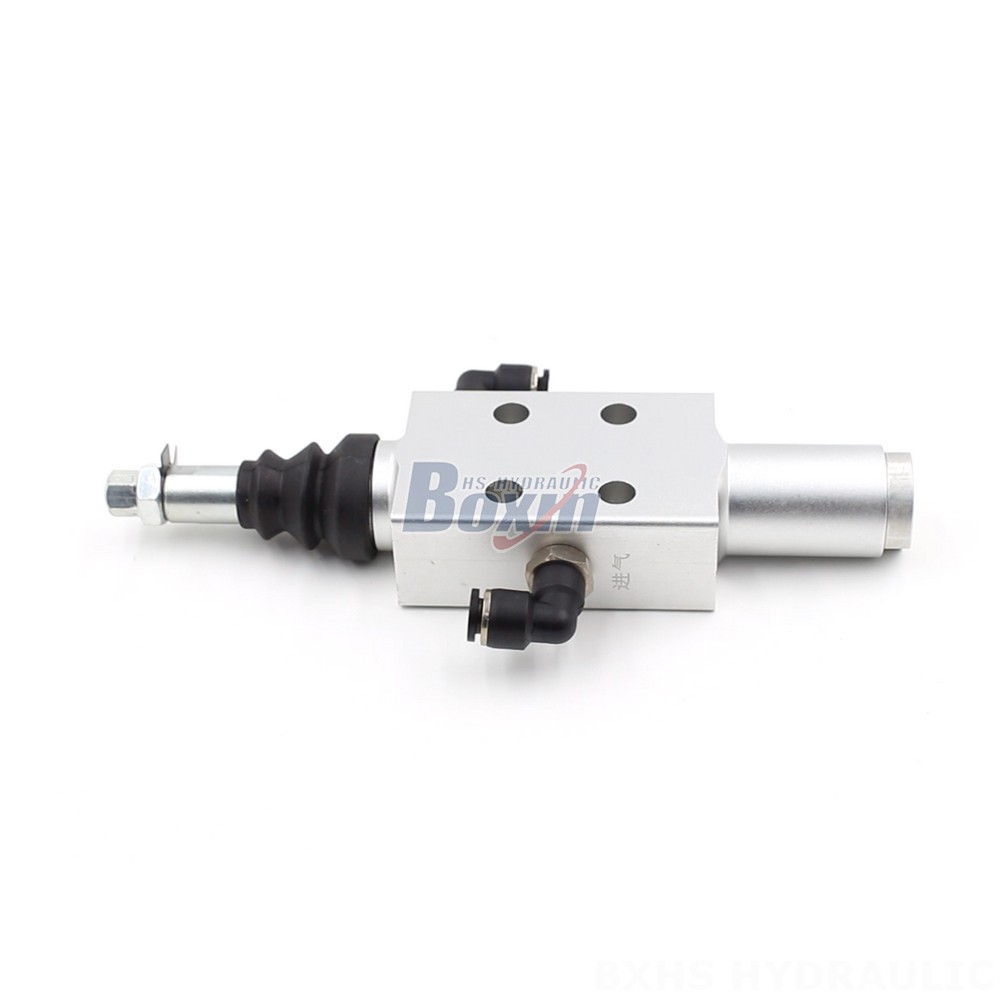

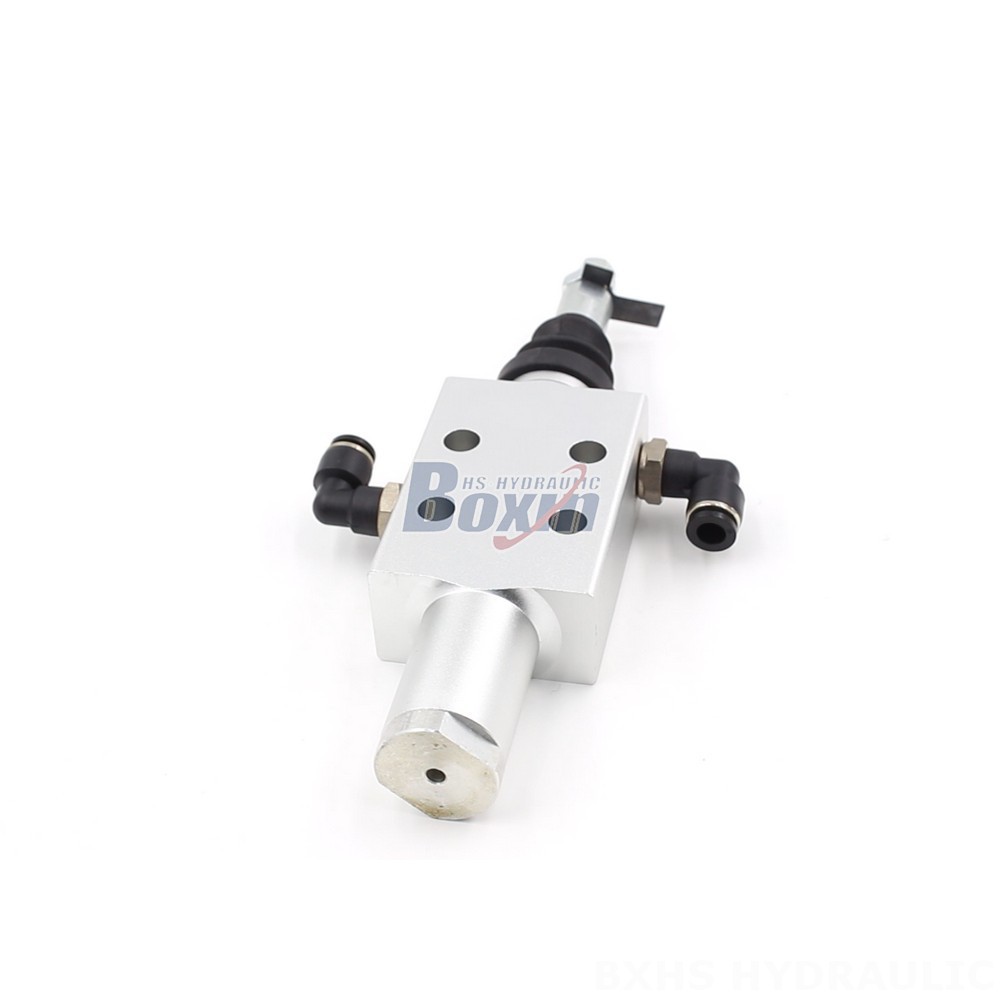

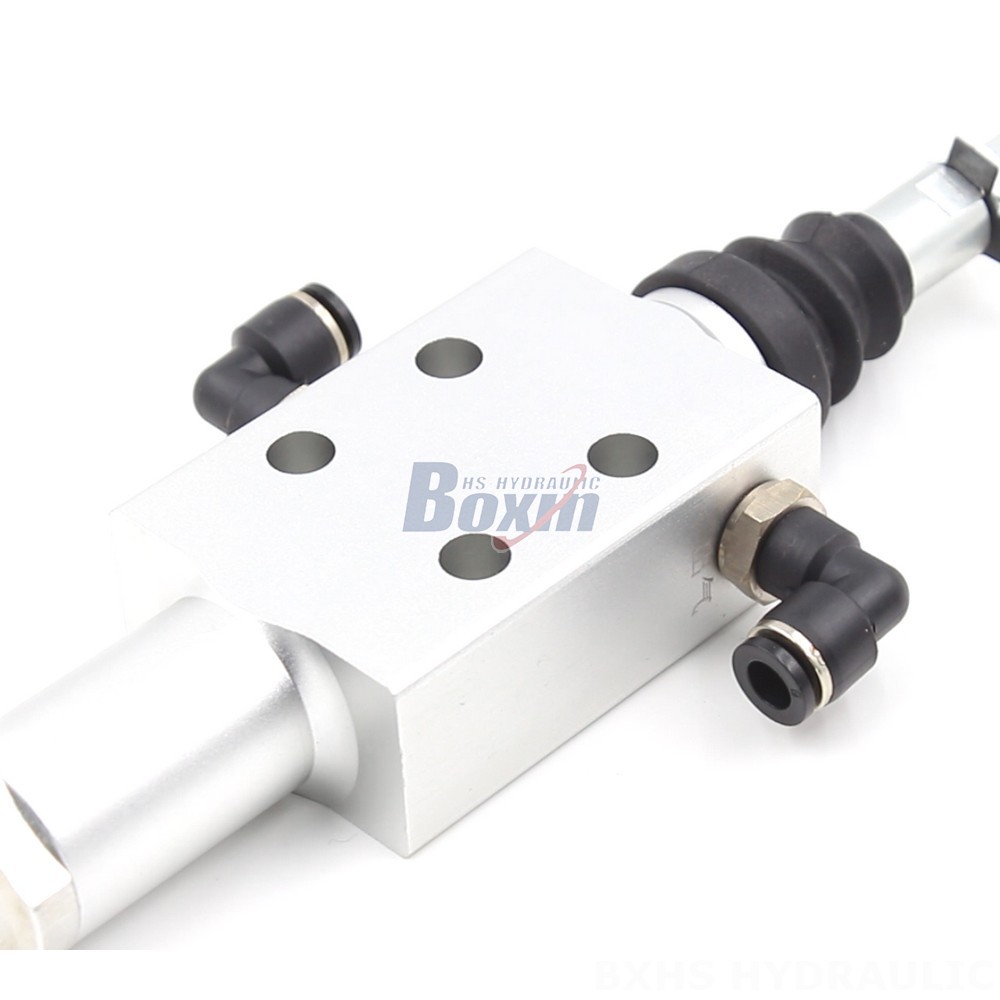

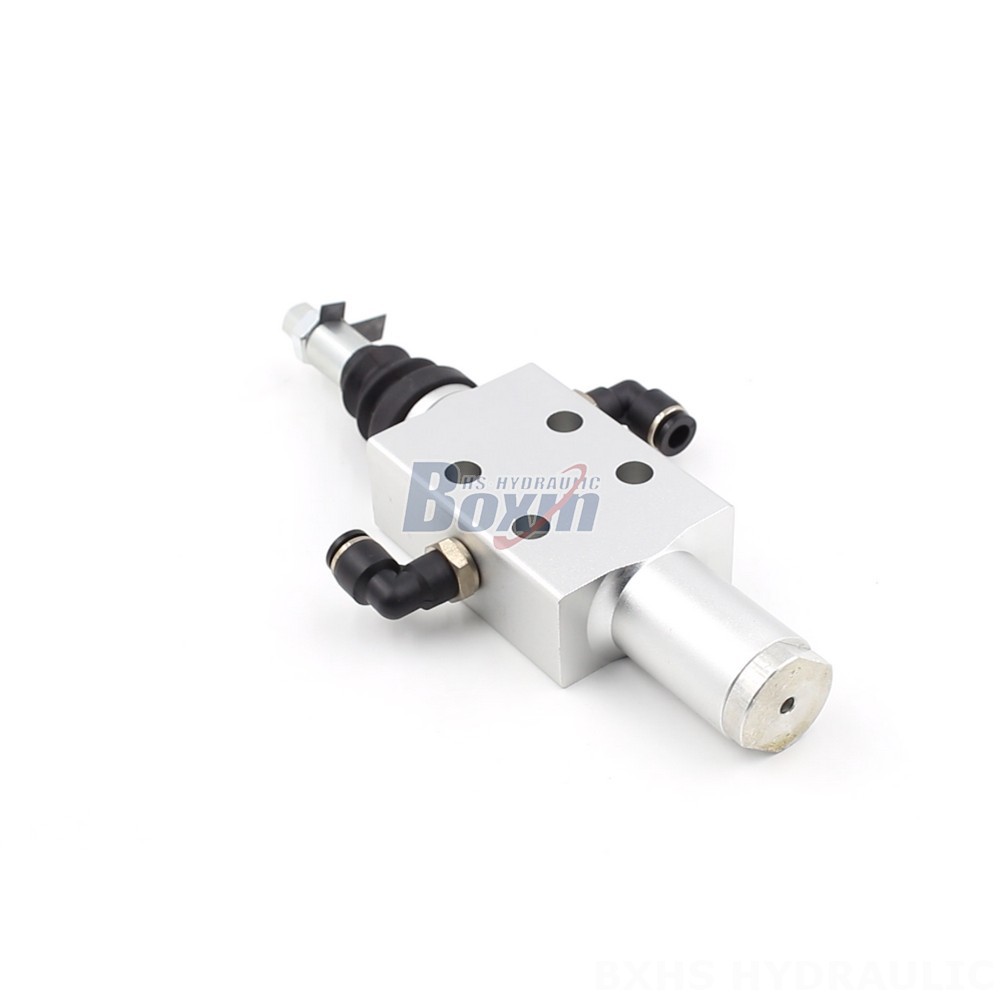

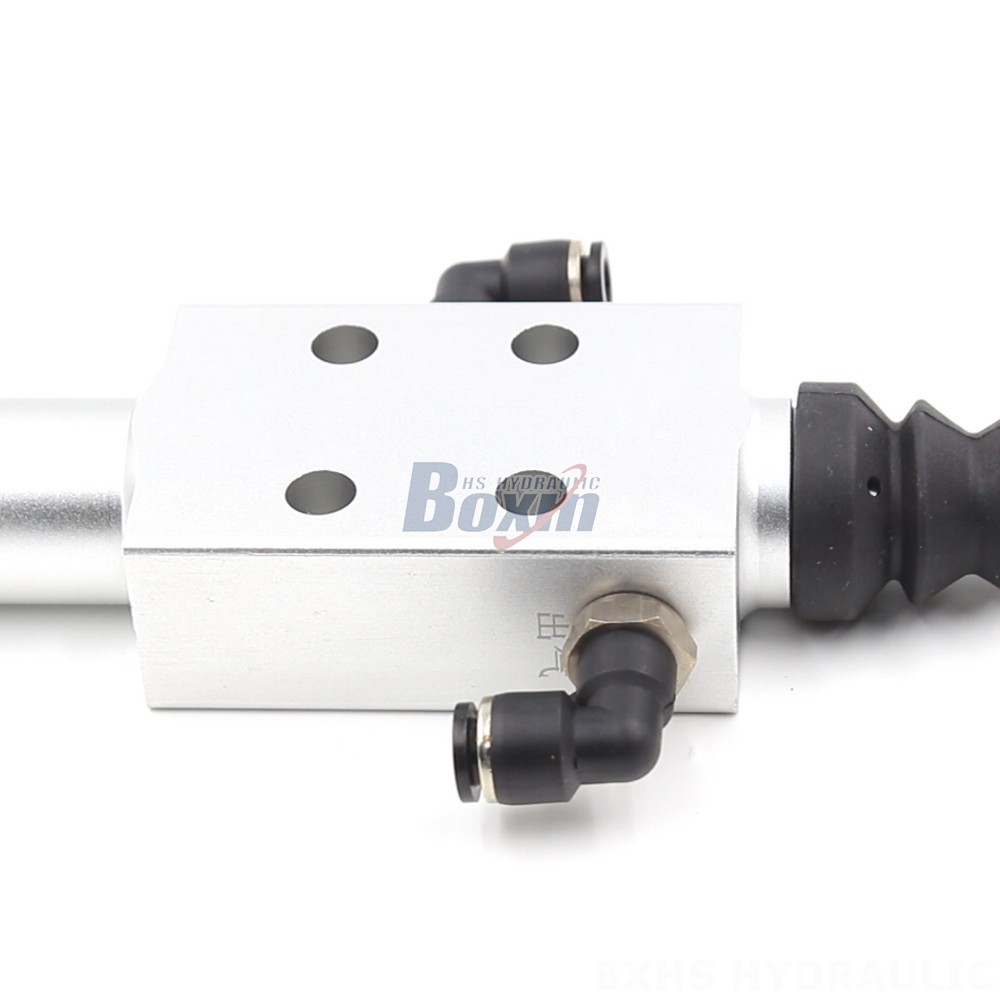

The XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is a reliable and efficient solution for various applications, including construction, material handling, and agriculture. It features a monoblock design, 1 spool, and a maximum pressure of 200 bar (2900 psi).
| XQF-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Pneumattinen |
| Jakaja | 1 kela |
| Ympäristön lämpötila-alue | -40 °C - +60 °C (-40 °F - +140 °F) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso |
| Käyttöviskositeettialue | 12 - 400 mm²/s (12 cSt - 400 cSt) |
| Nimellisvirtaus | 50 L/min (13,2 US gpm) |
| Maksimipaine | 200 baaria (2 900 psi) |
| Tuloportti | G1/4 |
| Ulostuloportti | G1/4 |
| Liitäntäkoko | G1/4 |
This high-performance XQF Series Hydraulic Valve Tractor 1 Spool Pneumatic Directional Valve is designed for demanding applications in construction, material handling, and agriculture. Featuring a robust monoblock structure, it offers exceptional reliability and efficiency. Its pneumatic control provides precise and responsive operation. With a single spool configuration and a maximum pressure rating of 200 bar (2900 psi), this valve is capable of handling various hydraulic functions. Its wide operating viscosity range (12-400 mm²/s) ensures optimal performance across diverse environments. The valve is also built to withstand extreme temperatures, operating flawlessly between -40°C to +60°C (-40°F to +140°F). The XQF Series is designed for compatibility with various equipment, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers.
