Tuotanto & Toimitus
15-30 päivää tuotannon läpimenoaika

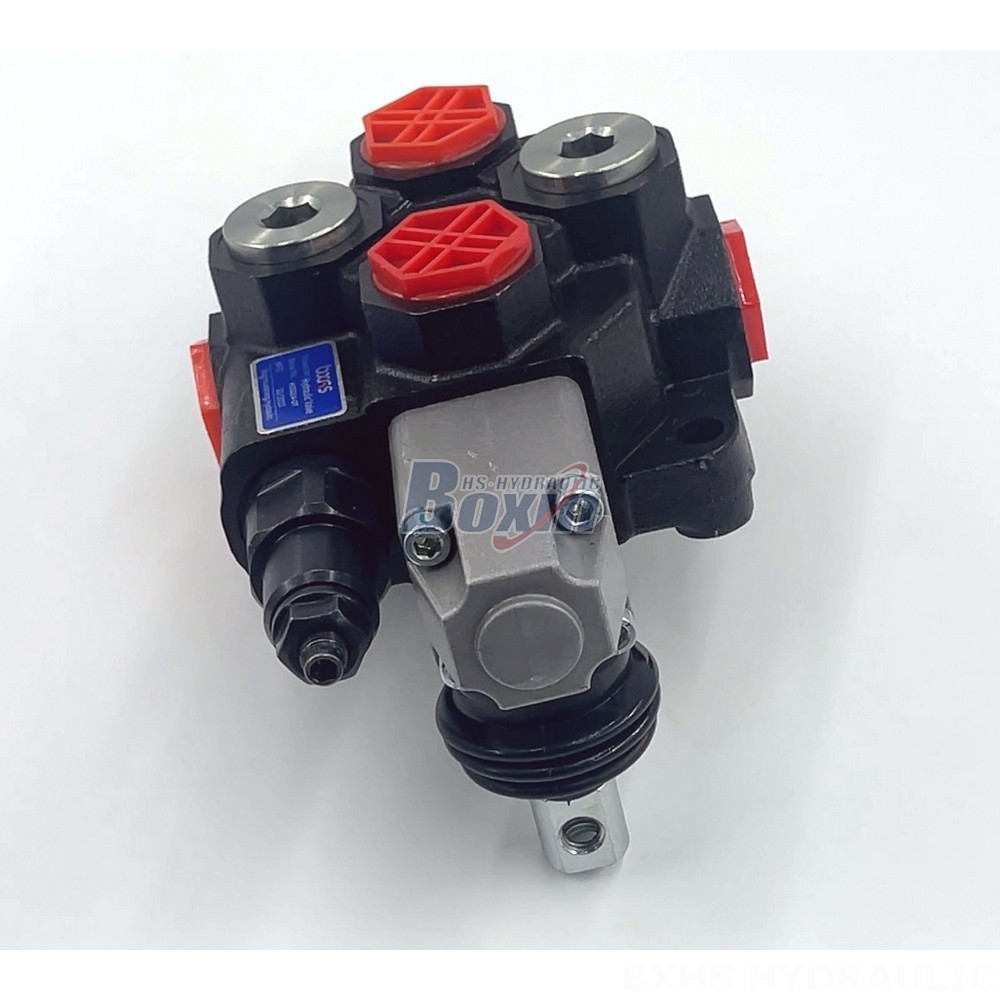

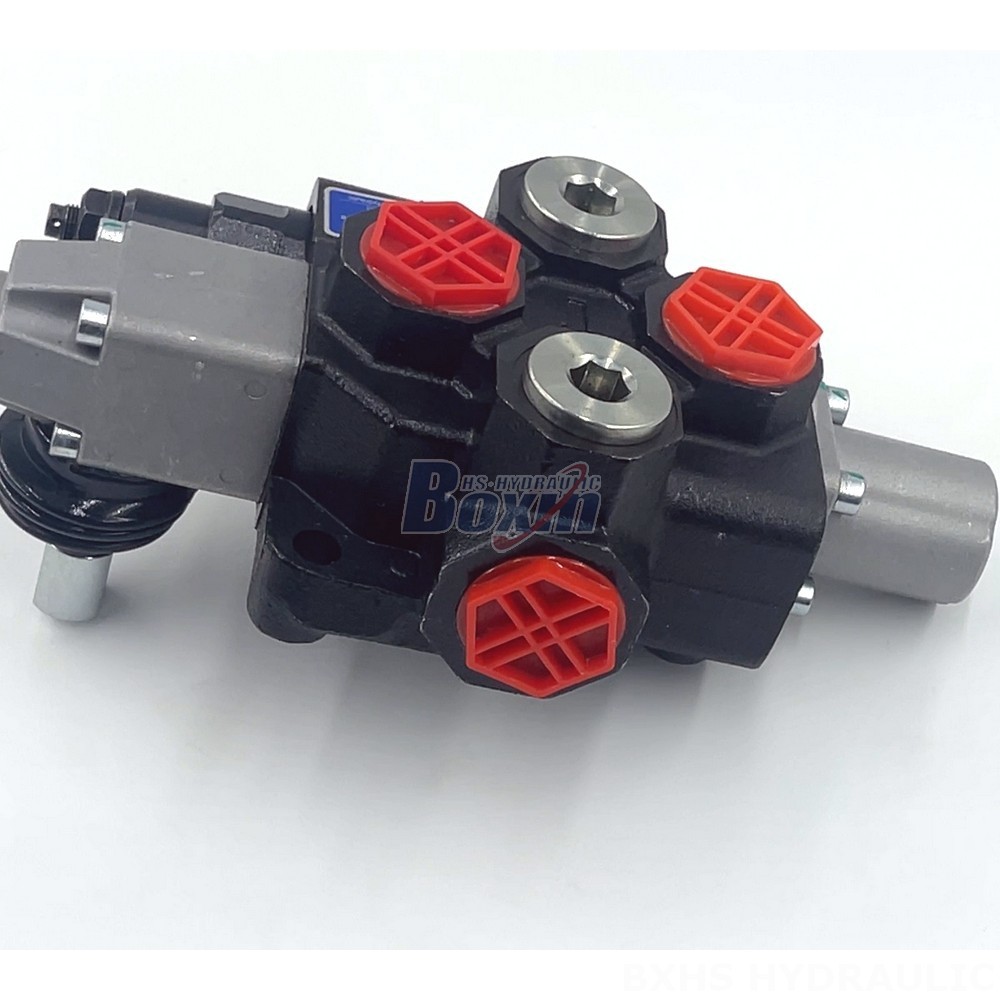

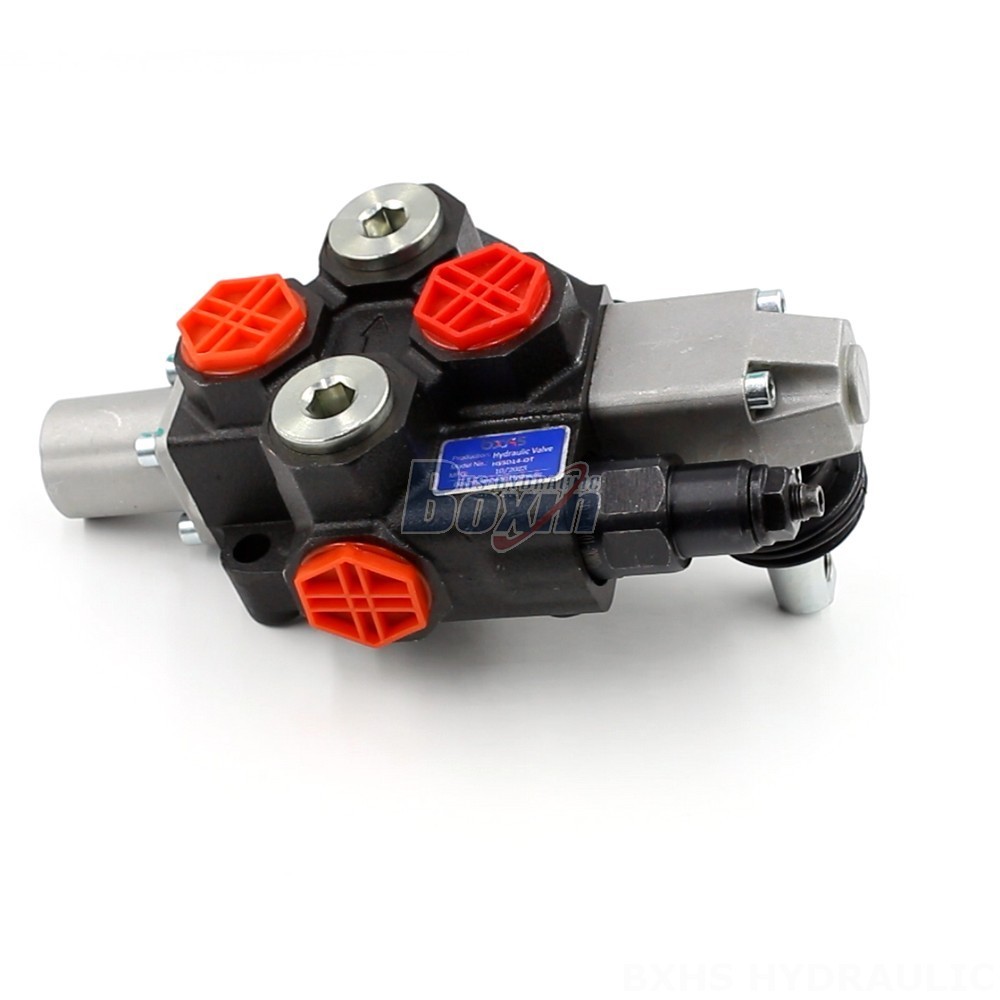

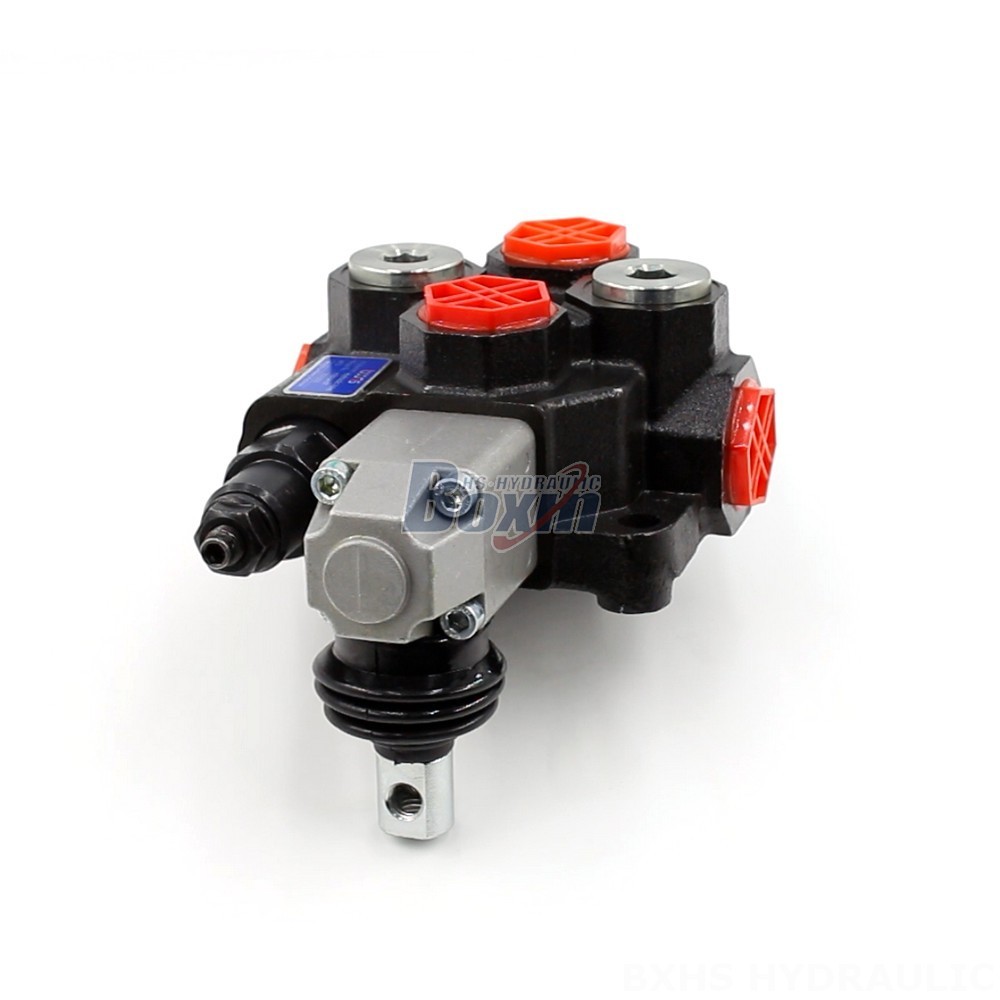

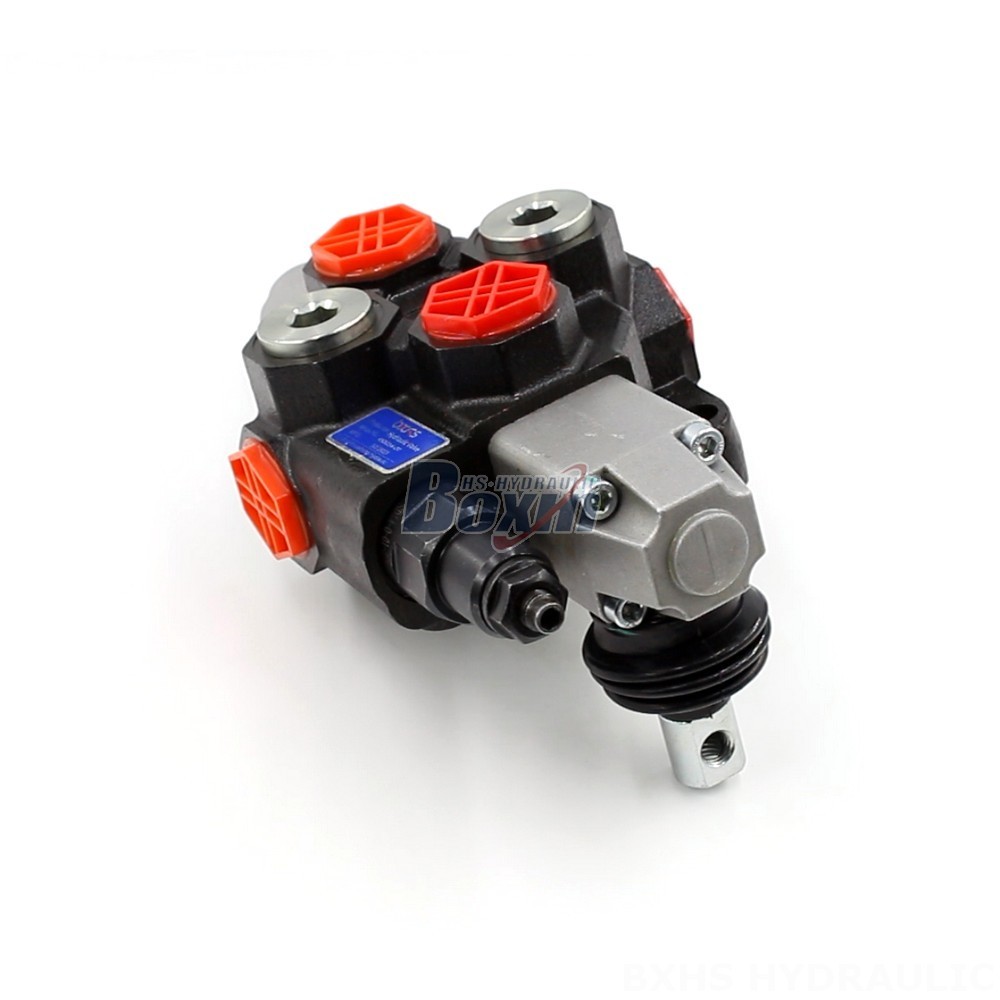

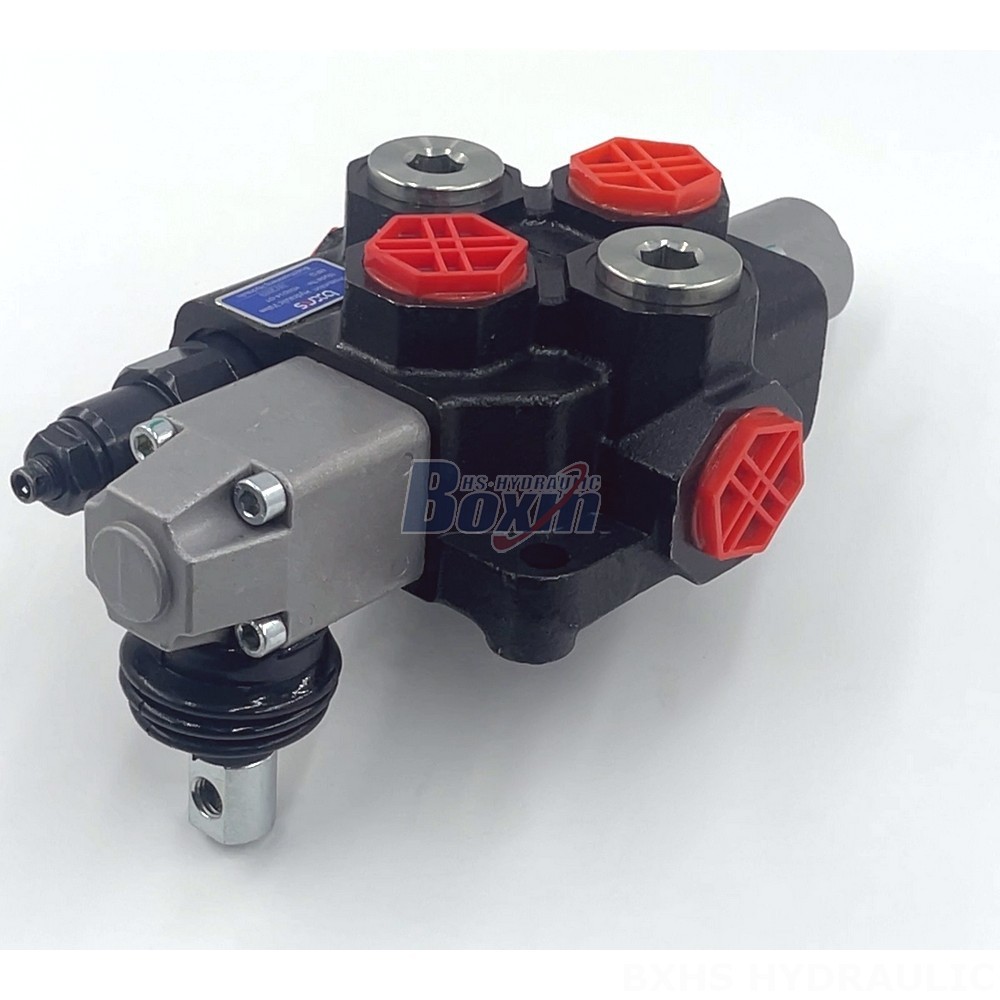

The SD14 Series Hydraulic Sectional Valve is a high-performance, 1-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control and a rated flow of 120 L/min (31.7 US gpm), this valve is ideal for telehandlers, forklifts, excavators, loaders, and other mobile equipment.
| SD14-sarja Monolohkoinen suuntaventtiili Parametrit | |
|---|---|
| Ohjausmenetelmä | Manuaalinen, Pneumattinen, Hydraulinen |
| Jakaja | 1 kela |
| Ympäristön lämpötila-alue | -40 °C - +60 °C (-40 °F - +140 °F) |
| Rakennetyyppi | Yhdistelmäventtiili |
| Jakso | 1 jakso |
| Käyttöviskositeettialue | 15 - 75 mm²/s (15 cSt - 75 cSt) |
| Nimellisvirtaus | 120 l/min (31,7 US gpm) |
| Maksimipaine | 315 baaria (4 600 psi) |
| Tuloportti | G3/4 |
| Ulostuloportti | G3/4 |
| Liitäntäkoko | G3/4 |
This SD14 Series Hydraulic Sectional Valve is a robust, reliable, and customizable solution for your hydraulic system needs. It features a monoblock construction for increased strength and durability. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve delivers the power and performance you need for demanding applications. This valve is designed for a wide range of operating temperatures (-40°C to +60°C) and viscosities (15 - 75 mm²/s), ensuring reliable operation in various environments. Available directly from our factory, you can customize this valve to meet your specific requirements. Our SD14 Series Hydraulic Sectional Valve is suitable for a wide range of applications, including: Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi-Excavators, Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders. Contact us today to discuss your specific needs and get a customized solution.
